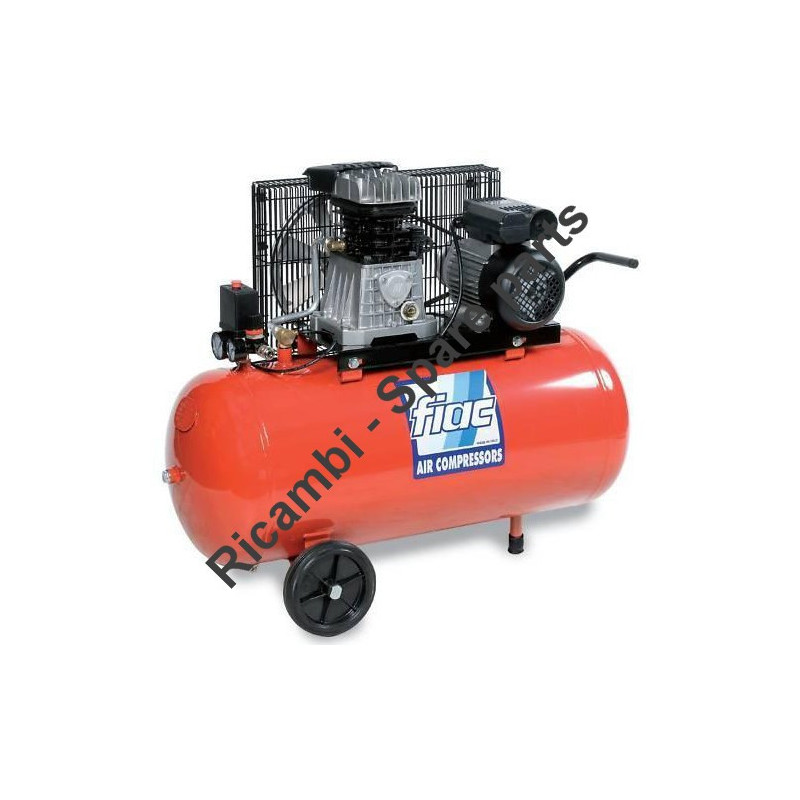

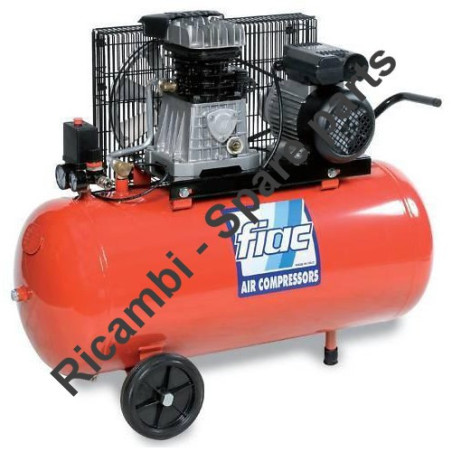

FIAC Spare Parts for Piston Air Compressor AB 50/245 -335
€230.41
Tax included
FIAC Spare Parts for Piston Air Compressor AB 50/245 -335
Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB50/245 -335.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
FIAC Spare Parts for Piston Air Compressor AB 50/245 -335
Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB50/245 -335.
In the following table , look for the type of the air compressor and the respective parts of the code.
| AIR COMPRESSOR AB 50 245-335 | ||
| # | Part Num. | Description |
| 1 | 7408370000 | Pulley Øp130 1-A F24 |
| 2 | 7370060000 | A V-belt 46 |
| 3 | 7201000000 | flywheel |
| 4 | 7240220000 | Belt Guard RT 51 AB 200-240-300 DX |
| 5 | 7380570000 | Single Phase motor |
| 6 | 7030030000 | Washer Ø 8 UNI-6592 |
| 7 | 7011100000 | Screw M8X25 UNI-5739 |
| 8 | 7329160000 | Cable Pressure Switch / Motor |
| 9 | 7329070000 | power cable |
| 10 | 7020240000 | Nut M8 DIN 6923 |
| 11 | 7011120000 | Screw M10x45 UNI-5739 |
| 12 | 7082700000 | Fitting "T" 3 / 8F-1 / 2M.SV-1 / 2M |
| 13 | 7196010000 | Start valve M3 / 8 "1.5 bar |
| 14 | 7020250000 | M10 nut DIN 6923 |
| 15 | 7011410000 | Screw M10x20 DIN 6921 |
| 16 | 7360080000 | Rubber Feet |
| 17 | 7030190000 | Washer Ø6,4X18X1,5 UNI-6593 |
| 18 | 7011010000 | Screw M6x50 UNI-5737 |
| 19 | 7030190000 | Washer Ø6,4X18X1,5 UNI-6593 |
| 20 | 7020060000 | M6 nut UNI-5587 |
| 21 | 7130080000 | Faucet M1 / 2 " |
| 22 | 7130160000 | Draining tap M3 / 8 " |
| 23 | 5159140008 | 50lt tank |
| 24 | 7260050000 | Wheel Ø150X30 F15 |
| 25 | 7018290000 | wheel axle |
| 26 | 7030140000 | Washer Ø12 UNI-6592 |
| 27 | 7020100000 | Nut M12 UNI-5588 |
| 28 | 7090030000 | Cap M1 / 2 " |
| 29 | 7190090000 | Check valve MM 1/2 "-DX |
| 30 | 7230010000 | Tube Rilsan Ø6X4 |
| 31 | 7237570000 | tube feeding |
| 32 | 7250240000 | pressure |
| 33 | 7085530000 | Fitting 1/4 "-3/8" MF |
| 34 | 7110060000 | gauge |
| 35 | 7090070000 | Cap M1 / 4 " |
| 36 | 7088060000 | Fitting MM 3 / 8-1 / 4 CYL 3/8 |
| 37 | 7023050000 | Nut 3/8 " |
| 38 | 7192090000 | Valve Sic. 3/8 "10,4BAR |
| 39 | 7030270000 | Washer Ø8,5X30X4 UNI-6593 |
| 40 | 7011100000 | Screw M8X25 UNI-5739 |
| 41 | 5010990008 | basis |
| 42 | 7100700000 | Pressure reducer |
| 43 | 7082690000 | Fitting "T" 3/8 MFM |
| 44 | 3020431000 | Pumping unit AB 245 |
| 001A | 7409570000 | Pulley Øp160 1 "A" F.24 |
| 002A | 7371050000 | Strap TRAP. A 47 |
| 005A | 7380820000 | Single Phase motor |
| 005B | 7380830000 | Three-phase motor |
| 005C | 7381400000 | Single Phase motor |
| 008A | 7328100000 | CABLE MOT / SAVE 4x1.5 CM99,5 100 LT |
| 009A | 7328800000 | power cable |
| 028A | 7080130000 | The fitting 1 / 2-3 / 8MF |
| 032A | 7250870000 | pressure phase |
| 044A | 3020441000 | Pumping unit AB 335 -> AB360 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
