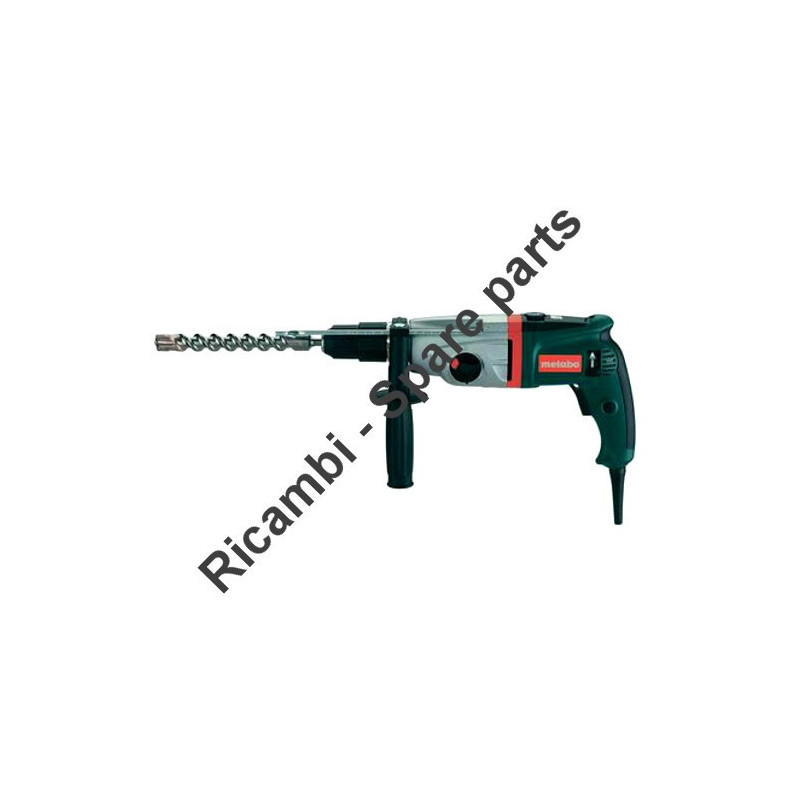

Metabo Spare Parts for Rotary Hammer UHE 28 Plus
€2.05
Tax included
Metabo Spare Parts for Rotary Hammer UHE 28 Plus
Metabo original spare parts for to replace broken parts for to fix Rotary Hammer UHE 28 Plus - 00363000.Fix Your Rotary Hammer. All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Metabo Spare Parts for Rotary Hammer UHE 28 Plus
Metabo original spare parts for to replace broken parts for to fix Rotary Hammer UHE 28 Plus - 00363000.
Fix Your Rotary Hammer. All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Hammer and the respective parts of the code.
| Rotary Hammer UHE 28 Plus/00363000 | ||
| # | Part Num. | Description |
| 1 | 31604285 | Adaptor SDS -PLUS |
| 2 | 14115638 | Circlip |
| 3 | 34207059 | Cup spring |
| 4 | 34107062 | Ratched wheel |
| 5 | 14319516 | Shaft sealing ring |
| 6 | 14311509 | Needle sleeve,30x37x16 |
| 7 | 31604286 | Gear housing compl. |
| 8 | 33900715 | Washer |
| 9 | 34200349 | Pressure spring,34,7x38,3x1,8x27,7 |
| 10 | 34339447 | Retaining ring |
| 11 | 33812140 | Indication label |
| 12 | 14112249 | Self-tap. fill. h. screw |
| 13 | 14115636 | Circlip |
| 14 | 31604277 | Sliding block |
| 15 | 34107148 | Ratched wheel |
| 16 | 34339525 | Ring |
| 17 | 31604331 | Drill driving sleeve compl. |
| 18 | 14319520 | Shaft sealing ring |
| 19 | 34100581 | Bushing |
| 20 | 34105903 | Piston |
| 21 | 34101298 | Support ring |
| 22 | 14319515 | O-ring |
| 23 | 33900719 | Washer |
| 24 | 14319521 | O-ring |
| 25 | 34105895 | Catching sleeve |
| 26 | 14118184 | Circlip |
| 27 | 31604335 | Striker compl. |
| 28 | 34409314 | Sealing ring |
| 29 | 34105868 | exciter sleeve compl. |
| 30 | 32005048 | Ball holder |
| 31 | 34409557 | Seal |
| 32 | 31603054 | Gear flange cpl. |
| 33 | 34407067 | Felt seal |
| 34 | 34409592 | Rubber buffer |
| 35 | 14111944 | Fill. head screw(DIN 7985) |
| 36 | 34337675 | Seal |
| 37 | 31604271 | Control knob compl. |
| 38 | 33912961 | Washer |
| 39 | 14311428 | Axial needle bearing |
| 40 | 14115492 | Cup spring |
| 41 | 34000323 | Coupling sleeve |
| 42 | 31604324 | Pinion shaft compl. |
| 43 | 33913098 | Butting sheet |
| 44 | 31602956 | Shift element |
| 45 | 34151163 | Depth stop |
| 46 | 31400111 | Support handle compl. |
| 47 | 34337604 | Sealing ring |
| 48 | 14311488 | Ball bearing, 8x22x7 |
| 49 | 34170336 | Cap screw |
| 50 | 31604332 | Keyless chuck w.adaptor |
| 51 | 31604379 | Quick-change adaptor |
| 52 | 14311475 | Ball bearing, 6X 19X 6 |
| 53 | 34337427 | Intermediate flange |
| 54 | 33805071 | Rating plate |
| 55 | 34308154 | Electronic unit 230V |
| 56 | 34340688 | poti switch 230V |
| 57 | 14111706 | Self-tap. fill. h. screw |
| 58 | 31604106 | Drill Handle w/overmold green |
| 59 | 34336249 | Cable clip |
| 60 | 31603574 | Fan w. prot. Grid |
| 61 | 31000788 | Armature cpl.230V (w. tacho gen.) |
| 62 | 14319243 | O-ring |
| 63 | 14111826 | Self-tap. fill. h. screw |
| 64 | 31100981 | Field coil 230V |
| 65 | 31501265 | Motor housing |
| 66 | 33812159 | M-Label 99, 52x22 UHE 28 Plus |
| 68 | 33811541 | Indication label |
| 69 | 33912939 | Brush contact |
| 70 | 31604374 | Carbon brush set,230V |
| 71 | 31604361 | Brush holder module R+L,230 V |
| 72 | 34448673 | Cord with plug |
| 73 | 34410114 | Cable sleeve |
| 74 | 31604367 | Maintenance kit |
| 75 | 34101306 | Support ring |
| 880 | 34413080 | Grease FG 126 |
| 890 | 34413121 | Tube Grease,50g Klueber Microlube GL 261 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo UHE 28 Plus - 00363000
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N METABO:
- METABO S/N START WITH ( 0 ) and have 8 DIGITS
