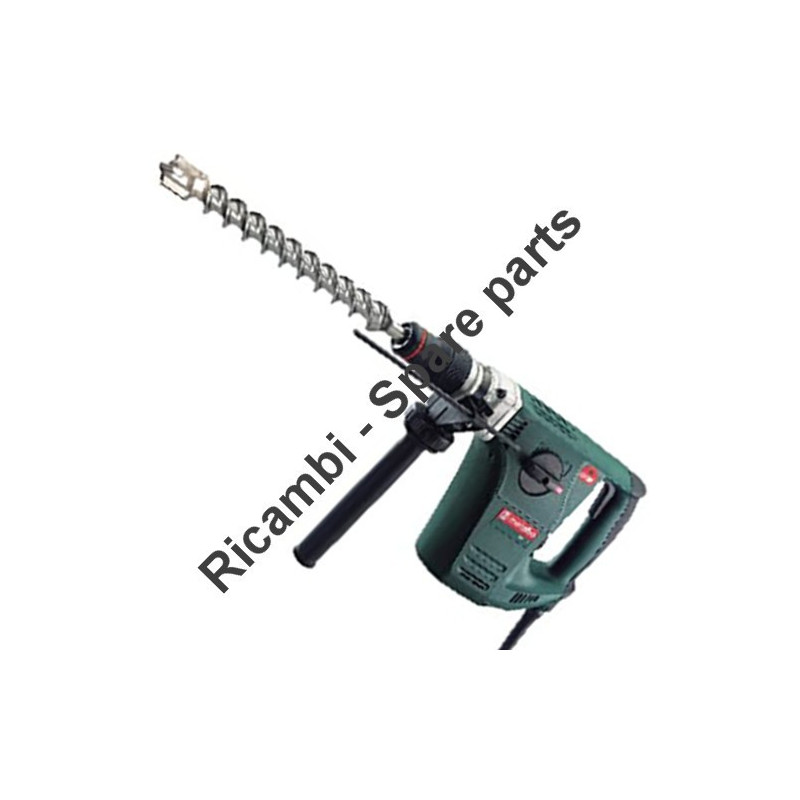

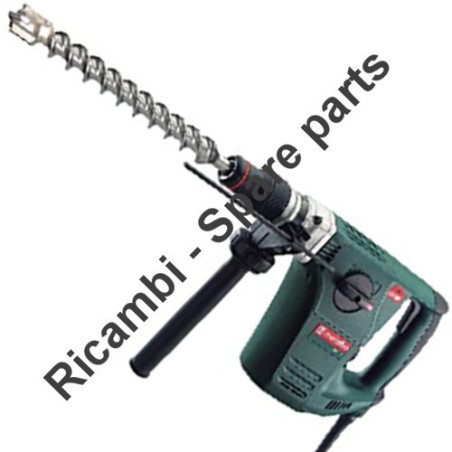

Metabo Spare Parts for Rotary Hammer KHE 75

€8.06
Tax included

Metabo Spare Parts for Rotary Hammer KHE 75

We have the original Spares METABO for Rotary Hammer KHE 75 - 00275000 the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Rotary Hammer KHE 75. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Rotary Hammer KHE 75 - 00275000
ITEM CODE: 33912737
Quantity
on 10 Business Days Approx

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Metabo Spare Parts for Rotary Hammer KHE 75

Fix Your Rotary Hammer KHE 75 - 00275000. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Hammer and the respective parts of the code.
Metabo KHE 75 - 00275000
ROTARY HAMMER METABO KHE 75 - 00275000
# Part Num. Description
1 33912737 CLAMP BAND BHE
2 34111165 THUMB SCREW HO 0882
3 34337054 Clamping piece KHE 75
4 34151445 Depth stop
5 34110174 Square nut
6 14113065 HEX LOCK NUT M 6
7 31400074 Handle
8 14111798 Cap screw
9 39999999 Part not needed
10 34337974 Cover KHE 55/75
11 34409468 O-RING BHE 6045 S
12 34337978 Cover
13 34407080 Filter (felt)
14 14112161 FILL HEAD SCREW
15 34339024 HANDLE HOUSING KHE
16 33811788 Sticker
17 34170272 SCREW 4x18
18 33811557 INDICATION LABEL KHE3
19 34336987 Switch trigger
20 34340755 SWITCH KHE75/MHE65
21 34337976 Handle cover MHE
22 34100479 THREADED BUSHING BHE
23 34151446 PIN 8x30
24 34336989 Clamping wheel
25 34409458 DUST CAP BHE 6045 S
26 34339033 Sleeve
27 31603598 Sliding sleeve cpl. KHE
30 34200232 PRESSURE SPRING BHE
31 33912739 HOLDER
32 34337396 RETAINING RING BHE604
33 34202187 Conical spring
34 33912741 PLATE GUIDE BHE6045
35 31603740 Housing cpl.
36 33921076 SEALING RING BHE
37 34409695 GASKET KHE
38 34100481 Toothed sleeve
39 33912742 Washer 41X48X1,8
40 14319505 O-ring 5 X 1,2
41 34151448 ROLLER 8X20
42 34160339 SPINDLE BHE 6045 S
43 34202153 Circlip 43FL
44 34101246 Washer RD 44,4
45 34200233 Pressure spring
46 34100482 Shift sleeve
47 34105746 PISTON BHE
49 34101271 Washer
50 14319495 O-RING MHE/KHE
51 34101248 Washer
52 14319493 O-RING MHE/KHE
53 34337945 Bush
54 34202155 CIRCLIP
55 34101249 Washer 50,4x56,6
56 34003272 Bevel gear
57 34105745 Piston KHE
59 34105744 Cylinder KHE
60 31602510 S/CLUTCH BHE 6045 S
61 14311480 BEARING 12x28x8
62 14319496 O-ring 5 X 1,2
63 14319494 O-RING MHE/KHE
64 34114543 PISTON RING BHE 6045
65 34337946 Piston
66 33912743 Shift fork
67 34151447 Cylindrical pin 4.7x82.5
68 34200235 PRESSURE SPRING BHE
69 34105454 TUB RIVOT BHE
70 34200234 PRESSURE SPRING BHE
71 33913217 Shift strap
72 31603738 Eccentric
73 34409474 O-RING BHE6045
74 34339037 O-Ring MHE
75 31000865 ARMATURE KHE/MHE
76 32005041 Needle roller 8x24
77 34337057 CON ROD
78 34337051 Insulating cap
79 34105743 Crank shaft
80 34409469 O-RING BHE 6045 S
81 34170273 SCREW 4x65
82 31603736 Housing w. needle bearing
83 34114545 Choke holder
84 31603741 CARBON BRUSH KHE (x2)
85 14311403 Needle sleeve
86 14311404 BEARING 10x26x8
87 34409462 Rubber bushing
88 34001192 Gear wheel
89 34105459 Friction bearing
90 34409694 Rubber bushing KHE
91 34409472 GASKET BHE6045
92 34337062 COVER BHE
93 31603737 Intermediate flange cpl.
94 31603739 CONTROL LEVER KHE
95 34308076 ELECTRONIC UNIT KHE75
96 34337977 Baffle
97 31101031 Field coil 230 V
98 34200237 BRUSH SPRING BH6045
99 34170386 Screw 3,5 X 12
100 31603746 2 PART CAP KHE75
101 33000164 FAN CPL KHE
102 14112159 FILL HEAD BHE6045
103 33804519 Rating plate
104 34337058 Cable clip
105 33811854 INDIC LABEL KHE75
106 34337973 Motor housing
107 34339034 Supporting plate
108 34410095 Cable sleeve
109 34448906 Cable with plug
111 31603758 MAIN KIT MHE/KHE
112 31400075 HANDLE BHE 6045 S
880 34413108 GREASE MHE/KHE
1001 33850427 Diagram
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo KHE 75 - 00275000

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS APPROX.
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS
New

Download

Diagram Metabo KHE75

Diagram Metabo KHE75

Download (299.17KB)
