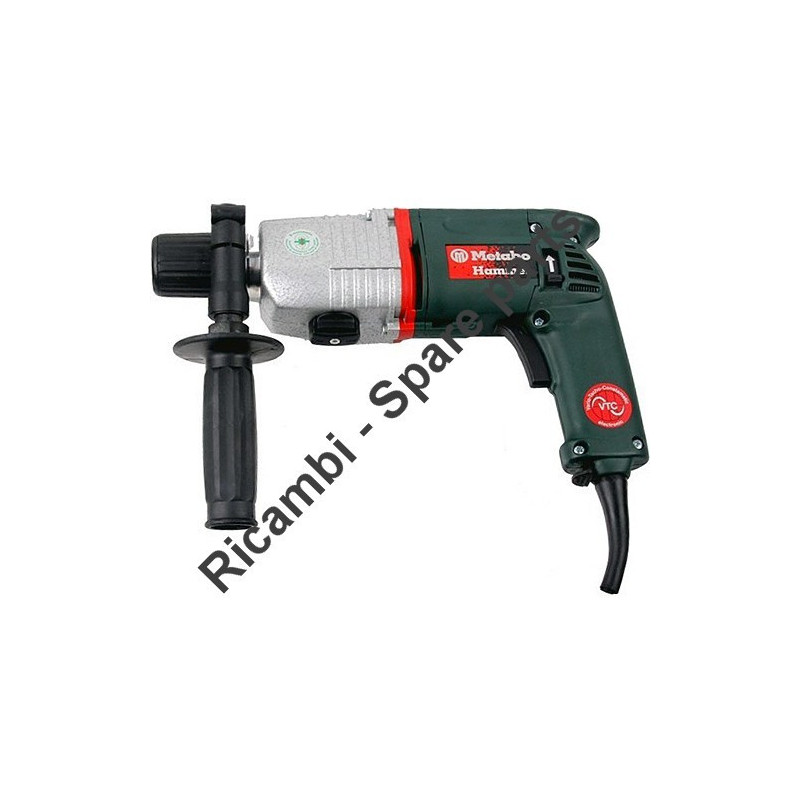

Metabo Spare Parts for Rotary Hammer BH E 6024 S - R+L
€27.50
Tax included
Metabo Spare Parts for Rotary Hammer BH E 6024 S - R+L
Metabo Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer Metabo BH E 6024 S - R+L - 606024001.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Metabo Spare Parts for Rotary Hammer BH E 6024 S - R+L
Metabo Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer Metabo BH E 6024 S - R+L - 606024001.In the following table, look for the model of the Drill and the respective parts of the code.
| Rotary Hammer Metabo BH E 6024 S - R+L - 606024001 | ||
| # | Part Num. | Description |
| 1 | 62728800 | DEPTH STOP |
| 2 | 31400077 | SUPPORT HANDLE CPL. |
| 3 | 14111616 | HEXAGON HEAD SCREW |
| 4 | 34200780 | PRESSURE SPRING |
| 5 | 34336491 | LOCKING BUSHING |
| 6 | 34335978 | CLAMPING PIECE |
| 7 | 31400077 | SUPPORT HANDLE CPL. |
| 8 | 34170219 | TIGHT FIR SCREW PLAST.45 |
| 9 | 31602409 | GEAR HOUSING CPL. |
| 11 | 14115375 | SUPPORTING DISC |
| 12 | 14311143 | NEEDLE SLEEVE |
| 13 | 31602411 | INTERMEDIATE GEAR CPL. |
| 15 | 31602062 | PISTON CPL. |
| 16 | 14319240 | O-RING |
| 17 | 34105596 | DAMPING RING |
| 18 | 31602410 | CATCHING SLEEVE CPL. |
| 19 | 14319392 | O-RING |
| 20 | 14118184 | CIRCLIP |
| 21 | 31602412 | DRILLING SLEEVE CPL. |
| 22 | 34409314 | SEALING RING |
| 23 | 31601766 | STRIKER CPL. |
| 24 | 34105415 | EXCITER SLEEVE |
| 25 | 34409502 | SEAL |
| 26 | 32005020 | BALL HOLDER |
| 27 | 31602614 | GEAR FLANGE CPL. |
| 28 | 14111944 | FILL. HEAD SCREW(DIN 7985) |
| 29 | 34409295 | RUBBER CAP |
| 30 | 34202104 | TORSION SPRING |
| 31 | 14118012 | RETAINING RING |
| 32 | 34336168 | ADJUSTING RING |
| 33 | 14312032 | BALL |
| 34 | 34200156 | TENSION-SPRING RING |
| 35 | 34336169 | SPACER RING |
| 36 | 34170238 | CAP SCREW |
| 37 | 31602385 | CONTROL KNOB CPL. |
| 38 | 14319006 | O-RING |
| 39 | 14115113 | WASHER |
| 40 | 31602415 | SHIFT BOLT CPL. |
| 41 | 33912378 | WASHER |
| 42 | 14311428 | AXIAL NEEDLE BEARING |
| 43 | 14115492 | CUP SPRING |
| 44 | 31602387 | INTERMEDIATE GEAR CPL. |
| 45 | 31602386 | SHIFT ELEMENT |
| 46 | 14319257 | O-RING |
| 47 | 33000106 | FAN CPL. |
| 48 | 31000553 | ARMATURE CPL. 220 V |
| 49 | 14311223 | BALL BEARING. 6X19X6 |
| 50 | 14115340 | WASHER |
| 51 | 33803187 | RATING PLATE |
| 52 | 31501232 | MOTOR HOUSING |
| 53 | 33810916 | INDICATION LABEL |
| 55 | 31602102 | PRESSURE PLATE CPL. |
| 56 | 14111684 | SELF TAPPING SCREW |
| 57 | 34307567 | ELECTRONIC UNIT 220 V |
| 58 | 34170205 | SCREW |
| 59 | 34336235 | PISTOL GRIP |
| 61 | 34449015 | STRAND CPL. AWG18SW |
| 62 | 14118176 | CIRCLIP |
| 63 | 33911102 | COVER |
| 64 | 34200121 | PRESSURE SPRING |
| 65 | 34336246 | LOCKING CATCH |
| 66 | 34336177 | COVER |
| 67 | 34336472 | SEALING WASHER |
| 68 | 14311488 | BALL BEARING. 8X22X7 |
| 69 | 14319243 | O-RING |
| 70 | 34336179 | FLANGE |
| 71 | 14111609 | SELF TAPPING SCREW |
| 72 | 31100809 | FIELD COIL 230 V |
| 73 | 33811563 | METABO LABEL |
| 74 | 34200114 | INDEX BOLT |
| 75 | 31602939 | SETTING RING CPL. |
| 76 | 31603385 | BRUSH WITH HOLDER |
| 77 | 39999999 | PART NOT NEEDED |
| 78 | 34449364 | CABLE WITH PLUG |
| 79 | 14111697 | FILLISTER HEAD SCREW |
| 80 | 34410075 | INSERT |
| 81 | 14112034 | SCREW |
| 82 | 34336249 | CABLE CLIP |
| 83 | 34410059 | CABLE SLEEVE |
| 87 | 39999999 | PART NOT NEEDED |
| 90 | 14319406 | SEAL |
| 92 | 14311394 | NEEDLE SLEEVE |
| 93 | 14319464 | O-RING |
| 880 | 34413080 | GREASE FG 126 |
| 1001 | 33850064 | DIAGRAM |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo BH E 6024 S R+L 606024001
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N METABO:
- METABO S/N START WITH ( 0 ) and have 8 DIGITS
