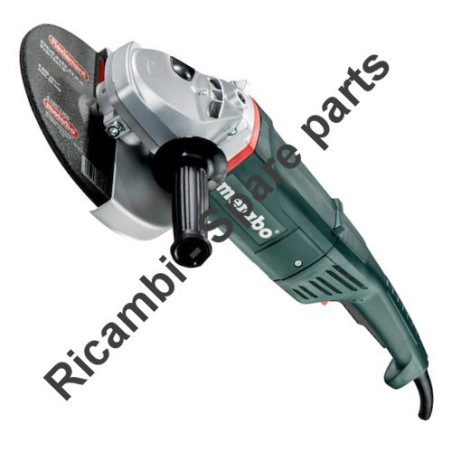

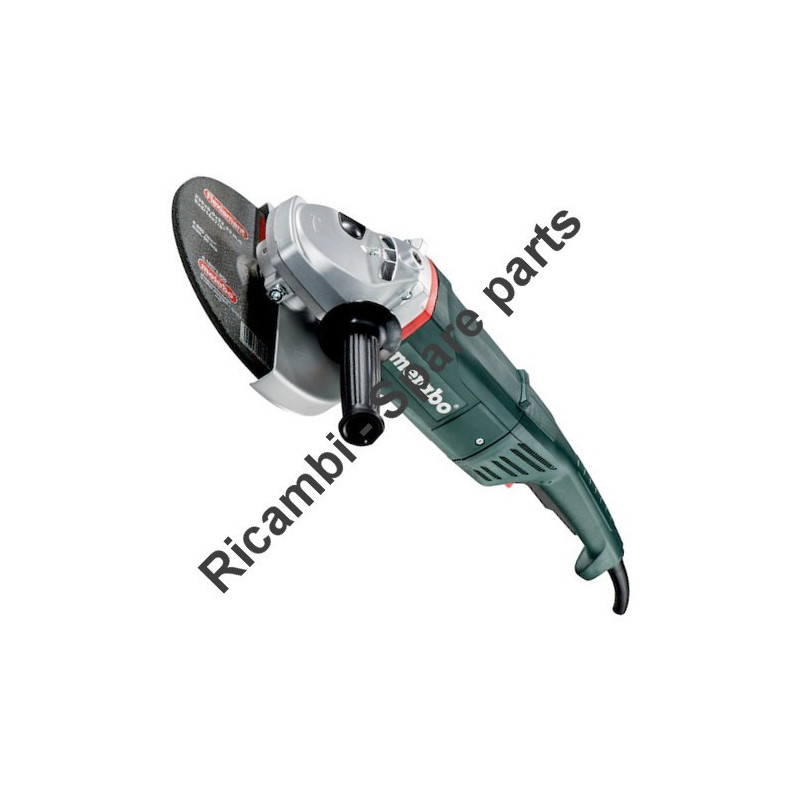

Metabo Spare Parts for Angle grinder WX 2400-230
€1.92
Tax included
Metabo Spare Parts for Angle grinder WX 2400-230
Metabo original spare parts for to replace broken parts for to fix Angle Grinder WX 2400-230/00379000.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Metabo Spare Parts for Angle grinder WX 2400-230
Metabo original spare parts for to replace broken parts for to fix Angle Grinder WX 2400-230/00379000.
Open PDF Diagram, check your spare part number position and then select it in the following table.
| Angle Grinder WX 2400-230/00379000 | ||
| # | Part Num. | Description |
| 1 | 31400028 | Handle cpl. |
| 2 | 34337644 | Push button |
| 3 | 34200173 | Pressure spring |
| 4 | 34100397 | Guide bush |
| 5 | 31603172 | Gear housing cpl. |
| 6 | 34151381 | Thrust bolt |
| 7 | 34110066 | Self locking nut |
| 8 | 31602529 | Bevel gear Set |
| 9 | 34101151 | Spacer ring |
| 10 | 14319244 | elt ring |
| 11 | 33907008 | Cover washer |
| 12 | 14311523 | Ball bearing, 12x37x12 |
| 13 | 33900728 | Fixed bearing cover |
| 14 | 31001221 | Armature compl.,230V |
| 15 | 14311340 | Ball bearing, 8x22x7 |
| 16 | 34409408 | Rubber bearing |
| 17 | 34343775 | Intermediate flange |
| 18 | 14112444 | Fillister head screw |
| 19 | 31101265 | Field coil w.field coil,230V |
| 20 | 14112445 | Fillister head screw |
| 21 | 14112202 | Fillister head screw |
| 22 | 14111985 | Fillister head screw |
| 23 | 33906014 | Sealing ring |
| 24 | 31604747 | Gear flange compl.,D 230 |
| 25 | 14112164 | Fill. head screw(DIN 7985) |
| 26 | 34160416 | Spindle |
| 27 | 34110690 | Flange nut |
| 28 | 34103116 | Clamping flange |
| 29 | 31604500 | Wheel guard compl.,D 230 |
| 30 | 34170205 | Screw |
| 31 | 34337643 | Cover |
| 32 | 31604748 | Carbon brush set |
| 33 | 34300077 | Brush guide |
| 34 | 14111602 | Self-tap fill h screw |
| 35 | 34339826 | Handle (upper+under part) |
| 36 | 31604541 | Switch compl.,230V |
| 37 | 33912773 | Cable clip |
| 38 | 14111680 | Self-tap. fill. h. screw |
| 39 | 34409455 | Cable sleeve |
| 40 | 34448780 | Cable with plug |
| 41 | 33811734 | Indication label |
| 42 | 34416084 | Pin spanner |
| 43 | 31501276 | Motor housing |
| 44 | 33812208 | Metabo label |
| 880 | 34413091 | Grease 100G |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo WX 2400-230 00379000
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N METABO:
- METABO S/N START WITH ( 0 ) and have 8 DIGITS
