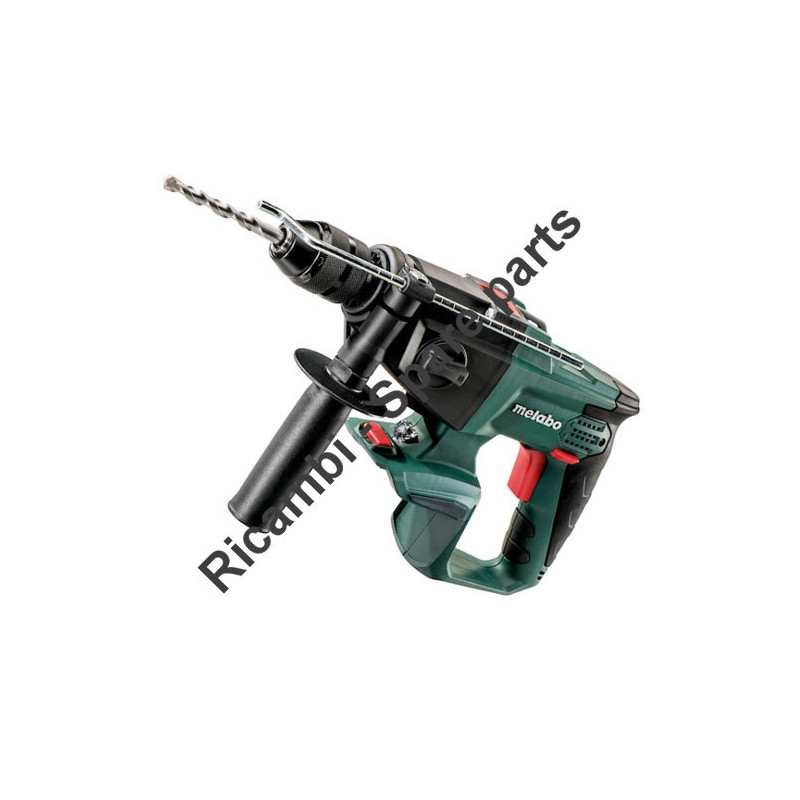

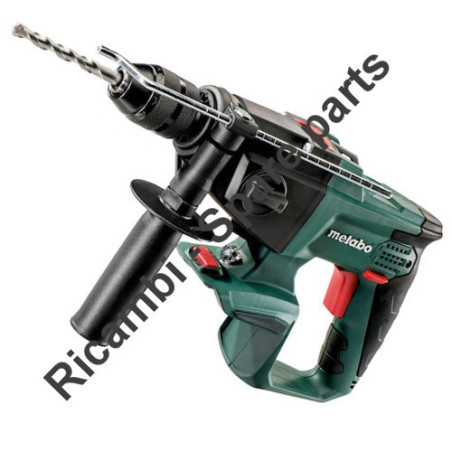

Metabo Spare Parts for Percussion Cordless Drill SBE 18 LTX
Metabo genuine spare parts or replacement parts for to repair Percussion Cordless Drill SBE 18 LTX/00845000.High-performance cordless hammer drill for powerful drilling in masonry equivalent to that of a mains-powered tool
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Metabo Spare Parts for Percussion Cordless Drill SBE 18 LTX
Metabo genuine spare parts or replacement parts for to repair Percussion Cordless Drill SBE 18 LTX/00845000.
High-performance cordless hammer drill for powerful drilling in masonry equivalent to that of a mains-powered tool
Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the tool stop unexpectedly
Spindle with hexagonal recess for screwdriver bits for working without chuck
Collar (Ø 43 mm) for versatile use
Integrated working light to illuminate the contact area
Practical capacity display for checking the charge status
Ultra-M technology: highest performance, gentle charging and 3 years of warranty on the battery pack.
Open PDF Diagram, check your spare part number position and then select it in the following table.
| Percussion Cordless Drill SBE 18 LTX | ||
| # | Part Num. | Description |
| 1 | 34170501 | Cap screw |
| 2 | 30100314 | Keyless chuck, 1,5-13 |
| 3 | 34151163 | Depth stop |
| 4 | 31400084 | Support handle cpl. |
| 5 | 14311552 | Ball bearing |
| 6 | 34409935 | O-ring,12,5 x 1,5 |
| 7 | 14118009 | snap ring |
| 8 | 34160441 | spindle |
| 9 | 34107125 | Ratched wheel front |
| 10 | 34170482 | Screw |
| 11 | 31501349 | Gear housing |
| 12 | 34000431 | Sliding block |
| 13 | 31605271 | Switch compl. |
| 14 | 32005047 | Ball holder |
| 15 | 33900647 | Friction Washer |
| 16 | 34200388 | Pressure spring |
| 17 | 34343280 | Sealing ring |
| 18 | 31609508 | Gear flange compl. |
| 19 | 34170485 | Screw,ST 4,2x15 TX20 |
| 20 | 34409592 | Rubber buffer |
| 21 | 34202230 | Circlip,C |
| 22 | 31605272 | Switch compl. |
| 23 | 34154019 | Guide bolt |
| 24 | 33913581 | Shift fork |
| 25 | 31609509 | Pinion shaft compl. |
| 26 | 14311548 | Needle bearing |
| 27 | 34409874 | Rubber bushing |
| 28 | 31605321 | Brush holder compl.,18 V |
| 29 | 31101188 | Field coil compl.,2 pol. |
| 30 | 31001130 | Armature |
| 31 | 14311589 | Ball bearing, 8X 22X 7 |
| 32 | 34339831 | Sealing washer |
| 33 | 34344014 | Press button |
| 34 | 34341057 | Switch slide |
| 35 | 34308338 | LED lense |
| 36 | 34344015 | Pressure plate |
| 37 | 34200177 | Pressure spring |
| 38 | 34341056 | Switch slide,R+L |
| 39 | 34308445 | Electronic switch |
| 40 | 34344013 | Motor housing |
| 41 | 34344017 | Cover right |
| 42 | 33914751 | hook |
| 43 | 33812994 | Indication label |
| 44 | 34344016 | Cover left |
| 45 | 34170471 | Screw,ST2,9x13 |
| 46 | 14111602 | Self-tap fill h screw |
| 47 | 33806685 | Rating plate, 00845000 SBE 18LTX |
