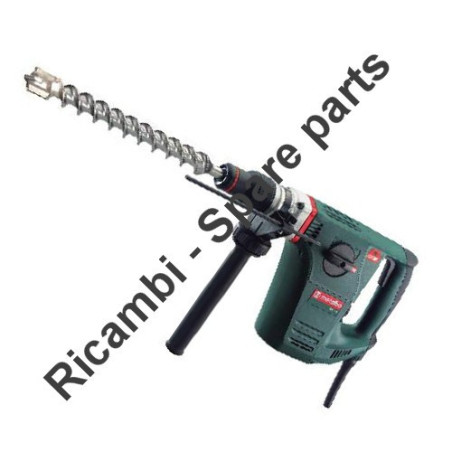

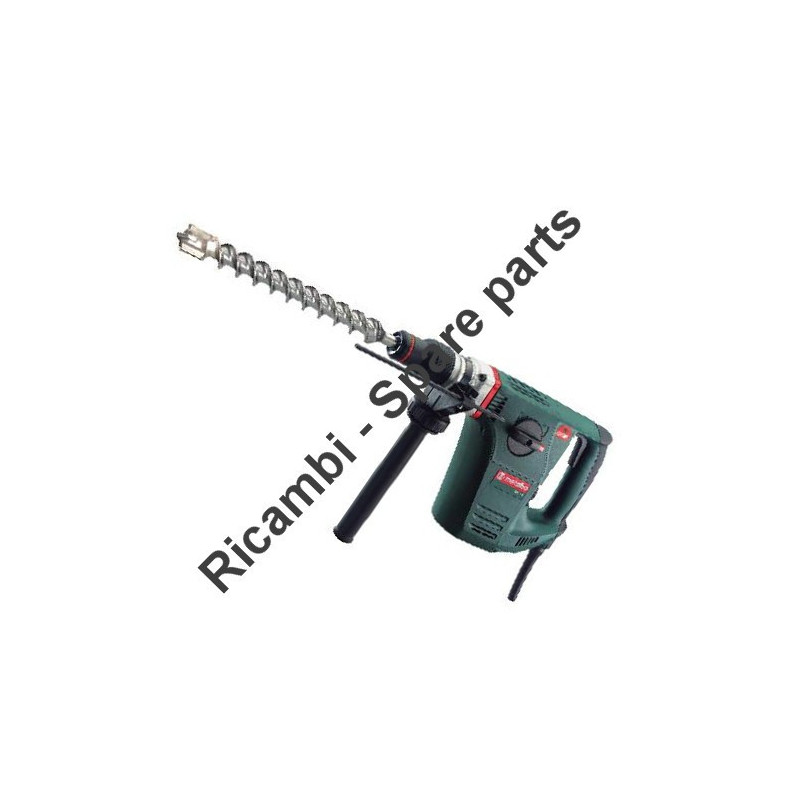

Metabo Spare Parts for Combination Hammer KHE 55
€8.06
Tax included
Metabo Spare Parts for Combination Hammer KHE 55
METABO Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Combination Hammer KHE 55/00055000.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Metabo Spare Parts for Combination Hammer KHE 55
METABO Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Combination Hammer KHE 55/00055000.In the following table, look for the model of the Hammer and the respective parts of the code.
| Combination Hammer KHE 55/00055000 | ||
| # | Part Num. | Description |
| 1 | 33912737 | CLAMPING BAND |
| 2 | 34111165 | THUMBSCREW |
| 3 | 34337054 | CLAMPING PIECE |
| 4 | 34151445 | DEPTH STOP |
| 5 | 34110174 | SQUARE NUT |
| 6 | 14113065 | HEXAGONAL LOCK NUT |
| 7 | 31400074 | HANDLE |
| 8 | 14111798 | CAP SCREW |
| 11 | 34409468 | O-RING 56 X 3 |
| 12 | 34407080 | FILTER (FELT) |
| 13 | 34337978 | COVER |
| 14 | 14112161 | FILLISTER HEAD SCREW |
| 15 | 34339024 | HANDLE |
| 16 | 33811788 | STICKER |
| 17 | 34170272 | SCREW 4X18 |
| 19 | 34336987 | SWITCH TRIGGER |
| 20 | 34340755 | SWITCH |
| 22 | 34100479 | THREADED BUSHING |
| 23 | 34151446 | CYLINDRICAL PIN 5X30 |
| 25 | 34409458 | SEALING LIP |
| 26 | 34339033 | SLEEVE |
| 27 | 31603598 | SLIDING SLEEVE CPL. |
| 30 | 34200232 | PRESSURE SPRING |
| 31 | 33912739 | HOLDER |
| 32 | 34337396 | RETAINING RING |
| 33 | 34202187 | CONICAL SPRING |
| 34 | 33912741 | PLATE GUIDE |
| 35 | 31603740 | HOUSING CPL. |
| 36 | 33921076 | SEALING RING |
| 37 | 34409695 | GASKET |
| 38 | 34100481 | TOOTHED SLEEVE |
| 39 | 33912742 | WASHER 41X48X1,8 |
| 40 | 14319505 | O-RING 5 X 1,2 |
| 41 | 34151448 | ROLLER 8X20 |
| 42 | 34160339 | SPINDLE CPL. |
| 43 | 34202153 | CIRCLIP 43FL |
| 44 | 34101246 | WASHER RD 44,4 |
| 45 | 34200233 | PRESSURE SPRING |
| 46 | 34100482 | SHIFT SLEEVE |
| 47 | 34105746 | PISTON |
| 49 | 34101271 | WASHER |
| 50 | 14319495 | O-RING 5 |
| 51 | 34101248 | WASHER |
| 52 | 14319493 | O-RING 5 |
| 53 | 34337945 | BUSH |
| 54 | 34202155 | CIRCLIP 58 |
| 55 | 34101249 | WASHER 50,4X56,6 |
| 56 | 34003272 | BEVEL GEAR |
| 57 | 34105745 | PISTON |
| 59 | 34105744 | CYLINDER |
| 60 | 31602510 | INTERMEDIATE GEAR CPL. |
| 61 | 14311480 | BALL BEARING, 12X28X8 |
| 62 | 14319496 | O-RING 5 X 1,2 |
| 63 | 14319494 | O-RING 5 X 1,2 |
| 64 | 34114543 | PISTON RING |
| 65 | 34337946 | PISTON |
| 66 | 33912743 | SHIFT FORK |
| 67 | 34151447 | CYLINDRICAL PIN 4.7X82.5 |
| 68 | 34200235 | PRESSURE SPRING |
| 69 | 34105454 | TUBULAR RIVET |
| 70 | 34200234 | PRESSURE SPRING |
| 71 | 33913217 | SHIFT STRAP |
| 72 | 31603738 | ECCENTRIC |
| 73 | 34409474 | O-RING 11,5X 2,4 |
| 74 | 34339037 | RING |
| 75 | 31000865 | ARMATURE CPL. 230 V |
| 76 | 32005041 | NEEDLE ROLLER 8X24 |
| 77 | 34337057 | CON ROD |
| 78 | 34337051 | INSULATING CAP |
| 79 | 34105743 | CRANK SHAFT |
| 80 | 34409469 | O-RING 5 X 1,2 |
| 81 | 34170273 | SCREW 4X65 |
| 82 | 31603760 | HOUSING W. NEEDLE BEARING |
| 83 | 34114545 | CHOKE HOLDER |
| 84 | 31603752 | CARBON BRUSH 230 V |
| 85 | 14311403 | NEEDLE SLEEVE |
| 86 | 14311404 | BALL BEARING, 10X26X8 |
| 87 | 34409462 | RUBBER BUSHING |
| 88 | 34001192 | GEAR WHEEL |
| 89 | 34105459 | Friction bearing |
| 90 | 34409694 | Rubber bushing |
| 91 | 34409472 | Gasket |
| 92 | 34337062 | Cover |
| 93 | 31603737 | Intermediate flange cpl. |
| 94 | 31603739 | Control lever cpl. |
| 95 | 34308074 | Electronic unit 230V |
| 96 | 34337977 | Baffle |
| 97 | 31101031 | Field coil 230 V |
| 98 | 34200237 | Brush spring |
| 99 | 34170386 | Screw 4x18 |
| 100 | 31603754 | 2 part cap |
| 101 | 33000164 | Fan cpl. |
| 102 | 14112159 | Fillister head screw |
| 103 | 14112159 | Rating plate |
| 104 | 33804515 | Cable clip |
| 105 | 34337058 | Metabo label |
| 106 | 33811853 | Motor housing |
| 107 | 34339034 | Supporting plate |
| 108 | 34410095 | Cable sleeve |
| 109 | 34448906 | Cable w/plug |
| 111 | 31603758 | Service kit |
| 112 | 31400075 | Handle cpl. |
| 880 | 34413108 | Grease Bit THERMOPLEX |
| 1001 | 33850427 | Diagram |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo KHE 55 - 00055000
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N METABO:
- METABO S/N START WITH ( 0 ) and have 8 DIGITS
