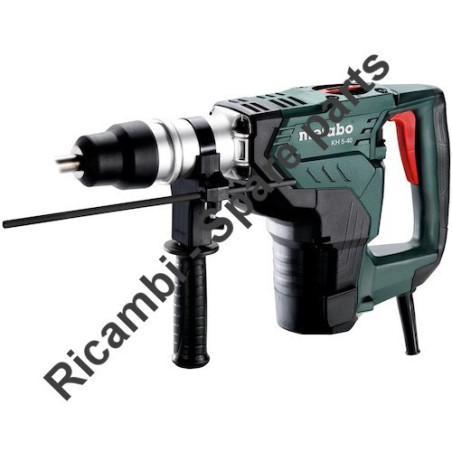

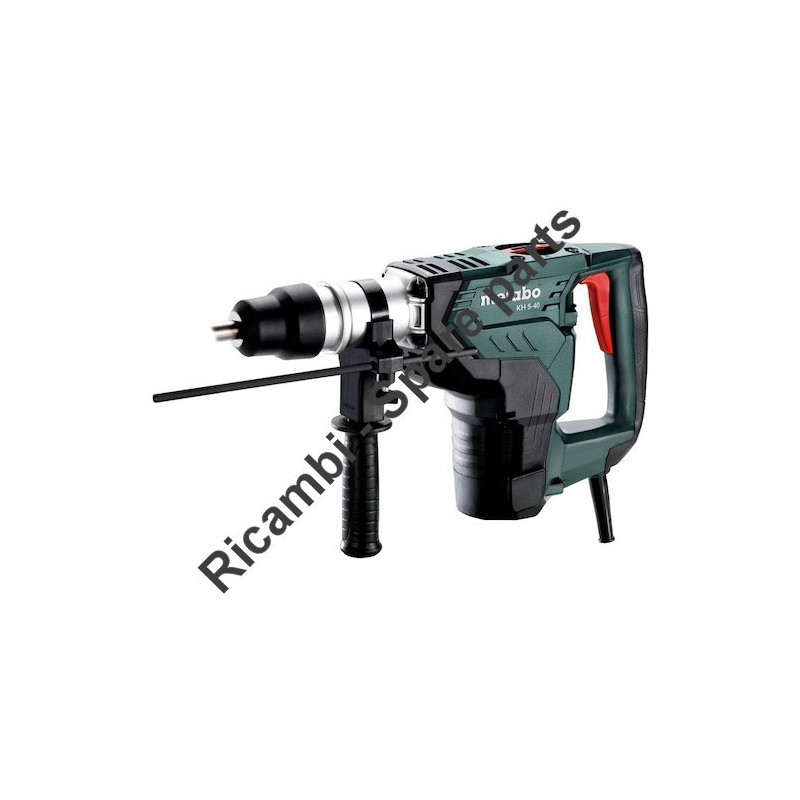

Metabo Spare Parts for Combination Hammer KH 5-40

€1.84
Tax included

Metabo Spare Parts for Combination Hammer KH 5-40

We are METABO original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Combination Hammer KH 5-40 - 00763000.
ITEM CODE: 14118013
Quantity
on 10 Business Days Approx

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Metabo Spare Parts for Combination Hammer KH 5-40

We are METABO original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Combination Hammer KH 5-40 - 00763000.

In the following table, look for the model of the Hammer and the respective parts of the code.
Metabo KH 5-40 - 00763000
Combination Hammer KH 5-40 - 00763000
# Part Num. Description
1 34411384 Rubber cap
2 34202431 RETAINING RING
3 34172295 Washer
4 34411385 Damper
5 34111771 Side support handle
6 31609713 Locking element compl.
7 34110911 Clamping bolt
8 34344734 Sliding sleeve
9 33914905 Retaining ring
10 34172296 Supporting disc
11 34201095 Pressure spring
12 33914906 Guide plate
13 33914907 Clamping band
14 14118087 Circlip
15 32005439 Ball bearing
16 34172297 Washer
17 33901312 Shaft sealing ring
18 34157098 Screw with flange
19 31510764 Housing cpl.
20 34411386 O-ring
21 34411387 Damping ring
22 34102021 Support ring
23 34172298 Supporting disc
24 33914908 Locking piece
25 34121265 Drill driving sleeve front
26 34411388 O-ring
27 34121266 Piston
28 34172299 Supporting disc
29 34411389 Damper
30 34172301 Supporting disc
31 34121267 Striker
32 34411390 O-ring
33 34121268 Drill driving sleeve behind
34 34100657 Sleeve
35 34201096 Spring
36 34344742 Retaining ring
37 34201097 Spring
38 34121269 coupling sleeve
39 33914909 Shift fork
40 34003747 Bevel gear
41 34172300 Thrust washer
42 34157097 Guard Linkage Pin
43 34344743 Plastic plunger - Piston
44 34116680 Connecting rod
45 33915356 Baffle
46 34172304 Hex head screw
47 34344739 Holder
48 34411392 Rubber plug
49 31101292 Field coil assembly w.field coil, 230V
50 31609709 Motor housing compl.
51 34344740 Brush cover
52 31609712 Carbon brush set
53 34172302 Washer
54 32005440 Ball bearing
55 34107205 Bearing support
56 34411396 Dust seal
57 34344744 Motor cap
58 34172305 HEX. SOCKET HD. BOLT (W/FLANGE)
59 34325518 Suppressor
60 34308672 Cable terminal
61 33914887 Connector set
62 33806957 Rating plate
63 34453158 Cable w.socket,230V
64 34411398 Cable sleeve
65 32005441 Ball bearing
66 34344738 Sealing washer
67 31001264 Armature cpl. 230 V
68 34157099 Screw with flange
69 34344731 soft grip
70 34341180 CAP
71 34341181 Switch
72 34344732 Handle cover
73 34172306 PAN HD.PLASTIC SCR.
74 33914911 Cable Connector
75 34453157 Strand
76 34344745 Cable clip
77 34172307 PAN HD.PLASTIC SCR.
78 34160554 Eccentric shaft
79 33910112 Adjusting spring
80 34202430 RETAINING RING
81 32005442 Ball bearing
82 34411393 O-ring
83 33901310 Shaft sealing ring
84 31609710 CRANKCASE ASSEMBLY cpl.
85 34157100 Screw
86 33901311 Shaft sealing ring
87 31609716 Intermediate gear cpl.
88 34172314 Washer
89 31542020 Gear box cover
90 34157101 Screw
91 34157102 Screw
92 34344716 hood
93 34344733 Control knob slide
94 34202434 Pressure spring
95 34116688 STEEL BALL
96 34411394 O-ring
97 34116681 Control-knob cover
98 34411401 O-ring
99 14118013 Retaining ring
100 33914912 Shift element
102 34172308 cap screw
103 34411395 Valve
104 34003748 Spur gear
105 32005443 Needle bearing
106 34411397 Seal
107 34344715 crank cover
108 34157103 HEX. SOCKET HD. BOLT (W/FLANGE)
109 34151971 Depth stop
111 34344716 hood
113 34202434 Pressure spring
114 34116688 STEEL BALL
117 34411401 O-ring
880 63180000 Special grease
885 34413135 Special Grease
886 34413136 Gear grease
