Metabo Spare Parts for Angle Grinder W 25-230 06425000

€1.92
Tax included

Metabo Spare Parts for Angle Grinder W 25-230 06425000

Metabo original spare parts for to replace broken parts for to fix Angle Grinder W 25-230 06425000/EU 230V

Angle Grinder W 25-230 06425000/EU 230V
ITEM CODE: 14111602
Quantity
on 10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Metabo Spare Parts for Angle Grinder W 25-230 06425000

Fix Your Angle Grinder W 25-230 06425000/EU 230V. All Spares can be supplyed. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Metabo W 25-230 - 06425000

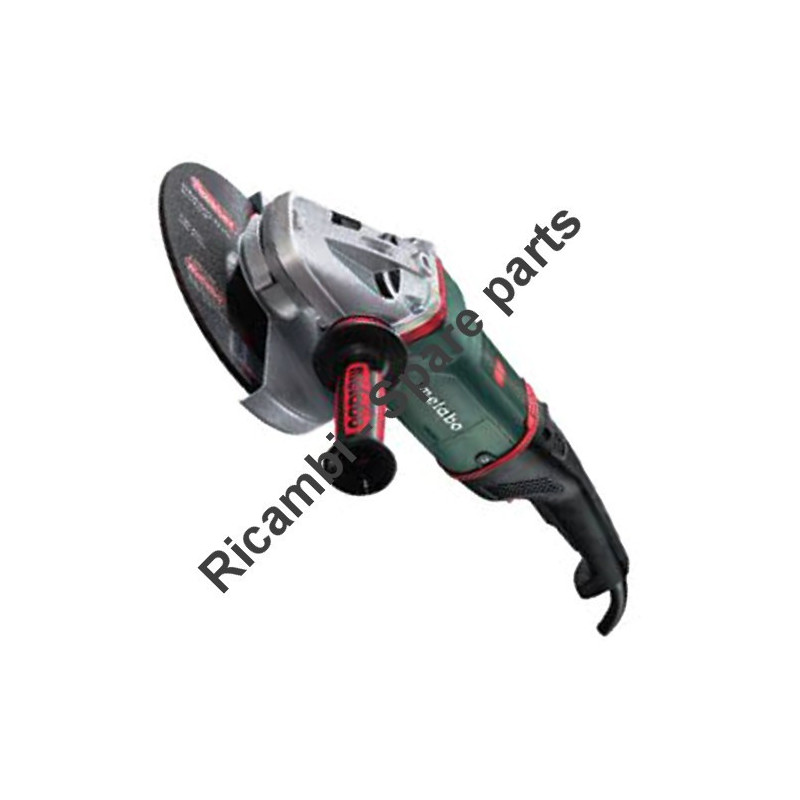

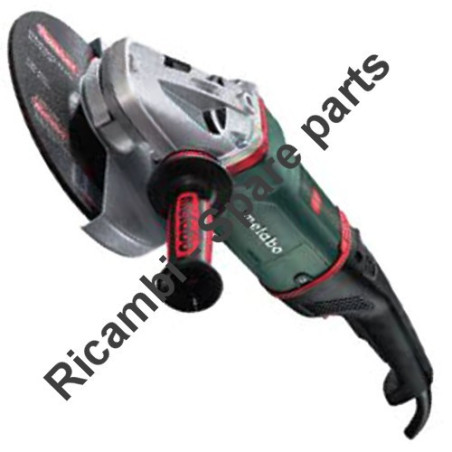

Angle Grinder Metabo W 25-230 06425000/EU 230V
# Part Num. Description
1 31400096 Anti-vibration handle,M 14
2 34110066 Self locking nut
3 31602529 Bevel gear Set
4 34101151 Spacer ring
5 14319244 elt ring
6 33907008 Cover washer
7 14311067 Ball bearing, 12x37x12
8 33900592 Bearing cover
9 31000990 Armature compl.,230 V
10 14311340 Ball bearing, 8x22x7
11 34409408 Rubber bearing
12 34337672 Intermediate flange
13 14111897 Self-tap. fill. h. screw
14 31100958 Field coil
15 34449369 Strand
16 14111881 Self-tap. fill. h. screw
17 14112202 Fillister head screw
18 31603172 Gear housing cpl.
19 14111985 Fillister head screw
20 33906014 Sealing ring
21 31602530 Gear flange cpl.
22 14112164 Fill. head screw(DIN 7985)
23 34160298 Spindle shaft
24 31602274 Wheel guard cpl.
25 34103116 Clamping flange
26 34110690 Flange nut
27 33811734 Indication label
28 34170205 Screw
29 34337643 Cover
30 31603395 Carbon brush
31 34300077 Brush guide
32 31501276 Motor housing
34 34336854 Handle (upper+under part)
35 14111602 Self-tap fill h screw
36 34325389 Condenser
37 34340622 Switch
38 33912773 Cable clip
40 34409455 Cable sleeve
41 34448780 Cable with plug
42 34416084 Pin spanner
43 33811598 Metabo label
44 33804081 Rating plate
45 34336957 Locking lever
46 34200217 Pressure spring
55 34337077 Sealing washer
56 34337644 Push button
57 34200173 Pressure spring
58 34100397 Guide bush
59 34151381 Thrust bolt
880 34413091 Grease 100G
1001 33850211 Diagram
