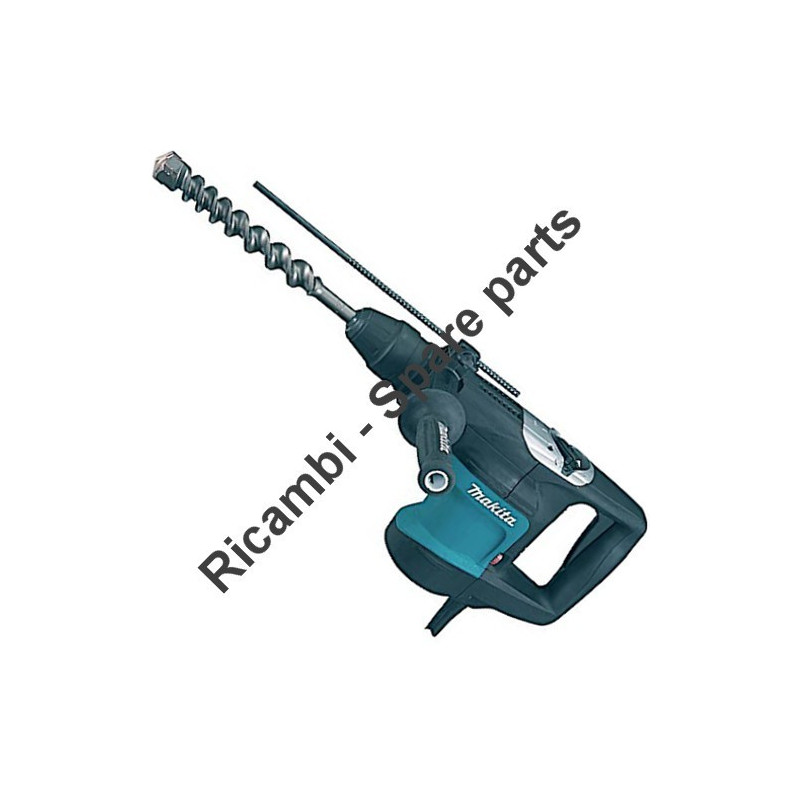

Makita Spare Parts for Rotary Hammer HR3540C
€2.73
Tax included
Makita Spare Parts for Rotary Hammer HR3540C
We have the original Makita Spare Parts for Rotary Hammer HR3540C, the diagram, parts list and tool repair that help you need to get your tools running like new again.Fix Your Rotary Hammer HR3540C. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Rotary Hammer HR3540C
Fix Your Rotary Hammer HR3540C. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
| Makita HR3540C Sds Max Rotary Hammer | ||
| # | Part Num. | Description |
| 1 | 286269-2 | TOOL HOLDER CAP HM0860C/HR3540 |
| 2 | 450592-3 | CHUCK COVER HR3540/HR3541 |
| 3 | 231984-3 | RING SPRING 25 HR5001C/HM1202C |
| 4 | 331823-8 | CHUCK RING HR3540/3541 |
| 5 | 310257-8 | TOOL RETAINER HR3540/HR3541 |
| 6 | 345928-8 | SPRING GUIDE HR3540/HR3541 |
| 7 | 234063-6 | COMPRESSION SPRING 52 HR3540/4 |
| 8 | 345976-7 | SPRING HOLDER HR3540/HR3541 |
| 9 | 424110-3 | RUBBER SPRING 13 HR3540/3541 |
| 18 | 922341-3 | CAP HD SCREW M6X25 |
| 19 | 158674-2 | BARREL COMP HR3540/HR3541 |
| 20 | 213656-2 | O RING 53 HM1200 |
| 21 | 257294-0 | RING 38 HR3540/3541 |
| 22 | 262143-8 | URETHANE RING 38 HR3540/3541 |
| 23 | 267381-7 | FLAT WAHSER 39 HR3540/3541 |
| 24 | 324900-3 | TOOL HOLDER HR3540/HR3541 |
| 25 | 324901-1 | IMPACT BOLT HR3540/3541 |
| 26 | 213309-3 | O RING 19 HK1800/HR3540*41 |
| 27 | 213309-3 | O RING 19 HK1800/HR3540*41 |
| 28 | 213996-8 | FLOURO CARBON RESIN RING 24 HR |
| 29 | 324899-2 | RING 13 HR3540/3541 |
| 30 | 324838-2 | SLIDE PLATE HR3210/3540/3541 |
| 31 | 256266-2 | PIN 6 HR3210CT/FCT/HK1820/L |
| 32 | 331822-0 | CYLINDER 25 HR3540/HR3541 |
| 33 | 450243-8 | SLIDE SLEEVE HR3210/3540/3541 |
| 34 | 331805-0 | RING 29 HR3210CT/FCT HR3200C |
| 35 | 267360-5 | FLAT WASHER 40 HR3210/3540/41 HR3200C |
| 36 | 234052-1 | COMPRESSION SPRING 42 HR3210CT HR3200C |
| 37 | 450236-5 | LOCK SLEEVE HR3210/3540/3541 HR3200C |
| 38 | 234050-5 | COMPRESSION SPRING 34 HR3210FC HR3200C |
| 39 | 331795-7 | DRIVING SLEEVE HR3210CT/3540 HR3200C |
| 40 | 213434-0 | O RING 26 5621RD/HR3540*41 5621RDW |
| 41 | 324898-4 | STRIKER HR3540/HR3541 HR3540C |
| 42 | 213283-5 | O RING 18 HR3210CT/FCT/HK1800 HR3200C |
| 43 | 213283-5 | O RING 18 HR3210CT/FCT/HK1800 HR3200C |
| 44 | 256087-2 | PIN 7 HR3210CT/FCT/HK1820/L HR3200C |
| 45 | 324918-4 | PISTON HR3210CT/3540/3541 HR3200C |
| 46 | 213262-3 | O RING 18 BFS440/AN942/BFR540 4100R |
| 47 | 450235-7 | CONNECTING ROD HR3210CT/3540 HR3200C |
| 48 | 227531-6 | SPIRAL BEVEL GEAR 37 HR3210CT/ HR3200C |
| 49 | 345867-2 | LINK ARM HR3210CT/3540/3541 HR3200C |
| 64 | 266041-8 | PT SCREW 5X25 |
| 65 | 922128-3 | HEX SOCKET BOLT M4x16* 4300BA |
| 66 | 450594-9 | CRANK HOUSING COVER HR3540 - HR3540C |
| 67 | 266192-7 | TAPPING SCREW 4X14 6837 HR4001C / HR4010C |
| 68 | 318201-9 | CRANK CAP COVER HR3210CT/3440/ HR3200C |
| 69 | 265995-6 | PT SCREW 4X18 KP0810C* |
| 70 | 450249-6 | CHANGE LEVER HR3210CT/3450/34 HR3200C |
| 71 | 233436-0 | COMPRESSION SPRING 3 X HR4001C / HR4010C |
| 72 | 450250-1 | LOCK BUTTON X HR3200C |
| 73 | 911526-6 | PAN HEAD SCREW M4 X 14 X HR2420 |
| 74 | 450241-2 | CRANK CAP HR3210CT/3540/41 |
| 75 | 213223-3 | O RING 16 9036/AG125/HR3540/4 HR3200C |
| 76 | 158437-6 | SPUR GEAR 33 COMP HR3210/3540 HR3200C |
| 77 | 424064-4 | SEAL RING B HR3520CT/3540/3541 HR3200C |
| 78 | 345868-0 | LINK PLATE HR3210/3540/3541 HR3200C |
| 79 | 450247-0 | AIR PIPE HR3200C |
| 80 | 263005-3 | RUBBER PIN 6 |
| 81 | 452126-8 | GEAR SHAFT HR32103540/3541 - HR3200C |
| 82 | 158713-8 | CRANK HOUSING CO HR3540 HR3200C |
| 83 | 443138-2 | FILTER HR3210CT/3540/3541 - HR3200C |
| 84 | 213030-4 | O RING 8 BTM40/50/HM0871C RP1100C |
| 85 | 450238-1 | FILTER CAP HR3210/3540/3541 HR3200C |
| 86 | 450244-6 | CRANK GEAR HR3210CT/3540/3541 HR3200C |
| 87 | 213176-6 | O RING 14 AN942/HR3210 - AN901 |
| 88 | 450237-3 | CAP HOLDER HR3210CT/3450/3451 - HR3200C |
| 89 | 266192-7 | TAPPING SCREW 4X14 6837 HR4001C / HR4010C |
| 90 | 324839-0 | CRANK SHAFT HR3210/3540/3541 - HR3200C |
| 91 | 211332-2 | BALL BEARING 6004LLU HR3000C |
| 92 | 961060-6 | EXT DIN471 CIRCLIP S20 |
| 93 | 231991-6 | CONICAL COMP SPRING 21-31 HR30 - HR3000C |
| 94 | 254239-9 | KEY 4 X HR3000C |
| 95 | 324848-9 | CLUTCH HR3210CT/3540/3541 - HR3200C |
| 96 | 227188-3 | SPUR GEAR 33 HR3210CT/3540/41 - HR3200C |
| 97 | 253197-6 | FLAT WASHER 10 7104L/LF1000 |
| 98 | 961036-3 | RETAINING RING WR-10 HR3210/35 - HR3200C |
| 99 | 345869-8 | CUP WASHER 18 HR3210CT/3541 - HR3200C |
| 100 | 424063-6 | SEAL RING A HR3210/3540/3541 - HR3200C |
| 101 | 158534-8 | GEAR HOUSING COMP HR3210/3540T - HR3200C |
| 102 | 213415-4 | O RING 28 HM1110/1111/1110C - HM1100C |
| 103 | 227533-2 | SPIRAL BEVEL GEAR 9 HR3210/354 - HR3200C |
| 104 | 254239-9 | KEY 4 X HR3000C |
| 105 | 210105-0 | BALL BEARING 6001LLU PW5000C - PW5000CH |
| 106 | 125421-6 | TORQUE LIMITER ASSY HR3210CT/FC HR3200C |
| 107 | 257291-6 | RING 10 HR3210CT/FCT - HR3200C |
| 108 | 210005-4 | BALL BEARING 608DDW GA5020 |
| 109 | 450251-9 | BAFFLE PLATE HR3210C/3540/3541 |
| 110 | 213133-4 | OIL SEAL 12 X HR2800 |
| 112 | 210105-0 | BALL BEARING 6001LLU PW5000C - PW5000CH |
| 113 | 253084-9 | FLAT WASHER 12 8419B / 5016NB |
| 114 | 241863-7 | FAN 70 HR3000C/JR3060T/3070/3540 |
| 115 | 513748-0 | ARMATURE ASSY 240V HR3210/3540 HR3200C |
| 116 | 681650-6 | INSULATION WASHER HM0870/71C - HR4000C |
| 117 | 210005-4 | BALL BEARING 608 DDW |
| 118 | 266056-5 | PT SCREW 5X45 9046 - JR3060T |
| 119 | 625813-4 | FIELD 240V HR3210CT/3540/3541 - HR3200C |
| 120 | 450252-7 | MOTOR HOUSING HR3210/3540 - HR3200C |
| 122 | 194160-9 | CARBON BRUSH CB-350 HR4011C - HR4001C |
| 123 | 450253-5 | REAR COVER HR3210CT/FCT - HR3200C |
| 124 | 265995-6 | PT SCREW 4X18 KP0810C* 6408 / 6221DW SCREW |
| 125 | 265995-6 | PT SCREW 4X18 KP0810C* 6408 / 6221DW SCREW |
| 126 | 638519-5 | BRUSH HOLDER UNIT HR3210CT/FCT - HR3200C |
| 127 | 631784-5 | CONTROLLER 240V HR32103540 - HR3200C |
| 128 | 266192-7 | TAPPING SCREW 4X14 6837 HR4001C / HR4010C |
| 129 | 638406-8 | LEAD UNIT HR4011C/3210/3540/41 - HR4011C |
| 130 | 450246-2 | CORD CLAMP BASE HR3210CT/3540 - HR3200C |
| 131 | 266192-7 | TAPPING SCREW 4X14 6837 HR4001C / HR4010C |
| 132 | 687169-3 | STRAIN RELIEF GA7050/GA9050/ HP1620 |
| 133 | 266192-7 | TAPPING SCREW 4X14 6837 - HR4001C / HR4010C |
| 134 | 450240-4 | LENS HR3210CT/3540/3541 - HR3200C |
| 135 | 682560-0 | CORD GUARD 10 HM1317C/CB/HR300 - HM1202C / 9079S |
| 137 | 266041-8 | PT SCREW 5X25 |
| 140 | 865375-2 | NAME PLATE HR3540 - HR3540C |
| 141 | 911233-1 | PAN HD SCREW 5X20 W/CP 3600H |
| 148 | 450262-4 | HANDLE HR3450 /3541 - HR3200C |
| 149 | 419025-7 | SWITCH LEVER HR4011C/HR4511C - HR4011C |
| 150 | 154626-1 | SWITCH HOLDER COMP HR4011C/451 - HR4001C |
| 151 | 650676-9 | SWITCH TG73B-1 HR4001C |
| 152 | 450257-7 | HANDLE COVER HR3210/3540/3541 - HR3200C |
| 153 | 265995-6 | PT SCREW 4X18 KP0810C* 6408 / 6221DW SCREW |
| 154 | 267383-3 | FLAT WASHER 22 HR3210C/FCT - HR3200C |
| 155 | 267721-9 | WAVE WAHER 15 HR3210CT/3540 - HM1202 |
| 156 | 213083-3 | O RING 9 HR3210 - HR3200C |
| 999 | 195192-9 | SERVICE KIT HR3540C |
| 1001 | 181573-3 | GREASE VESSEL 93G |
| 1002 | 135209-6 | GRIP 36 ASSY HR3540/3541/4001C |
| 1003 | 824819-1 | PLASTIC CARRYING CASE |
| 1004 | 443122-7 | CLOTH BHR262/HR4011C/4001C |
| 1005 | 810409-6 | CAUTION CARD HR3210CT/FCT |
| 5001 | 654091-9 | NON INSULATED TERMINAL MT814/1 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
