AR Farmer's Division Parts for Pressure PROLINER XPRO SK 15.20

€11.93
Tax included

AR Farmer's Division Parts for Pressure PROLINER XPRO SK 15.20

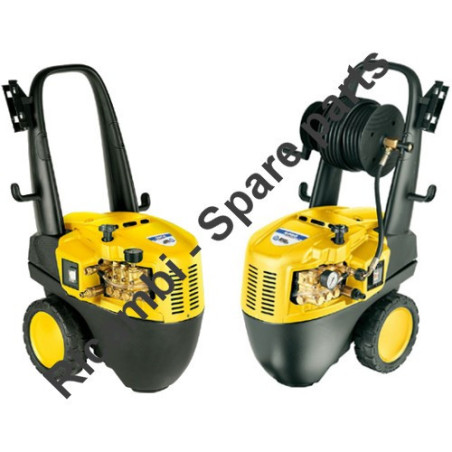

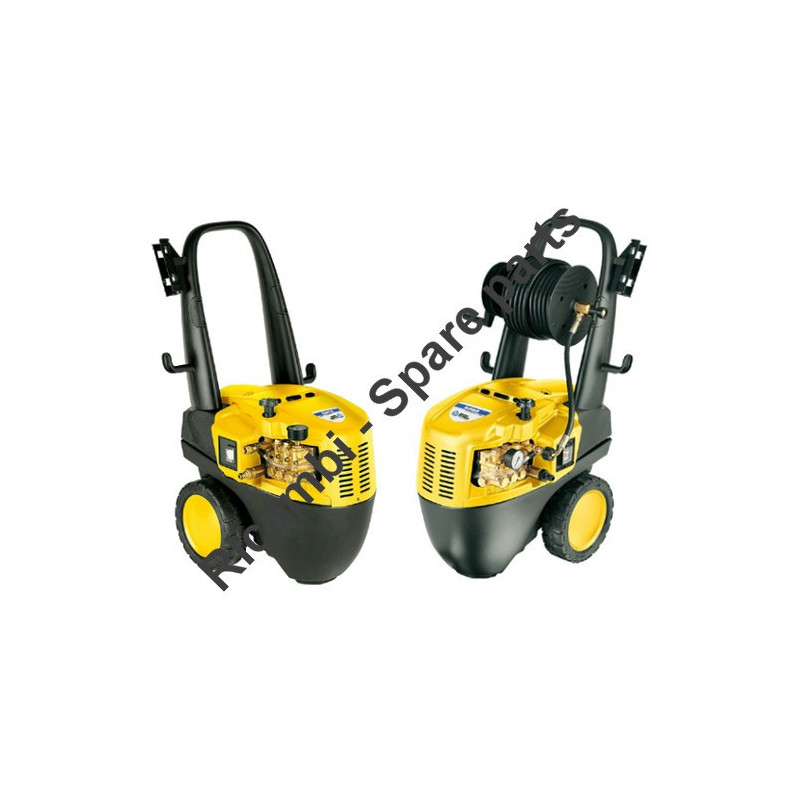

Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for models XPRO SK 15.20 TSS - 22336 - XPRO SK 15.20 TSS RLW - 22245.
ITEM CODE: 1829
Quantity
on 10 Business Days Approx

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

AR Farmer's Division Parts for Pressure PROLINER XPRO SK 15.20

Genuine Parts AR Farmer's Division for repair or replacement of damaged parts, for models XPRO SK 15.20 TSS - 22336 - XPRO SK 15.20 TSS RLW - 22245.

In the following tables, look for the spare part and its respective code.
AR Farmer's Division Parts for Pressure PROLINER XPRO SK 15.20
Bonnet 15.20 TSS - 22336 Bonnet 15.20 TSS RLW - 22245
1 2360541 Bonnet Yellow 1 2360541 Bonnet Yellow
2 2360760 Knob 2 2360760 Knob
3 1270910 Cork 3 1270910 Stopper
4 850250 Screw 4 850250 Screw
5 2360020 Handle 6 2360360 Screw
6 2360360 Screw 8 2360090 Hook
7 2360300 Cork 10 2360100 Support
8 2360090 Hook 11 2100300 Screw
9 2360170 Cork 12 2360720 Knob
10 2360100 Support 13 850250 Screw
11 2100300 Screw 14 2360551 Bonnet Yellow
12 2360720 Knob 15 2360780 Antivibration
13 850250 Screw 16 2360570 Wheel
14 2360551 Bonnet Yellow 17 380620 Washer
15 2360780 Antivibration 18 2360560 Axle
16 2360570 Wheel 19 1470220 Screw
17 380620 Washer 20 2360010 Base
18 2360560 Axle 21 91680930 Stopper
19 1470220 Screw 22 2000110 Screw
20 2360010 Base 23 2360040 Bonnet Black
21 91680930 Cork 24 2360370 Gasket
22 2000110 Screw 25 2360580 Standoff
23 2360040 Bonnet Black 26 380240 Nut
24 2360370 Gasket 27 2360052 Plate
25 2360580 Standoff 28 2360110 Clamp
26 380240 Nut 29 2360710 Screw
27 2360052 Plate 30 1270960 Tube Cleaner
28 2360110 Clamp 31 2000230 Filter
29 2360710 Screw 32 2000240 O-Ring
30 1270960 Tube Cleaner 33 1682420 Stopper
31 2000230 Filter 34 380570 Washer
32 2000240 O-Ring Pump 15.20 TSS RLW - 22245
33 1682420 Cork 1 960090 Stopper
34 380570 Washer 2 960160 O-Ring
Pump 15.20 TSS - 22336 3 1389051 Valve Complete
1 960090 Cork 4 880830 O-Ring
2 960160 O-Ring 5 880581 Cork
3 1389051 Valve Complete 6 820510 O-Ring
4 880830 O-Ring 7 820150 Screw
5 880581 Cork 8 1381850 Washer
6 820510 O-Ring 9 1381071 Top
7 820150 Screw 10 180101 O-Ring
8 1381850 Washer 11 820361 Cork
9 1381071 Top 12 1980740 Cork
10 180101 O-Ring 13 740290 O-Ring
11 820361 Cork 15 1381580 Manometer
12 1980740 Cork 16 960110 Ring
13 740290 O-Ring 17 1382740 Watertight
15 1381580 Manometer 18 1380090 Piston Guide
16 960110 Ring 19 961240 O-Ring
17 1382740 Watertight 20 880330 Watertight
18 1380090 Piston Guide 21 1383130 Ring
19 961240 O-Ring 22 1382770 Body Pump
20 880330 Watertight 23 1980740 Cork
21 1383130 Ring 24 880130 Cork
22 1382770 Body Pump 25 2280340 Bearing
23 1980740 Cork 26 640030 O-Ring
24 880130 Cork 27 1380120 Thickness 0.10 Mm
25 2280340 Bearing 27 1380130 Thickness 0.20 Mm
26 640030 O-Ring 27 1380530 Thickness 0.25 Mm
27 1380120 Thickness 0.10 Mm 27 1382810 Thickness 0.05 Mm
27 1380130 Thickness 0.20 Mm 28 1380050 Support
27 1380530 Thickness 0.25 Mm 29 850370 Screw
27 1382810 Thickness 0.05 Mm 30 2280060 Shaft
28 1380050 Support 31 1380520 Tab
29 850370 Screw 32 1383140 Bearing
30 2280060 Shaft 33 180340 Ring
31 1380520 Tab 34 1380040 Support
32 1383140 Bearing 35 962010 Nut
33 180340 Ring 36 962000 Washer
34 1380040 Support 37 1380940 Piston
35 962010 Nut 38 1380950 Disk
36 962000 Washer 39 600180 O-Ring
37 1380940 Piston 40 1080401 Ring
38 1380950 Disk 41 1380920 Piston
39 600180 O-Ring 42 1380060 Plug
40 1080401 Ring 43 1383050 Piston Rod
41 1380920 Piston 44 1780510 O-Ring
42 1380060 Plug 45 1260430 Ring
43 1383050 Piston Rod 46 1780690 Disk
44 1780510 O-Ring 47 1260250 Level Indicator
45 1260430 Ring 48 1140450 O-Ring
46 1780690 Disk 49 1789010 Cover
47 1260250 Level Indicator 50 1343510 Screw
48 1140450 O-Ring 51 1389270 Pre-Assembly Head
49 1789010 Cover 52 20924 Pump Pre-Assembly
50 1343510 Screw A 2864 Valve Kit
51 1389270 Pre-Assembly Head B 2757 Piston Kit
52 20897 Pump Pre-Assembly C 1855 Oil Seals Kit
A 2864 Valve Kit E 1857 Kit Held Water
B 2757 Piston Kit G 1829 Kit Support Rings
C 1855 Oil Seals Kit Valve 15.20 TSS RLW - 22245
E 1857 Kit Held Water 2 392840 Screw
G 1829 Kit Support Rings 3 1980300 Nut
Valve 15.20 TSS - 22336 4 2500540 Insert
2 392840 Screw 5 1980220 Disk
3 1980300 Nut 6 1271070 Spring
4 2500540 Insert 7 1080041 Piston
5 1980220 Disk 8 1080070 Plug
6 1271070 Spring 9 1080401 Ring
7 1080041 Piston 10 1080250 O-Ring
8 1080070 Plug 11 2500550 Cotter Pin
9 1080401 Ring 12 1980210 Piston Guide
10 1080250 O-Ring 13 740290 O-Ring
11 2500550 Cotter Pin 14 800560 O-Ring
12 1980210 Piston Guide 15 880830 O-Ring
13 740290 O-Ring 16 1271170 Ring
14 800560 O-Ring 17 1080190 O-Ring
15 880830 O-Ring 18 1271160 Piston
16 1271170 Ring 19 2460420 Office
17 1080190 O-Ring 20 1080250 O-Ring
18 1271160 Piston 21 1540272 Screw
19 2460420 Office 22 390080 O-Ring
20 1080250 O-Ring 23 1540660 Valve Body
21 1540272 Screw 24 1140450 O-Ring
22 390080 O-Ring 25 1460430 O-Ring
23 1540660 Valve Body 26 1540170 Shutter
24 1140450 O-Ring 27 1080091 Spring
25 1460430 O-Ring 28 394280 O-Ring
26 1540170 Shutter 29 1560660 Ring
27 1080091 Spring 30 1560680 Knob
28 394280 O-Ring 31 480560 O-Ring
29 1560660 Ring 32 800560 O-Ring
30 1560680 Knob 34 1560650 Hose
31 480560 O-Ring 35 480480 O-Ring
32 800560 O-Ring 36 1250280 Ball
34 1560650 Hose 37 1560520 Spring
35 480480 O-Ring 38 1540570 Junction
36 1250280 Ball 39 1540300 Nut
37 1560520 Spring 41 1540280 Collector
38 1540570 Junction 42 1540630 O-Ring
39 1540300 Nut 44 880270 O-Ring
41 1540280 Collector 45 2260420 Screw
42 1540630 O-Ring 46 480440 O-Ring
44 880270 O-Ring 47 1560900 Junction
45 2260420 Screw 48 40393 Junction
46 480440 O-Ring 50 1340260 Filter
47 1560900 Junction 52 1981190 Screw
48 40393 Junction 53 1260820 O-Ring
50 1340260 Filter 54 1540881 Piston
52 1981190 Screw 55 1981320 Spring
53 1260820 O-Ring 56 2022201 Fork
54 1540881 Piston 57 2029758 Pre-Assembly Box TSS
55 1981320 Spring 58 660190 O-Ring
56 2022201 Fork 59 880840 O-Ring
57 2029758 Pre-Assembly Box TSS 60 1540870 Cork
58 660190 O-Ring 61 22335 Valve Complete
59 880840 O-Ring 62 1123960 Junction
60 1540870 Cork 63 1569206 Pre-Assembly IDR
61 22335 Valve Complete 64 1120681 O-Ring
62 1123960 Junction 65 42458 Kit TSS
63 1569206 Pre-Assembly IDR 66 1080192 O-Ring
64 1120681 O-Ring F 42451 Seal Kit
65 42458 Kit TSS Engine 15.20 TSS RLW - 22245
66 1080192 O-Ring 1 50068 Gasket
F 42451 Seal Kit 2 1700080 Plate
Engine 15.20 TSS - 22336 3 1940410 O-Ring
1 50068 Gasket 4 1700960 Mini-Contactor
2 1700080 Plate 5 1261570 Screw
3 1940410 O-Ring 6 2360590 Card
4 1700960 Mini-Contactor 7 1460460 Screw
5 1261570 Screw 8 1700590 Nut
6 2360590 Card 9 2021560 Cable
7 1460460 Screw 10 1700930 Cover
8 1700590 Nut 11 2360730 Switch
9 2021560 Cable 12 880270 O-Ring
10 1700930 Cover 13 1382380 Strain Relief
11 2360730 Switch 14 1261560 Screw
12 880270 O-Ring 15 1080190 O-Ring
13 1382380 Strain Relief 16 1700640 Cable
14 1261560 Screw 17 44038 Engine
15 1080190 O-Ring 18 1341140 Gasket
16 1700640 Cable RLW 15.20 TSS RLW - 22245
17 44038 Engine 1 40646 Pre Mounting Hose Reel
18 1341140 Gasket 2 40120 Hose Pre-Assembly
Accessories 15.20 TSS - 22336 3 2360360 Screw
1 3086 Nozzle 4 2360150 Lever
2 40541 Lance + Nozzle Without Nozzle 5 650500 Ring
3 40651 Lance Nozzle + 6 2360190 Disk
4 41045 Gun 7 2360160 Stirrup
5 1700980 High Pressure Tube 8 2360280 Pin
6 2000770 O-Ring 9 1681280 Screw
10 2360230 Disk
11 380420 Ring
12 2360260 High Pressure Tube
13 2360210 Pin
14 390080 O-Ring
15 2360220 Junction
16 2360320 Ring
17 2360080 Stirrup
18 820510 O-Ring
19 2360310 Junction
20 2360250 High Pressure Tube
21 2360020 Handle
Accessories 15.20 TSS RLW - 22245
1 3086 Nozzle
2 40541 Lance + Nozzle Without Nozzle
3 40651 Lance + Nozzle
4 41045 Gun
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Annovi & Reverberi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Annovi & Reverberi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
XPRO SK 15.20 TSS - 22336 22245
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS APPROX.
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
New

Download

Diagram AR Farmer's 15.20 TSS

Diagram AR Farmer's 15.20 TSS

Download (580.25KB)

Diagram AR Farmer's 15.20 RLW

Diagram AR Farmer's 15.20 RLW

Download (637.54KB)
