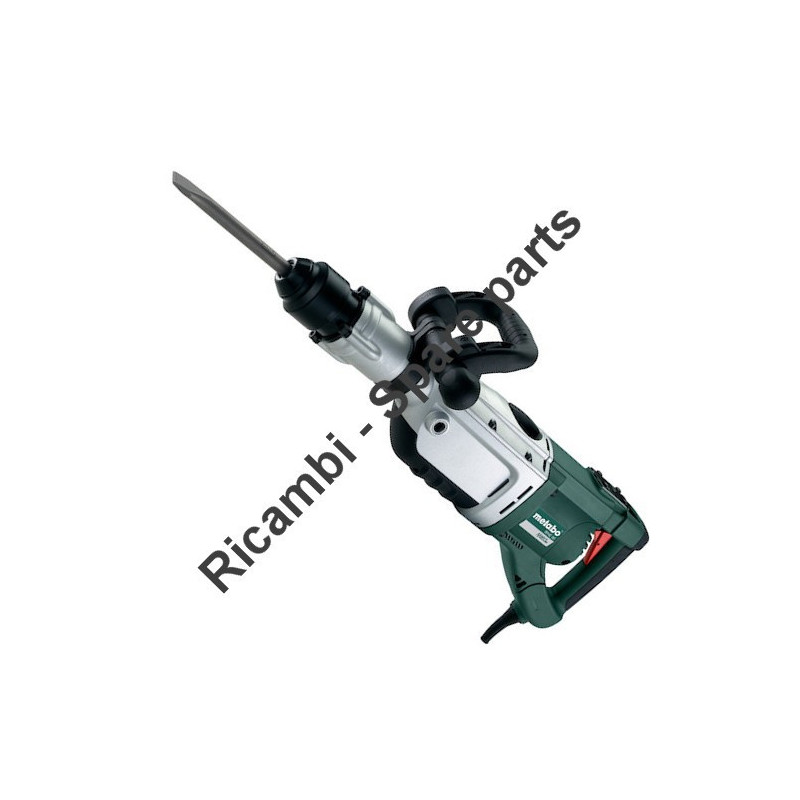

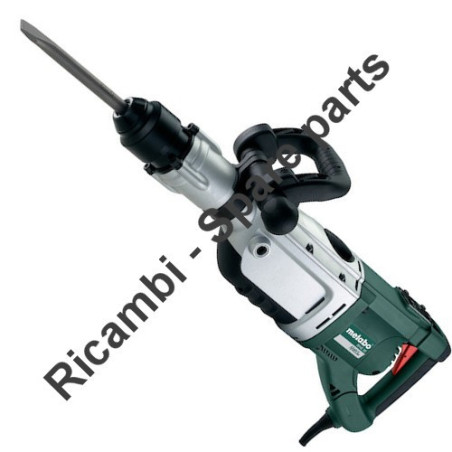

Metabo Spare Parts for Chipping Hammer MHE 96

€1.58
Tax included

Metabo Spare Parts for Chipping Hammer MHE 96

Metabo original spare parts for to replace broken parts for to fix Chipping Hammer MHE 96 - 00396000.

Chipping Hammer MHE 96
ITEM CODE: 14111404
Quantity
Usually Ships in: 10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Metabo Spare Parts for Chipping Hammer MHE 96

Fix Your Chipping Hammer MHE 96 - 00396000 All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Hammer and the respective parts of the code.
Chipping Hammer MHE 96 - 00396000
Chipping Hammer MHE 96/00396000
# Part Num. Description
1 34409797 Rubber cap
2 34339428 Sleeve
3 14115545 Circlip
4 34101285 Ring
5 34409798 Damping ring
6 34105865 Sleeve
7 33900708 Carrier
8 33913317 Intermediate plate
9 34200348 Pressure spring
10 34101292 Washer
11 14111404 Cap screw
12 33913276 Retaining ring
13 34409814 O-ring
14 33901162 Shaft sealing ring
15 14118045 Retaining ring
16 34339425 Control knob
17 34409809 O-ring
18 14112357 Cap screw
19 14115002 Washer
20 31541631 Gear-box cover
21 34409805 Seal
22 33913315 Shift fork
23 33913316 Retaining sheet
24 34339427 Setting ring
25 31604244 Piston compl.
26 34409818 O-ring
28 32005063 Bearing
30 31604247 Maintenance kit
31 31510472 Gear housing compl.
32 31604208 Side support handle compl.
33 34202208 Circlip
34 34107058 Ring
35 34101284 Ring
36 34107057 Supporting disc
37 34409819 O-ring
38 33900694 Stop ring
39 34105863 Drill driving sleeve
40 34409815 O-ring
41 31604242 Piston compl.
42 34101282 Stop ring
43 34409804 Ring,NBR
44 34101283 Stop ring
45 34105864 Pin
46 34105862 Sleeve
47 31604243 Striker compl.
48 31604241 Spindle compl.,SDS-M
49 34409806 Felt seal
50 34409811 O-ring
51 34339234 Housing cover compl.
52 33915109 Baffle
53 34339423 Pressure plate
54 34200347 Pressure spring
55 34339424 Bevel gear
56 33804945 Rating plate
57 31604248 Carbon brush set
58 34170424 Screw,
59 34409816 O-ring
60 34300092 Brush holder
61 34449740 Lead Wire (Switch)
62 33913275 Cover
63 34170423 Screw,C-K6x16 T25
64 34170425 Screw,
66 34339422 Handle 2 part
67 33900709 Stop ring
68 14115635 Retaining ring
69 34340767 On-off switch
71 33000186 Fan
72 32005065 Ball bearing
73 31604815 Armature compl. ,220-240 V+Bevel gear
74 34409803 Sealing ring
75 34202207 Retaining ring
76 32005067 Ball bearing
77 31530062 Gear cover
78 31604816 Armature w.flange,220-240 V+Bevel gear
80 34339426 Blank faceplate
81 14112358 Fillister head screw
82 31400105 Anti-vibration handle compl.
83 34409802 Rubber bushing
84 31101083 Field coil w.field coil,220-240 V
85 34170421 Screw,4x64
86 34170422 Screw,K5x45 T20
87 33812112 Metabo label
88 34409812 O-ring
89 34308131 Electronic unit,220-240 V
90 34339421 Cable clip
91 34409801 Cable sleeve
92 34449743 Cable w.CEE plug
93 33812115 Indication label,104 dB, MHE 56
97 31604209 Motor housing compl.
98 31604316 Washers set
880 34413117 Tube Grease,45 g Urethyn
885 34413116 Tube Grease,Gadus S5V220
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo MHE96 - 00396000
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS APPROX.
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS
New

Download

Metabo MHE 96 Parts Diagram

Metabo MHE 96 Parts Diagram

Download (613.07KB)
