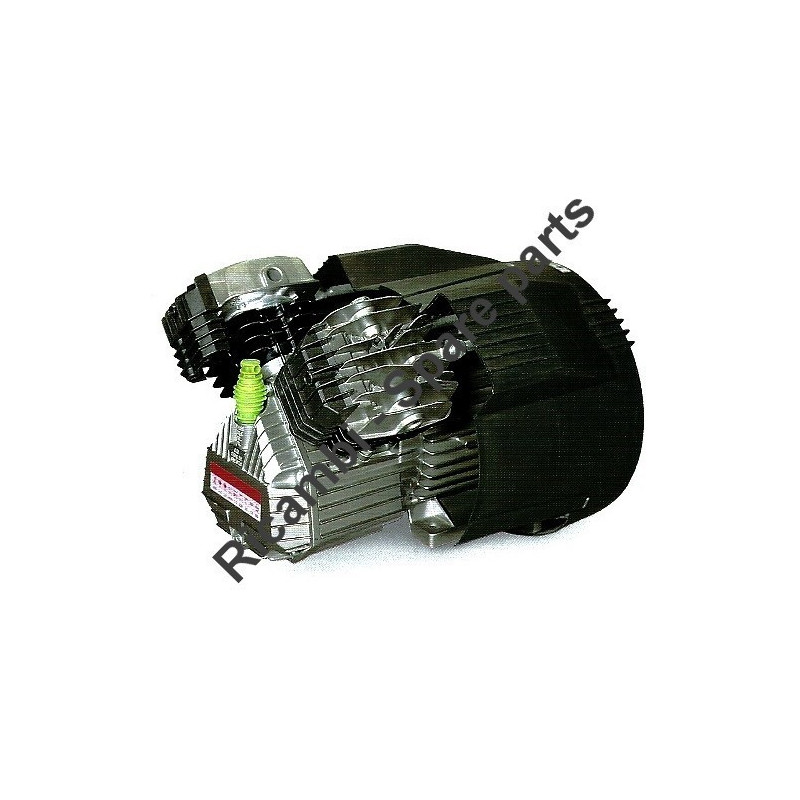

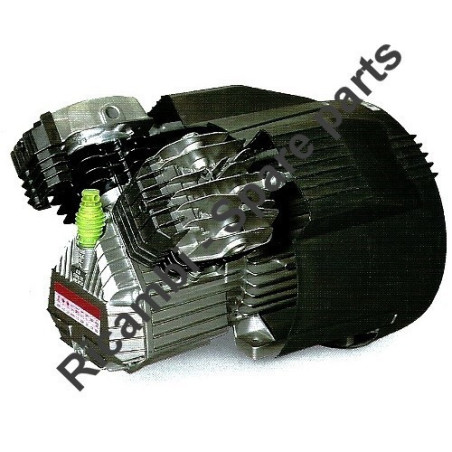

FIAC Spare Parts for Pump Unit VX 422
€562.05
Tax included
FIAC Spare Parts for Pump Unit VX 422
FIAC Air Compressors service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for direct driven lubricared pump unit VX 422 validity date - from 15/10/2008.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
FIAC Spare Parts for Pump Unit VX 422
FIAC Air Compressors service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for direct driven lubricared pump unit VX 422 validity date - from 15/10/2008.
In the following table , look for the model of the Pumping Unit and the respective parts of the code .
| VX 422 validity date - from 15/10/2008 | ||
| # | Part Num. | Description |
| 1 | 7570090000 | Head |
| 2 | 7011220000 | Screw M6X40 UNI-5737 |
| 3 | 7458340000 | Plate filter |
| 4 | 7210010000 | Filter element |
| 5 | 7012010000 | Screw Ø3,9X19 UNI-6954 |
| 6 | 7210180000 | Air Cleaner Cover |
| 7 | 7196000000 | Start valve M1/4" 2.2 bar |
| 8 | 7459500000 | Kit valve plate |
| 9 | 7010120000 | Screw M6X25 UNI-5931 |
| 10 | 7575370000 | Cylinder |
| 11 | 7015020000 | Stud M.8X35X14X16 |
| 12 | 5050150008 | Connecting Rod |
| 13 | 7220260000 | Piston |
| 14 | 4080230000 | Piston Ring Kit |
| 15 | 7041010000 | Seeger Ø12 |
| 16 | 7050210000 | 8X38 pin Ø12 |
| 17 | 7181060000 | Dipstick |
| 18 | 7012180000 | Screw M6X20 UNI-8112 |
| 19 | 7011460000 | Screw M6X16 TAP-TITE |
| 20 | 7650010000 | Crankcase cover |
| 21 | 7078440000 | Gasket |
| 22 | 7237020000 | Copper pipe |
| 23 | 5041400008 | Removable Crank |
| 24 | 5070180008 | Sump |
| 25 | 7090080000 | Cap M3/8" |
| 26 | 4280870000 | Rotor Kit |
| 27 | 7310410000 | Capacitor MF.50 V450 |
| 28 | 7329900000 | Cable Pressure / Motor |
| 29 | 7501050000 | Block Cable |
| 30 | 7501060000 | Block Cable |
| 31 | 7382340000 | Terminal cover |
| 32 | 7012020000 | Screw Ø3,9X12,7 DIN-7981 |
| 33 | 7089950000 | Collector |
| 34 | 7410800000 | Prot. Thermal 15 A |
| 35 | 7640010000 | Cover |
| 36 | 7200020000 | Fan raff. |
| 37 | 7038020000 | Washer Ø8X30X3 UNI-6593 |
| 38 | 7011090000 | Screw M8X20 UNI-5739 |
| 39 | 7150370000 | Carena plastic |
| 40 | 7031010000 | Washer Ø8 UNI-3703 |
| 41 | 7015100000 | tie rod M6X185 |
| 42 | 7060030000 | Bearing 6204 20-47-14 2RS1- |
| 43 | 4011390000 | Stator |
| 44 | 7071160000 | Oil seal 4062/10 SMIM |
| 45 | 7060070000 | Bearing 6007 |
| 46 | 7078570000 | Gasket |
| 47 | 7020070000 | Nut M8 UNI-5587 |
| 48 | 7078030000 | Gasket |
| 50 | 7078580000 | Gasket |
| 51 | 7081100000 | Fitting 3/8 " |
| 52 | 7237010000 | Copper pipe |
| 53 | 7310520000 | BREAKER + 30MF.X2,5 SEC. + Lingueta |
| 100 | 4082010000 | Gakets Kit |
| 101 | 4191130000 | Kit Conrod/piston |
| 026A | 4280820000 | Rotor Kit |
| 028A | 7329870000 | PR WIRE/MOTGMV25-30 3X1,5 + T PVC90CM |
| 031A | 7382350000 | CLAMP COVER MEC90 GMV-E TRIFAS |
| 034A | 7410460000 | Thermal PROT. ETA-3120-F521-P7T1-W09D-6A |
| 043A | 4011420000 | MOTOR CASE V240 GMV 30 / 50HZ S/TERMBLK |
| 043B | 4011030000 | MOTOR CASE GMVHP3 MOT V380 / 50 RPM2800 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
