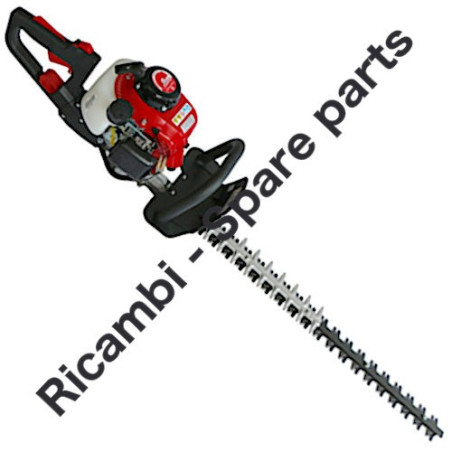

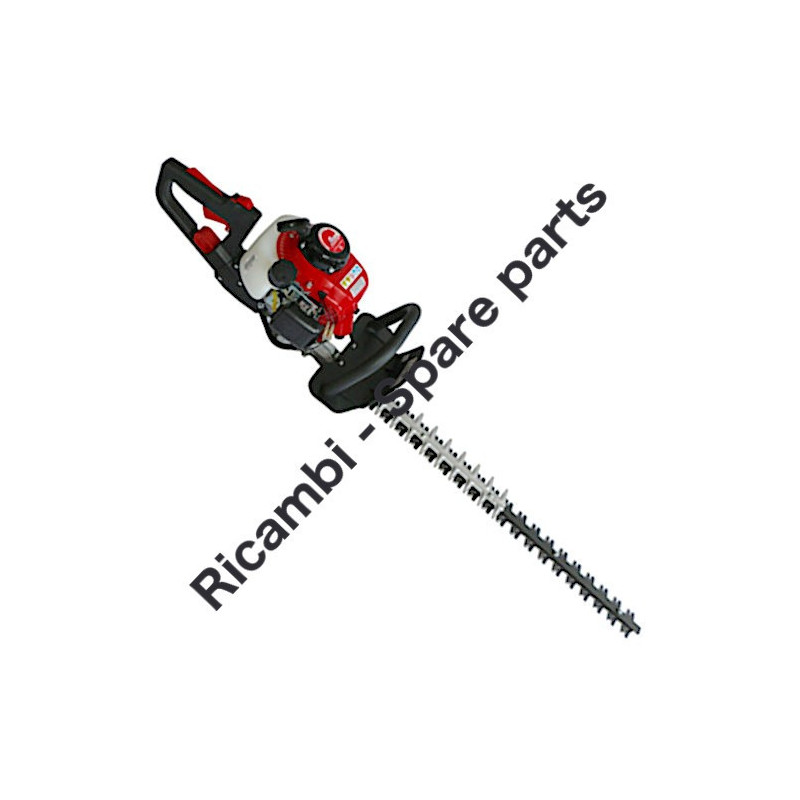

Maruyama Hedge Trimmer HT230D Parts
€142.36
Tax included
Maruyama Parts for Hedge Trimmer HT230D
Fix Your Hedge Trimmer Maruyama HT230D. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Maruyama Parts for Hedge Trimmer HT230D
Fix Your Hedge Trimmer Maruyama HT230D. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following tables, look for the spare part and its respective code.
| Maruyama Hedge Trimmer HT230D Parts | ||
| Main Body Pag.1 | ||
| # | Part Num. | Description |
| 1-1 | 362064 | |
| 1-2 | 270239 | |
| 1-3 | 270240 | Kit Handle |
| 1-4 | 997258 | Screw |
| 1-5 | 997259 | Plate |
| 1-6 | 997260 | Pin |
| 1-7 | 270145 | Cap |
| 1-8 | 997262 | Lever |
| 1-9 | 997263 | Seeger |
| 1-10 | 270274 | Pin |
| 1-11 | 270233 | Nut |
| 1-12 | 270085 | Plate |
| 1-13 | 270083 | Lever |
| 1-14 | 270370 | Stop |
| 1-15 | 270098 | Left Handle |
| 1-16 | 997268 | Screw |
| 1-17 | 997269 | Screw |
| 1-18 | 270099 | Right Handle |
| 1-19 | 266960 | Plate |
| 1-20 | 217677 | Blade Cover |
| 1-21 | 270021 | Clutch Drum |
| 1-22 | 584661 | Gear Box |
| 1-23 | 581910 | Screw |
| 1-24 | 270241 | Central Handle |
| 1-25 | 266957 | Plate |
| 1-26 | 997244 | Nut |
| 1-27 | 991941 | Nut |
| 1-28 | 270030 | Screw |
| 1-29 | 581912 | |
| 1-30 | 991937 | Pin |
| 1-31 | 580767 | Bearing |
| 1-32 | 270423 | Bearing |
| 1-33 | 584666 | Shaft |
| 1-34 | 591443 | Gear |
| 1-35 | 997282 | Connecting Rod |
| 1-36 | 580777 | Seeger |
| 1-37 | 991931 | |
| 1-38 | 570687 | Blade |
| 1-39 | 991924 | |
| 1-40 | 991919 | Plate |
| 1-41 | 997286 | Felt |
| 1-42 | 570688 | Blade |
| 1-43 | 997288 | Gear Box Cover |
| 1-44 | 580791 | Screw |
| 1-45 | 270023 | Tube |
| 1-46 | 991913 | Washer |
| 1-47 | 991914 | |
| 1-48 | 270119 | |
| 1-49 | 997253 | Nut |
| 1-50 | 270120 | Stop |
| 1-51 | 270371 | |
| 1-52 | 991912 | Support Bar |
| 1-53 | 991973 | Plate |
| 1-54 | 269426 | |
| Accessories Pag.2 | ||
| 2‐1 | 264606 | Accessory set |
| 2‐2 | 264607 | Spark plug wrench |
| 2‐3 | 219431 | Hex wrench |
| 2‐4 | 219432 | Hex wrench |
| 2‐5 | 270181 | User manual |
| 2‐6 | 521158 | Spare parts list |
| Engine Pag.3 | ||
| 3-1 | 850393 | |
| 3-2 | 263768 | Cylinder |
| 3-3 | 263770 | Gasket |
| 3-4 | 261250 | Screw |
| 3-5 | 267924 | Collector |
| 3-6 | 265794 | Gasket |
| 3-7 | 261171 | Gasket |
| 3-8 | 265924 | Screw |
| 3-9 | 263776 | Muffler |
| 3-10 | 264736 | Pin |
| 3-11 | 266959 | Label |
| 3-12 | 265925 | Screw |
| 3-13 | 263777 | Heat shield |
| 3-14 | 264223 | Screw |
| 3-15 | 263802 | Cover |
| 3-16 | 261607 | Screw |
| 3-17 | 264670 | Cylinder cover |
| 3-18 | 265742 | Screw |
| 3-19 | 264542 | Complete shaft |
| 3-20 | 261181 | |
| 3-21 | 262712 | |
| 3-22 | 262713 | Rubber |
| 3-23 | 054676 | |
| 3-24 | 261246 | Cap Screw |
| 3-25 | 263569 | Piston |
| 3-26 | 263789 | Piston ring |
| 3-27 | 261036 | |
| 3-28 | 263957 | |
| 3-29 | 261576 | |
| 3-30 | 264643 | |
| 3-31 | 264585 | Support |
| 3-32 | 264959 | Clutch |
| 3-33 | 264960 | Shoe |
| 3-34 | 264963 | Plate |
| 3-35 | 264964 | Spring |
| 3-36 | 264646 | Washer |
| 3-37 | 263799 | Cover |
| 3-38 | 265972 | |
| 3-39 | 264588 | Plate |
| 3-40 | 267386 | Coil |
| 3-41 | 263570 | Flywheel |
| 3-42 | 267173 | |
| 3-43 | 267174 | |
| 3-44 | 267403 | Complete spark plug cap |
| 3-45 | 267404 | Cable |
| 3-46 | 261074 | Cable |
| 3-47 | 261075 | |
| 3-48 | 261072 | |
| 3-49 | 269418 | |
| 3-50 | 261076 | |
| 3-51 | 261077 | Nut |
| 3-52 | 261078 | Rubber |
| 3-53 | 261256 | Screw |
| 3-54 | 262483 | Spark plug |
| 3-55 | 267492 | Cable |
| 3-56 | 261202 | Rubber |
| 3-57 | 265081 | Cover |
| 3-58 | 265175 | |
| 3-59 | 264545 | Fuel Tank |
| 3-60 | 265176 | Tank cap |
| 3-61 | 269415 | Cap filter |
| 3-62 | 269417 | Cap rod |
| 3-63 | 265928 | Pipe/filter kit |
| 3-64 | 265929 | Pipe kit |
| 3-65 | 265869 | Rubber pipe |
| 3-66 | 262649 | Tube |
| 3-67 | 263038 | Tube |
| 3-68 | 264653 | Filter |
| 3-69 | 261117 | Or |
| 3-70 | 264318 | Rubber |
| 3-71 | 263824 | Rubber |
| 3-72 | 261117 | Lock |
| 3-73 | 265199 | Plate |
| 3-74 | 261878 | |
| Carburetor - Recoil Starter Pag.4 | ||
| 4-1 | 265635 | |
| 4-2 | 261871 | Or |
| 4-3 | 262121 | Pin |
| 4-4 | 262995 | Diaphragm |
| 4-5 | 262994 | Diaphragm |
| 4-6 | 264155 | Base |
| 4-7 | 262993 | Diaphragm |
| 4-8 | 261873 | Diaphragm |
| 4-9 | 262991 | Base |
| 4-10 | 261874 | Pump |
| 4-11 | 262992 | Support |
| 4-12 | 262996 | Screw |
| 4-13 | 264681 | Base |
| 4-14 | 261876 | Lock |
| 4-15 | 261658 | Screw |
| 4-16 | 264682 | Pin |
| 4-17 | 261652 | Nut |
| 4-18 | 261864 | Gasket |
| 4-19 | 265973 | Plate |
| 4-20 | 264691 | O-ring |
| 4-21 | 265575 | |
| 4-22 | 265576 | Filter plate |
| 4-23 | 264695 | Filter |
| 4-24 | 264709 | Filter cover |
| 4-25 | 264016 | Screw |
| 4-26 | 264534 | Starter kit |
| 4-27 | 264083 | Starter Ass'y |
| 4-28 | 115096 | |
| 4-29 | 261725 | Handle |
| 4-30 | 261627 | Rope |
| 4-31 | 261622 | Spiral Spring |
| 4-32 | 261621 | Pulley |
| 4-33 | 262922 | Screw |
| 4-34 | 264085 | Starter Pawl Ass'y |
| 4-35 | 261630 | Pawl |
| 4-36 | 261631 | Spring |
| 4-37 | 264086 | Base |
| 4-38 | 020299 | Lock |
| 4-39 | 264535 | |
| 4-40 | 264807 | Screw |
| 4-41 | 265736 | |
| 4-42 | 264604 | Cable |
