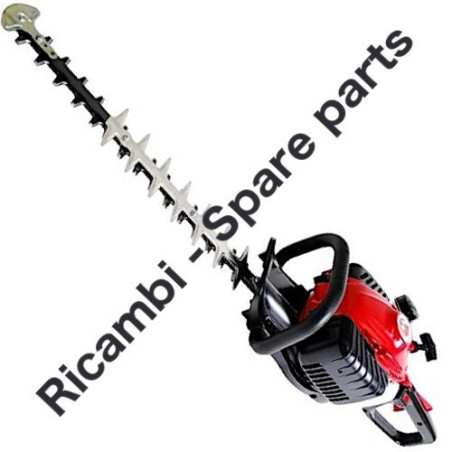

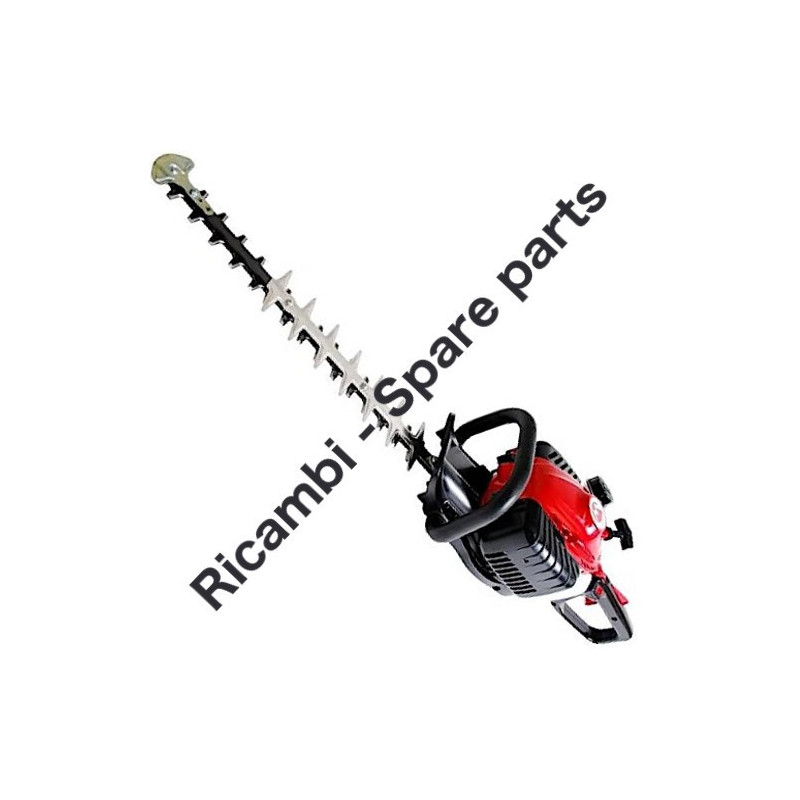

Hedge Cutter Maruyama HT234D

Maruyama Hedge Cutter HT234D Parts
Main Body Pag.1
# Part. Num. Description
1-1 362417 HT234D
1-2 277418 Guide Plate
1-3 271888 Spacer Plate
1-4 271889 Spacer
1-5 277421 Spacer
1-6 271890 Washer
1-7 271891 Upper Blade
1-8 271892 Lower Blade
1-9 274878 Blade Guard
1-10 271894 Bush
1-11 271895 Screw
1-12 277530 Screw
1-13 271897 Screw
1-14 277531 Screw
1-15 271899 Nut
1-16 271901 Cover of Blade
1-17 271902 Rear Handle Ass'y Incl.18-36
1-18 271278 Rear Handle (L)
1-19 271279 Rear Handle (R)
1-20 271280 Lever,Throttle
1-21 271281 Stop Lever
1-22 271282 Lock Lever
1-23 271283 Lock Lever Stopper
1-24 271284 Rod
1-25 271285 Switch
1-26 271904 Cable Comp
1-27 271287 Spacer
1-28 271288 Spring
1-29 271289 Spring
1-30 270400 Spring
1-31 271276 Screw
1-32 271274 Handle Stay (L)
1-33 271275 Handle Stay (R)
1-34 271276 Screw
1-35 270424 Spacer
1-36 271277 Spacer
1-37 271905 Front Handle
1-38 270566 Label
1-39 271906 Tail Pipe Cover
1-40 271907 Tail Pipe Comp
1-41 271221 Tube
1-42 270843 Washer
1-43 271908 Screw
1-44 271909 Screw
1-45 271910 Screw
1-46 271911 Screw
1-47 271912 Screw
1-48 271914 Rod Ass'y
1-49 271918 Upper Case
1-50 271919 Pinion
1-51 271920 Plate
1-52 270021 Clutch Drum
1-53 271921 Bearing
1-54 580767 Bearing
1-55 991937 Grease Nipple
1-56 271923 Lower Case
1-57 271924 Plate
1-58 270423 Bearing
1-59 271925 Bearing
1-60 271926 Crank Comp
1-61 271927 Felt
1-62 271910 Screw
1-63 266957 Label
1-64 266960 Label
1-65 269433 Label
Engine Pag.2
2-1 859995 Engine
2-2 288499 Cylinder
2-3 286074 Gasket
2-4 261250 Cap Screw
2-5 265802 Insulator - New gasket required
2-6 267049 Gasket
2-7 265924 Cap Screw
2-8 275641 Muffler Ass'y Incl.9-11
2-9 288503 Muffler Tail
2-10 289382 Gasket
2-11 288542 Screw
2-12 266959 Label
2-13 266402 Cap Screw
2-14 275562 Muffler Guard
2-15 288542 Screw
2-16 275561 Gasket
2-17 275560 Under Cover
2-18 267191 Cap Screw
2-19 276563 Top Cover Ass'y Incl.20-22
2-20 276564 Top Cover Comp
2-21 286399 Knob
2-22 286270 Washer
2-23 288537 Crankcase
2-24 280488 Bearing
2-25 261492 Oil Seal
2-26 261386 Oil Seal
2-27 055185 Snap Ring
2-28 261246 Cap Screw
2-29 283379 Piston
2-30 282177 Piston Ring
2-31 261036 Piston Pin
2-32 263957 Bearing, Needle
2-33 261576 Clip,Piston
2-34 288511 Crankshaft/Conn.Rod Ass'y
2-35 280404 Clutch Ass'y Incl.36-38
2-36 280568 Clutch Shoe
2-37 280569 Clutch Boss
2-38 280570 Spring
2-39 275557 Fan Cover
2-40 261250 Cap Screw
2-41 271998 Magneto Ass'y Incl.42-49
2-42 288515 Rotor/Fan
2-43 271999 Ignition Coil Ass'y Incl.44-49
2-44 272000 Spark Plug Wire Ass'y Incl.45-47
2-45 289485 Spark Plug Wire
2-46 277856 Connector
2-47 272001 Plug Boot
2-48 283271 Cap
2-49 289486 Insulator
2-50 277567 Label
2-51 261076 Woodruff Key
2-52 261417 Nut,Rotor
2-53 280381 Spacer
2-54 261256 Cap Screw
2-55 288264 Spark Plug
2-56 261772 Lead
2-57 283140 Grommet
2-58 283171 Recoil Starter Ass'y Incl.59-73
2-59 283172 Starter Ass'y Incl.60-68
2-60 286363 Reel
2-61 286364 Cam Plate
2-62 283290 Spring
2-63 280931 Spiral Spring
2-64 267213 Screw
2-65 283291 Rope Ass'y Incl.66-68
2-66 283292 Starter Rope
2-67 261725 Starter Grip
2-68 283293 Rope Stopper
2-69 283173 Starter Pulley Ass'y Incl.70-73
2-70 283294 Starter Pulley
2-71 280936 Ratchet
2-72 283295 Spring
2-73 020299 E-Ring
2-74 264535 Screw
2-75 280144 Tapping Screw
Carburetor - Recoil Starter Pag.3
3-1 277126 Carburetor Ass'y Incl.2-15
3-2 268499 Pump Body
3-3 262991 Purge Body
3-4 262992 Cover Plate
3-5 261874 Primer Bulb
3-6 283905 Diaphragm, Meterring
3-7 262993 Gasket
3-8 262994 Diaphragm,Fuel Pump
3-9 282576 Gasket
3-10 289396 Main Jet
3-11 261871 O-Ring
3-12 261876 E-Ring
3-13 261658 Swivel
3-14 264682 Screw
3-15 262996 Screw
3-16 288517 Gasket
3-17 283773 Stay
3-18 283771 Gasket
3-19 289048 Case Ass'y Incl.20-26
3-20 269050 Case Body
3-21 289019 Valve
3-22 284803 Lever
3-23 284816 Washer
3-24 269032 Screw
3-25 126993 Nut
3-26 269051 Sleeve
3-27 269030 Element
3-28 262720 Cap Screw
3-29 283772 Cleaner Cover
3-30 281438 Knob
3-31 276555 Fuel Tank Ass'y Incl.32-42
3-32 275559 Fuel Tank
3-33 283438 Tank Cap Ass'y Incl.34,35
3-34 283727 Gasket
3-35 283764 Breather Ass'y
3-36 265752 Fuel Pipe Pick-up Ass'y Incl.37-42
3-37 264031 Fuel Pipe Ass'y Incl.38-40
3-38 261115 Grommet
3-39 261690 Fuel Pipe
3-40 263038 Return Pipe
3-41 264653 Filter Ass'y
3-42 261117 Clip
3-43 261117 Clip
3-44 269690 Cap Screw
Accessories Pag.4
4-1 264606 Tool Set
4-2 264607 Box Spanner
4-3 219431 Wrench
4-4 219432 Wrench
4-5 271825 Instruction Manual
4-6 271827 Instruction Manual
4-7 271830 Instruction Manual
4-8 524271 Parts List
