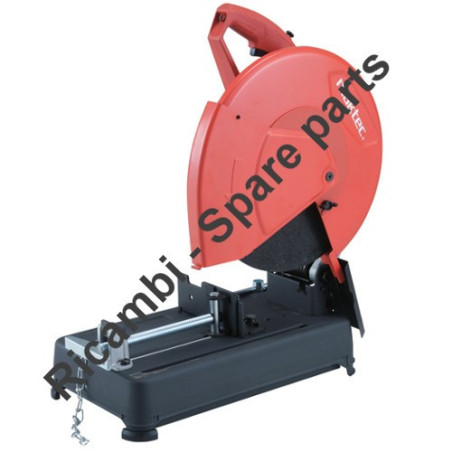

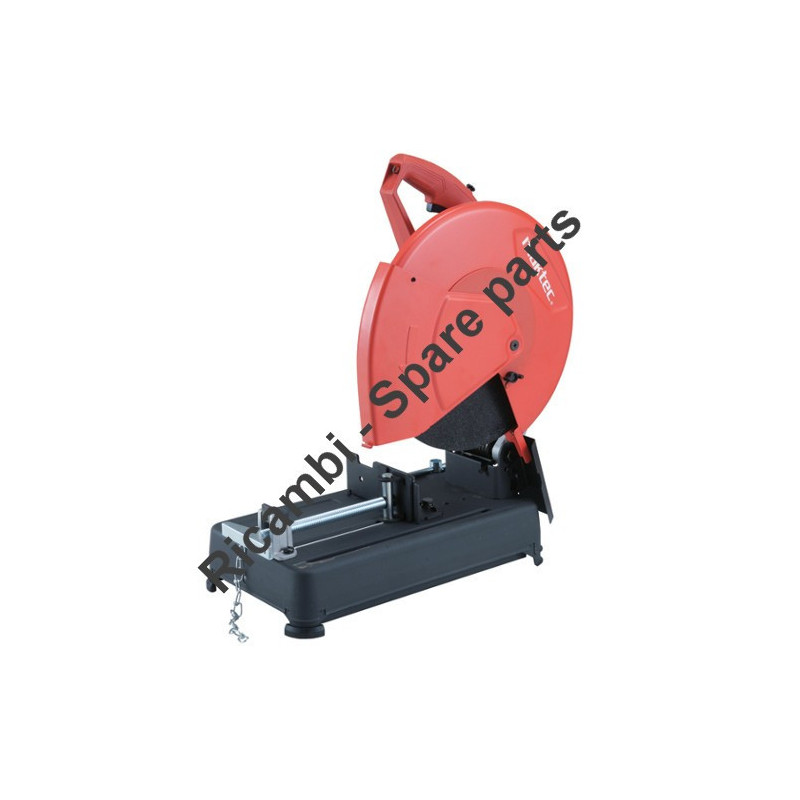

Maktec Spare Parts for Cut-Off MT242
search
  • Maktec Spare Parts for Cut-Off MT242
  • Maktec Spare Parts for Cut-Off MT242

Maktec Spare Parts for Cut-Off MT242

€1.26
Tax included

Maktec Spare Parts for Cut-Off MT242

Rely on our experience and our professionalism, take care of your Portable Cut-Off MT242 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.

ITEM CODE: 265122-5
Quantity
on 7/10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Maktec Spare Parts for Cut-Off MT242

Rely on our experience and our professionalism, take care of your Portable Cut-Off MT242 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.

In the following table, look for the model of Mitre Saw and the respective parts of the code.
Maktec MT242

Mitre Saw Maktec MT242
# Part Num. Description
2 265122-5 SCREW M 5 X 20 X MT240
3 224456-5 FLANGE 90 2414EN
4 251680-7 BOLT C / BORDINO 10X25
5 418142-0 PLUG X HEADSET SAFETY MT240
6 418142-0 PLUG X HEADSET SAFETY MT240
7 165707-6 DRIVING SAFETY MT242
8 265121-7 SCREW M 6 X MT240
10 265121-7 SCREW M 6 X MT240
11 346635-6 COVER CENTRAL MT242
12 265754-8 SCREW M6X12 MT582
13 213180-5 RING 14 X MT240
14 257255-0 RING 17 X MT240
15 224456-5 FLANGE 90 2414EN
16 257255-0 RING 17 X MT240
17 165706-8 PROTECTION BLADE MT242
18 211282-1 BEARING 6203ZZ X MT240
19 317663-8 BOX CUSC.X MT240
20 226572-9 Worm Gear. 49 X MT240
21 324321-9 POST X MT240
22 210067-2 BEARING 6000ZZ X MT952
23 187128-2 HANDLE
24 650545-4 SWITCH TGA115CT-2 MT240
25 418140-4 KEY SWITCH X MT240
26 418139-9 LOCK SWITCH X MT240
27 231397-8 SPRING COMPRESSION 4 2414B
28 281216-8 HOOK X MT240
29 268101-2 PIN 6 X MT240
31 418138-1 KEY BLOCK X MT240
32 266326-2 SCREW 4x18 X MT601
34 265104-7 SCREW M5 X 40 MT240
35 654588-8 X CLAMP MT952
36 645191-6 CAPACITOR X MT240
37 688131-1 FILTER LINE X MT240
38 266326-2 SCREW 4x18 X MT601
39 687124-5 Cable tie CLAMP MT953
41 682540-6 SLEEVE JN1601
43 140939-6 HOUSING MOTOR
44 643710-2 PLUG BRUSH XHM1500
45 191953-5 CARBON BRUSHES CB-203 X 3612C
46 265104-7 SCREW M5 X 40 MT240
47 596249-3 STATOR X MT240
48 266328-8 SCREW M 5 X 80 X MT240
49 418143-8 BAFFLE X MT240
50 210070-3 BEARING 6200ZZ X MT240
51 517864-0 ARMATURE
52 240063-6 FAN 80 X MT240
53 267274-8 WASHER 15 X MT240
54 211240-7 BEARING X MT240
55 324322-7 STOP X MT240
56 233372-0 SPRING COMP. 7 X MT240
57 153600-6 ARM X MT240
58 951163-4 PIN 5-20 X2414K
59 272027-2 DIAL 120 X MT240
60 324323-5 THREADED BAR X VICE MT240
63 251961-9 BOLT M6x10 X LS1040
64 282015-1 CHAIN ​​X MT240
65 313114-9 NUT X VICE MT240
66 345311-9 X PLATE SUPPORT SCREW MT240
67 317662-0 SUPPORT SCREW VISE X X MT240
68 951175-7 JACK BAND 5/36
69 951110-5 JACK BAND 4/16 X MT240
70 265125-9 SCREW M8 X 30 X MT240
71 265508-3 SCREW M10x25 X MT240
72 265508-3 SCREW M10x25 X MT240
73 346637-2 PLATE GUIDE 2414EN
74 252183-4 NUT M10 X 17 X MT240
75 942251-8 SPRING WASHER 10
76 267258-6 WASHER 10 X MT240
77 331648-0 AXIS JOINT 20-128 X MT240
78 231667-5 SPRING TWIST 24 X MT240
81 165705-0 PROTECTION SPARKS 2414EN
82 265144-5 SCREW M6 X 10 X MT240
83 421834-2 RUBBER FOOT X MT240
84 267258-6 WASHER 10 X MT240
85 265509-1 SCREW M10X140 X MT240
86 165373-9 BASE X MT240
87 961004-6 RETAINING RING S8
88 267257-8 WASHER 8 X MT240
89 256545-8 PIN 16 2414EN
90 961056-7 RETAINING RING S16
91 267257-8 WASHER 8 X MT240
92 346636-4 JAW PLATE 2414NB
93 253903-9 WASHER 6 3700B
95 421870-8 BUFFER RUBBER MT240
96 345443-2 CASE FOR BUFFER MT240
97 681630-2 WASHER X 9029-9029SF.
