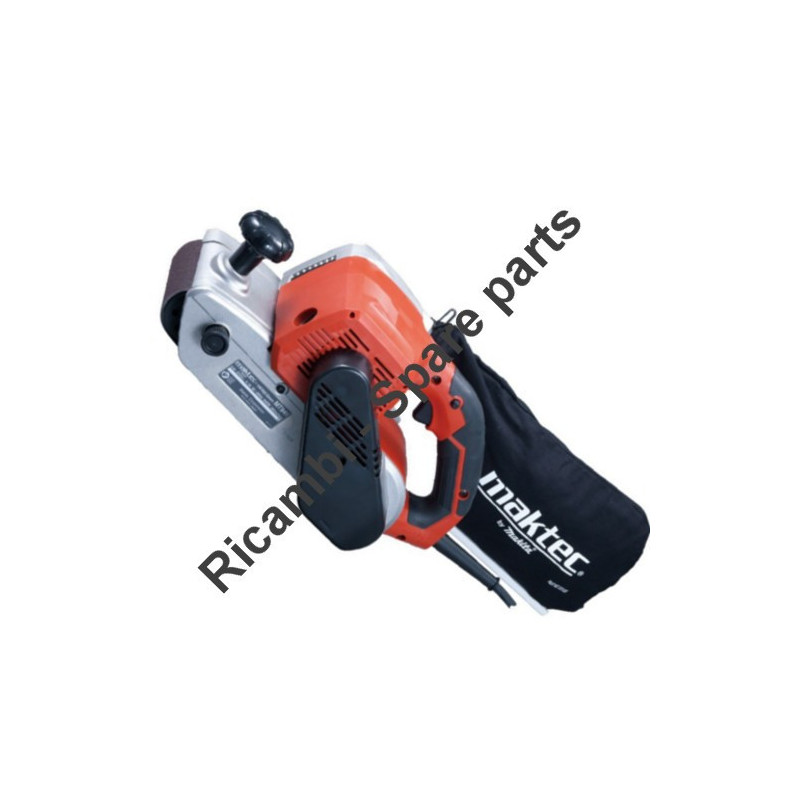

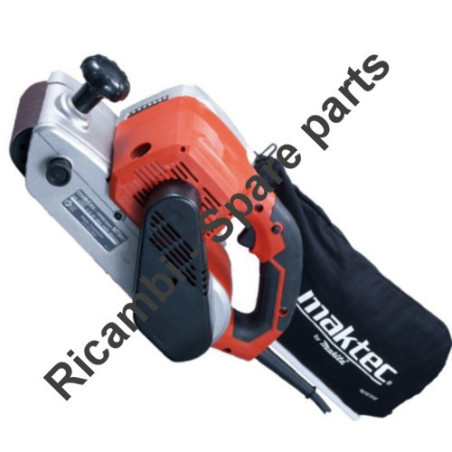

Maktec original spare parts for replacing engine parts or parts of the frame or repairing damaged and worn components of Belt Sander MT941.
Fix Your Belt Sander MT941. All Spares can be supplied at low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of Sander and the respective parts of the code.![]()
| Belt Sander Maktec MT941 | ||
| # | Part NUm. | Description |
| 1 | 318921-5 | FAN HOLDER MT941 |
| 2 | 266326-2 | SCREW 4x18 X MT601 |
| 3 | 241662-7 | FAN X 9403 |
| 4 | 265170-4 | SCREW M5X12 MT941 |
| 5 | 419580-9 | PROTECTION MT941 |
| 6 | 318919-2 | COVER FAN MT941 |
| 7 | 266560-4 | SCREW 4x40 HS300D |
| 8 | 265169-9 | SCREW type M4x45 MT941 |
| 9 | 266560-4 | SCREW 4x40 HS300D |
| 10 | 266560-4 | SCREW 4x40 HS300D |
| 12 | 266560-4 | SCREW 4x40 HS300D |
| 13 | 210067-2 | BEARING 6000ZZ X MT952 |
| 14 | 240013-1 | FAN X 9403 |
| 15 | 517879-7 | ARMATURE MT941 |
| 16 | 681649-1 | INSULATOR 9403 |
| 17 | 210067-2 | BEARING 6000ZZ X MT952 |
| 18 | 453968-3 | BAFFLE MT941 |
| 19 | 266397-9 | SCREW 5X50 MT941 |
| 20 | 596298-0 | STATOR MT941 |
| 21 | 643650-4 | CARBON BRUSH CAP |
| 22 | 181044-0 | CARBON BRUSHES CB-153 (150/52/54) |
| 23 | 141760-6 | HOUSING MOTOR MT941 |
| 24 | 222168-4 | PULLEY 6-23 MT941 |
| 25 | 266326-2 | SCREW 4x18 X MT601 |
| 27 | 682540-6 | SLEEVE JN1601 |
| 28 | 687124-5 | Cable tie CLAMP MT953 |
| 29 | 266326-2 | SCREW 4x18 X MT601 |
| 30 | 654588-8 | X CLAMP MT952 |
| 31 | 645240-9 | CAPACITOR MT430 |
| 32 | 650545-4 | SWITCH TGA115CT-2 MT240 |
| 33 | 418871-5 | KEY LOCK MT941 |
| 34 | 233423-9 | SPRING COMPRESSION 9 MT941 |
| 35 | 418873-1 | MT941 LEVER SWITCH |
| 36 | 453965-9 | COVER HANDLE MT941 |
| 37 | 265763-7 | SCREW M6X25 RT0700C |
| 38 | 267356-6 | WASHER 16 MT941 |
| 39 | 231225-7 | SPRING 16 99B / 9924DB |
| 40 | 158070-4 | FRAME |
| 41 | 271325-1 | KNOB 55 MT941 |
| 42 | 252172-9 | NUT M10 MT941 |
| 43 | 345726-0 | SLIDING PLATE MT941 |
| 44 | 961052-5 | RETAINING RING S12 |
| 45 | 163477-1 | ROLLER ARM MT941 |
| 46 | 253922-5 | WASHER 12 9401/02 / 99B |
| 47 | 150978-8 | FRONT ROLLER 9403 |
| 48 | 253922-5 | WASHER 12 9401/02 / 99B |
| 49 | 323829-0 | STUD ROLLER 9403 |
| 50 | 265112-8 | SCREW M4X18 MT430 |
| 51 | 344622-9 | COVER SICUR. X 9403 |
| 52 | 162248-3 | ROLL BACK |
| 53 | 252087-0 | NUT ESAG. M12-19 X 9403 |
| 54 | 265112-8 | SCREW M4X18 MT430 |
| 55 | 344623-7 | PLATE X 9403 |
| 56 | 424057-1 | BASE COAL MT941 |
| 57 | 424058-9 | RUBBER BASE MT491 |
| 58 | 233235-0 | SPRING COMP. 9403 |
| 59 | 231819-8 | SPRING TORQUE 4 X 9403 |
| 60 | 211145-1 | BEARING 6201ZZ MT582 |
| 61 | 321980-0 | PIN HOLDER 9901 |
| 62 | 266326-2 | SCREW 4x18 X MT601 |
| 63 | 266326-2 | SCREW 4x18 X MT601 |
| 64 | 158072-0 | GEAR 42 MT941 |
| 66 | 265112-8 | SCREW M4X18 MT430 |
| 67 | 226634-3 | GEAR 10 MT941 |
| 68 | 210070-3 | BEARING 6200ZZ X MT240 |
| 69 | 318074-0 | BEARING MT941 |
| 70 | 265112-8 | SCREW M4X18 MT430 |
| 71 | 222169-2 | PULLEY 6 to 52.9 MT941 |
| 72 | 252172-9 | NUT M10 MT941 |
| 73 | 225091-2 | BELT 6-355 MT941 |
| 75 | 419581-7 | COVER BELT MT941 |
| 76 | 265112-8 | SCREW M4X18 MT430 |
| 122297-2 | DUST BAG | |
| ORIGINAL BELT SANDER MAKITA 100X610 | ||
