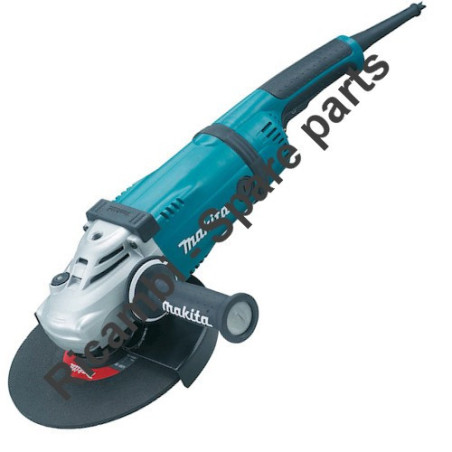

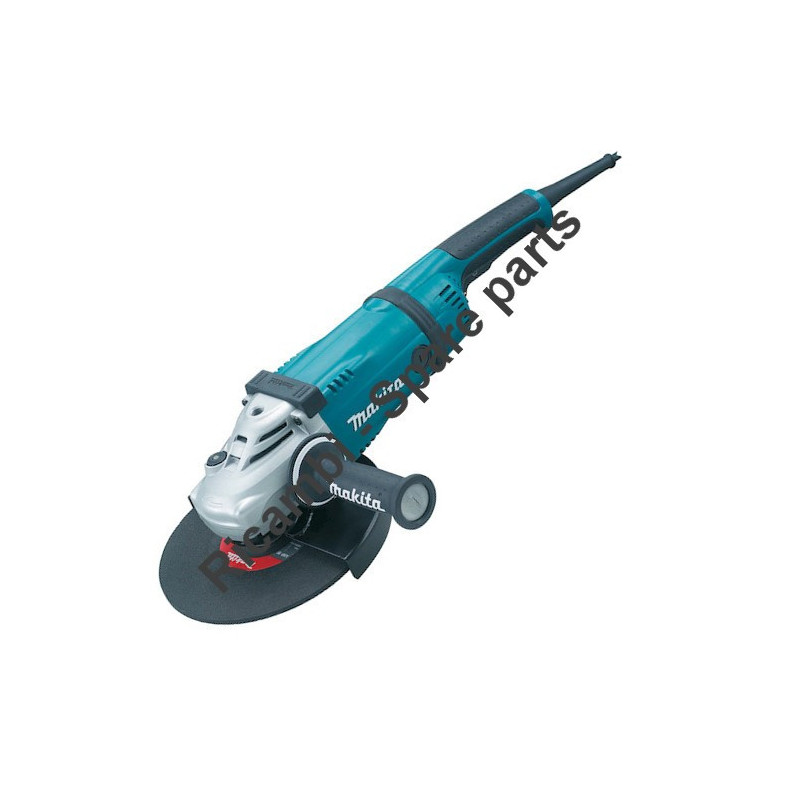

Makita original spare parts for to make maintenance, replacement or repair damaged parts of the Angle Grinder GA9040R.
In the following table, look for the model of the Angle Grinder and the respective parts of the code.![]()
| Angle Grinder GA9040R | ||
| 1 | 419133-4 | PLUG PLUG FOR GA9020 |
| 2 | 233292-8 | SPRING COMPRESSION 12 |
| 3 | 266012-5 | SCREW M5 X 35 HR160DW |
| 4 | 419144-9 | PROTECTION FOR RUBBER GA9020 |
| 5 | 142754-4 | GEAR HOUSING FOR GA9020 |
| 6 | 252194-9 | NUT M8 FOR GA9020 |
| 7 | 227490-4 | GEAR FOR 12 GA9020 |
| 8 | 211132-0 | BALL BEARING 6301DD |
| 9 | 262085-6 | RUBBER RING 38 9079S |
| 10 | 267299-2 | WASHER 20 FOR GA9020 |
| 11 | 962211-4 | RETAINING RING R42 |
| 12 | 240081-4 | FAN FOR 80 GA9020 |
| 13 | 517833-1 | ARMATURE FOR GA9040S |
| 14 | 681630-2 | WASHER X 9029-9029SF. |
| 15 | 211087-9 | BALL BEARING 6200DDW NSK |
| 16 | 419135-0 | DEFLECTOR FOR GA9020 |
| 17 | 526223-7 | STATOR FOR GA9040R |
| 18 | 266059-9 | SCREW M5X75 X 9059SF |
| 19 | 154786-9 | MOTOR HOUSING GA9040S |
| 20 | 643710-2 | PLUG BRUSH XHM1500 |
| 21 | 191957-7 | CARBON BRUSH SET CB-204 (201.202) |
| 23 | 233375-4 | COMPRESSION SPRING 7 X GA9040S |
| 24 | 451630-4 | KEY LOCK X GA9030R |
| 25 | 631946-5 | REGULATOR FOR GA9030R |
| 26 | 686036-9 | TERMINAL FOR GA9020 |
| 27 | 650107-8 | SWITCH TG08-2300-013 X GA9050R |
| 28 | 645088-9 | NOISE SUPPRESSOR GA9020 |
| 29 | 421936-4 | VIBRATION PROOF RUBBER |
| 30 | 188845-7 | HANDLE SET GA9030R |
| 31 | 266192-7 | SCREW 4 X 14 X HR4001C / HR4010C |
| 32 | 687169-3 | STRAIN RELIEFE HP1620 |
| 33 | 265999-8 | SCREW 4X25 |
| 35 | 682560-0 | CABLE SLEEVE X HM1202C / 9079S |
| 37 | 213062-1 | RING 9 X BSR730 |
| 38 | 256491-5 | 5 PIN FOR GA9020 |
| 39 | 263002-9 | RUBBER PLUG 4 |
| 40 | 211061-7 | BALL BEARING 6000DD 6221DW |
| 41 | 252429-8 | NUT FOR M15-23 GA9040S |
| 42 | 232163-6 | WASHER 20 X 9047F 9049F |
| 43 | 232163-6 | WASHER 20 X 9047F 9049F |
| 44 | 267798-4 | WASHER LOCK FOR GA9040S |
| 45 | 227492-0 | GEAR FOR 53C GA9040S |
| 46 | 265120-9 | SCREW M5X16 FOR GA9020 |
| 47 | 285724-1 | BEARING RETAINER 50 GA9020 |
| 48 | 267167-9 | WASHER 15 X 9047F 9049F |
| 49 | 211490-4 | BEARING 6203LLU X SG150-2 |
| 50 | 213760-7 | SEAL 78 HR2010 |
| 51 | 318377-2 | BOX BEARING GA9020 |
| 52 | 265541-5 | SCREW M6X22 FOR GA9020 |
| 53 | 154777-0 | POST FOR GA9040S |
| 55 | 122891-0 | HEADSET FOR DISCO GA9020 |
| 56 | 224415-9 | FLANGE INTERNAL 42 GA95010 |
| 57 | 224543-0 | FLANGE 9047F 9049F 9049SF |
| 58 | 261131-2 | WASHER NYLON 89 TO GA9040S |
| 59 | 819357-6 | LABEL X GA9030R |
