Makita Spare Parts for Jigsaw 4300BA
search
  • Makita Spare Parts for Jigsaw 4300BA
  • Makita Spare Parts for Jigsaw 4300BA

Makita Spare Parts for Jigsaw 4300BA

€5.24
Tax included

Makita Spare Parts for Jigsaw 4300BA

MAKITA Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Jigsaw 4300BA.
ITEM CODE: 335018-5
Quantity
Usually Ships in: 7/10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Makita Spare Parts for Jigsaw 4300BA

MAKITA Original spare parts

at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Jigsaw 4300BA.


In the following table, look for the model of Jogsaw and the respective parts of the code.
Makita 4300BA

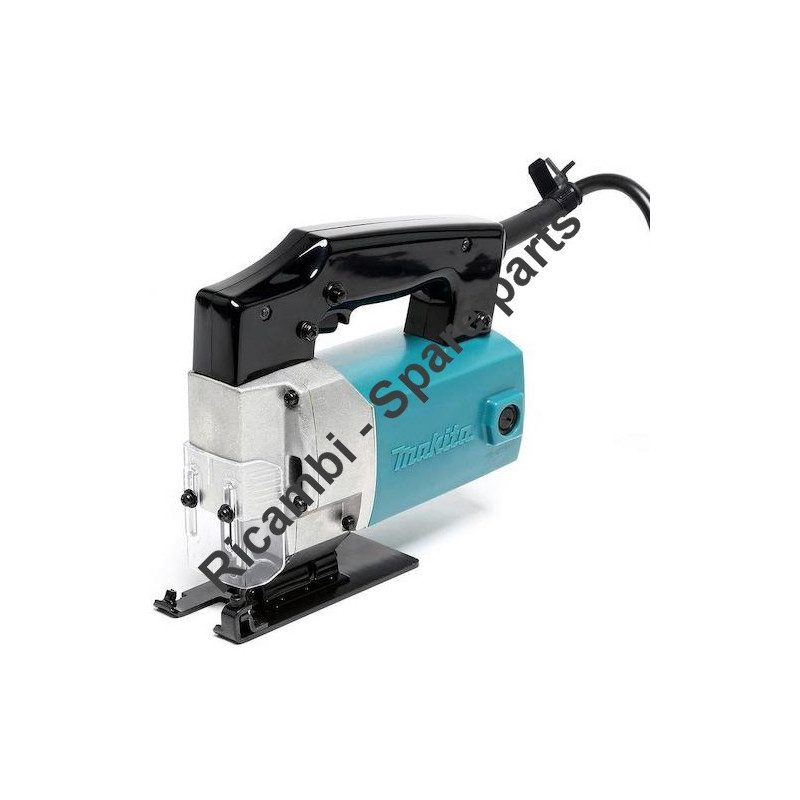

Makita 4300BA Corded Jigsaw
# Part Num. Descrizione
1 335018-5 SLIDER SUPPORT 4300BA/BV
2 334018-2 SLIDER 4300BA/BV
3 943052-7 TOOTHED WASHER 4
4 251387-5 COUNTERSUNK HD SCREW 4X12 43BA / BV / 4301BV
5 342483-1 SLIDER PLATE 4300BA/BV
6 961004-6 EXT DIN CIRCLIP-8
7 212010-7 NEEDLE BEARING 607
8 911221-8 PAN HD SCREW 5X16 W/SP X HM1303
9 163021-4 CRANK 43BA / BV
10 LC961018-5 EXT E-RING JIS JE-5
11 253077-6 NARROW WASHER 6 4300 / 01BV
12 313014-3 BALANCE PLATE 43BA / BV
13 221160-7 HELICAL GEAR 51 4300BA/BV
14 212043-2 NEEDLE BEARING 810 4305/9920   TLA810Z HR201
15 253076-8 LARGE WASHER 8 4300BV 43BA / BV
16 911118-1 PAN HEAD SCREW M4X12
17 323221-0 GEAR SHAFT 4300BA/BV
18 442082-0 PACKING 4300BA/BV/V
20 911265-8 Pan Head Screw M5X40 8416
21 211033-2 BALL BEARING 608SS (LLB) HR2010
22 512065-5 ARMATURE ASSY 4300BA / 4300BV
23 241518-4 FAN 68 4300 / 01BV
24 211033-2 BALL BEARING 608SS (LLB) HR2010
25 263002-9 RUBBER PIN 4
27 157406-4 GEAR HOUSING 4300BA / BV
28 911546-0 Pan Head Screw M4X25
29 911136-9 Pan Head Screw M4X20
32 157407-2 GEAR HOUSING COVER 4300BA/BV
33 325125-2 BLADE HOLDER 4300BA / BV
34 344979-8 JIGSAW BLADE CLAMP 4300BA 4300BV 4300D
36 922111-0 HEX SOCKET HD BOLT M4X10
37 922117-8 CAP HD SCREW M4X12
38 164491-0 BASE SHOE 4300BA / BV
40 257903-1 STOP RING E-2.3 JG16/43BABV
41 941051-3 FLAT WASHER 4
42 154530-4 BLADE GUIDE ROLLER 4300BV 4300BA
45 922136-4 CAP HD SCREW M4X20
46 181134-9 HANDLE SET 4300BA
47 263014-2 RUBBER PIN 4
48 911153-9 PAN HEAD SCREW M4X28 3600H
49 253192-6 FLAT WASHER 14
50 911223-4 PAN HD SCREW 5X16 W/CP
51 643550-8 BRUSH HOLDER CAP CB-9-14-17/N1
52 181021-2 CARBON BRUSH CB-51 (50)
53 157819-9 MOTOR HOUSING 4300BA/BV
55 682504-0 CORD GUARD 10/85 HP1641/BO5031/HP163
56 687001-1 STRAIN RELIEF 4157KB/6820V
57 911133-5 PAN HD SCREW M4X18
58 645253-0 NOISE SUPPRESSOR 6408
59 685700-9 SPONGE SHEET JN3200/JR3030T* M802 / HR3850B
60 651204-3 SWITCH SGEL115CDY
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
