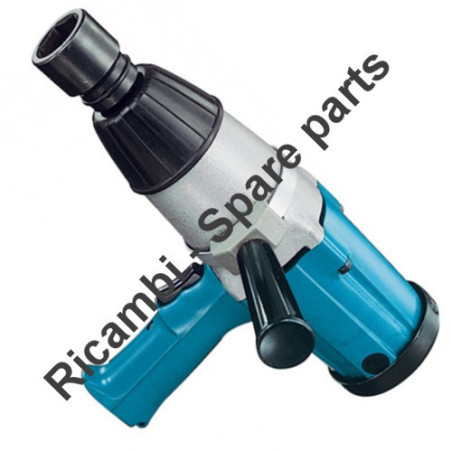

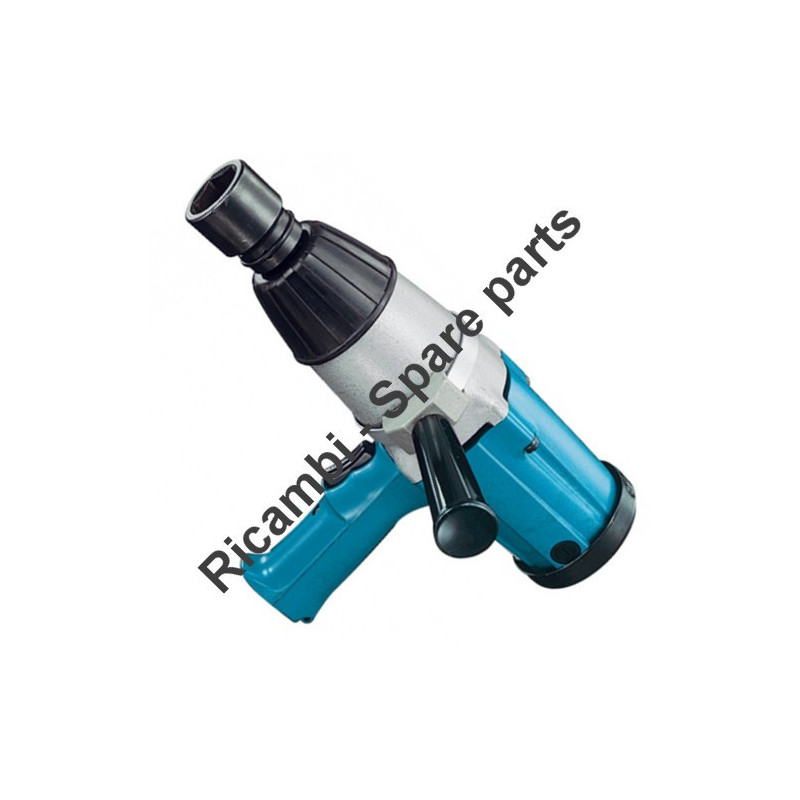

We have the original Spares MAKITA for Impact Wrench 6906, the diagram, parts list and tool repair that help you need to get your tools running like new again.
Fix Your Impact Wrench 6906. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.6
In the following table, look for the model of Impact Wrench and the respective parts of the code.![]()
| Impact Wrench 6906 | ||
| # | Part Num. | Description |
| 1 | 421112-0 | PROTECTION RUBBER |
| 2 | 156087-1 | ELASTIC RING BOX |
| 3 | 231920-9 | CIRCLIP 16 X 6906 |
| 4 | 257040-1 | RING 65 |
| 5 | 253939-8 | WASHER 25 |
| 6 | 134946-9 | ANVIL COMPLETE 6906 |
| 7 | 261023-5 | WASHER 27 |
| 8 | 216008-6 | BALL 4 |
| 9 | 325318-1 | ELASTIC RING |
| 10 | 253764-7 | WASHER 36 |
| 11 | 231135-8 | SPRING 37 |
| 12 | 253765-5 | WASHER 36 |
| 13 | 216009-4 | BALL 7.1 |
| 14 | 221243-3 | GEAR 29 |
| 15 | 212011-5 | ROLLER BEARING 609 |
| 16 | 325322-0 | TREE |
| 17 | 256041-6 | PIN 6 |
| 18 | 212151-9 | BEARING ROLLER 1412 |
| 19 | 211441-7 | BALL BEARING 3009 |
| 20 | 221242-5 | GEAR 65 |
| 21 | 256040-8 | PIN 5 |
| 22 | 962352-6 | RETAINING RING R32 |
| 23 | 216103-2 | BEARING 1016 |
| 24 | 253180-3 | FLAT WASHER 10 |
| 26 | 512883-1 | ARMATURE |
| 27 | 681613-2 | INSULATION WASHER |
| 28 | 211031-6 | BEARING 608 |
| 29 | 413008-9 | FAN GUIDE |
| 30 | 911691-1 | SCREW M5x70 |
| 31 | 527419-3 | STATOR |
| 32 | 253929-1 | WASHER 5 |
| 33 | 262001-8 | RING 5 |
| 34 | 922262-9 | SCREW ESAG. INC. M5x40 |
| 36 | 253774-4 | WASHER 65 |
| 37 | 911173-3 | HEAD SCREW CILIND. type M4x45 |
| 38 | 414959-9 | COVER HANDLE |
| 39 | 911106-8 | SCREW M4X8 |
| 40 | 651558-8 | SWITCH |
| 41 | 646342-4 | COIL X 6807 |
| 42 | 911133-5 | SCREW M4X18 |
| 43 | 687001-1 | CLAMP cable tie |
| 44 | 682504-0 | CABLE SLEEVE 10/85 |
| 46 | 643600-9 | PLUG BRUSH |
| 47 | 181030-1 | CARBON BRUSHES CB 100 |
| 50 | 159414-1 | HOUSING MOTOR |
| 51 | 262010-7 | RING 18 |
| 52 | 253314-8 | WASHER 15 |
| 53 | 284065-2 | BACK COVER |
| 54 | 922221-3 | SCREW M5X16 |
| 55 | 257535-4 | RING 25 X6906 |
| 56 | 213360-3 | SEAL OIL 25 X6906 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
