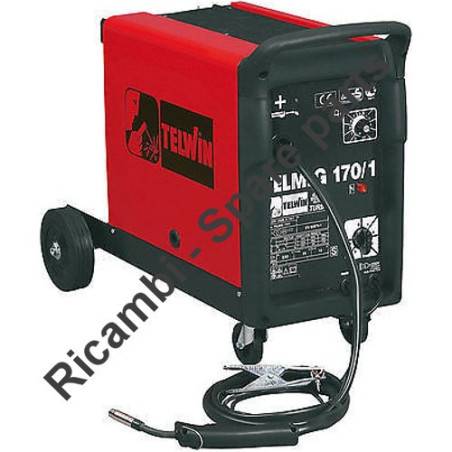

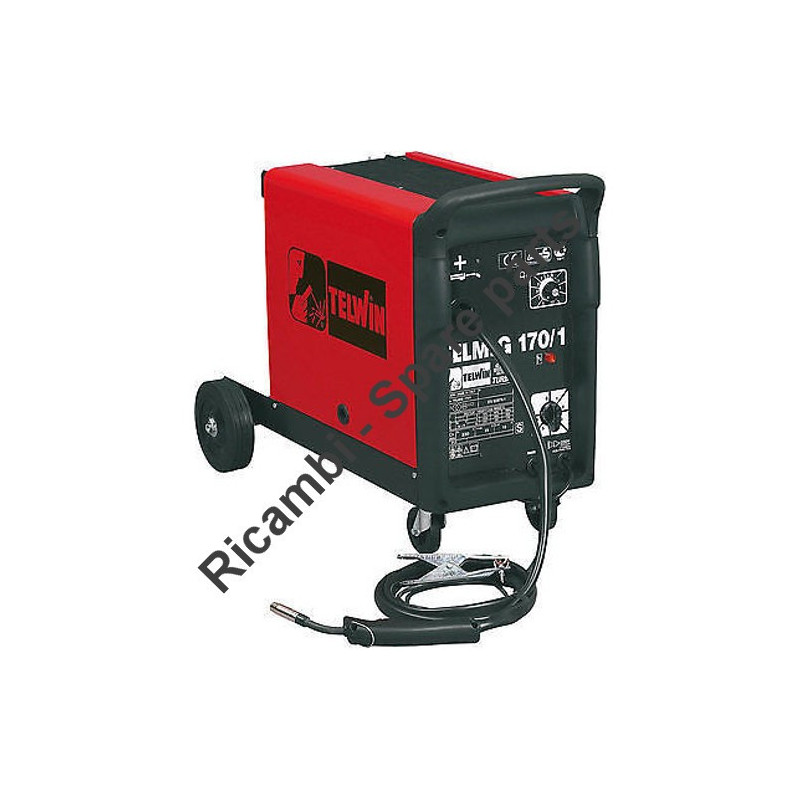

Telwin Spare Parts for Flux Welding Telmig 170/1 Turbo
€4.03
Tax included
Telwin Spare Parts for Flux Welding Telmig 170/1 Turbo
Telwin original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair issues for Inverter Welding Machine TELMIG 170/1 TURBO 230V cod. 821054
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Telwin Spare Parts for Flux Welding Telmig 170/1 Turbo
Telwin original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair issues for Inverter Welding Machine TELMIG 170/1 TURBO 230V cod. 821054In the following table, look for the type of the Welding Machine and theirs spare parts codes.
| TELMIG 170/1 TURBO 230V key 821054 Pag.1 | ||
| # | Description | Part Num. |
| 1 | POTENTIOMETER | 113533 |
| 2 | KNOB | 121424 |
| 3 | RECTIFIER PROTECTION | 112183 |
| 4 | RECTIFIER KIT | 980476 |
| 5 | WIRE FEEDER BOARD KIT | 980465 |
| 6 | SWITCH KNOB SET | 323101 |
| 7 | THERMOSTAT REPLACED BY - 121715 | 121258 |
| 9 | SWITCH | 121510 |
| 10 | LAMP, YELLOW | 122529 |
| 12 | CABLE 16 MMQ 1,8 M | 120302 |
| 13 | MAINS CABLE 3X14AWG 2.15 M | 992473 |
| 14 | FAN MOTOR | 152080 |
| 15 | WIRE FEED MOTOR | 153900 |
| 16 | REACTANCE | 169371 |
| 17 | TRANSFORMER KIT | 990814 |
| 18 | PRESSURE ROLL | 232105 |
| 19 | FAN BLADE | 312025 |
| 20 | CABLE BUSHING | 322112 |
| 21 | ROLL SUPPORT | 322126 |
| 22 | TORCH FIXING CASING | 322127 |
| 23 | PRESSURE ROLL BRACKET | 322128 |
| 24 | RING NUT | 322143 |
| 25 | SPINDLE | 322172 |
| 26 | REEL RING NUT | 322173 |
| 27 | REEL HANDWHEEL | 322174 |
| 28 | FIXED WHEEL | 322201 |
| 29 | WHEEL | 322245 |
| 30 | FRAME | 322640 |
| 32 | WIRE FEED HANDWHEEL | 422257 |
| 33 | SUPPORT | 422817 |
| 34 | SWIVEL SUPPORT | 422820 |
| 35 | ARGON GAS BOTTLE IT ADAPTOR | 432036 |
| 36 | SPRING | 452022 |
| 37 | REEL SPRING | 452065 |
| 38 | HANDLE | 312328 |
| 39 | BACK PANEL | 644828 |
| 40 | DIAPHRAGM | 644176 |
| 41 | BRACKET FOR BOTTLE | 644606 |
| 42 | FRONT PANEL | 649556 |
| 43 | BOTTOM | 644961 |
| 44 | COVER KIT | 980840 |
| 46 | DOOR KIT | 980884 |
| 47 | WHEELS AXLE | 681092 |
| 48 | TOLEDO 250 WORK CLAMP 250A | 712030 |
| 49 | FEED ROLL D. 0,6-0,8 MM FE | 722019 |
| 50 | GAS REGULATOR REFILLABLE BOTTLE | 722341 |
| 51 | TW180 MIG TORCH 2,5 M 180 A | 742405 |
| 54 | GAS HOSE KIT | 990097 |
| 55 | GEARS KIT | 990251 |
| 56 | REEL KIT | 990288 |
| Ricambi Torcia TELMIG 170/1 TURBO 230V Pag.2 | ||
| 1 | CONTACT TIP D. 0,8 MM FE | 722416 |
| 2 | CONICAL NOZZLE | 722423 |
| 3 | SWAN NECK DIFFUSER | 722078 |
| 4 | VALVE | 990464 |
| 5 | CONTACT SPRING FOR MIG TORCH | 452097 |
| 6 | PUSHBUTTON | 322295 |
| 7 | KIT CABLES SET 16MMQ | 990601 |
| 9 | WIRE GUIDE HOSE D. 0,6-0,8 MM 2 M | 742413 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Telwin TELMIG 170/1 TURBO 821054
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK ITEM OR S/N CODE TELWIN:
- TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
