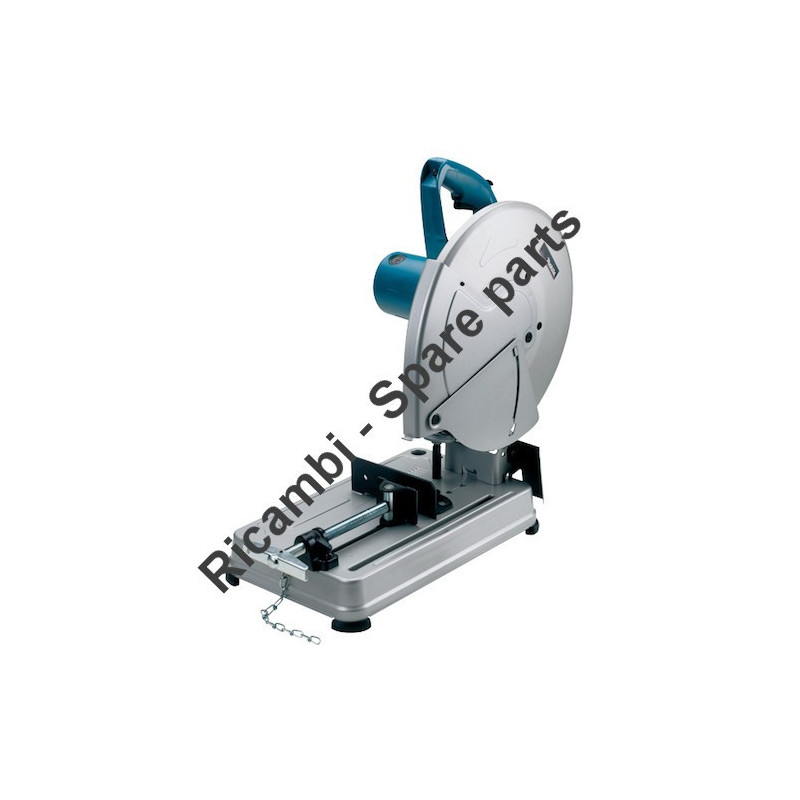

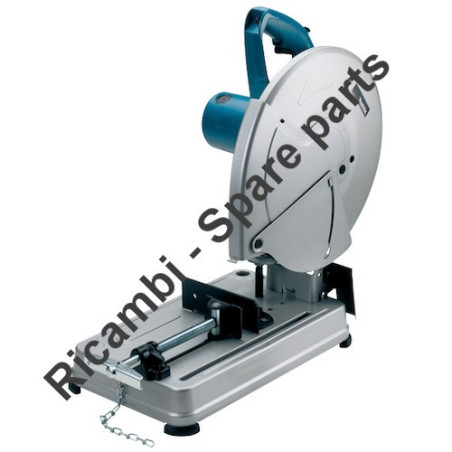

Makita Spare Parts for Abrasive Cut Off Saw 2412N
€228.96
Tax included
Makita Spare Parts for Abrasive Cut Off Saw 2412N
Makita original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Abrasive Cut Off Saw 2412N.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Abrasive Cut Off Saw 2412N
Makita original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Abrasive Cut Off Saw 2412N.
In the following table, look for the model of the hammerr and the respective parts of the code.
| Abrasive Cut Off Saw Makita 2412N | ||
| # | Part Num. | Description |
| 1 | 911546-0 | SCREW HEAD. M4x25 |
| 2 | 911546-0 | CYLINDER HEAD SCREW. M4x25 |
| 3 | 911273-9 | screw M5x50 |
| 4 | 911251-9 | HEAD SCREW CILIND. M5x30 |
| 5 | 911546-0 | HEAD SCREW CILIND. M4x25 |
| 6 | 182751-8 | HANDLE COMP. 2412N /14 |
| 7 | 911133-5 | M4X18 SCREW |
| 8 | 687001-1 | CLAMP cable tie |
| 9 | 682506-6 | CORD GUARD 12/90 |
| 12 | 322049-3 | HOOK |
| 13 | 924206-5 | BUTTERFLY SCREW M5X10 |
| 14 | 942101-7 | WASHER 5 |
| 16 | 252014-7 | NUT M6-10 |
| 17 | 252014-7 | NUT M6-10 |
| 18 | 942151-2 | WASHER 6 |
| 19 | 253011-6 | FLAT WASHER 6 |
| 24 | 284010-7 | BACK COVER |
| 25 | 651018-0 | HPAHR2-3S SWITCH |
| 26 | 911211-1 | SCREW M5x12 |
| 27 | 645006-7 | CAPACITOR X LS1013 |
| 28 | 911103-4 | SCREW M4X6 |
| 29 | 263002-9 | RUBBER PIN 4 |
| 30 | 643650-4 | PLUG BRUSH |
| 31 | 181044-0 | CARBOB BRUSHES CB-153 |
| 32 | 156419-2 | HOUSING MOTOR |
| 33 | 681002-1 | INSULATING WASHER |
| 34 | 343299-7 | FAN GUIDE |
| 35 | 211066-7 | 6200 BEARING |
| 36 | 213051-6 | DUST WASHER 10 |
| 37 | 524493-2 | STATORE |
| 39 | 514543-1 | ARMATURE |
| 41 | 213202-1 | DUST WASHER 15 |
| 42 | 211206-7 | BEARING |
| 43 | 168127-3 | HEADPHONES DISCO |
| 44 | 325517-5 | TREE |
| 45 | 254032-1 | CRESCENT KEY 5 |
| 46 | 211306-3 | BALL BEARING 6204DD |
| 47 | 263005-3 | RUBBER PIN 6 |
| 48 | 263002-9 | RUBBER PIN 4 |
| 49 | 231240-1 | MOLLA7 |
| 50 | 325518-3 | LOCK DISC |
| 51 | 213460-9 | SEAL 35 |
| 52 | 157331-9 | GEAR BOX |
| 53 | 211061-7 | BALL BEARING 6000DD |
| 54 | 961060-6 | RETAINING RING S20 |
| 55 | 221628-3 | GEAR 54 |
| 56 | 157026-4 | BOX BEARING |
| 57 | 253755-8 | FLAT WASHER 20 |
| 58 | 911276-3 | HEAD SCREW CILIND. M5X55 |
| 59 | 224139-7 | FLANGE INTERNAL 100 |
| 60 | 257054-0 | RING 20 |
| 61 | 224140-2 | EXTERNAL FLANGE |
| 62 | 251680-7 | BOLT C / BORDINO 10X25 |
| 63 | 253751-6 | FLAT WASHER 24 |
| 65 | 942201-3 | WASHER 8 |
| 68 | 942201-3 | WASHER 8 |
| 70 | 253751-6 | FLAT WASHER 24 |
| 72 | 231526-3 | SPRING 26 |
| 74 | 265201-9 | HEXAGON BOLT M10x25 |
| 79 | 411436-2 | PILLOW 2412N / 14 |
| 80 | 342498-8 | COVER PILLOW |
| 81 | 272021-4 | KNOB |
| 82 | 951163-4 | PIN 5-20 X2414K |
| 84 | 931402-8 | NUT M8 |
| 85 | 942201-3 | WASHER 8 |
| 86 | 253752-4 | FLAT WASHER 8 |
| 88 | 253011-6 | FLAT WASHER 6 |
| 92 | 342497-0 | PIVOT COVERS |
| 93 | 253753-2 | FLAT WASHER 12 |
| 95 | 911451-1 | HEAD SCREW CILIND. M8x30 |
| 96 | 253744-3 | FLAT WASHER 12 |
| 98 | 951116-3 | PIN 4-20 |
| 100 | 961012-7 | RETAINING RING E6 |
| P-13904 | METAL CUTTING DISC 305x2.8MM 5 PCS | |
