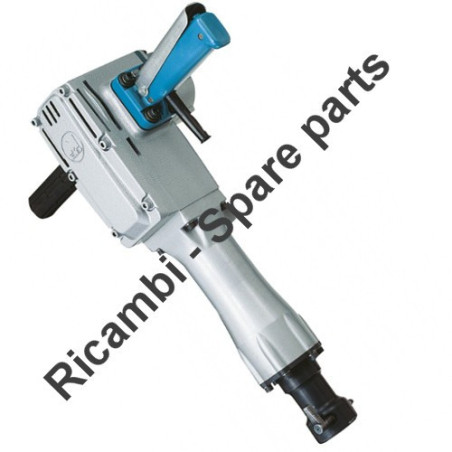

Makita Spare Parts for Hammer HM1400
€161.95
Tax included
Makita Spare Parts for Hammer HM1400
We have the original Makita Spare Parts for Breaker Hammer HM1400, the diagram, parts list and tool repair that help you need to get your tools running like new again.Fix Your Breaker Hammer HM1400 HEX 30 mm 1240 W 17 Kg. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Hammer HM1400
Fix Your Breaker Hammer HM1400 HEX 30 mm 1240 W 17 Kg. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Hammer and the respective parts of the code.
| Breaker Hammer Makita HM1400 | ||
| # | Part Num. | Description |
| 1 | 922471-0 | BOLT M8x50 |
| 3 | 211129-9 | BALL BEARING 6201DD |
| 4 | 221713-2 | GEAR 36 |
| 5 | 211129-9 | BALL BEARING 6201DD |
| 6 | 331212-7 | SEAL |
| 7 | 213460-9 | SEAL 35 |
| 8 | 211228-7 | BALL BEARING 6202DD |
| 9 | 213202-1 | DUST WASHER 15 |
| 10 | 241648-1 | FAN 104 |
| 11 | 514843-9 | ARMATURE |
| 12 | 681646-7 | ROND.ISOL.HM1200 / 3612BR |
| 13 | 211087-9 | BALL BEARING 6200DDW |
| 14 | 213406-5 | SEAL 30 |
| 15 | 524793-0 | STATOR |
| 16 | 942301-9 | SPRING WASHER 12 |
| 17 | 922667-3 | BOLT M12x45 |
| 18 | 321560-2 | REDUCTION |
| 19 | 321557-1 | ROD |
| 20 | 212307-4 | ROLLER 1820 |
| 22 | 265343-9 | BOLT M5X80 |
| 23 | 321556-3 | ECCENTRIC SHAFT |
| 24 | 266009-4 | SCREW M8 X 18 |
| 25 | 254001-2 | KEY CRESCENT 4 |
| 27 | 315525-4 | HOUSING BEARING |
| 28 | 211359-2 | BEARING 6205 |
| 29 | 213354-8 | SEAL OIL 25 |
| 30 | 157648-0 | GEAR HOUSING |
| 31 | 221714-0 | GEAR 53 |
| 32 | 211214-8 | BALL BEARING 6302 |
| 33 | 315908-8 | GEAR HOUSING COVER |
| 34 | 323147-6 | SCREW SWITCH |
| 35 | 342531-6 | LEVER SWITCH |
| 36 | 961011-9 | RETAINING RING E4 |
| 37 | 651131-4 | SWITCH C3D-15MS |
| 38 | 181906-2 | HANDLE SET CPL |
| 39 | 911251-9 | HEAD SCREW CILIND. M5x30 |
| 40 | 922357-8 | SCREW Q.S.T. M.6X35 |
| 42 | 316385-7 | NEW HOUSING REAR |
| 43 | 253751-6 | Pondella FLAT 24 |
| 44 | 159420-6 | NEW HOUSING MOTOR |
| 47 | 423137-0 | SEAL |
| 48 | 687001-1 | CLAMP cable tie |
| 49 | 911133-5 | SCREW M4X18 |
| 50 | 685700-9 | SPONGE |
| 51 | 645006-7 | CAPACITOR X LS1013 |
| 53 | 922461-3 | BOLT M8X40 |
| 55 | 321956-7 | HANDLE REDUCTION |
| 56 | 421308-3 | SOCKET |
| 57 | 682505-8 | CABLE SLEEVE 10/90 |
| 59 | 213855-6 | SEAL 95 |
| 60 | 157649-8 | HOUSING ROD |
| 61 | 442009-0 | SEAL HOUSING |
| 62 | 341397-1 | COVER HOUSING |
| 63 | 911211-1 | SCREW M5X12 |
| 64 | 181048-2 | CARBON BRUSHE SET CB-155 (CB-161) |
| 65 | 643650-4 | CARBON BRUSH CAP |
| 66 | 911218-7 | HEAD SCREW CILIND. M5x14 |
| 67 | 343891-9 | NEW PLATE |
| 94 | 262003-4 | RUBBER WASHER |
| 95 | 273423-7 | HANDLE SIDE |
| 96 | 922451-6 | BOLT M8x30 |
| 97 | 654084-6 | RING TERMINAL HM1300 |
| 999 | 193399-1 | REPAIR KITS HM1400 |
| 68 | 213755-0 | O-RING 75 |
| 69 | 315524-6 | CANNON |
| 71 | 922461-3 | BOLT M8X40 |
| 72 | 262034-3 | RING NYLON 63 |
| 73 | 253861-9 | FLAT WASHER 63 |
| 74 | 331299-9 | RING |
| 75 | 322208-9 | SUPPORT RING |
| 76 | 321563-6 | POST |
| 77 | 262039-3 | RING NYLON 42 |
| 78 | 213517-6 | RING 40 |
| 79 | 213504-5 | SEAL 40 |
| 80 | 213754-2 | SEAL 71 |
| 82 | 922451-6 | BOLT M8x30 |
| 83 | 321961-4 | TOOL HOLDER |
| 84 | 321788-2 | SUPPORT PUNTA |
| 85 | 231032-8 | SPRING 5 |
| 86 | 216004-4 | BALL 7.9 |
| 87 | 322059-0 | CYLINDER |
| 88 | 412055-7 | PISTON RING 50 |
| 89 | 341993-5 | INNER RING |
| 90 | 412055-7 | PISTON RING 50 |
| 91 | 341993-5 | INNER RING |
| 92 | 321562-8 | PISTON |
| 93 | 256128-4 | PIN 10 |
| 88 | 324238-6 | PIN X SUPP. TIPS XHM1800 |
| 89 | 324236-0 | STOP BITS X HM1800 |
| 90 | 256219-1 | PIN 4 X HM 1500 |
| 91 | 322477-2 | PIN X SUPP.PUNTA HM1800 |
| 92 | 233083-7 | SPRING OF COMPRESSION 12 |
| 93 | 322560-5 | RETAINING RING HM1810 |
| 94 | 265989-1 | BOLT ESAG.X HM1800 |
| 95 | 253989-3 | SPRING WASHER 12 X HM1500 |
| 96 | 324539-2 | FRONT COVER 29 HM1810 |
| 97 | 213755-0 | SEAL 75 X HM1400 |
| 98 | 213517-6 | RING 40 X HM1300 |
| 99 | 324545-7 | TIP BLOCK HM1810 |
| 100 | 213667-7 | RING X HM1800 |
| 101 | 324541-5 | HOLDER TIP BLOCK X HM1810 |
| 103 | 682546-4 | CABLE X HM1800 |
| 104 | 631671-8 | BULB X HM1810 |
| 105 | 638378-7 | CABLE HARNESS X HM1810 |
| 106 | 418951-7 | LENS X HM1810 |
| 107 | 317901-8 | BACK COVER X HM1810 |
| 108 | 922366-7 | BOLT ESAG.M6X45 |
| 110 | 418954-1 | COVER INTEGRATED X HM1810 |
| 111 | 419044-3 | COVER HANDLE X HM1800 |
| 112 | 685700-9 | SPONGE X M802 / HR3850B |
| 113 | 685722-9 | SPONGE X 4302C |
| 114 | 688131-1 | FILTER LINE X MT240 |
| 115 | 687052-4 | CLAMP Cable tie X 6408 |
| 116 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 117 | 645200-1 | CAPACITOR |
| 118 | 685722-9 | SPONGE X 4302C |
| 119 | 654554-5 | CLAMP X HM1810 |
| 120 | 265535-0 | SCREW M6 X 65 HM1810 |
| 121 | 941152-7 | FLAT WASHER 6 |
| 122 | 418333-3 | HANDLE COMPLETE X HM1800 |
| 123 | 418332-5 | LEVER SWITCH X HM1800 |
| 124 | 421850-4 | PARA POWDER X HM1800 |
| 125 | 256206-0 | PIN X 4399DW |
| 126 | 345355-9 | HOLDER SWITCH X HM1800 |
| 127 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 128 | 651131-4 | SWITCH C3D-15MS |
| 129 | 419045-1 | COVER X Switch,. HM1810 |
| 130 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 131 | 685718-0 | SPONGE X JR3000V / 9035N |
| 133 | 213953-6 | RING 24 HR2430 |
| 135 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
