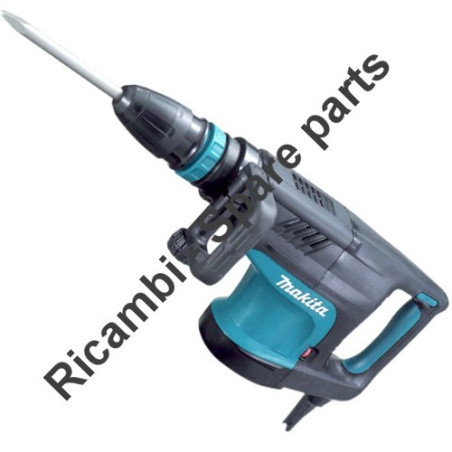

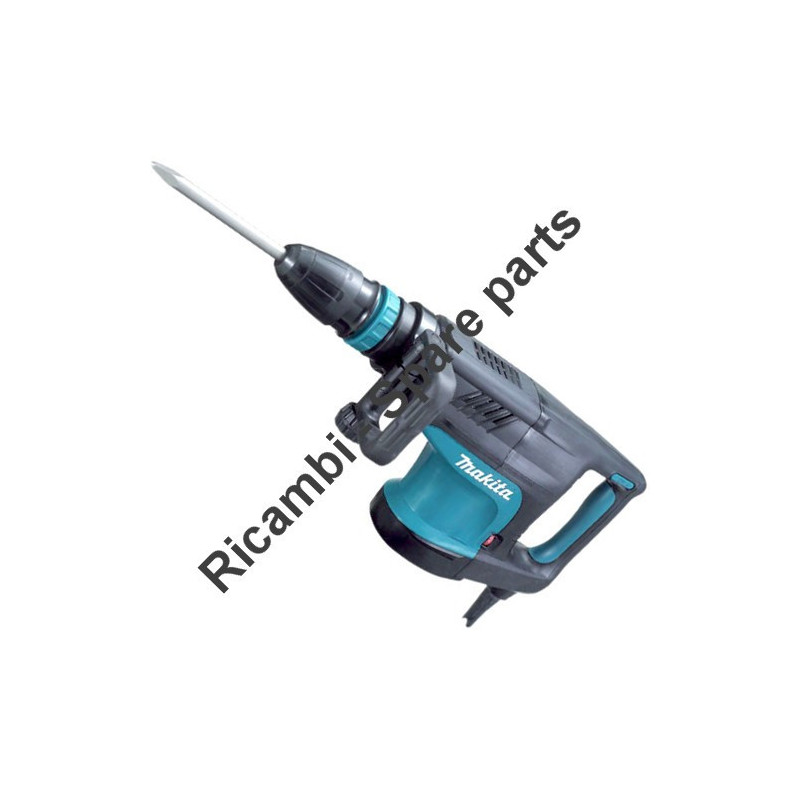

Makita Spare Parts for Demolition Hammer SDS Max HM1203C
€71.79
Tax included
Makita Spare Parts for Demolition Hammer SDS Max HM1203C
Makita original spare parts for to replace broken parts for to fix Demolition Hammer SDS Max HM1203C.Fix Your Demolition Hammer SDS Max HM1203C. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Demolition Hammer SDS Max HM1203C
Fix Your Demolition Hammer SDS Max HM1203C. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Hammer and the respective parts of the code.
| Demolition Hammer Makita HM1203C | ||
| # | Part Num. | Description |
| 1 | 424165-8 | TOOL HOLDER CAP X HM1203C |
| 2 | 233973-4 | RING SPRING 26 X HM1203C |
| 3 | 267386-7 | WASHER 30 X HM1203C |
| 4 | 450894-7 | CHUCK COVER HM1203C |
| 5 | 262147-0 | RUBBER RING 30 X HM1203C |
| 6 | 324987-5 | CHUCK RING HM1203C |
| 7 | 450895-5 | RELEASE COVER X HM1203C |
| 8 | 310279-8 | TOOL RETAINER X HM1203C |
| 9 | 346015-6 | SPRING GUIDE HM1203C |
| 10 | 234086-4 | COMPRESSION SPRING 56 X HM1203C |
| 11 | 961232-3 | RETAINING RING WR-45 |
| 12 | 450893-9 | CHANGE RING COVER X HM1203C |
| 13 | 324969-7 | CHANGE RING HM1203C |
| 14 | 324988-3 | LOCK RING HM1203C |
| 15 | 922243-3 | BOLT M5 X 25 X 2702 |
| 16 | 450903-2 | HOUSING COVER HM1203C |
| 17 | 233970-0 | RING SPRING 35 X HM1203C |
| 18 | 158858-2 | BARREL COMP. X HM1203C |
| 19 | 922456-6 | BOLT M8x35 |
| 20 | 213720-9 | O-RING 67 X HR2400 |
| 21 | 262148-8 | RUBBER RING 39 X HM1203C |
| 22 | 267387-5 | WASHER 39 X HM1203C |
| 23 | 213079-4 | O-RING 35,5 X HM1203C |
| 24 | 324985-9 | TOOL HOLDER X HM1203C |
| 25 | 213980-3 | O-RING 21 X HR4501C |
| 26 | 213431-6 | FLUORIDE RING 28 HM1202C/HR500 HR5001C |
| 27 | 213394-6 | RUBBER RING X HR5001C |
| 28 | 324990-6 | IMPACT BOLT HM1203C |
| 29 | 324993-0 | SHOULDER SLEEVE X HM1203C |
| 30 | 262149-6 | RUBBER RING 24 X HM1203C |
| 31 | 324993-0 | SHOULDER SLEEVE X HM1203C |
| 32 | 326002-1 | STRIKER X HM1203C |
| 33 | 213499-2 | O-RING 5.31 X HM1203C |
| 34 | 213581-7 | O-RING 44 X HM1203C |
| 35 | 450889-0 | ONEWAY VALVE GUIDE HM1203/1213 HM1203C |
| 36 | 331925-0 | CYLINDER 40 X HM1203C |
| 37 | 268121-6 | PIN 12 X HR5201C |
| 38 | 213499-2 | O-RING 5.31 X HM1203C |
| 39 | 450961-8 | PISTON X HM1203C |
| 40 | 213149-9 | O-RING 35 X HM1203C |
| 41 | 450890-5 | CONNECTING ROD HM1203C |
| 56 | 450899-7 | CRANK CAP COVER HM1203C |
| 57 | 911133-5 | SCREW M4X18 |
| 58 | 443127-7 | FILTER X HM1203C |
| 59 | 450898-9 | CRANK CAP HM1203C |
| 60 | 424166-6 | SEAL RING HM1203C |
| 62 | 318364-1 | CRANK HOUSING HM1203C |
| 63 | 266482-8 | SCREW M6X40 X HM1203C |
| 64 | 419008-7 | FIX GUIDE X HR4001C |
| 65 | 423366-5 | CUSHION PLATE X HR5201C |
| 66 | 324994-8 | CRANK SHAFT HM1203C |
| 67 | 211424-7 | BALL BEARING 6206LLU X HM1203C |
| 68 | 226691-1 | GEAR 57 X HM1203C |
| 69 | 267398-0 | WASHER 12 X HM1203C |
| 70 | 424167-4 | SEAL RING HM1203C |
| 71 | 158859-0 | GEAR HOUSING COMP. X HM1203C |
| 72 | 213231-4 | OIL SEAL 15 X HR4500C |
| 73 | 331596-3 | SLEEVE 12 X HR4500C |
| 74 | 211249-9 | BALL BEARING 6302LLU HM1203C |
| 75 | 267397-2 | WASHER 15 X HM1203C |
| 76 | 240003-4 | FAN X 2702 |
| 77 | 517818-7 | ARMATURE X HM1203C |
| 78 | 681642-5 | WASHER X LS1013 |
| 79 | 211289-7 | BALL BEARING 6000DDW |
| 80 | 450900-8 | BAFFLE PLATE HM1203C |
| 81 | 266095-5 | SCREW 5 X 55 HR5001C |
| 82 | 636303-2 | FIELD 240V FOR HR5201C |
| 83 | 450904-0 | MOTOR HOUSING X HM1203C |
| 84 | 632D00-2 | CARBON BRUSHES HOLDER HM1203C |
| 85 | 195844-2 | CARBON BRUSHE SET CB-175 |
| 86 | 450901-6 | REAR COVER HM1203C |
| 87 | 266041-8 | PT SCREW 5x25 |
| 88 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 89 | 266192-7 | SCREW 4 X 14 X HR4001C / HR4010C |
| 90 | 631869-7 | CONTROLLER HM1203C |
| 91 | 638650-7 | LEAD UNIT X HM1203C |
| 92 | 419010-0 | LENS X HR4001C / HR4010C |
| 99 | 232209-8 | LEAF SPRING X HM0860C |
| 100 | 450891-3 | LEVER STOPPER X X HM1203C |
| 101 | 866622-4 | LABEL HM1203C |
| 102 | 266041-8 | PT SCREW 5x25 |
| 103 | 450897-1 | SLIDE LEVER X HM1204C |
| 106 | 450907-4 | HANDLE X HM1203C |
| 107 | 263027-3 | RUBBER PIN 4 X HM0860C |
| 108 | 651423-1 | SWITCH X 3706 |
| 109 | 423379-6 | SPONGE SHEET HM1203C |
| 110 | 654531-7 | TERMINAL BLOCK 2P X 420S |
| 111 | 682560-0 | CORD GUARD X HM1202C / 9079S |
| 113 | 687169-3 | STRAIN RELIEF HP1620 |
| 114 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 115 | 450908-2 | HANDLE COVER X HM1203C |
| 116 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 117 | 265439-6 | SCREW M8X150 X HM1100C |
| 118 | 417002-3 | SIDE HANDLE CAM HM1202C |
| 119 | 318505-9 | SIDE HANDLE BASE 82A X HM1203C |
| 120 | 951166-8 | SPRING PIN 5/24 |
| 121 | 318506-7 | HANDLE BASE 82B X HM1203C |
| 122 | 417003-1 | SIDE HANDLE X HM1202C |
| 123 | 417002-3 | SIDE HANDLE CAM HM1202C |
| 124 | 252640-2 | HANDLE KNOB M8 X |
| 125 | 267164-5 | WASHER 15 HP2040-2041-2042 |
| 127 | 135269-8 | HANDLE "D" X HM1203C |
| 999 | 195114-9 | SERVICE PACK HM1203C / 1213C |
