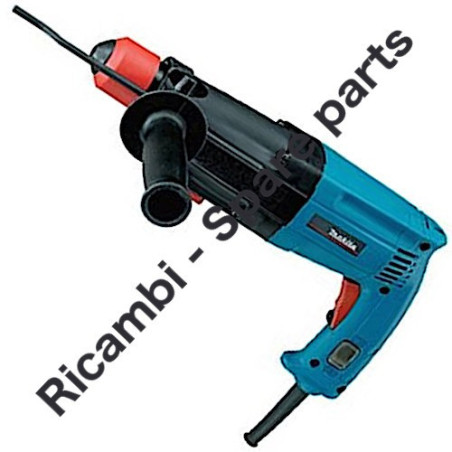

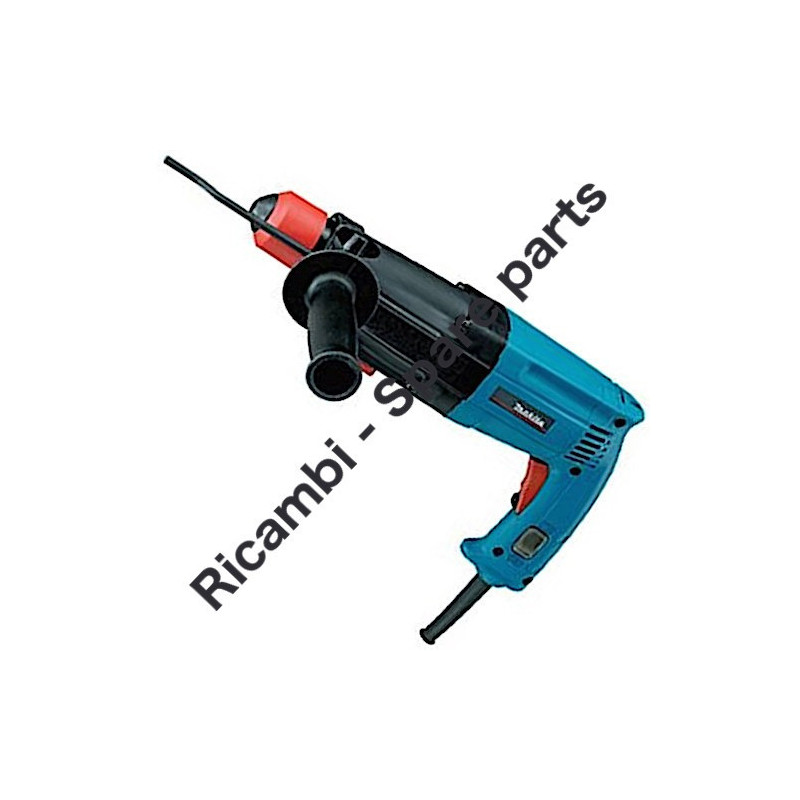

Makita HR2400 Rotary Hammer Parts
€19.26
Tax included
Makita Spare Parts for SDS-Plus Rotary Hammer HR2400
MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Rotary Hammer SDS-PLUS 720W SDS-PLUS HR2400.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for SDS-Plus Rotary Hammer HR2400
MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Rotary Hammer SDS-PLUS 720W SDS-PLUS HR2400.In the following table, look for the model of Hammer and the respective parts of the code.
| MAKITA HR2400 ROTARY HAMMER PARTS | ||
| # | Part Num. | Description |
| 3 | 134715-8 | GRIP ASS'Y |
| 4 | 931302-2 | HEX. NUT M6 |
| 5 | ||
| 6 | 911273-9 | PAN HEAD SCREW M5X50 |
| 7 | 213720-9 | O RING 67 |
| 11 | 211323-3 | BALL BEARING 6904LLU |
| 12 | 213418-8 | OIL SEAL 28 |
| 13 | 231954-2 | RING SPRING 28 |
| 14 | 267110-8 | FLAT WASHER 31 |
| 15 | 233060-9 | COMPRESSION SPRING 31 |
| 16 | 226260-8 | SPUR GEAR 46 |
| 19 | ||
| 20 | 267105-1 | FLAT WASHER 29 |
| 21 | 213063-9 | O RING 10 |
| 22 | 213063-9 | O RING 10 |
| 23 | ||
| 24 | 321915-1 | IDLER |
| 25 | 262038-5 | RUBBER RING 17 |
| 26 | 857141-1 | NAME PLATE HR2400 |
| 27 | 415415-2 | MOTOR HOUSING |
| 28 | 911581-8 | PAN HEAD SCREW M4X55 |
| 29 | 212040-8 | THRUST NEEDLE BEARING 819 |
| 30 | ||
| 31 | ||
| 32 | 322588-3 | CAM SHAFT |
| 33 | 322652-0 | CLUTCH |
| 34 | 226259-3 | SPUR GEAR 10 |
| 35 | 415372-4 | CHANGE LEVER |
| 36 | 213265-7 | O RING 17 |
| 38 | 251392-2 | + PAN HEAD SCREW M4 |
| 39 | 265715-8 | SCREW 6X40 |
| 40 | 267104-3 | FLAT WASHER 12 |
| 41 | 321916-9 | PISTON JOINT |
| 42 | 267104-3 | FLAT WASHER 12 |
| 43 | 267109-3 | FLAT WASHER 13.5 |
| 44 | 231953-4 | RING SPRING 23 |
| 45 | 322587-5 | STRIKER |
| 46 | 213214-4 | O RING 16 |
| 47 | 316450-2 | PISTON CYLINDER |
| 48 | 159653-3 | GEAR HOUSING COVER |
| 49 | 213385-7 | O RING 24 |
| 50 | 211051-0 | BALL BEARING 609LLB |
| 51 | 213112-2 | OIL SEAL 12 |
| 52 | 241850-6 | FAN 60 |
| 53 | 515163-4 | ARMATURE ASS'Y 220V |
| 54 | 681625-5 | INSULATION WASHER |
| 55 | 211031-6 | BALL BEARING 608LLB |
| 56 | 253192-6 | FLAT WASHER 14 |
| 57 | 415127-7 | BAFFLE PLATE |
| 58 | 625158-0 | FIELD 220V |
| 59 | 231457-6 | COMPRESSION SPRING 3 |
| 60 | 191955-1 | A.C. CARBON BRUSH CB-417 |
| 61 | 651919-2 | SWITCH SGE106CV-1P |
| 62 | 415117-0 | DESCRIPTION |
| 63 | 415120-1 | LOCK PLATE |
| 64 | 415118-8 | SWITCH LEVER |
| 65 | 263002-9 | LOCK BUTTON |
| 66 | 152416-6 | RUBBER PIN 4 |
| 67 | HANDLE COVER | |
| 68 | 265995-6 | TAPPING SCREW 4X18 |
| 69 | 421460-7 | DUST COVER |
| 70 | 651556-2 | SWITCH VLX11 |
| 71 | 265995-6 | TAPPING SCREW 4X18 |
| 72 | ||
| 73 | 665865-3 | POWER SUPPLY CORD 1.0-2-2.5 |
| 75 | 682516-3 | CORD GUARD 9.3-85 |
| 76 | 645200-1 | NOISE SUPPRESSOR |
| 77 | 231288-3 | COMPRESSION SPRING 6 |
| 78 | 322653-8 | PUSH CONE |
| 79 | ||
| 80 | ||
| 81 | ||
| 82 | ||
| 83 | 344574-4 | SPRING GUIDE |
| 84 | ||
| 85 | ||
| 86 | 233202-5 | COMPRESSION SPRING 20 |
| 87 | ||
| A01 | ||
| A02 | 321144-6 | DEPTH GAUGE |
| E07 | ||
