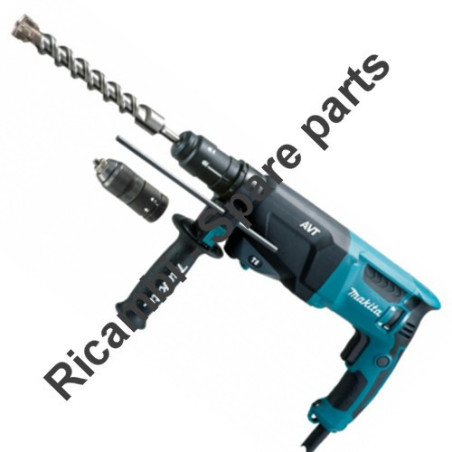

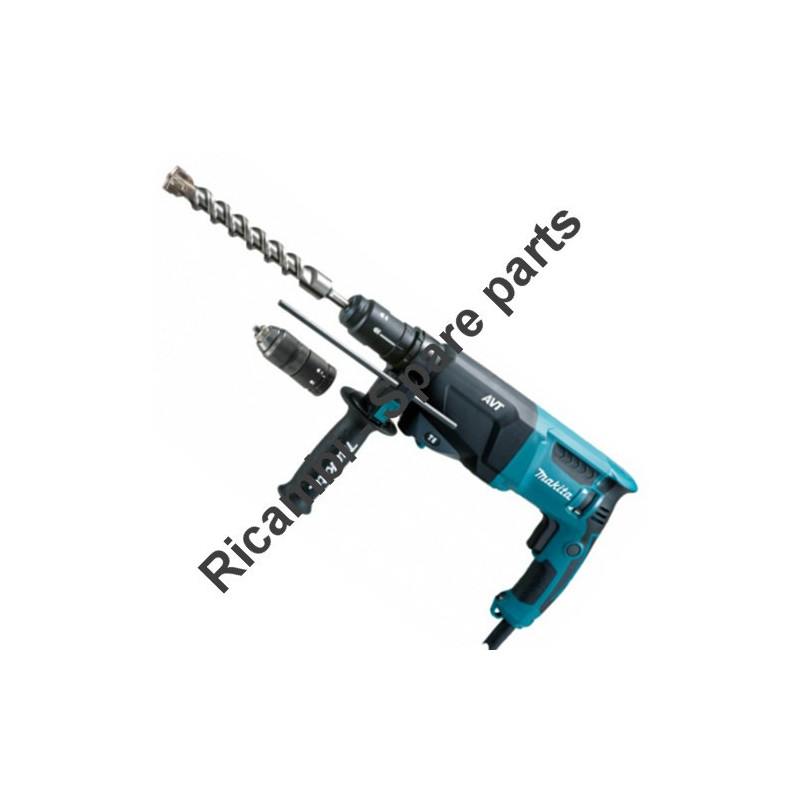

Makita Spare Parts for SDS-Plus Rotary Hammer HR2611FT
€8.36
Tax included
Makita Spare Parts for SDS-Plus Rotary Hammer HR2611FT
Makita Genuine spare parts or replacement parts for to repair Rotary Hammer SDS-PLUS AVT 26MM 780W HR2611FT.Fix Your Rotary Hammer HR2611FT. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for SDS-Plus Rotary Hammer HR2611FT
Fix Your Rotary Hammer SDS-PLUS AVT 26MM 780W HR2611FT. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the hammerr and the respective parts of the code.
| ROTARY HAMMER AVT 26MM 780W HR2611FT | ||
| # | Part NUm. | Description |
| 8 | 122878-2 | GRIP ASSEMBLY HR2601 |
| 9 | 346181-9 | GRIP SPRING 50 HR2601 |
| 10 | 266349-0 | SCREW M8x50 HR2601 |
| 11 | 451539-0 | GRIP BASE HR2601 |
| 12 | 313179-1 | RACK HR2601 |
| 13 | 451540-5 | LOCK BUTTON HR2601 |
| 14 | 233360-7 | COMPRESSION SPRING 4 X MT952 |
| 15 | 154935-8 | GRIP 36 HR2601 |
| 16 | 140423-1 | GEARCASE HR2611FT |
| 17 | 331890-3 | SLEEVE HR2601 |
| 18 | 211294-4 | BALL BEARING 6806LLU HR2601 |
| 19 | 232152-1 | LEAF SPRING 6832 |
| 20 | 325785-0 | PUSH CORN HR2601 |
| 21 | 234147-0 | COMPRESSION SPRING 5 HR2601 |
| 22 | 253308-3 | WASHER 6 43SB / 6510b-2 / 5016N |
| 23 | 213381-5 | O-RING 21 NEW HR3510 / 20 |
| 24 | 451529-3 | CHANGE LEVER A HR2611FT |
| 25 | 451530-8 | COVER LEVER A HR2611FT |
| 27 | 216019-1 | STEEL BALL 3 X 6960DW |
| 28 | 140266-1 | TOOL HOLDER HR2611FT |
| 29 | 313149-0 | FLANGE HR2601 |
| 30 | 227232-6 | GEAR 51 HR2601 SUBSTITUETED BY 227360-7 YOU MUST BUY 227360-7 + 332139-4 |
| 29B | 332139-4 | CHANGED FLANGE * SEE PDF |
| 31 | 268226-2 | PIN 6 X HK1820 / L |
| 32 | 267414-8 | WASHER 30 HR2601 |
| 33 | 234148-8 | COMPRESSION SPRING 31 HR2601 |
| 34 | 267153-0 | WASHER 30 HR2601 |
| 35 | 257932-4 | RETAINING WASHER 30 HR2601 |
| 36 | 267153-0 | WASHER 30 HR2601 |
| 37 | 325783-4 | SOCKET 9B HR2601 |
| 38 | 325791-5 | SWING B HR2611FT |
| 39 | 325792-3 | WASHER 10 HR2601 |
| 40 | 234149-6 | COMPRESSION SPRING 20 HR2601 |
| 41 | 325793-1 | RING HOLDER B HR2601 |
| 42 | 213073-6 | RING 9 X HR2020 |
| 43 | 233979-2 | SPRING RING 28 HR2601 |
| 44 | 325784-2 | STRIKER HR2601 |
| 45 | 213258-4 | O-RING 17.5 X HR2210 / 20 |
| 46 | 310345-1 | PISTON CYLINDER HR2601 |
| 47 | 346036-8 | GUIDE PLATE BHR261D |
| 48 | 324215-8 | PISTON PIN X X HR2020 |
| 49 | 234098-7 | COMPRESSION SPRING 14 BHR261D |
| 50 | 211012-0 | BEARING X 9524NB |
| 51 | 257336-0 | RETAINING RING EXT U-6 |
| 52 | 253186-1 | FLAT WASHER 7 X 420S |
| 53 | 233360-7 | COMPRESSION SPRING 4 X MT952 |
| 54 | 346176-2 | LOCKING PLATE HR2611FT |
| 55 | 325786-8 | CAM SHAFT HR2611FT |
| 56 | 227231-8 | GEAR 10 HR2611FT |
| 57 | 331814-9 | CAM CLUTCH HR2611FT |
| 58 | 219020-5 | SWASH BEARING 10 HR2601 |
| 59 | 267234-0 | FLAT WASHER 8 X HR2020 |
| 60 | 310344-3 | BEARING BOX HR2601 |
| 61 | 211032-4 | BEARING X 1902 |
| 62 | 266437-3 | SCREW M4x16 FRENAFIL X HR4001C |
| 63 | 285735-6 | RETAINING BEARING HR2601 |
| 64 | 227719-8 | GEAR 26 HR2601 |
| 65 | 213728-3 | RING 68 X BHR261D |
| 66 | 346222-1 | PLATE HR2601 |
| 67 | 265353-6 | SCREW M 4 X 12 X 4341FCT |
| 68 | 443153-6 | FELT HR2601 |
| 69 | 140267-9 | INNER HOUSING HR2601 |
| 70 | 213407-3 | SEAL 26 X 3901 |
| 71 | 213133-4 | OIL SEAL 12 X HR2800 |
| 72 | 262569-4 | SOCKET 9 HR2601 |
| 73 | 211097-6 | BEARING 5604R |
| 74 | 961006-2 | RETAINING RING S10 |
| 75 | 240121-8 | FAN 65 HR2601 |
| 76 | 515359-7 | ARMATURE 240V |
| 77 | 681652-2 | INSULATOR WASHER X JR180D |
| 78 | 210023-2 | BEARING 9910/11 |
| 79 | 267804-5 | WAVY WASHER 15 HR2230 |
| 80 | 346180-1 | GUIDE Balancer HR2601 |
| 81 | 256246-8 | PIN 6 LS1216F |
| 82 | 165593-5 | HR2601 Balancer |
| 83 | 266361-0 | SCREW 4 X 30 X 9554NB |
| 84 | 451527-7 | DEFLECTOR HR2601 |
| 85 | 626634-7 | STATOR HR2601 |
| 86 | 451535-8 | HOUSING MOTOR HR2611FT |
| 89 | 194074-2 | CARBON BRUSHE SET CB-325 X-9554NB |
| 90 | 638655-7 | BRUSH HOLDER HR2601 |
| 91 | 266556-5 | SCREW 3X12 HR26001 |
| 92 | 266361-0 | SCREW 4 X 30 X 9554NB |
| 95 | 682566-8 | CABLE GOES X HR2450 |
| 97 | 650625-6 | SWITCH HR2601 |
| 98 | 631937-6 | LIGHT CIRCUIT HR2611FT |
| 99 | 687682-1 | CLAMP X ties JS1000 |
| 100 | 266385-6 | SCREW 4x14 FOR GA9020 |
| 101 | 266326-2 | SCREW 4x18 X MT601 |
| 102 | 451528-5 | COVER HANDLE HR2601 |
| 103 | 266326-2 | SCREW 4x18 X MT601 |
| 104 | 194080-7 | CHUCK HOLDER QUICK SDS-PLUS |
| 105 | 286263-4 | CAP 35 X HR2020 |
| 106 | 233940-9 | SNAP RING 19 TO HR2432 |
| 107 | 418217-5 | CHUCK COVER HR2450FT |
| 108 | 345333-9 | STOPPER HR2450FT |
| 109 | 216022-2 | BALL 7 |
| 110 | 345187-4 | WASHER GUIDE X HR2020 |
| 111 | 233916-6 | SPRING 21-29 X HR2020 |
| 112 | 267279-8 | FLAT WASHER 21 X HR2450FT |
| 113 | 324355-2 | CHUCK HOLDER SDS-PLUS X HR2450FT |
| 114 | 216013-3 | BALL 6 |
| 115 | 231669-1 | TORSION SPRING 31 X HR2450FT |
| 116 | 345334-7 | RING GEAR X HR2450FT |
| 117 | 418218-3 | RING GEAR COVER X HR2450FT |
| 118 | 216018-3 | STEEL BALL 5 HP2030 |
| 119 | 345335-5 | SPRING BAND X HR2450FT |
| 120 | 267270-6 | WASHER 24 X HR2450FT |
| 121 | 233924-7 | RETAINING RING 21 X HR2450FT |
| 122 | 267447-3 | WASHER 14 HR2601 |
| 999 | 195105-0 | SERVICE KIT HR2300 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
