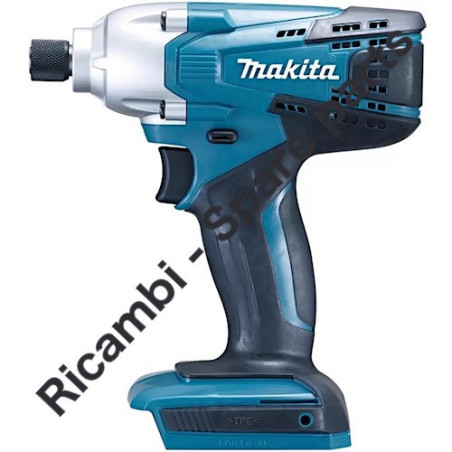

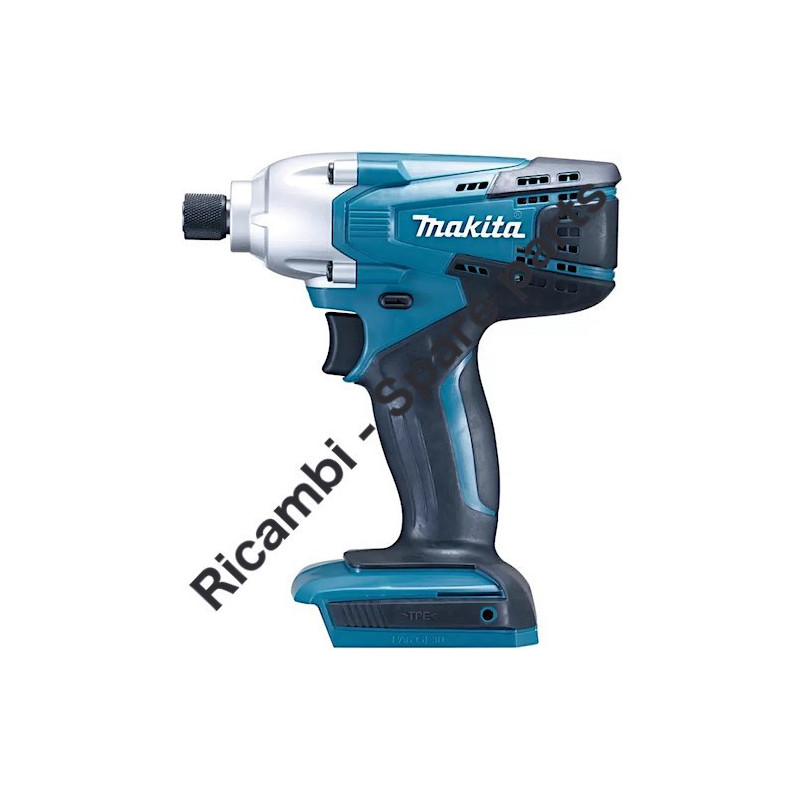

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Cordless Impact Driver TD126D.
In the following table, look for the model of Impact Wrench and the respective parts of the code.
| Cordless Impact Driver TD126D | ||
| # | Part Num | Description |
| 1 | 187420-6 | Motor Housing TD126-127D |
| 2 | 266130-9 | Screw 3x16 for 6203/13/6313DW |
| 3 | 897573-0 | |
| 5 | 453055-8 | Reversibility Lever MT690-691 |
| 6 | 632J79-9 | Switch TD126-127D |
| 7 | 643861-1 | Terminal DF347D-HP347D |
| 8 | 231951-8 | Retaining ring 11 |
| 9 | 267085-1 | Washer 12 |
| 10 | 233005-7 | Compression spring 13 |
| 11 | 324420-7 | Coupling Sleeve for 6903VDW/BTD130F |
| 12 | 266374-1 | Screw 4x25 for GA9020 |
| 13 | 141585-8 | Hammer Case TD126D |
| 14 | 261151-6 | Nylon Washer 19 BTD134 |
| 15 | 216040-0 | Ball Bearing 3.5 |
| 16 | 326188-1 | Anvil M MT690-691 |
| 17 | 326110-8 | Striker MT690-691 |
| 18 | 216040-0 | Ball Bearing 3.5 |
| 19 | 267175-0 | Flat Washer 24 6914DW |
| 20 | 234074-1 | Compression Spring 25 |
| 21 | 267766-7 | Flat Washer 24 6914DW |
| 22 | 216041-8 | Ball Bearing 5.6 |
| 23 | 227362-3 | Gear 22 |
| 24 | 326109-3 | Shaft MT690-691 |
| 25 | 256253-1 | Pin 5 for 6908DW/BTD130F |
| 26 | 267212-0 | Flat Washer 12 for 6916DW |
| 27 | 227279-0 | Gear 51 MT690-691 |
| 28 | 210205-6 | Bearing 6001ZZ |
| 29 | 453056-6 | Bearing Housing MT690-691 |
| 30 | 629918-2 | DC Motor TD126D |
| 32 | 187420-6 | Motor Housing TD126-127D |
