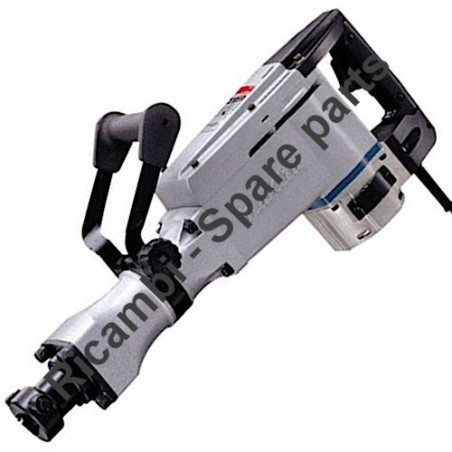

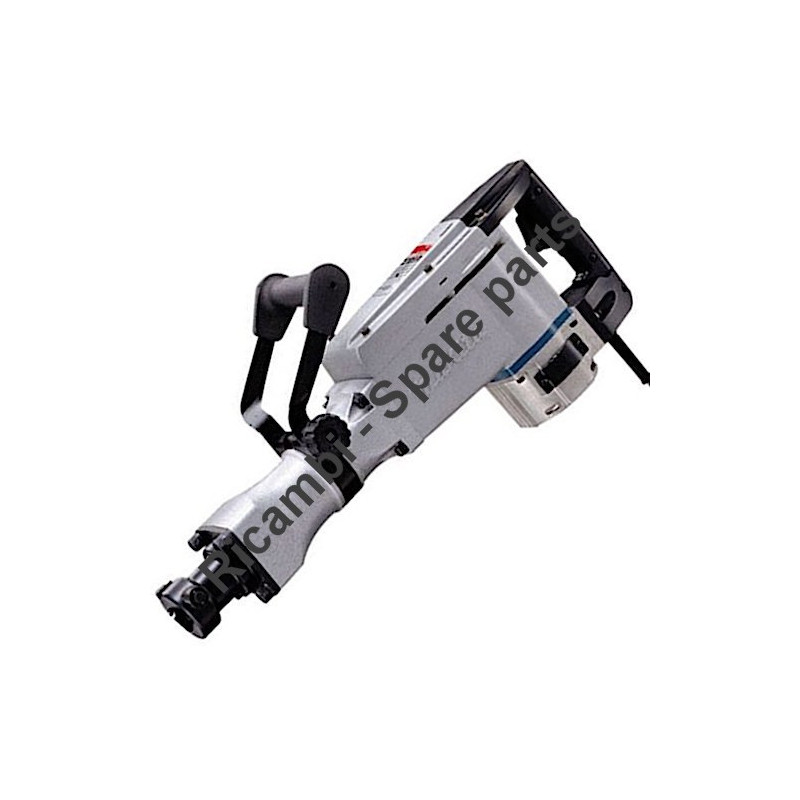

Makita Spare Parts for Demolition Hammer HM1500
MAKITA Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Demolition Hammer 17KG 1470W HM1500.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Demolition Hammer HM1500
MAKITA Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Demolition Hammer 17KG 1470W HM1500.
In the following table, look for the model of the Hammer and the respective parts of the code.
| HM1500 - DEMOLITION HAMMER 17KG 1470W | ||
| Rif. | Codice | Descrizione |
| 1 | 253989-3 | SPRING WASHER 12 X HM1500 |
| 2 | 265997-2 | Hex. Socket Head Bolt M12X40 X HM1500 |
| 3 | 256219-1 | PIN 4 X HM 1500 |
| 4 | 322699-4 | RETAINER RING X HM1500 |
| 5 | 231281-7 | COMPRESSION SPRING 15 NEW HM1300 |
| 6 | 322567-1 | TOOL RETAINER X HM 1500 |
| 7 | 322692-8 | TOOL HOLDER X HM1500 |
| 8 | 213755-0 | O-RING 75 X HM1400 |
| 9 | 213517-6 | X RING 40 X HM1300 |
| 10 | 322693-6 | IMPACT BOLT HM1500 |
| 11 | 213717-8 | O-RING 63 X HM1500 |
| 12 | 322931-6 | IMPACT BOLT HOLDER HM1500 |
| 13 | 262050-5 | RUBBER RING X HM1500 |
| 14 | 322930-8 | CYLINDER B HM1500 |
| 15 | 213660-1 | O-RING 53 AN7000 |
| 16 | 261084-5 | RUBBER WASHER X HM1500 |
| 17 | 265956-6 | SCREW BOLT M10X120 X HM1500 |
| 18 | 414819-5 | HANDLE BASE HM1500 |
| 19 | 414819-5 | AHANDLE BASE HM1500 |
| 20 | 252633-9 | KNOB X HM1500 |
| 21 | 421386-3 | SIDE HANDLE X HM1500 |
| 22 | 318558-8 | BARREL HM 1500 |
| 23 | 322383-1 | STRIKER HM1500 |
| 24 | 213564-7 | O-RING 45 HM1500 |
| 25 | 322387-3 | PISTON CYLINDER X HM 1500 |
| 26 | 256209-4 | PIN 10 X HM 1500 |
| 27 | 213473-0 | O-RING 33 X HM 1500 |
| 28 | 922376-4 | HEX. SOCKET HEAD BOLT M6X55 |
| 29 | 941152-7 | FLAT WASHER 6 |
| 30 | 414646-0 | UPPER HANDLE X HM 1500 |
| 31 | 421373-2 | RUBBER HM 1500 |
| 32 | 182429-3 | HANDLE SET X HM 1500 |
| 33 | 421265-5 | DUST COVER HR3850 / B |
| 34 | 651145-3 | SWITCH C3D-H-MS |
| 35 | 231298-0 | COMPRESSION SPRING HM 1500 |
| 36 | 414885-2 | LOCK BUTTON X HM 1500 |
| 38 | 911248-8 | PAN HEAD SCREW M5X28 |
| 39 | 322464-1 | LOCK PIN HM 1500 |
| 40 | 263002-9 | RUBBER PIN 4 |
| 41 | 263002-9 | RUBBER PIN 4 |
| 42 | 421373-2 | RUBBER HM 1500 |
| 43 | 182405-7 | LOWER HANDLE SET XHM1500 |
| 44 | 682503-2 | CORD GUARD HM1500 |
| 46 | 685725-3 | SPONGE X UH3000 |
| 47 | 645006-7 | NOISE SUPPRESSOR LS1013 |
| 48 | 922356-0 | HEX.SOCKET HEAD BOLT M6 X 35 X HM1500 |
| 49 | 941152-7 | FLAT WASHER 6 |
| 50 | 911248-8 | PAN HEAD SCREW M5X28 |
| 52 | 265941-9 | TAPPING SCREW M4X18 X HM1500 |
| 53 | 687051-6 | STRAIN RELIEF HM 1500 |
| 54 | 687054-0 | STRAIN RELIEF HM1500 |
| 55 | 159189-2 | GEAR HOUSING X HM 1500 |
| 56 | 256111-1 | PIN 6 |
| 57 | 211109-5 | BALL BEARING 6201 X HM1303 |
| 58 | 221781-5 | HELICAL GEAR 37 X HM1500 |
| 59 | 211109-5 | BALL BEARING 6201 X HM1303 |
| 60 | 316995-0 | GEAR HOUSING COVER HM1500 |
| 61 | 265367-5 | HEX.SOCKET HEAD BOLT M 8 X 40 X HM 1500 |
| 64 | 922376-4 | HEX.SOCKET HEAD BOLT M6X55 |
| 65 | 211214-8 | BALL BEARING 6302 |
| 66 | 254038-9 | WOODRUFF KEY 4 HM 1500 |
| 67 | 221782-3 | HELICAL GEAR 55 X HM 1500 |
| 68 | 213354-8 | OIL SEAL 25 X HM1400 |
| 69 | 213460-9 | O-RING 35 HK / HR1800 / HM12 |
| 70 | 331367-8 | SEALING SCREW HM 1500 |
| 71 | 211228-7 | BALL BEARING 6202DD |
| 72 | 213202-1 | DUST SEAL 15 |
| 73 | 241648-1 | FAN 104 X HM1300 |
| 74 | 514958-2 | ARMATURE ASSEMBLY HM 1500 |
| 75 | 681646-7 | INSULATION WASHER HM1200 / 3612BR |
| 76 | 211087-9 | BALL BEARING 6200DDW NSK |
| 77 | 253794-8 | FLAT WASHER 18 6905B / 2708 |
| 78 | 624903-0 | FIELD HM1500 |
| 79 | 213406-5 | O-RING 30 58NB / SB / HM1200 |
| 80 | 316268-1 | REAR CASE HM 1500 |
| 81 | 922356-0 | HEX. SOCKET HEAD BOLT M6 X 35 X HM1500 |
| 82 | 911211-1 | PAN HEAD SCREW M5X12 |
| 83 | 343748-4 | HOLDER CAP PLATE HM 1500 |
| 84 | 262044-0 | RUBBER RING 12 LS1400 |
| 85 | 643710-2 | BRUSH HOLDER CAP XHM1500 |
| 86 | 191957-7 | CARBON BRUSH SET CB-204 (201,202) |
| 87 | 159631-3 | MOTOR HOUSING HM1500 |
| 88 | 265341-3 | HEX BOLT M5X75 |
| 89 | 316498-4 | CRANK HOUSING HM1500 |
| 90 | 213755-0 | O-RING 75 X HM1400 |
| 91 | 213806-9 | O-RING 90 XHR2510 |
| 92 | 322381-5 | CONNECTING ROD X HM1500 |
| 93 | 212309-0 | NEEDLE BEARING HK2016 |
| 94 | 152373-8 | CRANK SHAFT X HM1500 |
| 95 | 265366-7 | HEX. SOCKET HEAD BOLT M5 X 22 X HM1500 |
| 96 | 316267-3 | BEARING BOX HM1500 |
| 97 | 211359-2 | BALL BEARING 6205 |
| 98 | 213504-5 | O-RING 40 HM1300 |
| 99 | 261105-3 | WASHER NILON X HM1500 |
| 100 | 643711-0 | CARBON BRUSH HOLDER HM1500-HM1303 |
| 101 | 216115-5 | INNER RACE 1716 |
| 102 | 341397-1 | MOTOR HOUSING COVER XHM1300 |
| 103 | 442009-0 | PACKING 50 XHM1300 |
| 104 | 911211-1 | PAN HEAD SCREW M5X12 |
| 105 | 999906 | PERFORMANCE KIT HM1500 |
| 106 | 654020-2 | TERMINAL RING 94 |
| 107 | 414665-6 | SET RING X HM1500 |
| 999 | 193403-6 | SERVICE KIT HM1500 |
| 1000 | 181490-7 | HAMMER GREASE |
