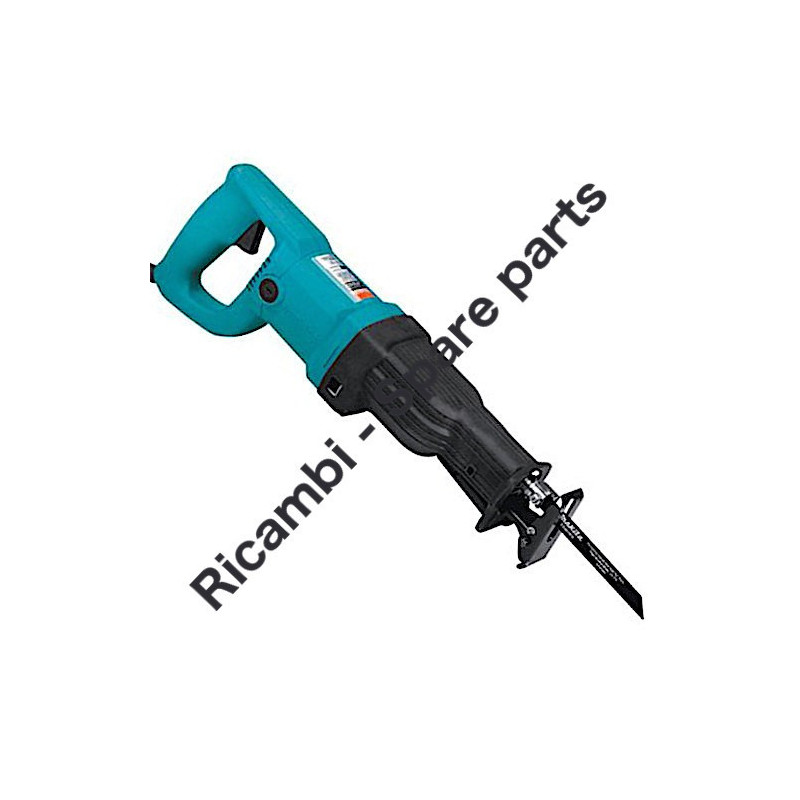

Makita Reciprocatng Saw JR3030T Parts

Name: Makita Reciprocatng Saw JR3030T Parts
Brand: Makita
SKU: Makita JR3030T
Price: 5.25 EUR
Availability: InStock

€5.25

Tax included

Makita Spare Parts for Reciprocatng Saw JR3030T

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Reciprocating Saw JR3030T.

ITEM CODE: 181490-7

181490-7
168337-2
163441-2
421665-9
257558-2
344732-2
344733-0
921442-4
272240-2
911114-9
931102-0
310088-5
310138-6
216002-8
256454-1
266236-3
266247-8
266272-9
323916-5
233018-8
162215-8
233247-3
257226-7
266035-3
344729-1
262545-8
253797-2
213174-0
253707-9
317139-5
317640-0
911253-5
421666-7
443070-0
214169-6
341462-6
911225-0
344777-0
168332-2
168368-1
212001-8
266210-1
153268-8
285692-8
211206-7
257064-7
211221-1
323844-4
251969-3
343981-8
266173-1
317140-0
911601-8
266056-5
961052-5
211131-2
285693-6
516373-6
416856-5
266044-2
343657-7
594333-8
654020-2
681644-1
210005-4
151841-8
643708-9
643750-0
643515-0
191963-2
183101-0
266045-0
416851-5
233251-2
231230-4
231342-3
416850-7
417323-3
651919-2
682540-6
682505-8
687052-4
265995-6
941102-2
267758-6
256471-1
256492-3
233345-3
961078-7
162228-9
268094-3
331639-1
417791-0
256158-5
310129-7
418311-3
345214-7
233025-1
231662-5
231687-9
792146-3
792147-1
792148-9
824539-7
417059-4
645253-0
685700-9

Quantity

Usually Ships in: 7/10 Business Days Approx.

Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Description
Product Details
Attachments

Makita Spare Parts for Reciprocatng Saw JR3030T

MAKITA JR3030T RECIPRO SAW PARTS
#	Part. Num.	Description
C10	181490-7	HAMMER GREASE 30G
C11	1914C5-7	GREASE SET
D10		INC. 1,2,5,7,22,26,27,29,31,
1A_	168337-2	SHOE
1A1	163441-2	SHOE
7A_	421665-9	INSULATION COVER
7A1	421760-5	INSULATION COVER
8	257558-2	SLEEVE 9
9	344732-2	INNER PLATE
10	344733-0	LOCK PLATE
11	921442-4	HEX. BOLT M8X25
12	272240-2	LEVER 60
13	911114-9	PAN HEAD SCREW M4X10
14	931102-0	HEX. NUT M4
15	310088-5	CLAMP
15-1	310138-6	CLAMP
16	216002-8	STEEL BALL 4.8
17	256454-1	PIN 5.5-6
18	266236-3	HEX.SOCKET HEAD BOLT M5X8
18-1	266247-8	TORX SOCKET HEAD BOLT M5X1 0
18-2	266272-9	TORX. S.H. SHOULDER BOLT M5X 10
19	323916-5	PUSH PIN
20	233018-8	COMPRESSION SPRING 3
21	162215-8	PUSH BUTTON
22	233247-3	COMPRESSION SPRING 16
23	257226-7	RING 13
24	266035-3	TAPPING SCREW BIND CT 5X12
25	344729-1	FELT RETAINER
26	262545-8	FELT RING 14
27	253797-2	FLAT WASHER 14
28	213174-0	X RING 14
29	253707-9	FLAT WASHER 16
30	317139-5	GEAR HOUSING COVER
30-1	317640-0	GEAR HOUSING COVER
31	911253-5	PAN HEAD SCREW M5X30
32	421666-7	PACKING
33	443070-0	PLATE 12X16
34	214169-6	PLANE BEARING 14
35	341462-6	PLATE
36	911225-0	PAN HEAD SCREW M5X16
37	344777-0	SLIDE PLATE
38	168332-2	SLIDER
38-1	168368-1	SLIDER
39	212001-8	NEEDLE BEARING 708
40	266210-1	HEX. SOCKET HEAD BOLT M10X1 8
41	153268-8	GEAR COMPLETE
42	285692-8	BEARING RETAINER 56
43	211206-7	BALL BEARING 6202LLB
44	257064-7	RING 15
45	211221-1	BALL BEARING 6902
46	323844-4	GEAR SHAFT
47	251969-3	HEX. SOCKET HEAD BOLT M5X12
48	343981-8	PLATE (C)
49	266173-1	TAPPING SCREW 5X30
50	317140-0	GEAR HOUSIHG
51	911601-8	PAN HEAD SCREW M5X8
52	266056-5	TAPPING SCREW 5X45
53	961052-5	RETAINING RING (EXT) S-12
54	211131-2	BALL BEARING 6001DDW
55	285693-6	BEARING RETAINER
56A_	516373-6	ARMATURE ASS'Y 220V
C10	240023-8	FAN 70
D10		INC. 61,62
57	416856-5	BAFFLE PLATE
58	266044-2	TAPPING SCREW 5X60
59	343657-7	RETAINER
60A_	594333-8	FIELD ASS'Y 220V
C10	654020-2	RING TERMINAL
C20	654555-3	CONNECTOR 34130
61	681644-1	INSULATION WASHER
62	210005-4	BALL BEARING 608DDW
63	851802-5	NAME PLATE JR3030T
64A_	151841-8	MOTOR HOUSING COMPLETE
C10	643708-9	BRUSH HOLDER 5-11
65	643750-0	BRUSH HOLDER CAP 7-11
65-1	643515-0	HOLDER CAP 7-11
65-2	643750-0	BRUSH HOLDER CAP 7-11
66	191963-2	CARBON BRUSH CB-303
66-1	194996-6	CARBON BRUSH SET CB-303
67	183101-0	HANDLE SET
D10		INC. 69
68	266045-0	TAPPING SCREW 4X20
69	183101-0	HANDLE SET
D10		INC. 67
70	416851-5	SWITCH LEVER
71	233251-2	COMPRESSION SPRING 5
72	231230-4	COMPRESSION SPRING 4
72-1	231342-3	COMPRESSION SPRING 4
73	416850-7	LOCK-ON BUTTON
73-1	417323-3	LOCK-ON BUTTON
74A_	651919-2	SWITCH SGE106CV-1P
75E_	665883-1	POWER SUPPLY CORD 1.0-2-5.0
76B_	682540-6	CORD GUARD 9.3-90
76B1	682505-8	CORD GUARD 10-90
77A_	687052-4	STRAIN RELIEF
78	265995-6	TAPPING SCREW 4X18
79	443070-0	PLATE 12X16
80	214169-6	PLANE BEARING 14
81	341462-6	PLATE
82	911225-0	PAN HEAD SCREW M5X16
83	911601-8	PAN HEAD SCREW M5X8
86	941102-2	FLAT WASHER 5
87	267758-6	SPRING WASHER 5
88	256471-1	SHOULDER PIN 5
88-1	256492-3	SHOULDER PIN 5
89	233345-3	COMPRESSION SPRING 6
90	961078-7	RETAINING RING (EXT) S-18
91	162228-9	DRIVING SLEEVE
92	268094-3	PIN 3
93	331639-1	GUIDE SLEEVE
94	417791-0	DRIVING SLEEVE GUIDE
95	256158-5	PIN 3
96	310129-7	SLEEVE
96-1	418311-3	SLEEVE
97	345214-7	PUSH PLATE
98	233025-1	COMPRESSION SPRING 2
99	231662-5	TORSION SPRING 17
99-1	231687-9	TORSION SPRING 17
A01	792146-3	RECIPRO SAW BLADE NO.21
A02	792147-1	RECIPRO SAW BLADE NO.22
A03	792148-9	RECIPRO SAW BLADE NO.23
A04A_	824539-7	PLASTIC CARRYING CASE
C10	417059-4	LATCH
C20	819143-5	MAKITA LABEL
E02	645253-0	NOISE SUPPRESSOR
E05	685700-9	SPONGE SHEET
