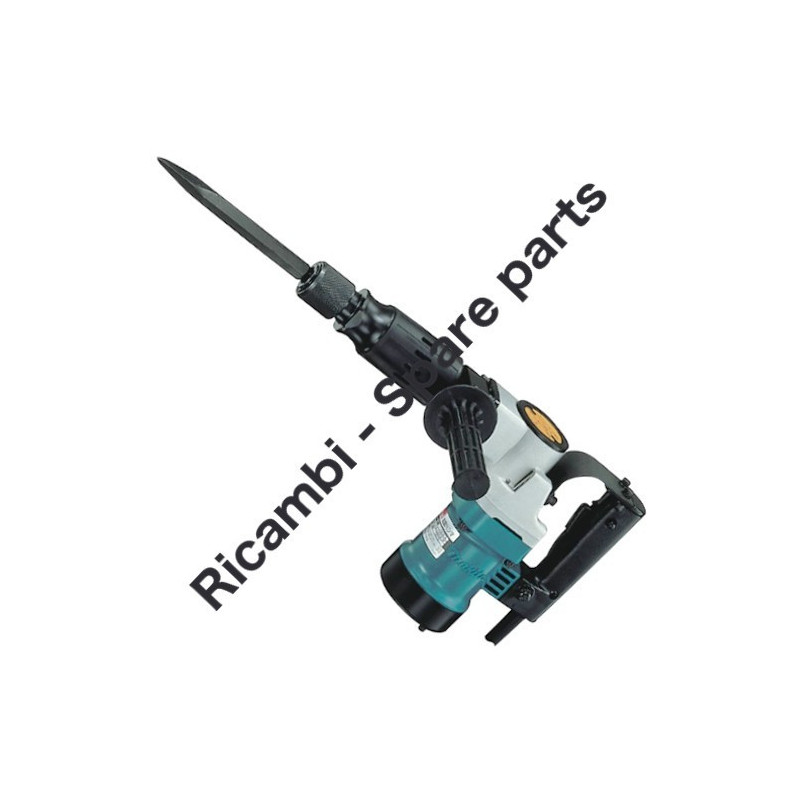

Makita Parts for Demolition Hammer HM0810TA
€17.21
Tax included
Makita Spare Parts for Demolition Hammer HM0810TA
MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Hex Shank Demolition Hammer HM0810TA.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Demolition Hammer HM0810TA
MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Hex Shank Demolition Hammer HM0810TA.
In the following table, look for the model of Hammer and the respective parts of the code.
| Makita HM0810TA Hex Shank Demolition Hammer | ||
| # | Part Num. | Parts Description |
| 1 | 421541-7 | BARREL COVER |
| 001-1 | 421541-7 | BARREL COVER |
| 2 | 922341-3 | HEX. SOCKET HEAD BOLT M6X25 |
| 3 | 151457-9 | BARREL COMPLETE |
| 4 | 213554-0 | O RING 44 |
| 5 | 321929-0 | STRIKER |
| 6 | 412073-5 | INNER RING 26 |
| 7 | 412053-1 | PISTON RING 30 |
| 8 | 412053-1 | PISTON RING 30 |
| 9 | 321514-9 | INNER RING 26 |
| 10 | 321958-3 | PISTON |
| 11 | 256165-8 | PIN 8 |
| 12 | 411709-3 | CRANK CAP |
| 13 | 213654-6 | O RING 60 |
| 14 | 312956-8 | ROD |
| 15 | 212108-0 | NEEDLE BEARING 1212 |
| 16 | 321954-1 | CRANK SHAFT |
| 17 | 254001-2 | WOODRUFF KEY 4 |
| 18 | 962203-3 | RETAINING RING R-47 |
| 19 | 211279-0 | BALL BEARING 6303LLU |
| 20 | 213606-7 | O RING 48 |
| 21 | 157627-8 | CRANK HOUSING COMPLETE |
| 21 | INC. 20 | |
| 22 | 213260-7 | OIL SEAL 17 |
| 23 | 221669-9 | HELICAL GEAR 41 X HM0810 |
| 24 | 157628-6 | GEAR HOUSING |
| 24 | INC. 39 | |
| 25 | 212102-2 | NEEDLE BEARING 1210 |
| 26 | 321210-9 | HANDLE SHAFT |
| 27 | 253955-0 | FLAT WASHER 24 |
| 28 | 321495-7 | IMPACT BOLT |
| 29 | 213428-5 | X RING 28 |
| 30 | 213411-2 | O RING 27 |
| 31 | 213508-7 | O RING 38 |
| 32 | 193004-0 | TOOL HOLDER SET |
| 32 | INC. 31,33-37,81 | |
| 33 | 216004-4 | STEEL BALL 7.9 |
| 34 | 233191-4 | COMPRESSION SPRING 30 |
| 35 | 331518-3 | CHANGE RING |
| 36 | 257206-3 | RING 29 |
| 37 | 961108-4 | RETAINING RING S-28 |
| 38 | 331194-3 | SEAL |
| 39 | 213459-4 | O RING 32 |
| 40 | 211106-1 | BALL BEARING 6201LLB |
| 41 | 213102-5 | DUST SEAL 12 |
| 42 | 516149-1 | ARMATURE ASS'Y 240V |
| 42 | 241827-1 | FAN 82 |
| 42 | INC. 40,41,43,44 | |
| 43 | 681625-5 | INSULATION WASHER HK1810 |
| 44 | 211031-6 | BALL BEARING 608LLB |
| 45 | 263014-2 | RUBBER PIN 4 |
| 045-1 | 263002-9 | RUBBER PIN 4 |
| 46 | 410509-8 | BAFFLE PLATE |
| 47 | 265345-5 | #NOME? |
| 48 | 522509-7 | FIELD ASS'Y 240V |
| 48 | 654019-7 | RING TERMINAL |
| 48 | 654501-6 | CONNECTOR P-1.25 |
| 49 | 814F67-6 | HM0810TA NAME PLATE |
| 50 | 159634-7 | MOTOR HOUSING |
| 50 | 643603-3 | BRUSH HOLDER 6-10 |
| 50 | INC. 45 | |
| 51 | 181038-5 | A.C. CARBON BRUSH CB-105 |
| 52 | 643600-9 | BRUSH HOLDER CAP 6-10 |
| 53 | 941151-9 | FLAT WASHER 6 |
| 54 | 922371-4 | HEX. SOCKET HEAD BOLT M6X50 |
| 054-1 | 922374-8 | H.S.H.BOLT M6X50 WITH WG |
| 55 | 922226-3 | HEX. SOCKET HEAD BOLT M5X18 |
| 57 | 284059-7 | REAR COVER |
| 58 | 423257-0 | SPONGE 38.5-46 |
| 59 | 931302-2 | HEX. NUT M6 |
| 60 | 942151-2 | SPRING WASHER 6 |
| 060-1 | 253428-3 | SPRING WASHER 6 |
| 61 | 941151-9 | FLAT WASHER 6 |
| 62 | 273457-0 | GRIP 32 |
| 63 | 341922-8 | GRIP BASE |
| 64 | 321497-3 | CLAMP NUT |
| 65 | 341914-7 | GRIP CLAMP |
| 66 | 922316-2 | HEX. SOCKET HEAD BOLT M6X14 |
| 67 | 343753-1 | CUSHION PLATE |
| 68 | 262051-3 | RUBBER RING 9 |
| 69 | 651051-2 | SWITCH HPAHR6-35S |
| 70 | 911109-2 | PAN HEAD SCREW M4X8 |
| 71 | 262052-1 | RUBBER RING 9 |
| 72 | 257636-8 | SLEEVE 6 |
| 73 | 265914-2 | HEX. SOCKET HEAD BOLT M6X25 |
| 74 | 182590-6 | HANDLE SET |
| 74 | INC. 79 | |
| 75 | 682540-6 | CORD GUARD 9.3-90 |
| 76 | 692541-6 | POWER SUPPLY CORD 1.00-2-5.0 |
| 77 | 687031-2 | STRAIN RELIEF |
| 78 | 911133-5 | PAN HEAD SCREW M4X18 |
| 79 | 182590-6 | HANDLE SET |
| 79 | INC. 74 | |
| 80 | 911243-8 | PAN HEAD SCREW M5X25 |
| 81 | 267203-1 | FLAT WASHER 43 |
| A01 | 150879-0 | PLASTIC CARRYING CASE COMPLETE |
| A01 | 817812-2 | CAUTION LABEL |
| A01 | 162202-7 | LATCH |
| A01 | 416549-4 | HANDLE |
| A01 | 416556-7 | COVER |
| A01 | 819140-1 | MAKITA LOGO LABEL |
| A02 | D-08682 | BULL POINT 17X280 |
| A03 | 783202-0 | HEX. WRENCH 4 |
