Makita Spare Parts for Demolition Hammer HM1300
MAKITA Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Demolition Hammer - HM1300.

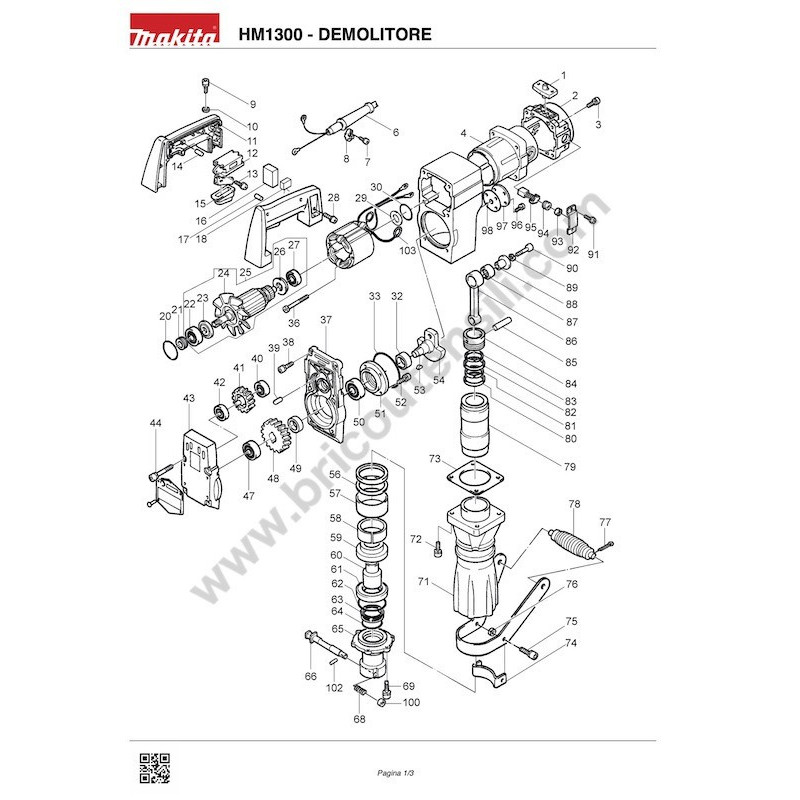

In the following table, look for the model of the Hammer and the respective parts of the code.
| MAKITA HM1300 DEMOLITION HAMMER | ||
| Pos. | Codice | Description |
| 1 | 410725-2 | HANDLE BASE HM1300 |
| 2 | 316392-0 | REAR CASE HM1300 |
| 3 | 922356-0 | CAP HD SCREW M6X35 HM1500 |
| 4 | 159421-4 | MOTOR HOUSING HM1300 |
| 6 | 682505-8 | CORD GUARD 10-90 HS6100/7100 |
| 7 | 911133-5 | PAN HEAD SCREW M4X18 |
| 8 | 687001-1 | STRAIN RELIEF HK1820L/3601B |
| 9 | 922356-0 | CAP HD SCREW M6X35 HM1500 |
| 10 | 941152-7 | FLAT WASHER 6 |
| 11 | 181702-8 | HANDLE SET COMPLETE HM1300 |
| 12 | 651145-3 | SWITCH C3D-H-MS 8900N/HM1200 |
| 13 | 911129-6 | PAN HEAD SCREW M4X16 HM1301 |
| 14 | 263002-9 | RUBBER PIN 4 |
| 15 | 421265-5 | DUST COVER HR3850 / B |
| 16 | 685725-3 | SPONGE SHEET UH3000 |
| 17 | 263002-9 | RUBBER PIN 4 |
| 18 | 645006-7 | NOISE SUPPRESSOR 240V LS1013 |
| 20 | 213469-1 | O RING 35 HM1300 |
| 21 | 331271-1 | SEAL HM1300 |
| 22 | 211228-7 | BALL BEARING 6202DD |
| 23 | 213202-1 | DUST SEAL 15 |
| 24 | 241648-1 | FAN 104 HM1300 |
| 25 | 513403-4 | ARMATURE 240V HM1300 |
| 26 | 681646-7 | INSULATION WASHER HM1400 - HM1200 / 3612BR |
| 27 | 211066-7 | BALL BEARING 6200LLB HM1301 |
| 28 | 911243-8 | PAN HEAD SCREW M5X25 HR2010 |
| 29 | 253794-8 | FLAT WASHER 18 6905B / 2708 |
| 30 | 213406-5 | O RING 30 VC3211M/HR5000/HM13 - 58NB / SB / HM1200 |
| 32 | 213408-1 | OIL SEAL 30 HM1300 |
| 33 | 213806-9 | O RING 90 HM1317C-CB/HR2510 |
| 36 | 265341-3 | HEX HD SCREW M5X75 |
| 37 | 157633-3 | GEAR HOUSING HM1300 |
| 38 | 922341-3 | HEX HD SCREW M5X75 |
| 39 | 256111-1 | PIN 6 |
| 40 | 211109-5 | BALL BEARING 6201 HM1303 |
| 41 | 221740-9 | HELICAL GEAR 43 HM1300 |
| 42 | 211109-5 | BALL BEARING 6201 HM1303 |
| 43 | 157634-1 | GEAR HOUSING COVER HM1300 |
| 44 | 922381-1 | HEX SOCKET HD BOLT M6 X 60 |
| 47 | 211214-8 | BALL BEARING 6302 |
| 48 | 221739-4 | HELICAL GEAR 68 HM1300 |
| 49 | 257111-4 | RING 25 HM1300 |
| 50 | 211359-2 | BALL BEARING 6205 |
| 51 | 315782-4 | BEARING BOX HM1300 |
| 52 | 266009-4 | HEX. SOCKET HEAD BOLT M8X18 HM1301 |
| 53 | 254001-2 | WOODRUFF KEY 4 |
| 54 | 321829-4 | CRANK SHAFT HM1300 |
| 56 | 267006-3 | FLAT WASHER 60HM1300 |
| 57 | 421291-4 | RUBBER RING 68 HM1300 |
| 58 | 331300-0 | IDLER HM1300 |
| 59 | 322234-8 | RING HOLDER HM1300 |
| 60 | 322233-0 | IMPACT BOLT HM1300 |
| 61 | 421292-2 | URETHANE RING 44 HM1300 |
| 62 | 213707-1 | O-RING 65 HR1800 |
| 63 | 213517-6 | X RING 40 HM1300 |
| 64 | 213504-5 | O-RING 40 HM1300 |
| 65 | 322168-5 | TOOL HOLDER 30 |
| 66 | 322567-1 | TOOL RETAINER HM 1500 |
| 68 | 231281-7 | COMPRESSION SPRING 15 NEW HM1300 |
| 69 | 266010-9 | HEX SOCKET HD BOLT M8X30 HM1303 |
| 71 | 315780-8 | CYLINDER HM1300 |
| 72 | 266011-7 | HEX SOCKET HD BOLT M8X35 HM131 HM1301 |
| 73 | 442085-4 | CYLINDER PACKING HM1300 |
| 74 | 342852-6 | SIDE HANDLE PLATE HM1300 |
| 75 | 922441-9 | HEX. SOCKET HEAD BOLT M8X25 |
| 76 | 252005-8 | SELF-LOCKING NUT M8-13 HM1304 |
| 77 | 952257-8 | SPLIT COTTER PIN 3.0-20 HR5000K |
| 78 | 273492-8 | GRIP 38 HR5000K |
| 79 | 322235-6 | HAMMER HM1300 |
| 80 | 412067-0 | PISTON RING 46 HM1300 |
| 81 | 342853-4 | INNER RING 42 HM1300 |
| 82 | 412067-0 | PISTON RING 46HM1300 |
| 83 | 342853-4 | INNER RING 42HM1300 |
| 84 | 321824-4 | PISTON HM1300 |
| 85 | 256202-8 | PIN 10 HM1300 |
| 86 | 321826-0 | CONROD HM1300 |
| 87 | 212260-4 | NEEDLE BEARING 1716 |
| 88 | 321825-2 | CRANK SLEEVE HM1300 |
| 89 | 942251-8 | M10 SPRING RING DIN128 LS800D |
| 90 | 922557-0 | HEX SOCKET HD BOLT M10 X 35 |
| 91 | 911206-4 | PAN HEAD SCREW M5X10 |
| 92 | 342998-8 | HOLDER CAP PLATE HM1300 |
| 93 | 262049-0 | RUBBER RING 6 N500 |
| 94 | 643650-4 | BRUSH HOLDER CAP 6.5-13.5 |
| 95 | 181048-2 | CARBON BRUSH CB-155 (TIB143) (CB-161) |
| 96 | 911211-1 | PAN HEAD SCREW M5X12 |
| 97 | 341397-1 | MOTOR HOUSING COVER HM1303B - HM1300 |
| 98 | 442009-0 | MOTOR HOUSING PACKING HM1303B - HM1300 |
| 100 | 322699-4 | RETAINING RING HM1500 |
| 102 | 256219-1 | PIN 4 HM 1500 |
| 103 | 654084-6 | TERMINAL RING HM1300 |
