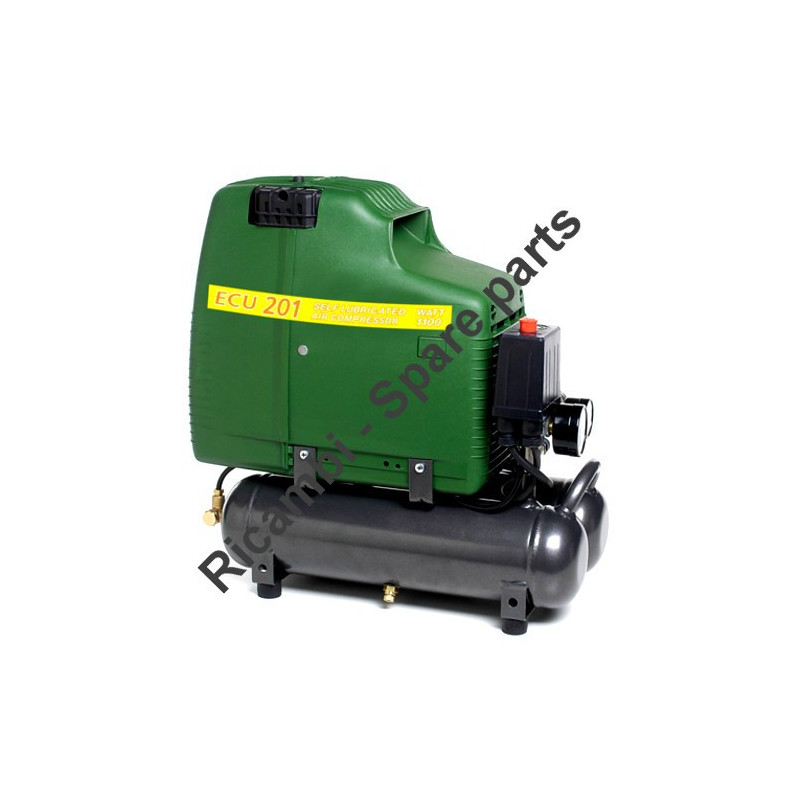

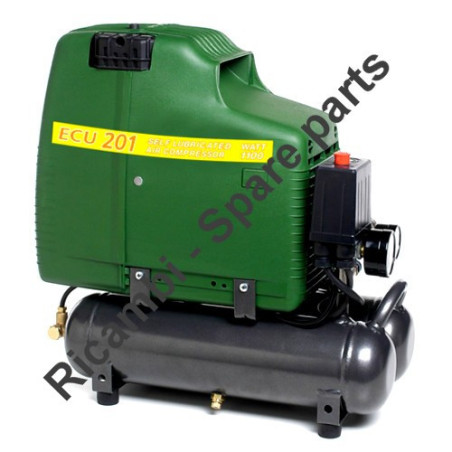

FIAC Spare Parts for Piston Air Compressor ECU 201 HP 1,5 F206
€0.61
Tax included
FIAC Spare Parts for Piston Air Compressor ECU 201 HP 1,5 F206
Fiac Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Air Compressor ECU 201 HP 1,5 F206.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
FIAC Spare Parts for Piston Air Compressor ECU 201 HP 1,5 F206
Fiac Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Air Compressor ECU 201 HP 1,5 F206.
In the following table, look for the type of the air compressor and the respective parts of the code.
| Air Compressor ECU 201 HP 1,5 F206 | ||
| # | Part Num. | Description |
| 1 | 7030190000 | Washer Ø6,4X18X1,5 UNI-6593 |
| 2 | 7011290000 | Screw M6X35 UNI-5739 |
| 3 | 7084080000 | Fitting "L" 1/4 FIL |
| 4 | 7570550000 | Head |
| 5 | 7070600000 | O-Ring |
| 6 | 4200020000 | Kit valve plate |
| 7 | 7078490000 | Gasket |
| 8 | 4190270000 | Kit rod / piston |
| 9 | 7021010000 | Nut M6 UNI-7473 |
| 10 | 7060190000 | Bearing 6004 2Z / C3.QE6 |
| 11 | 7200140000 | Cooling fan |
| 12 | 7150560000 | Plastic COVER |
| 13 | 7011040000 | Screw M6X20 UNI-5739 |
| 14 | 5040670008 | CRANKSHAFT |
| 15 | 7670010000 | MOTOR SUPPORT |
| 16 | 7020240000 | Nut M8 DIN-6923 |
| 17 | 7060280000 | Bearing 6005-2Z |
| 18 | 7660090000 | Armature |
| 19 | 4011600000 | Field Ass'y |
| 20 | 7310320000 | Capacitor MF.30 V450 |
| 21 | 7014300000 | Screw M4X12 UNI-8112 |
| 22 | 7013060000 | Screw M4X8 UNI-8112 |
| 23 | 7150550000 | Motor Housing, Green |
| 24 | 7640060000 | Cover |
| 25 | 7030780000 | Washer |
| 26 | 7458340000 | Filter plate |
| 27 | 4085010000 | Kit Air filter |
| 28 | 7012010000 | Screw Ø3,9X19 UNI-6954 |
| 29 | 7060010000 | Bearing 6203 ZZ 17:40:12 QE6 |
| 30 | 7018010000 | Screw M6x139 UNI-5737 |
| 50 | 7250740000 | Pressure Switch |
| 51 | 7090070000 | Cap M1/4" |
| 52 | 7081090000 | Fitting 1/4"MM |
| 53 | 7100640000 | Pressure reducer |
| 54 | 7130570000 | Universal tap M1/4" |
| 55 | 7230010000 | Rilsan tube Ø6X4 |
| 56 | 7234360000 | Tube feeding |
| 57 | 7190200000 | Check valve M1/4-Tube 10 |
| 58 | 7110240000 | Pressure Gauge Ø40-1/8" |
| 59 | 7192020000 | Valve Sic. M1/4-8,5Bar |
| 60 | 7110300000 | Manometer Ø50-1/4" |
| 61 | 7082530000 | T fitting 1/4 MFM ZINC |
| 62 | 5158240008 | Tank |
| 63 | 7130090000 | Drain Tap M1/4" |
| 64 | 7012090000 | Screw M5X12 UNI-8112 |
| 65 | 7030020000 | Ø6 washer UNI-6592 |
| 66 | 7360370000 | Rubber foot Ø25 - 60sh for mounting glass |
| 67 | 7329070000 | Power cable |
| 68 | 7012290000 | Screw M5X20 TAP-TITE |
| 100 | 4280530000 | CRANKCASE-CRANKSHAFT- ARMATURE-ECU NEW |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
