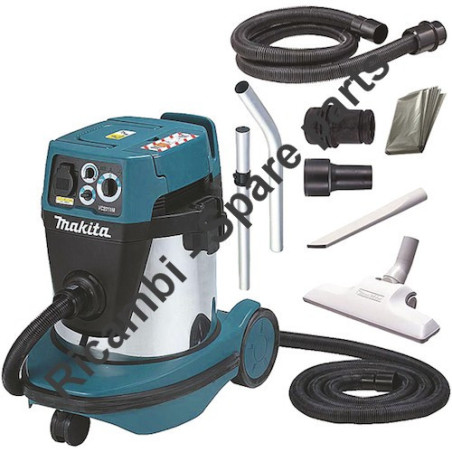

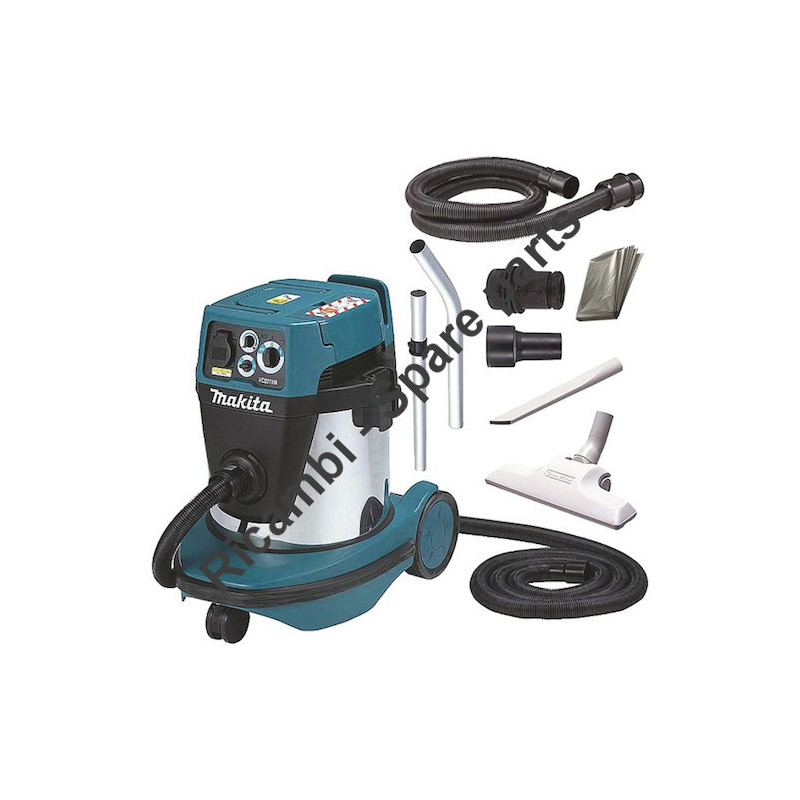

Makita Spare Parts for Vacuum Cleaner VC2211MX1
€177.45
Tax included
Makita Spare Parts for Vacuum Cleaner VC2211MX1
Makita original spare parts for to replace broken parts for to fix Wet/Dry Vacuum Cleaner VC2211MX1.Fix Your Vacuum Cleaner. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Vacuum Cleaner VC2211MX1
Makita original spare parts for to replace broken parts for to fix Wet/Dry Vacuum Cleaner VC2211MX1.
In the following table, look for the model of Vacuum Cleaner and the respective parts of the code.
| VC2211MX1 - VACUUM CLEANER MAKITA pag.1 | ||
| 1 | 452451-7 | REAR COVER X VC3210L |
| 3 | 141915-3 | COVER COMPLETE |
| 4 | 451340-3 | HANDLE VC3210L |
| 6 | 423456-4 | UPPER DAMPER |
| 7 | 266048-4 | SCREW M 4 X 40 X 4334D |
| 9 | 65995-6 | SCREW M4X18 X 6408 / 6221DW |
| 10 | 451343-7 | SWITCH SUPPORT VC3210L |
| 11 | 650659-9 | SWITCH |
| 12 | 686023-8 | CLAMP VC3210L |
| 13 | 620185-2 | REGULATOR |
| 14 | 961013-5 | RETAINER RING X JN3200 |
| 15 | 961062-2 | RETAINER RING X BO 5000 |
| 16 | 685740-7 | GASKET |
| 17 | 655123-5 | PLUG |
| 19 | 143294-5 | BASE SWITCH X VC2211MX1 |
| 20 | 266630-9 | SCREW 4X16 X VC3210L |
| 21 | 213054-0 | GASKET 9 HR2210 / 20 / 5016N |
| 22 | 451344-5 | SWITCH KNOB |
| 23 | 213054-0 | GASKET 9 HR2210 / 20 / 5016N |
| 24 | 451344-5 | SWITCH KNOB |
| 25 | 213176-6 | RING 14 X AN901 |
| 26 | 451342-9 | SWITCH LEVER X VC3210L |
| 27 | 423450-6 | REAR FILTER |
| 28 | 620467-2 | REGULATOR X VC2211MX1 |
| 30 | 265999-8 | SCREW 4X25 |
| 31 | 687149-9 | CABLE CLAMP VC3210L |
| 32 | 688131-1 | LINE FILTER X MT240 |
| 33 | 688131-1 | LINE FILTER X MT240 |
| 34 | 620186-0 | ACOUSTIC WARNING CIRCUIT |
| 35 | 266048-4 | SCREW M 4 X 40 X 4334D |
| 36 | 682575-7 | CABLE SLEEVE 12-90 VC3210L |
| 37 | 141917-9 | BASE COVER |
| 38 | 423462-9 | SEAL |
| 39 | 423279-0 | SEAL 70 VC3210L |
| 40 | 451338-0 | MOTOR COVER VC3210L |
| 41 | 241512-6 | FAN 62 VC3210L |
| 42 | 424228-0 | RUBBER RING 120 X VC3210L |
| 43 | 125876-5 | MOTOR X VC3210L |
| 44 | 911283-6 | SCREW M5X60 VC3210L |
| 45 | 195483-8 | CARBON BRUSHES CB-173 |
| 46 | 452106-4 | CARBON BRUSH HOLDER X VC3210L |
| 47 | 643610-6 | CARBON BRUSH HOLDER VC3210L |
| 48 | 911118-1 | SCREW M4X12 |
| 50 | 267715-4 | WAVY WASHER 20 VC3210L |
| 51 | 211092-6 | BALL BEARING 629DD |
| 52 | 517849-6 | ARMATURE VC3210L |
| 53 | 211087-9 | BALL BEARING 6200DDW NSK |
| 54 | 526204-1 | STATOR FOR VC3210L |
| 55 | 454480-6 | ENGINE SUPPORT |
| 56 | 316795-8 | FLANGE VC3210L |
| 57 | 241910-4 | FAN 125 X VC3210L |
| 58 | 325747-8 | SPACER X VC3210L |
| 59 | 346114-4 | PROTECTION X VC3210L |
| 60 | 241910-4 | FAN 125 X VC3210L |
| 61 | 316799-0 | WASHER 10 VC3210L |
| 62 | 931403-6 | HEXAGONAL NUT M8 |
| 63 | 346115-2 | COIL COVER X VC3210L |
| 126 | 213406-5 | GASKET 30 58NB / SB / HM1200 |
| VC2211MX1 - VACUUM CLEANER MAKITA pag.2 | ||
| 64 | 424229-8 | SUPPORT X VC3210L |
| 65 | 423451-4 | LOWER DAMPER |
| 66 | 684900-8 | VINYL TUBE |
| 67 | 421468-1 | SEAL |
| 68 | 141916-1 | FILL COVER |
| 69 | 423455-6 | SEAL |
| 71 | 266048-4 | SCREW M 4 X 40 X 4334D |
| 72 | 629981-5 | DC MOTOR |
| 73 | 454207-4 | GEAR BOX |
| 74 | 911003-8 | SCREW M3X6 X 6096DW |
| 75 | 267067-3 | FLAT WASHER 12 X 6221DW |
| 76 | 226283-6 | GEAR 15 X 6221DW |
| 77 | 153228-0 | GEAR 9 CPL X 6221DW |
| 78 | 226284-4 | GEAR 15 X 6221DW |
| 79 | 226285-2 | GEAR INT. 42 X 6221DW |
| 81 | 211375-4 | BEARING BALLS 6805LLB 6221D |
| 82 | 267464-3 | WASHER 34 |
| 83 | 135554-9 | POST |
| VC2211MX1 - VACUUM CLEANER MAKITA pag.3 | ||
| 84 | 424543-2 | RUBBER RING |
| 85 | 424544-0 | SEAL |
| 86 | 961060-6 | RING CHECK S20 |
| 87 | 267041-1 | FLAT WASHER 20 X2106W |
| 88 | 213304-3 | GASKET 20 X 6904VH |
| 89 | 454208-2 | CAM |
| 90 | 141919-5 | EXTERNAL VALVE |
| 91 | 141918-7 | INTERNAL VALVE |
| 92 | 632A68-0 | CABLE |
| 93 | 454204-0 | INTERNAL COVER |
| 94 | 266048-4 | SCREW M 4 X 40 X 4334D |
| 95 | 454209-0 | PROTECTION |
| 96 | 266048-4 | SCREW M 4 X 40 X 4334D |
| 97 | 234273-5 | COMPRESSION SPRING 20 |
| 98 | 454215-5 | BLOCK LEVER PLATE |
| 99 | 454214-7 | BLOCK LEVER |
| 100 | 268292-9 | PIN 4 |
| VC2211MX1 - VACUUM CLEANER MAKITA pag.4 | ||
| 101 | 266257-5 | SCREW M4 X 28 X 9561CV |
| 102 | 417587-9 | SUPPORT VC3210L |
| 103 | 451455-6 | SUPPORT X VC3210L |
| 104 | 266192-7 | SCREW 4 X 14 X HR4001C / HR4010C |
| 105 | 266192-7 | SCREW 4 X 14 X HR4001C / HR4010C |
| 106 | 168537-4 | HOOK X VC3210L |
| 107 | 451545-5 | HOOK SUPPORT VC3210L |
| 108 | 188828-7 | CPL TANK X VC2211MX1 |
| 109 | 424346-4 | RING T VC3210 |
| 110 | 911118-1 | SCREW M4X12 |
| 111 | 451546-3 | SUCTION COVER X VC3210L |
| 112 | 213655-4 | GASKET 56 HR3510 / 20 / HM12 |
| 113 | 451454-8 | RING X VC3210L |
| 114 | 911103-4 | PAN HEAD SCREW M4X6 3600H |
| 115 | 649150-2 | CABLE GRAUND 120 VC3210L |
| 116 | 424270-1 | SHOCK ABSORBER X VC3210L |
| 117 | 451643-5 | WHEEL COVER X VC3210L |
| 118 | 961060-6 | RETAINER RING S20 |
| 119 | 267299-2 | WASHER 20 FOR GA9020 |
| 120 | 451642-7 | WHEEL 170 VC3210L |
| 121 | 331888-0 | JOINT X VC3210L |
| 122 | 168547-1 | WHEEL 75 X VC3210L |
| 123 | 141875-9 | FILTER CARTRIDGE M |
| 124 | 423452-2 | DAMPER |
| 125 | 196253-8 | PRE FILTER |
