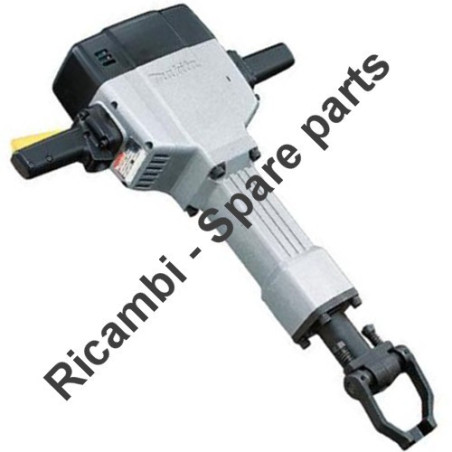

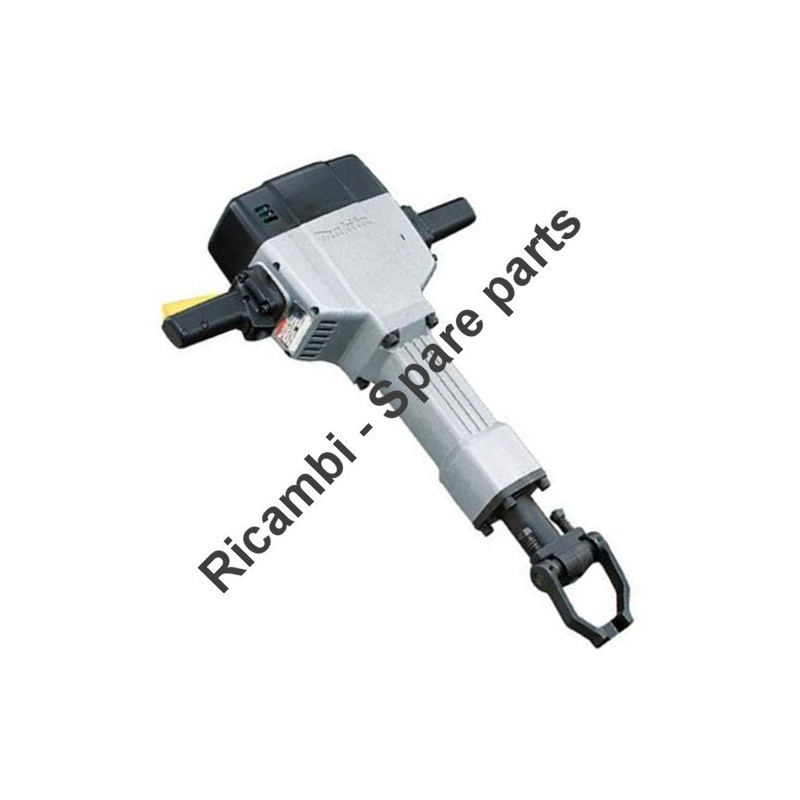

Makita Spare Parts for Demolition Hammer HM1800
€13.07
Tax included
Makita Spare Parts for Demolition Hammer HM1800
MAKITA Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Demolition Hammer 29KG 1700W HM1800
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Demolition Hammer HM1800
MAKITA Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Demolition Hammer 29KG 1700W HM1800
In the following table, look for the model of the Hammer and the respective parts of the code.
| Makita 29KG 1700W HM1800 Breaker Hammer Parts pag.1 | ||
| Rif. | Part Num. | Description |
| 1 | 322566-3 | SCREW SEAL HM1800/HM1810 |
| 2 | 211490-4 | BALL BEARING 6203LLU X SG150-2 |
| 3 | 267706-5 | WASHER 17 X HM1800 |
| 4 | 514993-0 | ARMATURE ASSY 220V. X HM1800 |
| 5 | 681646-7 | INSULATION WASHER HM1200 / 3612BR |
| 6 | 211087-9 | BALL BEARING 6200DDW NSK |
| 7 | 213406-5 | O-RING 30 58NB / SB / HM1200 |
| 9 | 191957-7 | CARBON BRUSH CB-204 (201,202) |
| 10 | 643710-2 | BRUSH HOLDER CAP XHM1500 |
| 11 | 941151-9 | FLAT WASHER 6 X HM1303 |
| 12 | 922341-3 | CAP HD SCREW M5X25 |
| 13 | 240024-6 | FAN 10 X HM1800 |
| 14 | 942201-3 | WASHER 8 |
| 15 | 252105-4 | NYLON INSERT NUT M8-13 |
| 16 | 265344-7 | HEX HD SCREW M5X85 HM1800 |
| 17 | 624953-5 | FIELD 240V HM1800 |
| 18 | 414787-2 | MOTOR HOUSING HM1800 |
| 19 | 212358-7 | NEEDLE BEARINGS 2520 X HM1800 |
| 20 | 254001-2 | WOODRUFF KEY 4 |
| 21 | 213507-9 | O-RING 40 HR1800 / 2210/20 |
| 22 | 256151-9 | PIN 5 X HM1800 |
| 23 | 159531-7 | GEAR HOUSING COMPLETE HM1800 |
| 24 | 211228-7 | BALL BEARING 6202DD |
| 25 | 254001-2 | WOODRUFF KEY 4 |
| 26 | 226251-9 | SPUR GEAR 22 HM1800 |
| 27 | 211361-5 | BALL BEARING 6305LLB HM1800 |
| 28 | 213476-4 | OIL SEAL X HM1800 |
| 29 | 213721-7 | O-RING 61 X HM1400 |
| 30 | 213806-9 | O-RING 90 XHR2510 |
| 31 | 152414-0 | CRANK SHAFT COMPLETE HM1800 |
| 32 | 316550-8 | CRANK HOUSING COMPLETE HM1800 |
| 33 | 213806-9 | O-RING 90 XHR2510 |
| 34 | 414785-6 | CRANK HOUSING CAP HM1800 |
| 35 | 414786-4 | CAP COVER HM1800 |
| 36 | 911226-8 | PAN HD SCREW M5X18 |
| 37 | 221793-8 | HELICAL GEAR 50 HM1800 |
| 38 | 211228-7 | BALL BEARING 6202DD |
| 39 | 922496-4 | HEX SOCKET HD BOLT M8X75 HM1800 |
| 40 | 262538-5 | RUBBER SLEEVE HM1800 - See CT11-1 |
| 41 | 251389-1 | C/SUNK HD SCREW M8X28 |
| 42 | 324062-7 | HANDLE BASE HK1800 - See CT11-1 |
| 43 | 418415-1 | SIDE HANDLE X HM1800 |
| 44 | 941152-7 | FLAT WASHER 6 |
| 45 | 922341-3 | CAP HD SCREW M6X25 |
| 46 | 254001-2 | WOODRUFF KEY 4 |
| 47 | 931601-2 | HEX FULLNUT M12 |
| 48 | 942301-9 | M12 SPRING RING DIN 127N |
| 49 | 941301-6 | FLAT WASHER 12 |
| 50 | 322565-5 | HANDLE SHAFT HM1800 |
| 51 | 415148-9 | NYLON BUSH 15 HM1800 - See CT11-1 |
| 52 | 316792-4 | GEAR HOUSING HM1800 |
| 53 | 211214-8 | BALL BEARING 6302 |
| 54 | 961060-6 | EXT DIN471 CIRCLIP-20 |
| 55 | 226242-0 | SPUR GEAR 47 HM1800/HM1810 |
| 56 | 331416-1 | SLEEVE 25 HM1800 |
| 57 | 962301-3 | RETAINING RING R62 HM1800 |
| 58 | 233149-3 | COMPRESSION SPRING NEW HM1800 - See CT11-1 |
| 111 | 341397-1 | MOTOR HOUSING COVER HM1303B XHM1300 |
| 112 | 442009-0 | MOTOR HOUSING PACKING HM1303B |
| 113 | 911211-1 | PAN HD SCREW 5X12 W/SP |
| 114 | 654020-2 | TERMINAL RING 94 |
| HM1800 - DEMOLITORE 29KG 1700W pag.2 | ||
| 58 | 922331-6 | CAP HD SCREW M6X20 HM1800 |
| 59 | 941152-7 | FLAT WASHER 6 |
| 60 | 419324-7 | MOTOR HOUSING COVER |
| 61 | 322476-4 | CONNECTING ROD X HM1800 |
| 62 | 213469-1 | O-RING 35 HM1300 |
| 63 | 257653-8 | SLEEVE 8 HM1800 |
| 64 | 322480-3 | PISTON CYLINDER HM1800 |
| 65 | 213666-9 | O-RING 52 X HM1800 |
| 66 | 322563-9 | STRIKER HM1800 |
| 67 | 262050-5 | RUBBER RING 54 HM1500 |
| 68 | 322548-5 | CYLINDER B HM1800 |
| 69 | 213660-1 | O-RING 53 AN7000 |
| 70 | 922677-0 | HEX SOCKET BOLT M12X55 HM1800 |
| 71 | 942301-9 | SPRING WASHER 12 |
| 72 | 316313-2 | CYLINDER A HM1800 |
| 73 | 213805-1 | O-RING 85 X HM1800 |
| 74 | 322699-4 | RETAINER RING HM1500 |
| 75 | 233083-7 | COMPRESSION SPRING 12 |
| 76 | 322477-2 | TOOL RETAINER HM1317CB/HM1800 |
| 77 | 256219-1 | PIN 4 HM 1500 |
| 78 | 324236-0 | TOOL RETAINER HM1800/HM1810 - See CT59-1 |
| 79 | 324238-6 | TOOL RETAINER SHAFT HM1317CB/H HM1800 TIPS - See CT59-1 |
| 80 | 951272-9 | TENSION PIN 8-40 DIN 1481 HM1800 |
| 81 | 265989-1 | HEX BOLT HM1800 |
| 82 | 253989-3 | SPRING WASHER 12 HM1500 |
| 83 | 322551-6 | TOOL HOLDER HM1800 |
| 84 | 213755-0 | O-RING 75 X HM1400 |
| 85 | 213517-6 | X RING 40 HM1300 |
| 86 | 322564-7 | IMPACT BOLT HM1800 |
| 87 | 213667-7 | O-RING HM1800 |
| 88 | 322549-3 | IMPACT BOLT HOLDER HM1800 |
| 90 | 682546-4 | POWER SUPPLY CORD PC5000/01C |
| 91 | 922381-1 | HEX SOCKET HD BOLT M6 X 60 - See CT66-1 |
| 92 | 941152-7 | FLAT WASHER 6 DIN125-A 10PK |
| 93 | 418333-3 | COHANDLE SET HM1800 - See CT66-1 |
| 94 | 324062-7 | HANDLE BASE NEW HM1800 |
| 98 | 922356-0 | CAP HD SCREW M6X35 HM1500 |
| 99 | 316312-4 | REAR CASE HM1800 |
| 100 | 256151-9 | PIN 5 X HM1800 |
| 102 | 687051-6 | STRAIN RELIEF HM 1500 |
| 103 | 265999-8 | SCREW 4X25 |
| 106 | 685725-3 | SPONGE SHEET UH3000 |
| 107 | 645006-7 | NOISE SUPPRESSOR/CONDENSOR 645 LS1013 |
| 108 | 651131-4 | SWITCH HM1400 HM1800 HM1810 SR2600 4110C |
| 109 | 418332-5 | SWITCH LEVER X HM1800 - See CT66-1 |
| 112 | 265995-6 | * SCREW M4X18 - See CT66-1 |
| 113 | 421850-4 | DUST PLATE HM1800/HM1810 - See CT66-1 |
| 114 | 419044-3 | HANDLE SUB BASE HM1800 - See CT66-1 |
| 115 | 256206-0 | PIN 4 4399DW - See CT66-1 |
| 116 | 418331-7 | SWITCH COVER HM1800 - See CT66-1 |
| 117 | 345355-9 | SWITCH SUPPORT HM1800 - See CT66-1 |
| Accessories Pag.3 | ||
| 999 | 193402-8 | SERVICE KIT HM1810 |
