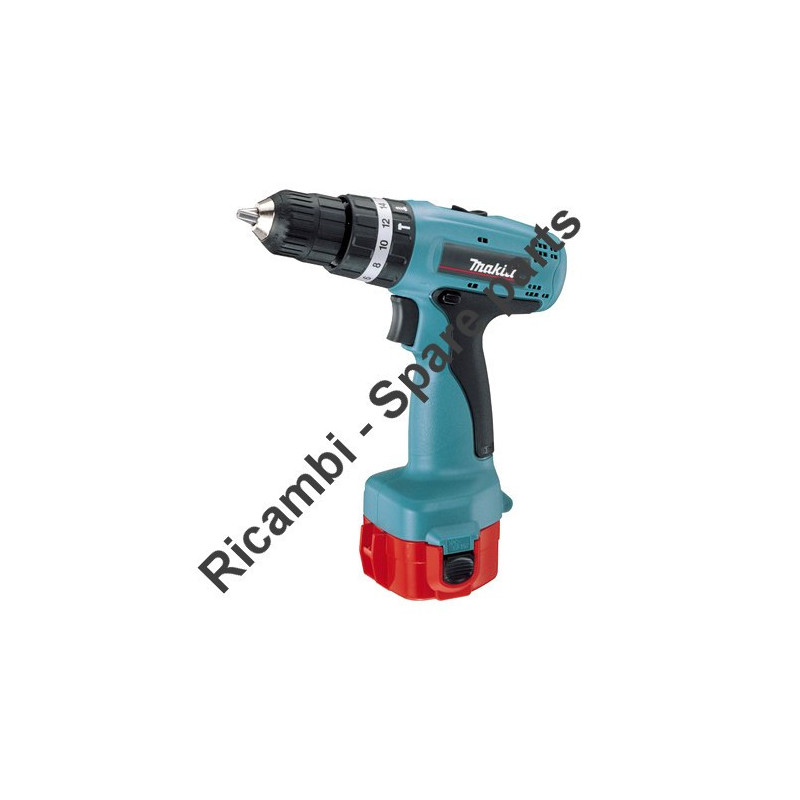

We have the original Spares MAKITA for Cordless Drill Driver 8270DWAE the diagram, parts list and tool repair that help you need to get your tools running like new again.
Fix Your Cordless Drill Driver 8270DWAE. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of Cordless Dril and the respective parts of the code.![]()
| Cordless Drill 8270DWAE | ||
| 1 | 125102-2 | LEVER SPEED X BHP460 |
| 2 | 183823-2 | HOUSING MOTOR X 6270D |
| 4 | 266130-9 | SCREW 3X16 X 6203/13 / 6313DW |
| 5 | 232182-2 | SPRING PLATE X 6096DW |
| 6 | 417283-9 | LEVER REVERSE X 6503D |
| 7 | 650556-9 | SWITCH C3NA 1-M1-X 6260D |
| 8 | 643918-8 | TERMINAL BATTERY X SC130DRA |
| 10 | 251468-5 | SCREW M 6 X 22 X MT064SK |
| 11 | 763187-6 | CHUCK CHUCK 10MM BFL300F / 8270 |
| 12 | 125259-9 | GROUP GEAR X 8270D |
| 13 | 629821-7 | MOTOR DC X 8270D |
| 14 | 911003-8 | SCREW M3X6 X 6096DW |
| 16 | 263024-9 | RUBBER PIN 4 X 6916DW |
