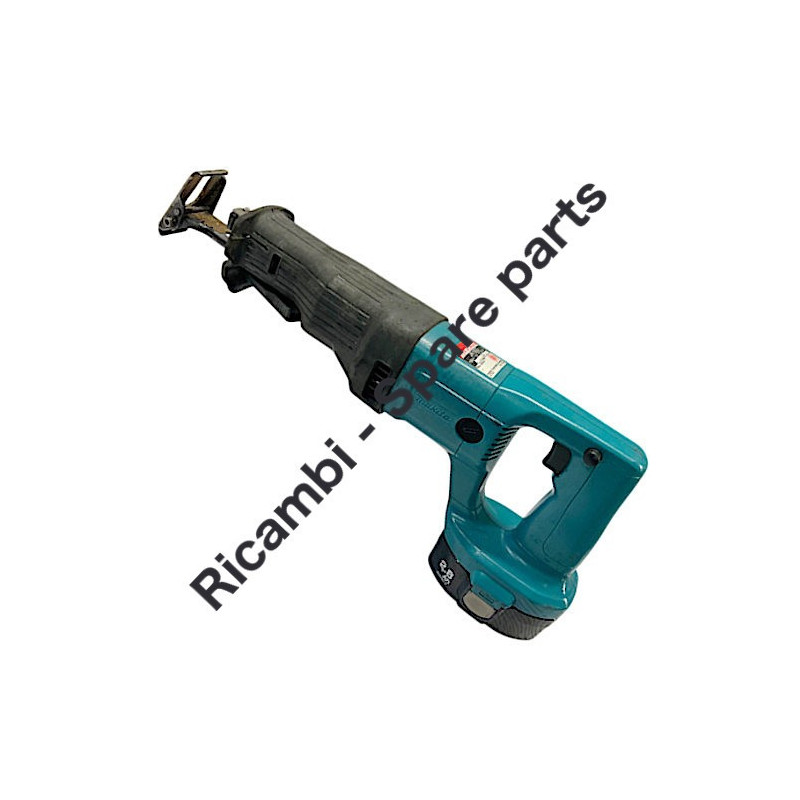

Makita Reciprocatng JR180D Parts
€1.47
Tax included
Makita Spare Parts for Reciprocatng Saw JR180D
We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Reciprocating Saw JR180D.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Reciprocatng Saw JR180D
We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Reciprocating Saw JR180D.
In the following table, look for the model of Saw and the respective parts of the code.
| MAKITA JR180D Parts | ||
| # | Part. Num. | Description |
| 1 | 911228-4 | PAN HEAD SCREW M5X18 |
| 2 | 151627-0 | GEAR HOUSING COVER COMPLE TE |
| 2-1 | 151941-4 | GEAR HOUSING COVER COMPLE TE |
| 3 | 216002-8 | STEEL BALL 4.8 |
| 4 | 256454-1 | PIN 5.5-6 |
| 5 | 310088-5 | CLAMP |
| 5-1 | 310138-6 | CLAMP |
| 6-1 | 266247-8 | TORX SOCKET HEAD BOLT M5X1 0 |
| 6-2 | 266272-9 | TORX. S.H. SHOULDER BOLT M5X 10 |
| 7 | 162215-8 | PUSH BUTTON |
| 8 | 323916-5 | PUSH PIN |
| 9 | 233018-8 | COMPRESSION SPRING 3 |
| 10 | 233247-3 | COMPRESSION SPRING 16 |
| 11 | 257226-7 | RING 13 |
| 12 | 443070-0 | PLATE 12X16 |
| 13 | 214169-6 | PLANE BEARING 14 |
| 14 | 168328-3 | SLIDER |
| 14-1 | 168376-2 | SLIDER |
| 15 | 341462-6 | PLATE |
| 16 | 911225-0 | PAN HEAD SCREW M5X16 |
| 17A_ | 168337-2 | SHOE |
| 17A1 | 163441-2 | SHOE |
| 23 | 421693-4 | INSULATION COVER |
| 24 | 911114-9 | PAN HEAD SCREW M4X10 |
| 25 | 257558-2 | SLEEVE 9 |
| 26 | 344732-2 | INNER PLATE |
| 27 | 344733-0 | LOCK PLATE |
| 28 | 272240-2 | LEVER 60 |
| 29 | 921442-4 | HEX. BOLT M8X25 |
| 30 | 931102-0 | HEX. NUT M4 |
| 31-1 | 266220-8 | TORX SOCKET HEAD BOLT M6X1 5 |
| 32 | 212001-8 | NEEDLE BEARING 708 |
| 33 | 153267-0 | GEAR COMPLETE |
| 34 | 285696-0 | BEARING RETAINER A |
| 35 | 211061-7 | BALL BEARING 6000LLB |
| 36 | 257146-5 | RING 10 |
| 37 | 210057-5 | BALL BEARING 6900LLB |
| 37-1 | 210079-5 | BALL BEARING 6900LLB |
| 38 | 323887-6 | GEAR SHAFT |
| 39 | 251969-3 | HEX. SOCKET HEAD BOLT M5X12 |
| 40 | 344795-8 | PLATE C |
| 41 | 443107-3 | FELT 8X24 |
| 42 | 317229-4 | GEAR HOUSING |
| 43 | 266012-5 | TAPPING SCREW 5X35 |
| 43-1 | 266373-3 | TAPPING SCREW 5X35 |
| 43-2 | 265B72-6 | TAPPING SCREW 5X35 |
| 44 | 911601-8 | PAN HEAD SCREW M5X8 |
| 45 | 961016-9 | STOP RING E-10 |
| 46 | 211131-2 | BALL BEARING 6001DDW |
| 47 | 961016-9 | STOP RING E-10 |
| 48 | 285697-8 | BEARING RETAINER B |
| 49 | 911516-9 | PAN HEAD SCREW M4X12 |
| 50 | 416960-0 | FAN GUIDE |
| 51 | 519051-7 | ARMATURE ASS'Y 18V |
| C10 | 241869-5 | FAN 55 |
| D10 | INC. 55,56 | |
| 52 | 416959-5 | BAFFLE PLATE |
| 53 | 266209-6 | TAPPING SCREW 4X60 |
| 54 | 632828-4 | FIELD |
| 55 | 681652-2 | INSULATION WASHER |
| 56 | 210017-7 | BALL BEARING 607DDW |
| 57 | 851734-6 | NAME PLATE JR180D |
| 58 | 416957-9 | MOTOR HOUSING |
| 59 | 819720-3 | MAKITA LABEL |
| 60 | 191970-5 | CARBON BRUSH CB-429 |
| 60-1 | 191976-3 | CARBON BRUSH CB-432 |
| 60-2 | 194435-6 | CARBON BRUSH CB-441 |
| 60-3 | 195022-4 | CARBON BRUSH SET CB-441 |
| 61 | 643949-7 | BRUSH HOLDER R |
| 62 | 643941-3 | BRUSH HOLDER CAP |
| 63 | 643950-2 | BRUSH HOLDER L |
| 64 | 183141-8 | HANDLE SET |
| D10 | INC. 70 | |
| 65 | 231469-9 | COMPRESSION SPRING 4 |
| 66 | 416958-7 | LOCK-OFF BUTTON |
| 67 | 911006-2 | PAN HEAD SCREW M3X8 |
| 68 | 416976-5 | STOPPER |
| 69 | 265995-6 | TAPPING SCREW 4X18 |
| 69-1 | 265A48-7 | TAPPING SCREW 4X18 |
| 70 | 183141-8 | HANDLE SET |
| D10 | INC. 64 | |
| 71 | 231469-9 | COMPRESSION SPRING 4 |
| 72 | 689090-2 | HEAT SINK |
| 73 | 654195-7 | SPRING TERMINAL (PLUS) |
| 74 | 687085-9 | HOLDER |
| 75 | 651979-4 | SWITCH |
| 75-1 | 651979-4 | SWITCH |
| 76-1 | 263024-9 | RUBBER PIN 4 |
| 77 | 654196-5 | SPRING TERMINAL (MINUS) |
| 81 | 344858-0 | SLIDE PLATE |
| 82 | 267758-6 | SPRING WASHER 5 |
| 83 | 256471-1 | SHOULDER PIN 5 |
| 83-1 | 256492-3 | SHOULDER PIN 5 |
| 84 | 233345-3 | COMPRESSION SPRING 6 |
| 85 | 961078-7 | RETAINING RING (EXT) S-18 |
| 86 | 162228-9 | DRIVING SLEEVE |
| 87 | 268094-3 | PIN 3 |
| 88 | 331639-1 | GUIDE SLEEVE |
| 89 | 417791-0 | DRIVING SLEEVE GUIDE |
| 90 | 256158-5 | PIN 3 |
| 91 | 310129-7 | SLEEVE |
| 91-1 | 418311-3 | SLEEVE |
| 92 | 345214-7 | PUSH PLATE |
| 93 | 233025-1 | COMPRESSION SPRING 2 |
| 94 | 231662-5 | TORSION SPRING 17 |
| 94-1 | 231687-9 | TORSION SPRING 17 |
| A01A_ | 792003-5 | RECIPRO SAW BLADE SET |
| A02 | 414938-7 | BATTERY COVER |
| A03 | 824565-6 | PLASTIC CARRYING CASE |
| C10 | 417152-4 | LATCH |
| A04 | 192827-3 | BATTERY 1822 SET |
| A04A_ | 192829-9 | BATTERY 1833 |
| A04B_ | 193102-0 | BATTERY 1834 SET |
| A04B 1 | 193102-0 | BATTERY 1834 SET |
| A04C_ | 193061-8 | BATTERY 1835 SET |
