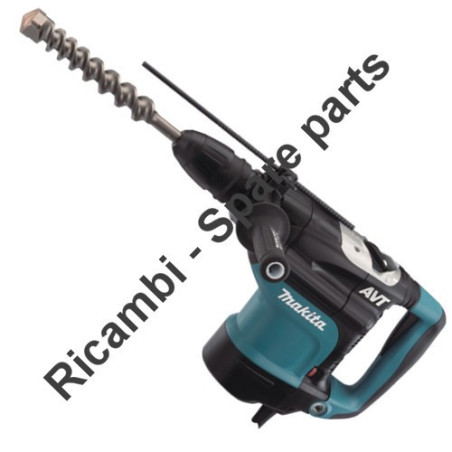

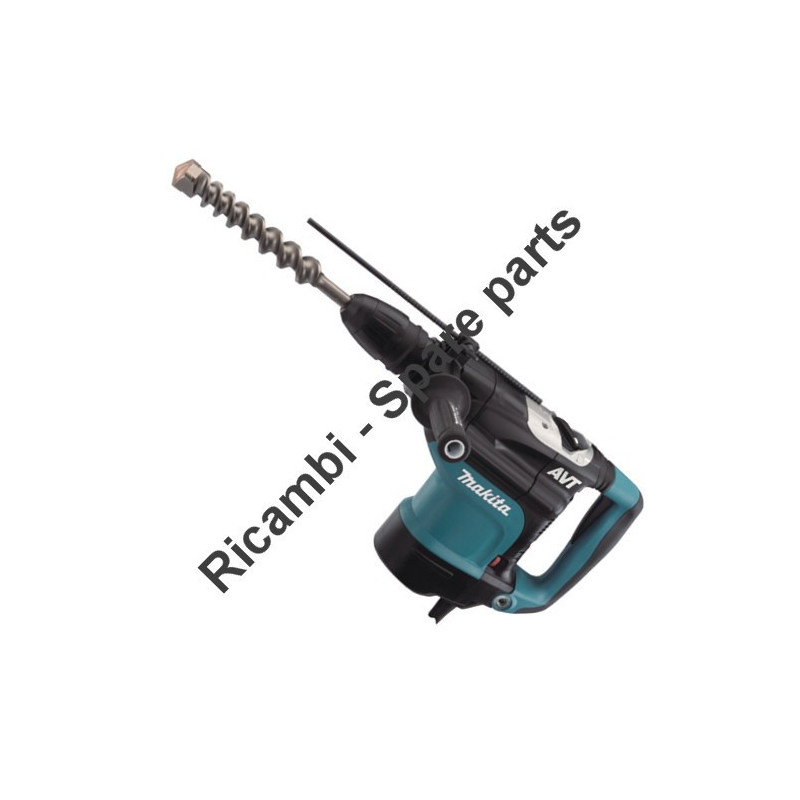

Makita Spare Parts for Rotary Hammer SDS-MAX HR4511C
€3.28
Tax included
Makita Spare Parts for Rotary Hammer SDS-MAX HR4511C
MAKITA Original spare parts at attractive and competitive prices on the web, we are a service center with a repair service able to quickly solve the maintenance or repair any issues for Rotary Hammer SDS-MAX 45 mm HR4511C.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Rotary Hammer SDS-MAX HR4511C
MAKITA Original spare parts at attractive and competitive prices on the web, we are a service center with a repair service able to quickly solve the maintenance or repair any issues for Rotary Hammer SDS-MAX 45 mm HR4511C.
In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
| Rotary Hammer SDS-MAX 45 mm HR 4511C | ||
| # | Part Num. | Description |
| 1 | 286285-4 | TOOLHOLDER CAP. X HR4001C / 4010C |
| 2 | 233948-3 | O-RING 25 X HR5201C |
| 3 | 257280-1 | O-RING 28 X HR5201C |
| 4 | 450064-8 | CHUCK COVER HR4501C |
| 5 | 419002-9 | SPACER X HR4001C / HR4010C |
| 6 | 233948-3 | O-RING 25 X HR5201C |
| 7 | 324752-2 | CHUCK O-RING HR5201C |
| 8 | 450030-5 | RELEASE COVER X HR4501C |
| 9 | 310178-4 | TOOL RETAINER X HR5201C |
| 10 | 345804-6 | GUIDE SPRING HR5201C |
| 11 | 233496-2 | COMPRESSION SPRING 49 X HR5201C |
| 12 | 345804-6 | GUIDE SPRING HR5201C |
| 13 | 922148-7 | H.S.H. BOLT M4X25, 6922NB HR5201C |
| 14 | 158300-3 | BARREL COVER CPL. HR4510C |
| 15 | 922353-6 | SCREW M6 X30 X HM1202C |
| 16 | 158576-2 | BARREL X HR4501C |
| 17 | 213754-2 | O-RING 71 X HM1200 |
| 18 | 267357-4 | WASHER 36 X HR4501C |
| 19 | 262135-7 | URETHANE O-RING 36 X HR4501C |
| 20 | 267357-4 | WASHER 36 X HR4501C |
| 21 | 324872-2 | TOOL HOLDER HR4501C |
| 22 | 213980-3 | O-RING 21 X HR4501C |
| 23 | 213431-6 | FLUORIDE RING 28, HR5001C HR5001C |
| 24 | 213394-6 | O-RING 23 X HR5001C |
| 25 | 324802-3 | IMPACT BOLT HR4501C |
| 26 | 324805-7 | O-RING 19 X HR4501C |
| 27 | 424032-7 | O-RING 20 X HR4501C |
| 28 | 450024-0 | SLIDE SLEEVE, HR4510C HR4501C |
| 29 | 213656-2 | O-RING 53 X HM1200 |
| 30 | 450031-3 | LOCK SLEEVE, HR4510C HR4501C |
| 31 | 165465-4 | LINK ARM, HR4510C HR4501C |
| 32 | 450032-1 | LINK ARM GUIDE HR4501C |
| 33 | 424024-6 | SEAL PLATE HR5210C |
| 34 | 324800-7 | DRIVING SLEEVE HR4501C |
| 35 | 331599-7 | O-RING 38 X HR4500C |
| 36 | 234024-6 | COMPRESSION SPRING 39 X HR4501C |
| 37 | 227526-9 | STRAIGHT BEVEL GEAR 35, HR4510C HR4501C |
| 38 | 324804-9 | STRIKER X HR4501C |
| 39 | 213981-1 | O-RING 27 X HR4501C |
| 40 | 324803-1 | CYLINDER 34 X HR4501C |
| 41 | 233956-4 | CIRCLIP 37 X HR4501C |
| 42 | 213460-9 | O-RING 35 HK / HR1800 / HM12 |
| 43 | 257283-5 | O-RING 38 X HR4501C |
| 44 | 233955-6 | CIRCLIP 36 X HR4501C |
| 45 | 331598-9 | PIPE 10 HR4500C |
| 46 | 450025-8 | PISTON X HR4501C |
| 47 | 213407-3 | O-RING 26 X 3901 |
| 48 | 450026-6 | CONROD HR4501C |
| 49 | 213981-1 | O-RING 27 X HR4501C |
| 50 | 213030-4 | O-RING 8 X RP1100C |
| 51 | 318169-9 | PIPE HOLDER HR4510C |
| 52 | 213118-0 | O-RING 12 X HR5210C |
| 53 | 450027-4 | GUIDE SPRING HR4510C |
| 54 | 234023-8 | COMPRESSION SPRING 14 X HR4510C |
| 55 | 213373-4 | O-RING 22 X 6821 |
| 56 | 331778-7 | PIPE 20 X HR4510C |
| 57 | 213373-4 | O-RING 22 X 6821 |
| 58 | 324806-5 | COUNTER WIEGHT, HR4510C HR4510C |
| 59 | 234023-8 | COMPRESSION SPRING14 X HR4510C |
| 60 | 450027-4 | GUIDE SPRING HR4510C |
| 61 | 213118-0 | O-RING 12 X HR5210C |
| 62 | 318169-9 | PIPE HOLDER HR4510C |
| 63 | 213030-4 | O-RING 8 X RP1100C |
| 64 | 922353-6 | SCREW M6 X30 X HM1202C |
| 65 | 266192-7 | SCREW 4 X 14 X HR4001C / HR4010C |
| 66 | 419020-7 | LEVER X HR4001C / HR4010C |
| 67 | 233436-0 | COMPRESSION SPRING 3 X HR4001C / HR4010C |
| 68 | 419009-5 | LOCK BUTTON HR4001C |
| 69 | 266192-7 | SCREW 4 X 14 X HR4001C / HR4010C |
| 70 | 318170-4 | CRANK CAP COVER HR4511C |
| 71 | 450687-2 | CRANK LEVER HR5201C |
| 72 | 213534-6 | O-RING 36 X HR5201C |
| 73 | 233506-5 | TORSION SPRING 16 X HR5201C |
| 74 | 310207-3 | LINK LEVER HR5201C |
| 75 | 911133-5 | SCREW M4X18 |
| 76 | 455525-3 | CRANK CAP |
| 77 | 345778-1 | RETAINER PLATE HR5201C |
| 78 | 265014-8 | SCREW M4 X 12 |
| 79 | 424034-3 | SEAL RING HR4501C |
| 80 | 345822-4 | LINK PLATE X HR4501C |
| 81 | 450029-0 | GUIDE HR4501C |
| 82 | 158297-6 | CRANK HOUSING COMPLETE, HR4510C HR4510C |
| 83 | 419008-7 | FIX GUIDE X HR4001C |
| 84 | 423345-3 | CUSHION PLATE HR4001C |
| 85 | 324801-5 | CRANCK SHAFT X HR4501C |
| 86 | 211279-0 | BALL BEARING 6303LLU X HR4501C |
| 87 | 961057-5 | RETAINING O-RING S17 |
| 88 | 254220-0 | KEY 5 X HR4501C |
| 89 | 227181-7 | GEAR 19 X HR4501C |
| 90 | 226655-5 | GEAR 36 X HR4501R |
| 91 | 961054-1 | RETAINING O-RING S14 |
| 92 | 253180-3 | FLAT WASHER 10 X 6221DW |
| 93 | 125415-1 | TORQUE LIMITER ASS'Y X HR4501C |
| 98 | 424033-5 | O-RING HR4501C |
| 99 | 158299-2 | GEAR HOUSING COMPL. X HR4501C |
| 100 | 419796-6 | HANDLE COVER X HR5201C |
| 101 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 102 | 650567-4 | Switch,. TG73B-1 HR4001C |
| 103 | 154626-1 | SWITCH HOLDER HR4001C |
| 104 | 419025-7 | SWITCH LEVER X HR4011C |
| 105 | 313124-6 | SHOULDER SLEEVE 6 HR4011C |
| 106 | 266041-8 | PT SCREW 5x25 |
| 107 | 266041-8 | PT SCREW 5x25 |
| 108 | 419798-2 | HANDLE X HR5211C |
| 109 | 424035-1 | DUST COVER X HR4511C |
| 110 | 450028-2 | DUST COVER SUPPORT X HR4511C |
| 111 | 864096-3 | LABEL MOD. HR4511C |
| 112 | 450038-9 | HANDLE BASE X HR4511C |
| 113 | 253807-5 | WASHER 5 6012D / HD / 62/63 / 64DW |
| 114 | 266211-9 | SCREW 5 X 40 X HK0500 |
| 115 | 233434-4 | COMPRESSION SPRING 11 X HR4011C |
| 116 | 419013-4 | SPRING GUIDE X HR4011C |
| 117 | 450036-3 | CRANK HOUSING COVER HR4510C |
| 118 | 631751-0 | CONTROLLER FOR HR4501C |
| 119 | 266192-7 | SCREW 4 X 14 X HR4001C / HR4010C |
| 120 | 638510-3 | CORD HR5201C |
| 121 | 687169-3 | STRAIN RELIEF HP1620 |
| 122 | 266192-7 | SCREW 4 X 14 X HR4001C / HR4010C |
| 123 | 419024-9 | CORD CLAMP BASE HR4001C |
| 124 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 125 | 266192-7 | SCREW 4 X 14 X HR4001C / HR4010C |
| 126 | 419774-6 | LENS FOR HR5201C |
| 127 | 682560-0 | CORD GUARD 10 X HM1202C / 9079S |
| 129 | 266041-8 | PT SCREW 5x25 |
| 130 | 450035-5 | REAR COVER x HR4501C |
| 131 | 252178-7 | NUT M 8-12 X 4112HS |
| 132 | 253165-9 | FLAT WASHER 8 |
| 133 | 240016-5 | FAN X HR5001C |
| 134 | 419782-7 | FAN GUIDE HR5201C |
| 135 | 195844-2 | CARBON BRUSHE SET CB-175 |
| 136 | 638447-4/HR | CARBON BRUSHE HOLDER HR5201C |
| 137 | 450041-0 | MOTOR HOUSING X HR4501C |
| 138 | 636313-9 | STATOR FOR HR4501C |
| 139 | 266046-8 | SCREW M5x50 HR2010 |
| 140 | 210059-1 | BEARING 6000 HR2010 |
| 141 | 681642-5 | WASHER X LS1013 |
| 142 | 517768-6 | ARAMTURE X HR4501C |
| 143 | 267025-9 | FLAT WASHER 15 6912D |
| 144 | 211238-4 | BALL BEARING 6202LLU |
| 145 | 331596-3 | SOCKET 12 X HR4500C |
| 146 | 213231-4 | O-RING OIL X HR4500C |
| 147 | 450033-9 | BAFFLE HR4501C |
| 155 | 331840-8 | SOCKET FOR 19 HR4501C |
| 999 | 195210-3 | KIT MAINT. HR4501C / 4510 / 11C |
| 1000 | 196074-8 | DUST EXTRACTOR ATTACHMENT SET |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
