Makita Spare Parts for Bruschcutter RBC256

Name: Makita Spare Parts for Bruschcutter RBC256
Brand: Makita
SKU: Makita RBC256
Price: 68.73 EUR
Availability: InStock

€68.73

Tax included

Makita Spare Parts for String Trimmer RBC256

ITEM CODE: 6201502101

6201502101
125476-1
0031424000
0031508000
210049-4
0119059900
0119059890
450653-9
DA00000158
6213021001
0600109930
0031426000
326906-7
168797-8
264018-7
922213-2
6253011012
6218008003
6254019000
6274004010
174545200N
6274004020
6274004040
0011706300
0150059940
0140059450
168398-2
5235027001
5215002110
5235024032
452915-1
5425003010
5235024022
5235025001
5235504700
5216500200
5231011001
424447-8
5252007000
0610089990
5232501902
257781-9
233976-8-4
257979-8
442171-1
0119059730
318762-9
054002-10
5237503301
0654009931
0140049920
5237031024
5257002010
6252500900
5238500500
6252500801
267817-6
266457-7
6252012003
5235029004
0031512000
318767-9
6251509600
6251506604
6251506703
0119059950
455630-6
452920-8
5236048002
163447-0
424103-0
424102-2
5233505301
5233504302
424448-6
5233505201
5233038001
0140059500
6165501200
5233504103
140436-2
0011306160
0031206000
452917-7
443167-5
266695-1
5233047001
5233504200
5233504801
5233505002
0031104000
0150049980
0043605140
5219500000
0851149960
168669-7
5236018040
5206008110
266581-6
5256032010
5316005120
5246001010
5036002010
5246001030
WJ00009599
5016004010
5016004130
168574-8
5316005030

Quantity

on 7/10 Business Days Approx

Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Description
Product Details
Attachments

Makita Spare Parts for String Trimmer RBC256

Makita Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for String Trimmer RBC256- 24,5CC.

In the following table, look for the model of Brusch Cutter and the respective parts of the code.

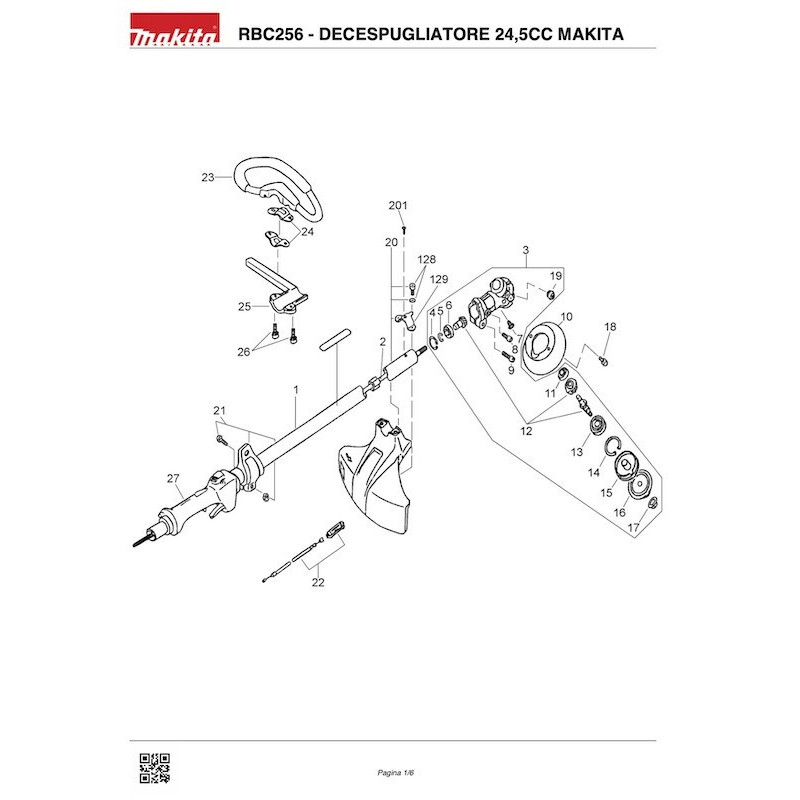

RBC256 - String Trimmer 24,5CC MAKITA pag.1
#	Part Num.	Description
2	6201502101	TRASMISSION SHAFT X RBK250 / RBC225-255
3	125476-1	GEAR CASE ASSY RBC2510
4	0031424000	RETAINING RING XRBC260-230-225-
5	0031508000	Outer Snap Ring XRBC260-230-225-255
6	210049-4	BALL BEARING 609ZZ EBH252L
8	0119059900	BOLT M5X12 X RBC225-255
9	0119059890	BOLT AND WASHER M5X25 XRBC225-
10	450653-9	GUARD RBC2510
11	DA00000158	BALL BEARING 626ZZ
12	6213021001	Cutter Shaft Set RBK250 / RBC225
13	0600109930	BALL BEARING XRBK250 / RBC225-255
14	0031426000	RETAINING RING X RBC260 / 230/225/2
15	326906-7	Clamp Compl. Washer
16	168797-8	Clamp Compl. Washer
17	264018-7	NUT M8 RBC2510
18	922213-2	SCREW M5X12 EBH341U
19	6253011012	OIL BOLT M6 X 9 RBC201
20	6218008003	Protector Assy FOR BRUSHCUTTER
21	6254019000	Hanger Assy X RBC225-255
23	6274004010	Loop Handle RBC201
24	174545200N	Guard Stay FOR 058001
25	6274004020	Loop Handle Bar RBC201
26	6274004040	SCREW M6 X 20 RBC201
27	6275001001	CONTROL LEVER ASSY X MS2810
128	0011706300	BOLT M6X30 X RBK250-RBC225-
129	6418500302	Protector Clamp X RBK250-RBC225
201	0150059940	SCREW X RBK250-RBC225-RBC255
RBC256 - String Trimmer 24,5CC MAKITA pag.2
35	0140059450	SCREW M5X18 X RBK250-RBC225 / 25
36	168398-2	PRIMING PUMP X DCS230T
38	5235027001	Starter Cover Complete RBC225
39	5215002110	STARTER X RBC 230-225-255
40	5235024032	SPIRAL SPRING X RBK250-RBC2
41	452915-1	REEL X RBK250-RBC225-255
42	5425003010	OUTFIT SCREW X RBC415-225-255
43	5235024022	STARTER ROPE X RBK250-RBC225-2
44	5235025001	STARTER REEL X RBC225-255
45	5235504700	BOLT X RBC225 / 255
46	5216500200	RUBBER X RBC230-225-255
47	5231011001	Crankcase Assy XRBC255-22
48	424447-8	Crank Case Gasket RBC2510
49	5252007000	CRANKSHAFT CPL X RBC225-255
50	0610089990	NEEDLE BEARING X RBC260 / 230/310 /
51	5232501902	PISTON X RBC255
52	257781-9	PISTON PIN EBH252L
53	233976-8-4	CIRCLIP EBH252L (4pcs)
54	233976-8-4	CIRCLIP EBH252L (4pcs)
55	257979-8	PISTON RING RBC2510
56	442171-1	CYLINDER GASKET RBC2510
57	0119059730	BOLT X RBC 260/230/225/255
58	318762-9	CYLINDER RBC2510
59	054002-10	SPARK PLUG NGK - BM7A (10PZ)
60	5237503301	SPARK PLUG CAP XRBC225-255
61	0654009931	PIN X RBC415-225-255
63	0140049920	SCREW M4X20 X RBC225-255
64	5237031024	IGNITION COIL X RBK250-RBC225-255
65	5257002010	FLY WHEEL X RBC225-255
66	6252500900	WASHER X RBC225-255
67	5238500500	CLUTCH SPRING X RBC225-255
68	6252500801	CLUTCH SHOE X RBC225-255
69	267817-6	WASHER 8 EBH252L
70	266457-7	SCREW M6X25 EBH252L
71	6252012003	CLUTCH DRUM ASSY X RBC225-
72	5235029004	Engine Cover Complete RBC
73	0031512000	OUTER SNAP RING X RBC260 / 520RBK410
76	318767-9	PIPE BRACKET RBC2510
77	6251509600	PIPE BRACKET LOWER X RBC225
78	6251506604	PIPE DAMPER UPPER X RBC225
79	6251506703	PIPE DAMPER LOWER X RBC225-255
80	0119059950	BOLT M5X18 XRBC230 / 310/225 /
81	455630-6	TANK
82	452920-8	TANK CAP
83	5236048002	PETROL TUBE X RBC225-255
84	163447-0	FUEL FILTER X DCS230T
85	424103-0	SHOCK ABSORBER EBH341U
86	424102-2	SHOCK ABSORBER EBH341U
89	5233505301	MUFFLER INSULATOR X RBC225-25
90	5233504302	MUFFLER GASKET X RBC225-2
91	424448-6	INSULATOR GASKET RBC2510
92	5233505201	CARBURATOR INSULATOR X RBC225-RBC255
93	424448-6	INSULATOR GASKET RBC2510
94	5233038001	CARBURETOR SPACER XRBC22
95	0140059500	SCREW M5X25 X RBC225-255
96	0140059500	SCREW M5X25 X RBC225-255
97	6165501200	EARTH WIRE X RBC225-255-226-2
98	5233504103	GASKET X RBL250-RBC225-25
99	140436-2	STRAP COMPLETE EBH341U
126	0011306160	BOLT X RBC230 / 260/225/255
127	0031206000	WASHER G.24 / 35-RBC225-255
RBC256 - RBC256 String Trimmer 24,5CC MAKITA pag.3
99	452917-7	AIR CLEANER CASE RBC2510
100	443167-5	AIR CLEANER ELEMENT RBC2510
101	266695-1	SCREW M5X60 RBC2510
102	5233047001	CLEANER PLATE RBC221/251 X RBK250-RB
103	5233504200	CARBURETOR GASKET XRBC22
104	5233504801	CHOKE LEVER RBC221/PB250 X RBC225-255
105	5233505002	CHOKE PLATE RBC221/PB250 X RBC225-255
106	0031104000	WASHER X RBC225-255
107	0150049980	SCREW M4X8 X RBC225-255
108	0043605140	SCREW M5X14 X RBC225-255
109	5219500000	HOLDER X RBC225-255
110	0851149960	TUBE 3X5X140 RBC221/RBC251/RST
111	168669-7	CARBURETOR RBC2510
112	5236018040	THROTTLE CABLE XRBC230-260-310-225-
113	5206008110	PIN X RBC 260/230/310/225
114	266581-6	SCREW M3X8 EBH341U
115	5256032010	THROTTLE VALVE ASS'Y RBC221/25 X RBL250-
116	5316005120	RING X RBC 260/230/310/225/2
117	5246001010	GASKET X RBC 260/230/310 /
118	5036002010	JET RBC230/310/MS3200E/RST250
119	5246001030	PUMP GASKET RBC260-230-310-
120	WJ00009599	PUMP DIAPHRAGM X DCS230T
121	5016004010	FITTING X RBC 260/230/310/225
122	5016004130	GASKET X RBL250-RBC225-25
123	168574-8	METERING DIAPHRAGME ER2550/EBH
124	5316005030	PRIMER PUMP COVER EH7500/251
