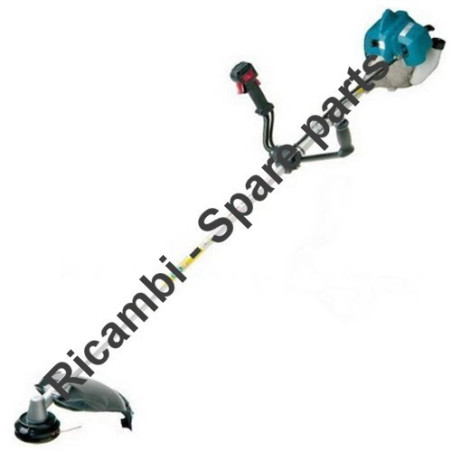

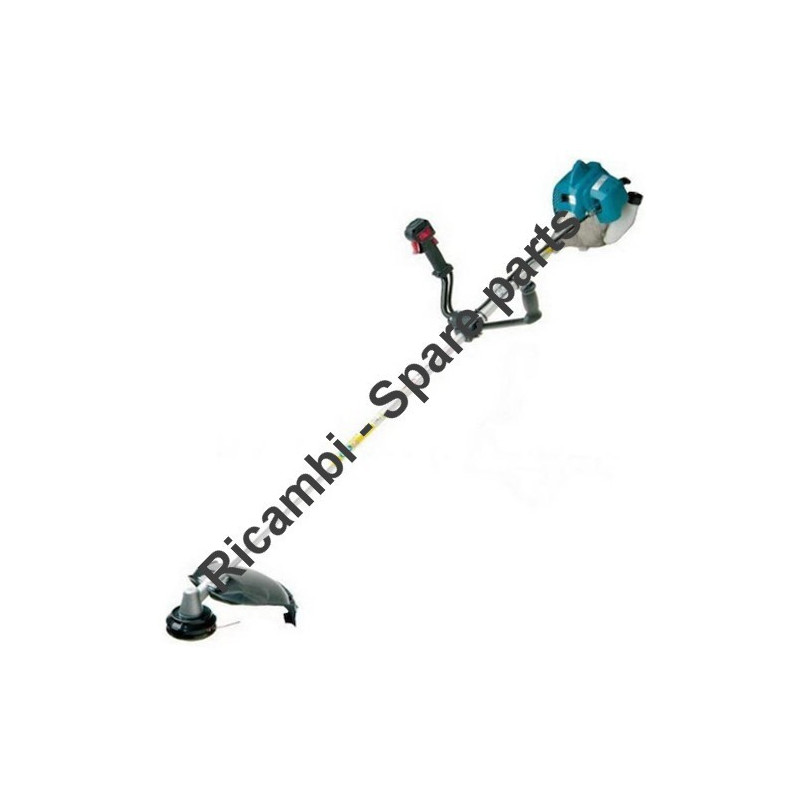

Makita Spare Parts for Brusch Cutter BBC4500
We have the original MAKITA Garden parts, the diagram and parts list and tool repair that help you need to get your tools running like new again.Fix Your Brusch Cutter BBC4500. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Brusch Cutter BBC4500
Fix Your Brusch Cutter BBC4500. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of Brusch Cutter and the respective parts of the code.
| MAKITA Brusch Cutter BBC4500 pag.1 | ||
| Pos. | Codice | Description |
| 1 | BB630070 | STARTER CORD |
| 2 | BB510190 | CORD PLATE |
| 3 | BB724740 | STARTER HANDLE WITH ROPE STOP PLATE |
| 4 | BB091640 | LOCKING CORD |
| 5 | BB543600 | ENGINE RUBBER |
| 6 | BB481020 | STARTER COVER |
| 7 | BB180240 | STARTER SPRING |
| 8 | BB541320 | STARTER PULLEY |
| 9 | BB090720 | FLAT WASHER D.4,3 X 16 |
| 10 | BB030800 | SCREW TCB M 4 X 10 |
| 11 | BB724070 | STARTER ASSY WHITE BBK5700 FROM 2017 |
| 12 | BB030410 | SCREW TCEI M 5 X 18 |
| 13 | BB090780 | FLAT WASHER 5.3 X 10 X 1 |
| 14 | BB541340 | TANK RUBBER |
| 15 | BB060370 | NUT M 9 X 1.25 |
| 16 | BB480900 | REEL SUPPORT (MACCH FROM 2017) |
| 17 | BB541330 | STARTER PAWL |
| 18 | BB180200 | RATCHET SPRING |
| 19 | BB120160 | LOCKING RING D4 |
| 20 | BB722460 | RATCHET ASSY |
| 21 | BB240370 | SEAL RING 15X26X7 |
| 22 | BB721430 | ENGINE CASE ASSEMBLED |
| 23 | BB240260 | CRANKCASE GASKET |
| 24 | BB420200 | CRANKCASE CENTERING PIN D.8X10 |
| 25 | BB270070 | BEARING 6202 |
| 26 | BB751600 | CRANKSHAFT |
| 27 | BB090150 | GROWER WASHER 5.1 |
| 28 | BB030620 | SCREW TCEI M 5 X 35 |
| 29 | BB240030 | OIL-SEAL 15X26X7 |
| 30 | BB420030 | KEY 10X3,7X3 |
| 31 | BB270050 | NEEDLE BEARING PB K10X14X13FKI-V1 |
| 32 | BB150040 | LOCKING PIN D.10 |
| 33 | BB420040 | PISTON PIN D.10X30 |
| 34 | BB480710 | PISTON DIAMETER 41 FOR N45E |
| 35 | BB150240 | PISTON RING D.41 |
| 36 | BB721350 | PISTON ASSY D.41 |
| 37 | BB240270 | CYLINDER GASKET |
| 38 | BB090620 | SCHNORR WASHER D.6,4 |
| 39 | BB030630 | SCREW TCEI M 6 X 25 |
| 40 | BB752340 | DECOMPRESSOR X N39 / 57E ENGINES |
| 41 | BB480630 | CYLINDER DIAM. 41 FOR N45E |
| 42 | BB240290 | INTAKE MANIFOLD GASKET |
| 43 | BB541270 | CARBURETOR MANIFOLD WT |
| 44 | BB090800 | SCHNORR WASHER D.5,3 |
| 44A | BB090780 | FLAT WASHER 5.3 X 10 X 1 |
| 45 | BB030070 | SCREW TE M 5 X 30 |
| 46 | BB240130 | CARBURETOR GASKET |
| 47 | BB331650 | CARBURETOR FOR BBK4500 |
| 48 | BB543160 | COMPLETE AIR FILTER SUPPORT |
| 49 | BB091630 | SPACER BUSH |
| 50 | BB543350 | RING FOR SHAFT Without GROOVES |
| 51 | BB543360 | AIR CLEANER HOLDER LEVER |
| 52 | BB091680 | FLAT WASHER D.3,2 X 7 X 0,5 |
| 53 | BB031140 | SCREW M 3 X 8 |
| 54 | BB724080 | AIR FILTER HOLDER COMPL. |
| 55 | BB090830 | WAVE WASHER D. 5,3 |
| 56 | BB030500 | VITE TCEI M 5 X 45 |
| 57 | BB332100 | WALBRO FILTER |
| 58 | BB543180 | AIR CLEANER COVER BLUE |
| 59 | BB543090 | CYLINDER COVER BLUE BLU |
| 60 | BB090780 | FLAT WASHER 5,3 X 10 X 1 |
| 61 | BB030680 | SCREW TCEI M 5 X 14 |
| 62 | BB090780 | FLAT WASHER 5,3 X 10 X 1 |
| 63 | BB030620 | SCREW M 5 X 35 |
| 64 | BB450180 | SPARK PLUG RCJ4 |
| 65 | BB543200 | SPARK PLUG COVER BLUE |
| 66 | BB240500 | MUFFLER GASKET |
| 67 | BB752350 | MUFFLER GASKET |
| 68 | BB090830 | WAVW WASHER D. 5,3 |
| 69 | BB030410 | SCREW M 5 X 18 |
| 70 | BB090830 | WAVE WASHER D. 5,3 |
| 71 | BB030680 | SCREW M 5 X 14 |
| 73 | BB031150 | SCREW M 5 X 20 |
| 74 | BB450930 | IGNITION COIL N39/57 |
| 75 | BB450340 | IGNITION COIL CABLE |
| 76 | BB541510 | CHOCK |
| 77 | BB450280 | FLYWHEEL N39/57 |
| 78 | BB091000 | WAVW WASHER D.10,5 |
| 79 | BB060300 | NUT M 10 X 8 |
| 80 | BB780080 | PERFORATED CLUTCH SHOES MOUNTING N31/52 |
| 81 | BB780020 | CLUTCH SHOEN31/52 |
| 82 | BB180040 | CLUTCH OUTER SPRING |
| 83 | BB180030 | CLUTCH INNER SPRING |
| 84 | BB510200 | PUNCHED CLUTCH PLATE |
| 85 | BB090830 | WAVE WASHER D. 5.3 |
| 86 | BB721390 | SINTERED COMP. CLUTCH |
| 87 | BB030620 | SCREW M 5 X 35 |
| 88 | BB751300 | CLUTCH DRUM |
| 89 | BB120070 | SEEGER 32I UNI 7437 |
| 90 | BB270240 | BALL BEARING 6201-ZZ |
| 91 | BB120020 | SEEGER 12E UNI 7435-75 |
| 92 | BB480980 | CLUTCH DRUM HOLDER |
| 99 | BB724100 | CLUTCH DRUM HOLDER ASSEMBLY |
| 107 | BB030380 | SCREW TCEI M 5 X 16 |
| 108 | BB543220 | LOWER HALF-SHELL |
| 109 | BB543210 | UPPER HALF-SHELL |
| 110 | BB481000 | LOWER SPACER |
| 111 | BB480990 | UPPER SPACER |
| 112 | BB060100 | NUT M 5 X 4 |
| 113 | BB030410 | SCREW TCEI M 5 X 18 |
| 114 | BB724110 | FUEL TANK ASS'Y FOR ENGINE |
| 115 | BB542520 | RECOVERY TUBE |
| 116 | BB723740 | COMPLETE TANK CAP |
| 117 | BB542460 | MIXTURE TUBE |
| 118 | BB330820 | FUELFILTER |
| DECESPUGLIATORE MAKITA BBC4500 pag.2 | ||
| 1 | BB543490 | NEW TYPE HANDLEBAR KNOB |
| 2 | BB511030 | THICKNESS FOR HANDLE SUPPORT M |
| 3 | BB750920 | BELT JOINT |
| 4 | BB030630 | SCREW TCEI M 6 X 25 |
| 5 | BB090040 | FLAT WASHER D.6,4 |
| 6 | BB542450 | CROSS SUPPORT CAP |
| 7 | BB060130 | NUT M 6 X 4 |
| 8 | BB542440 | CROSS SUPPORT BODY |
| 9 | BB542430 | CROSS BODY SHELL |
| 10 | BB030810 | SCREW TCEI M 6 X 40 |
| 11 | BB722620 | COMPLETE NYLON HANDLEBAR SUPPORT |
| 12 | BB751640 | BUSH |
| 13 | BB391030 | RIGID FLOATING TRANSMISSION SHAFT |
| 14 | BB540420 | ANTIVIBRATION BUSHING D.27 |
| 15 | BB750540 | COMPLETE RUBBER TUBE |
| 16 | BB540690 | GAS CONTROL CABLE SUPPORT |
| 17 | BB570530 | RUBBER HOSE FOR FRONT HANDLE |
| 18 | BB542420 | ADJUSTABLE ANTIVIBRATION HANDLE |
| 19 | BB722830 | HANDLE WITH SHEATH |
| 20 | BB570670 | HANDLEBAR FOR EBC NBC |
| 21 | BB751620 | HARNESS WITH PROTECTION |
| 22 | BB751580 | HARNESS |
| DECESPUGLIATORE MAKITA BBC4500 pag.3 | ||
| 1 | BB090020 | BUSH |
| 2 | BB030800 | SCREW TCB M 4 X 10 |
| 3 | BB120020 | RING SEEGER 12E UNI 7435-75 |
| 4 | BB120010 | SEEGER 28I UNI 7437 RING |
| 5 | BB270010 | BEARING 6001-ZZ |
| 6 | BB723380 | GEAR CASE SET |
| 7 | BB060060 | NUT M 6 X 5 |
| 8 | BB090010 | GROWER WASHER D. 6.1 |
| 9 | BB480470 | GEAR CASE D.27 |
| 10 | BB030010 | SCREW TE M 6 X 30 |
| 11 | BB031080 | GREASE CAP SCREW |
| 12 | BB270020 | BEARING 6000 |
| 13 | BB390010 | GEAR CASE SPINDLE X D.27 |
| 14 | BB420010 | LOCK PIN |
| 15 | BB270030 | BEARING 6202-2RS |
| 16 | BB120030 | RING SEEGER 35I UNI 7437 |
| 17 | BB091560 | DISC HOLDER RING D.50 |
| 18 | BB510180 | UPPER FLANGE |
| 19 | BB090070 | DISC FIXING FLANGE X D.27 |
| 20 | BB060470 | SELF LOCKING NUT M 10 X 1 X 12 |
| 21 | BB722760 | GEAR CASE ASSY FOR BBC4500 |
| 22 | BB600040 | 8-TEETH BLADE |
| 23 | BB600060 | 48 TEETH BLADE (255X1.4X25.4) MM |
| 24 | BB600260 | 4 TEETH BLADE (255X1.4X25.4) MM |
| 25 | BB120050 | RING SEEGER 15E UNI 7435-75 |
| 26 | BB480060 | BEARING SUPPORT |
| 27 | BB270060 | BEARING 6002-ZZ |
| 28 | BB060160 | CUP SUPPORT FIXING NUT M10X1 |
| 29 | BB510030 | SUPPORT CUP |
| 30 | BB090010 | GROWER WASHER D. 6.1 |
| 31 | BB030050 | SCREW TE M 6 X 12 |
| 32 | BB720080 | CUP ASSEMBLY |
| 33 | BB060100 | NUT M 5 X 4 |
| 34 | BB542410 | BRUSHCUTTER PROTECTION |
| 35 | BB511020 | BLADE CUTTER WIRE X CLAMP |
| 36 | BB030820 | SCREW 3.9 X 16 |
| 37 | BB542400 | HEAD REPAIR CLAMP WITH BLADE |
| 38 | BB091360 | WASHER 5.5 X 15 X 1.6 |
| 39 | BB090150 | GROWER WASHER 5.1 |
| 40 | BB030830 | SCREW M 5 X 12 |
| 41 | BB722690 | PROTECTION ASSEMBLY |
| 42 | P-47282 | FIXED SUPPORT CUP |
| 43 | BB720330 | SERVICE KEYS KIT |
| DECESPUGLIATORE MAKITA BBC4500 pag.4 | ||
| 1 | BB543260 | FLASH LIGHT UPPER COVER |
| 2 | BB391770 | NUT |
| 3 | BB180370 | SPRING FOR FLASH LIGHT HEAD |
| 4 | BB091350 | BUSH GUIDE WIRE X HEAD |
| 5 | BB543280 | COIL FOR FLASH LIGHT HEAD |
| 6 | BB543270 | FLASH LIGHT STOP FLANGE |
| 7 | BB723430 | HEAD ASSEMBLY |
| 8 | BB542180 | RAPID FLASH HEAD UPPER COVER |
| 9 | BB060220 | NUT FOR FLASH RAPID HEAD |
| 10 | BB180180 | SPRING FOR AUTOMATIC HEAD |
| 11 | BB091350 | THREAD GUIDE BUSH FOR HEAD |
| 12 | BB542170 | COIL FOR RAPID HEAD S / WIRE |
| 13 | BB542190 | COVER |
| 14 | P-47307 | MANUAL HEAD M10X1.0F |
| 15 | BB391510 | NUT FOR FLASH QUICK HEAD |
| 16 | BB543460 | UPPER COVER TEST.QUICK |
| 17 | BB091350 | BUSH GUIDE WIRE X HEAD |
| 18 | BB724140 | COIL FOR FLASH QUICK |
| 19 | BB180110 | SPRING FOR FLASH AND QUICK HEAD |
| 20 | BB543430 | QUICK HEAD KNOB |
| 21 | BB091600 | LOWER NUT X FLASH QUICK HEAD |
| 22 | BB723590 | HEAD ASSEMBLY |
| 23 | BB390540 | NUT FOR FLASH HEAD |
| 24 | BB541110 | FLASH HEAD UPPER COVER |
| 25 | BB091350 | THREAD GUIDE BUSH FOR HEAD |
| 26 | BB540340 | COIL FOR FLASH HEAD S / WIRE |
| 27 | BB180110 | SPRING FOR FLASH AND QUICK HEAD |
| 28 | BB541100 | LOWER HEAD COVER FLASH |
| 29 | BB090590 | WASHER FOR M16 17X30X3 |
| 30 | BB480310 | LEFT HEAD KNOB |
| 31 | P-47307 | MANUAL HEAD M10X1.0F |
| DECESPUGLIATORE MAKITA BBC4500 pag.5 | ||
| 1 | BB541430 | BUSH REDUCTION DIAMETER |
| 2 | BB541440 | GAS KNOB CLOSING BUSH |
| 3 | BB030650 | SCREW 4 X 20 |
| 4 | BB030860 | SCREW 3.5 X 25 |
| 5 | BB180230 | SPRING FOR SAFETY LEVER |
| 6 | BB541410 | GAS CONTROL SAFETY LEVER |
| 7 | BB180220 | SPRING FOR GAS CONTROL LEVER |
| 8 | BB541400 | GAS CONTROL LEVER |
| 9 | BB750890 | STANDARD KNOB SHELL KIT |
| 11 | BB721440 | HANDLE ASSEMBLY |
| DECESPUGLIATORE MAKITA BBC4500 pag.6 | ||
| 1 | BB751060 | GAS CABLE GROUP |
| 2 | BB721440 | COMPLETE HANDLEBAR KNOB |
| 3 | BB721660 | COMPLETE KNOB |
| DECESPUGLIATORE MAKITA BBC4500 pag.7 | ||
| 6 | BB96-166 | SCREW COVER PUMP WT |
| 7 | BB21-370 | TOP COVER |
| 8 | BB96-647 | SCREW + SPRING X MINIMUM ADJUSTMENT |
| 9 | BB92-225 | MIX PUMP GASKET |
| 10 | BB95-118 | PUMP MEMBRANE WT |
| 11 | BB88-131 | PLUG |
| 13 | BB96-142 | CHOKE VALVE SCREW WT |
| 14 | BB52-542 | PIN WT101 |
| 15 | BB30-1140 | CHOKE PIN |
| 16 | BB34-158 | THROTTLE |
| 17 | BB98-234 | SPRING RECALL VALVE |
| 18 | BB140-70 | FUEL INLET FILTER |
| 19 | BB16-71 | SECURITY RING |
| 20 | BB102-330 | MINIMUM ADJUST SCREW WT |
| 21 | BB98-404 | MINIMUM ADJUST SPRING |
| 22 | BB102-3066 | SCREW ADJUST MAXIMUM WT |
| 23 | BB98-405 | MAXIMUM ADJUST SPRING |
| 24 | BB140-69 | VALVE SCREEN WASHER |
| 25 | BB16-42 | STOP RING |
| 26 | BB88-119 | PLUG |
| 27 | BB88-171 | MINIMUM CIRCUIT CAP |
| 28 | BB96-156 | SCREW SHAFT AXLE |
| 29 | BB84-613 | VALVE SEAT |
| 30 | BB82-75 | NEEDLE VALVE |
| 31 | BB98-387 | SPRING VALVE BALANCE SPRING |
| 32 | BB166-48 | ROCKER |
| 33 | BB144-77 | ROCKER AXLE |
| 34 | BB92-251 | DIAPHRAGM MEMBRANE GASKET WT |
| 35 | BB95-526 | DIAPHRAGM MEMBRANE |
| 36 | BB5-2441 | AIR FILTER BODY |
| 37 | BB176-64 | CONTROL VALVE |
| 38 | BB188-12 | SEAL |
| 39 | BB21-404 | PRIMER PUMP COVER |
| 40 | BB090190 | GROWER WASHER D.3,1 |
| 41 | BB96-578 | MEMBRANE COVER SCREW |
| 42 | BB331650 | CARBURETOR FOR BBK4500 |
| 43 | BBD10-WAT | MEMBRANE KIT X WT 362,364,397 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita BBC4500
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 7/10 BUSINESS DAYS APPROX
- MORE INFO:
- info@bricoutensili.com
New
You might also like
Comments (0)
No customer reviews for the moment.
Viewed products
Customers who bought this product also bought:
16 other products in the same category:
Makita Spare Parts for Brusch Cutter BBC4500
We have the original MAKITA Garden parts, the diagram and parts list and tool repair that help you need to get your tools running like new again.Fix Your Brusch Cutter BBC4500. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
