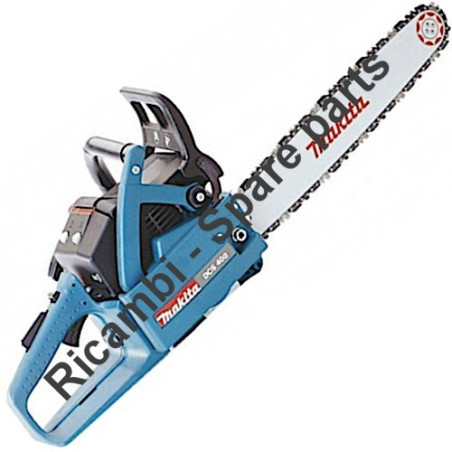

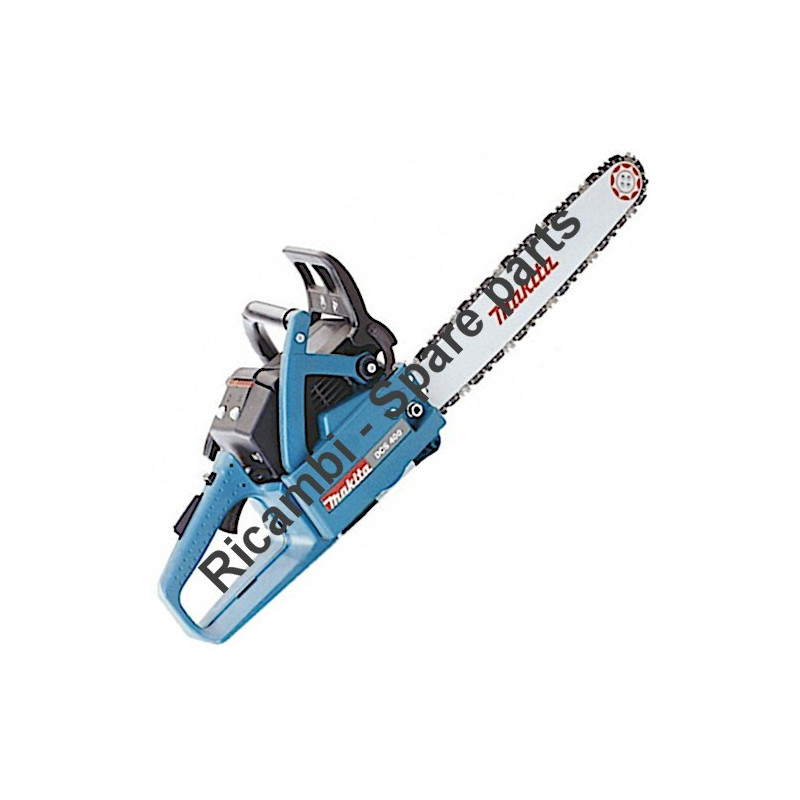

Makita Spare Parts for Chainsaw DCS400/35
€193.78
Tax included
Makita Spare Parts for Chainsaw DCS400/35
Makita original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components for Chainsaw DCS400/35 - CHAINSAW CM35 KW.1,7 39CC.Fix Your Chainsaw DCS400/35. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Chainsaw DCS400/35
Fix Your Chainsaw DCS400/35 - CHAINSAW CM35 KW.1,7 39CC. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of Chainsaw and the respective parts of the code.
| DCS400/35 - CHAINSAW CM35 KW.1,7 39CC pag.1 | ||
| # | Part Num. | Description |
| 1 | 028131230 | CYLINDER DUPLEX 40MM |
| 2 | 001151670 | ANGULAR NIPPLE 90 |
| 4 | 965524043 | GASKET |
| 5 | 028132110 | PISTON ASSY X DCS400 |
| 6 | 021132230 | PISTON RING 40MM. |
| 7 | 021132020 | PISTON PIN |
| 8 | 232302-8 | CIRCLIP |
| 10 | 957120028 | CRANKSHAFT CPL AB6 / 93 |
| 11 | 021123010 | CON-ROD CPL |
| 12 | 962640061 | ROLLER 4X6 |
| 14 | 108121010 | STOP DISC 13.8 / 21X1 |
| 15 | 920108044 | HEXAGONAL NUT M8X1 |
| 19 | 965524011 | GASKET |
| 22 | 962300011 | NEEDLE BUSH 13/19X12 |
| 23 | 929319101 | SNAP RING 19X1 |
| 24 | 962900049 | GASKET 13 X 19 X 4 |
| 25 | 936430160 | CLAMPING PIN 3X16 PS350C-420C |
| 27 | 905808254 | FAST BOLT 8X25 X 112 |
| 28 | 010245010 | AIR VENT VALVE X PS6000I-6800I |
| 29 | 965403491 | RUBBER BUMPER |
| 32 | 908405255 | SCREW M5X25 (TORX) |
| 33 | 0266945-4 | SCREW M5X30 (TORX) |
| 36 | 389213081 | TENSION SCREW |
| 37 | 001213042 | NUT WITH PIVOT X PS 34 |
| 38 | 965450042 | OIL TANK CAP ASS'Y |
| 39 | 963100043 | GASKET |
| 40 | 957250015 | SPIKE BAR ASSY |
| 41 | 908105124 | SCREW M5X12 (TORX) |
| DCS400/35 - CHAINSAW CM35 KW.1,7 39CC pag.2 | ||
| 1 | 028310050 | TUBULAR HANDLE |
| 2 | 266687-0 | SCREW 5,5X45 |
| 3 | 913455204 | SCREW 5,5X20 (TORX) |
| 4 | 028114692 | TANK |
| 5 | 965404590 | FUEL LINE |
| 6 | 937130120 | RIVET DCS33 |
| 7 | 957114011 | VALVE TANK |
| 8 | 028117245 | THROTTLE WIRE |
| 9 | 010114050 | ANK CAP DCS / PS33 |
| 10 | 963228030 | GASKET OR 28 X 3 |
| 11 | 163532-9 | FILTER |
| 12 | 010114020 | FILTER SET FOR SUCTION HEAD X HP-450 |
| 14 | 965403491 | RUBBER BUMPER |
| 15 | 021114051 | FIXING BUSH |
| 16 | 913455304 | SCREW M5X30 (TORX) |
| 17 | 266945-4 | SCREW M5X30 (TORX) |
| DCS400/35 - CHAINSAW CM35 KW.1,7 39CC pag.3 | ||
| 1 | 028142021 | IGNITION ELECTRONIC COIL ASSY |
| 2 | 028147000 | SHORT CIRCUIT CABLE |
| 3 | 970310200 | IGNITION CABLE 1mt |
| 4 | 970502110 | ISOLATING HOSE 6 / 0.5 (M) |
| 5 | 266947-0 | TORX SCREW |
| 6 | 957604260 | SPARK PLUG CAP CPL. |
| 7 | 965604180 | SPRING |
| 8 | 965603018-10 | SPARK PLUG NGK-BPM-R6F (1PZ) |
| 10 | 021141012 | FLY WHEEL |
| 11 | 926208001 | ELASTIC WASHER 8 |
| 12 | 264022-6 | NUT |
| 13 | 021166040 | SNAP RING |
| 15 | 021160001 | STARTER ASSY |
| 16 | 965404031 | STARTER HANDLE BCX2510 |
| 17 | 444038-9 | STARTER ROPE PS32CTLC |
| 18 | 028166030 | STARTER RATCHET/SPRING |
| 19 | 900004375 | WASHER |
| DCS400/35 - CHAINSAW CM35 KW.1,7 39CC pag.4 | ||
| 1 | 028213615 | HAND PROTECT ASSY |
| 2 | 810449-4 | LABEL |
| 3 | 028213560 | SPRING |
| 5A | 021245007 | OIL PUMP |
| 5B | 021245007 | OIL PUMP |
| 6 | 021245281 | OIL PUMP PARTS KIT (METAL) |
| 7 | 965451962 | SUCTION LINE ASSY FOR OIL |
| 8 | 021245040 | WORM SCREW |
| 9 | 021245080 | SEALING CAP |
| 12 | 021224011 | SPACER |
| 15 | 028223100 | CLUTCH DRUM 3/8" |
| 16 | 021180210 | CLUTCH PS410 / 411 |
| 17 | 001182080 | GUIDE DISC FOR MOD.PS |
| DCS400/35 - CHAINSAW CM35 KW.1,7 39CC pag.5 | ||
| 1 | 021174301 | MUFFLER |
| 2 | 965524062 | GASKET |
| 3 | 267821-5 | ELASTIC WASHER |
| 4 | 908205605 | SCREW M5X60 (TORX) |
| 5 | 021174321 | MUFFLER |
| 6 | 915135100 | SCREW 3.5 X 9.5 |
| DCS400/35 - CHAINSAW CM35 KW.1,7 39CC pag.6 | ||
| 2 | 266605-8 | SCREW M5X16 PS32CTLC |
| 3 | 266945-4 | SCREW M5X30 (TORX) |
| 5 | 965524120 | GASKET |
| 7 | 965452090 | FUEL LINE PS45 |
| 8 | 970502110 | ISOLATING HOSE 6 / 0.5 (M) |
| 9 | 028131063 | INTERMEDIATE FLANGE |
| 10 | 965524082 | GASKET |
| 11 | 965524131 | GASKET |
| 12 | 965524092 | GASKET |
| 15 | 028118160 | PLATE |
| 16 | 028118112 | CONTACT PLATE |
| 17 | 965404421 | GASKET |
| 18 | 965404430 | GASKET |
| 20 | 028118122 | SWITCH STOP |
| 21 | 028150740 | CHOKE LEVER DCS330S/390/DBC451 |
| 22 | 028150750 | CHOKE LINKAGE DCS330S/390 |
| DCS400/35 - CHAINSAW CM35 KW.1,7 39CC pag.7 | ||
| 1A | 957151700 | CARBURETOR WT174 |
| 3 | 021151240 | ADJUSTING SCREW (S) DCS330S/39 |
| 6 | 021151540 | SET GASKETS DCS330S/390/430/52 |
| 10 | 001151320 | THROTTLE SHAFT DCS330S/390 |
| 11 | 001151310 | SPRING |
| 22 | 001151515 | MAIN ADJUSTM. SCREW (H) DCS33 |
| 24 | 021151470 | IDLING ADJUSTM. SCREW (L) DCS |
| 25 | 021151480 | SPRING (L) |
| 26 | 021151180 | SCREEN DPC6430/7331/7132/7311/ |
| 27 | 957150040 | SET OF CONTROL PIECES 330S/390 |
| DCS400/35 - CHAINSAW CM35 KW.1,7 39CC pag.8 | ||
| 1 | 028118480 | COVER ASSY |
| 2 | 001118062 | NUT M5 |
| 3 | 028118180 | INSERT DCS330S/390 |
| 4A | 028173041 | AIR FILTER (NYLON) |
| 4B | 028173141 | AIR FILTER ROBKOFLOK |
| 7 | 908205605 | SCREW M5X60 (TORX) |
| 8 | 266605-8 | SCREW M5X16 PS32CTLC |
| 9 | 028112630 | FAN HOUSING DCS340/400 |
| 10 | 266605-8 | SCREW M5X16 PS32CTLC |
| 11 | 028213600 | COMPLETE PROTECTION + BRAKE |
| 12 | 028213502 | BRAKE BAND |
| 14 | 264055-1 | NUT M8 |
| DCS400/35 - CHAINSAW CM35 KW.1,7 39CC pag.9 | ||
| 1 | 442035661 | SPROCKET NOSE BAR 14" 35CM THICK 1,3MM |
| 2 | 511492752 | EXTRA GUARD CHAIN LINKS 52 |
| 3 | 558092010 | LINKS WITH RIVETS |
| 4 | 558092000 | SAFETY LINKS |
| 10 | 952010640 | COVER PROTECTION CHAIN 40CM |
| 11 | 941716131 | UNIVERSAL KEY 13/16 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
