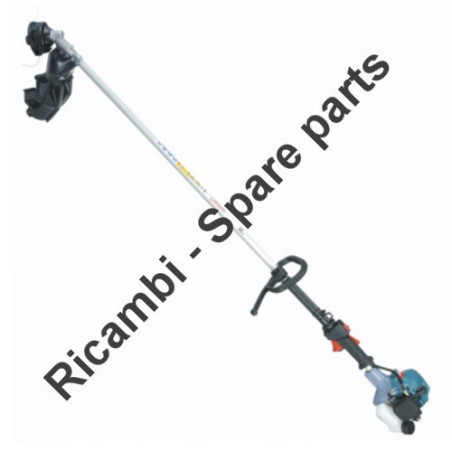

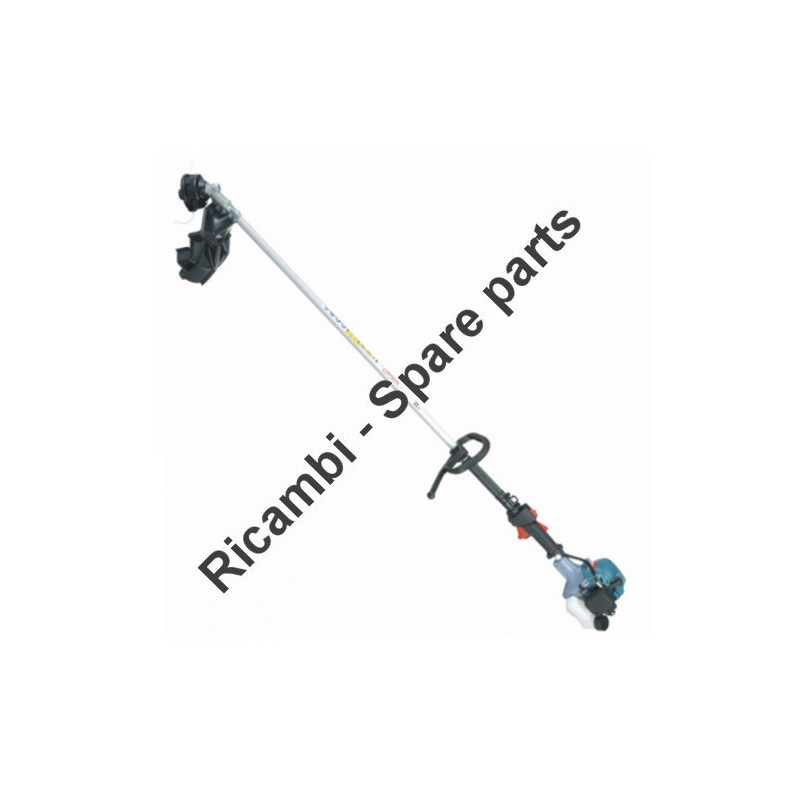

Makita Spare Parts for Brush Cutter RBC201
€4.06
Tax included
Makita Spare Parts for Brush Cutter RBC201
Makita Genuine spare parts or replacement parts for to repair Brush Cutter RBC201.Fix Your Brush Cutter RBC201. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Brush Cutter RBC201
Fix Your Brush Cutter RBC201. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of Brush Cutter and the respective parts of the code.
| Brush Cutter RBC201 Pag.1 | ||
| # | Part Num. | Description |
| 1 | 6191010000 | PIPE SHAFT COMP. RBC201 |
| 2 | 324893-4 | TRANSMISSION SHAFT EBH252L |
| 3 | 6193004002 | GEAR CASE ASS'Y RBC201 |
| 4 | 6193003001 | CUTTER SHAFT GEAR SET RBC201 |
| 5 | 6212500300 | BALL BEARING 609ZZ RBC225- |
| 6 | DA00000158 | BALL BEARING 626ZZ |
| 8 | 6198500102 | RECEIVE WASHER RBC201 |
| 9 | 6193004010 | WASHER RBC201 |
| 13 | 6253011012 | OIL CAP M6 X 9 RBC201 |
| 14 | 6193004020 | NUT M8 RBC201 |
| 16 | 6251501400 | GASKET RBC201 |
| 18 | 6197002001 | HANGER ASS'Y RBC201 |
| 19 | 0119059850 | SCREW M5 X 14 RBC201 |
| 20 | 6218008003 | PROTECTOR ASS'Y |
| 21 | 6418500303 | CLAMP PROTECTION RBC201 |
| 22 | 0011706300 | BOLT M6X30 X RBK250-RBC225- |
| 101 | 0150059940 | SCREW X RBK250-RBC225-RBC255 |
| 102 | 6271501501 | SPACER RBC201 |
| 104 | 6195003002 | CONTROL LEVER RBC201 |
| 105 | 0119069880 | SCREW M6X20 X RBC525 |
| 106 | 6415011140 | NUT X EH760 HT2276E |
| 107 | 6274004010 | LOOP HANDLE RBC201 |
| 109 | 6274004020 | LOOP HANDLE BAR RBC201 |
| 110 | 6274004040 | SCREW M6 X 20 RBC201 |
| 23 | 5191004000 | CRANKCASE ASS'Y RBC201 |
| 24 | 0440109980 | OIL SEAL RBC201 |
| 25 | 0600109980 | BALL BEARING 6000 |
| 26 | 5191500702 | CYLINDER RBC201 |
| 27 | 442173-7 | CYLINDER GASKET |
| 28 | 5191500400 | CRANKCASE GASKET RBC201 |
| 29 | 0119059730 | BOLT X RBC 260/230/225/255 |
| 30 | 0140059500 | SCREW M5x25 X RBC225-255 |
| 31 | 141047-6 | CRANK SHAFT COMP. |
| 32 | 5192500800 | PISTON RBC201 |
| 33 | 268277-5 | PIN |
| 34 | 5192500600 | PISTON RING RBC201 |
| 35 | 233976-8-4 | CLIP EBH252L |
| 36 | 5193001002 | MUFFLER RBC201 |
| 37 | 5193500001 | MUFFLER INSULATOR RBC201 |
| 38 | 0119059520 | SCREW M5 X 40 RBC201 |
| 39 | 141056-5 | INSULATOR |
| 40 | 442175-3 | INSULATOR GASKET RBC201 |
| 41 | 5193500401 | CARBURATOR GASKET RBC201 |
| 42 | 5103503500 | CARBURATOR SPACER RBC201 |
| 43 | 442177-9 | AIR CLEANER GASKET |
| 44 | 5193500302 | MUFFLER INSULATOR RBC201 |
| 45 | 0140059500 | SCREW M5x25 X RBC225-255 |
| 46 | 5193500101 | PLATE-MUFFLER RBC201 |
| 47 | 6165500201 | WIRE RBC201 |
| 48 | 5195001001 | STARTER REWIND COMP. RBC201 |
| 49 | 5195002100 | SWING ARM RBC201 |
| 50 | 452972-9 | STARTER REEL |
| 51 | 266585-8 | SCREW 5X12 EBH252L |
| 52 | 234220-6 | SPIRAL SPRING |
| 53 | 5255016020 | STARTER ROPE RBC201 |
| 54 | 5225004020 | STARTER KNOB HT2256D |
| 55 | 451938-6 | COLLAR EBH252L |
| 56 | 5195500000 | PULLEY RBC201 |
| 57 | 5195500500 | COVER-CYLINDER RBC201 |
| 58 | 6601500500 | SCREW X RBL250 |
| 59 | 0043604250 | SCREW M4 X 25 RBC201 |
| 62 | 452989-2 | FUEL TANK |
| 64 | 163447-0 | GASOLIN FILTER X DCS230T |
| 65 | 0561059990 | HOSE CLAMP XRBC230-310 / 520 |
| 66 | 452920-8 | FUEL TANK CAP |
| 67 | 424102-2 | PLATE EBH341U |
| 68 | 424103-0 | GASKET EBH341U |
| 69 | 5216500200 | DAMPER RBC230-225-255 |
| 70 | 5197001010 | FLYWHEEL RBC201 |
| 71 | 5197001020 | IGNITION COIL |
| 72 | 0851119930 | TUBE RBC201 |
| 73 | 0655009940 | PLUG CAP X RBC410 / RBK410RBC520 |
| 74 | 5197500100 | COVER PLUG CAP RBC201 |
| 75 | 0654009931 | PIN X RBC415-225-255 |
| 77 | 0140049920 | SCREW M4X20 X RBC225-255 |
| 78 | 5257018001 | WIRE COMP. RBC201 |
| 79 | 141058-1 | CLUTCH CASE COMPLETE |
| 80 | 0150059980 | SCREW M5 X 20 RBC201 |
| 81 | 0566059980 | CLAMP X RBC525 |
| 82 | 424461-4 | DAMPER |
| 83 | 318792-0 | PIPE BRACKET |
| 84 | 0119059880 | BOLT X RBC 310 |
| 85 | 6601500500 | SCREW X RBL250 |
| 86 | 6192001001 | CLUTCH DRUM RBC201 |
| 87 | 6192002003 | CLUTCH RBC201 |
| 88 | 0031510000 | SNAP RING X RBK 410 |
| 89 | 140436-2 | STRAP COMPLETE EBH341U |
| 12 | 0043305650 | SCREW ASS'Y XHT2256D-HT2276E |
| 13 | 5253020010 | AIR CLEANER COVER RBC201 |
| 14 | 5203004010 | AIR FILTER X HT2256D |
| 15 | 5253003020 | AIR CLEANER HOUSING RBC201 |
| 16 | 168682-5 | CARBURETOR |
| 17 | 5236061000 | O-RING RBC201 |
| 18 | 5236018040 | SWIVEL XRBC230-260-310-225- |
| 19 | 266581-6 | SCREW M3X8 EBH341U |
| 20 | 5196002010 | THROTTLE VALVE ASS'Y RBC201 |
| 21 | 5316005120 | RING X RBC 260/230/310/225/2 |
| 22 | 5246001010 | GASKET X RBC 260/230/310 / |
| 23 | 5196002020 | JET RBC201 |
| 24 | 5246001030 | PUMP GASKET RBC260-230-310- |
| 25 | 5246001040 | DIAPHRAGM RBC260 / 230/310/225 |
| 26 | 5016004010 | INLET SCREEN RBC 260/230/310/225 |
| 27 | 5236046130 | PUMP BODY ASS'Y RBC350-RBC42 |
| 28 | 442154-1 | DIAPHRAGM GASKET EBH341U |
| 29 | 168574-8 | METERING DIAPHRAGM CPL EBH341U |
| 30 | 5236046060 | AIR PURGE BODY ASS'Y RBC350 |
| 31 | 424314-7 | PRIMER PUMP EBH341 |
| 32 | 5236046050 | PUMP COVER X RBC350-RBC42 |
| 33 | 266582-4 | TAPPING SCREW 3X24 EBH341U |
| Accessories Pag.2 | ||
| 1 | 6197003000 | BAND ASS'Y |
| 2 | B-02945 | TAP & GO NYLON HEAD M8 M10X1,25F |
| 3 | 6199003000 | SERVICE KEYS |
| 4 | 0717049990 | WRENCHE |
| 5 | 0717059990 | WRENCHE |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
