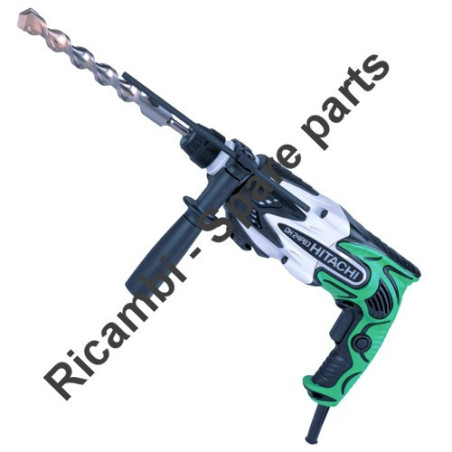

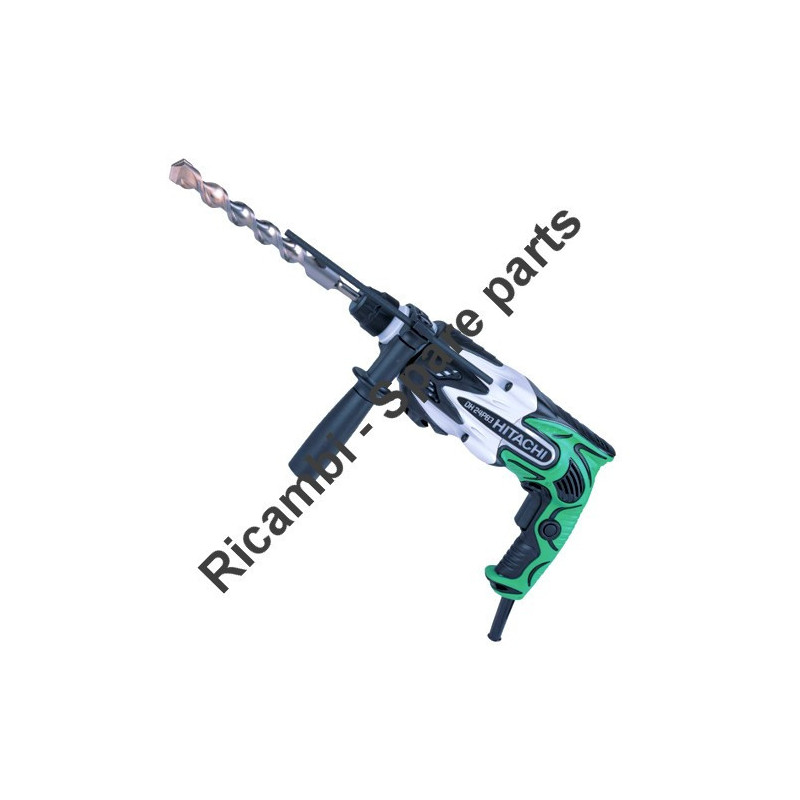

Hitachi Spare Parts for Rotary Hammer DH24PB3
€1.33
Tax included
Hitachi Spare Parts for Rotary Hammer DH24PB3
Hitachi-HIKOKI Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer DH 24PB3.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Hitachi Spare Parts for Rotary Hammer DH24PB3
Hitachi-HIKOKI Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer DH 24PB3.
In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
| Rotary Hammer DH 24PB3 | ||
| # | Part Num. | Description |
| 1 | 306345 | FRONT CAP |
| 2 | 306340 | STOPPER RING |
| 3 | 324527 | GRIP |
| 4 | 324528 | BALL HOLDER |
| 5 | 324526 | HOLDER PLATE |
| 6 | 322812 | HOLDER SPRING |
| 7 | 984118 | WASHER (B) |
| 8 | 939547 | RETAINING RING FOR D20 SHAFT |
| 10 | 324546 | GEAR COVER |
| 12 | 307688 | OIL SEAL |
| 13 | 322815 | SLEEVE |
| 14 | 6904DD | BALL BEARING 6904DDPS2L |
| 15 | 324522 | SLEEVE (A) |
| 16 | 322813 | RETAINING RING 37MM |
| 17 | 324530 | PUSHING BUTTON |
| 18 | 317223 | PUSHING SPRING |
| 19 | 878885 | O-RING (S-18) |
| 20B | 322787 | CHANGE LEVER |
| 21A | 335300 | STEEL BALL D7.0 |
| 22 | 322814 | CYLINDER |
| 23 | 301677 | SECOND GEAR |
| 24 | 301678 | SPRING (A) |
| 25 | 301679 | WASHER (A) |
| 26 | 948310 | RETAINING RING FOR D30 SHAFT |
| 27 | 324525 | SECOND HAMMER |
| 28 | 944486 | O-RING (1AP-20) |
| 29 | 324523 | HAMMER HOLDER |
| 30 | 322802 | O-RING (B) |
| 31 | 322805 | DAMPER (A) |
| 32 | 322808 | O-RING (C) |
| 33 | 324524 | DAMPER HOLDER |
| 34 | 322807 | STOPPER RING |
| 35 | 324535 | STRIKER |
| 36 | 322834 | O-RING (I.D. 16) |
| 37 | 324534 | PISTON |
| 38 | 322793 | O-RING (I.D. 66.5) |
| 39 | 324542 | INNER COVER ASS'Y |
| 40 | 322798 | PISTON PIN |
| 41 | 322799 | WASHER (C) |
| 42 | 324543 | FELT PACKING (A) |
| 43 | 324545 | VALVE |
| 44 | 324544 | FELT PACKING (B) |
| 45 | 322795 | SPACER |
| 46 | 322796 | SPRING (B) |
| 47 | 322794 | SECOND SHAFT |
| 48 | 301659 | WASHER (B) |
| 49 | 301660 | CLUTCH SPRING |
| 50 | 324532 | CLUTCH |
| 51 | 324533 | RECIPROCATING BEARING |
| 52 | 322797 | FIRST GEAR |
| 53 | 626VVM | BALL BEARING 626VVC2PS2L |
| 54 | 322816 | FELT PACKING |
| 55 | 876796 | O-RING (P-22) |
| 56 | 322818 | PACKING WASHER |
| 57 | 608DDM | BALL BEARING 608DD |
| 58 | 982631 | WASHER (A) |
| 59 | 360720E | ARMATURE ASSY 220V-230V |
| 60 | 324531 | FAN GUIDE |
| 62 | 340635E | STATOR 220V-230V |
| 63 | 608VVM | BALL BEARING 608VVC2PS2L |
| 65 | 324553 | HOUSING, LEFT |
| 66 | 324549 | CHOKE COIL (A) BROWN |
| 67B | 335796 | SWITCH |
| 68 | 322853 | PUSHING BUTTON |
| 69 | 324551 | CHOKE COIL (A) BLUE |
| 70 | 324538 | INTERNAL WIRE (A) (BLUE) |
| 71 | 999041 | CARBON BRUSH (1 PAIR) |
| 72 | 955203 | BRUSH HOLDER |
| 73 | 324537 | INTERNAL WIRE (A) (BROWN) |
| 74 | 999072 | CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) |
| 75 | 930039 | NOISE SUPPRESSOR |
| 75 | 930039 | FILTER |
| 76 | 981373 | TUBE (D) |
| 77 | 953327 | CORD ARMOR D8.8 |
| 77 | 938051 | CORD ARMOR D10.1 |
| 78 | 937631 | CORD CLIP |
| 81 | 324554 | HANDLE COVER |
| 502 | 324548 | SIDE HANDLE |
| 503 | 303709 | DEPTH GAUGE |
| 601 | 981840 | GREASE (A) FOR HAMMER.HAMMER DRILL (30G) |
| 602 | 308471 | GREASE FOR HAMMER.HAMMER DRILL (70G) |
| 603 | 980927 | GREASE FOR HAMMER.HAMMER DRILL (500G) |
| 608 | 948310 | RETAINING RING FOR D30 SHAFT |
| 610 | 959150 | STEEL BALL D6.35 |
| 674 | 981122 | SPECIAL SCREW M6X22 |
| 684 | 326305 | SERVICE KIT (DH 24PB3,ETC.) |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
