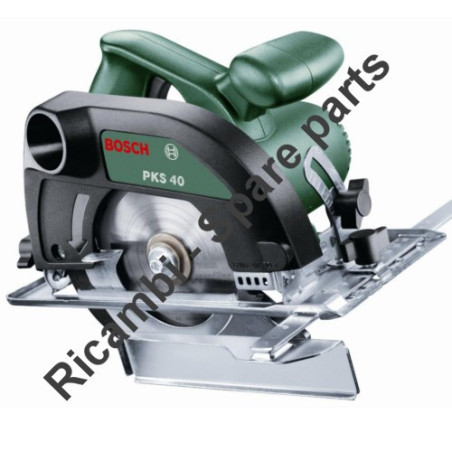

Bosch Spare Parts for Circular Saw PKS 40
€1.56
Tax included
Bosch Spare Parts for Circular Saw PKS 40
We are BOSCH original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Circular Saw PKS 40 - 0603225003.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Circular Saw PKS 40
We are BOSCH original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Circular Saw PKS 40 - 0603225003.
In the following table, look for the model of the Circular Saw and the respective parts of the code.
| Circular Saw PKS 40/0 603 225 003 | ||
| # | Part Num. | Description |
| 1 | 2605190008 | Housing Section GREEN |
| 2 | 2604220461 | Field 230V - DISCONTINUED |
| 3/50 | 2606610050 | Fan |
| 4 | 2607200367 | Switch |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4x95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9x95 MM |
| 7 | 2601035001 | Cable Clip |
| 9 | 2601110667 | Sticker |
| 12 | 1607328028 | Suppression Filter |
| 13 | 2600905032 | Deep-Groove Ball Bearing 7x19x6 |
| 14 | 2600917001 | Needle bearing |
| 15 | 2600102019 | Supporting Disc |
| 16 | 2604465054 | Suppression Filter |
| 18 | 2603410001 | Socket head cap screw M3x6,5-4.8 |
| 19 | 2912401019 | Tapping Screw DIN7981-ST3,9x16-C-Z |
| 20 | 2601110601 | Manufacturer's nameplate |
| 25 | 2603490025 | Torx Oval-Head Screw 4x30 |
| 26 | 2605500082 | Gear Cover |
| 27 | 2600102017 | Shim 0,2 MM |
| 27 | 2600102018 | Shim 0,5 MM |
| 28 | 1604650010 | Extension Spring |
| 29 | 2600328002 | Sintered-Metal Bushing |
| 30 | 2916650015 | Spring retaining ring DIN 471-26x1,2-FSt |
| 33 | 1603414007 | Hex Socket Head Cap Screw M6x14 MM |
| 34 | 2603124031 | Drive Shaft Ø 16, M6 MM |
| 35 | 2605510009 | Pivoting Blade Guard |
| 37 | 2912401022 | Tapping Screw DIN 7981-ST3,9x25-C-Z |
| 38 | 2606320037 | Cylindrical Gear Z=31 |
| 39 | 2600100628 | Shim 0,5 MM |
| 39 | 2600100627 | Shim 0,3 MM |
| 39 | 2600100626 | Shim 0,2 MM |
| 40 | 2605806389 | Gear Housing |
| 41 | 1900301008 | Sintered-Metal Bushing J6G7x10r6x8DIN1850 |
| 42 | 1600005001 | Lubricating Felt Ø10x3 MM |
| 43 | 2600200026 | Spacer Ring |
| 44 | 2910091118 | Pan head screw DIN 85-AM4x8-4.8 |
| 45 | 2916540004 | Retaining ring DIN 7993-A7 |
| * | 2916011009 | Plain Washer 4,3 DIN 433-ST |
| 46 | 2912401020 | Tapping Screw DIN 7981-3,9x19-C-Z-ST |
| 47 | 2601015054 | Brush Plate |
| 48 | 2912401006 | Tapping Screw DIN7981-ST2,9x13-C-Z |
| 49 | 2917780156 | Slotted Spring Pin DIN 7346-6x32 |
| 50 | 1603480018 | Wing Screw M6 |
| 51 | 2600025004 | Riving Knife |
| 52 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 53 | 2910141196 | Hex Socket Head Cap Screw DIN 912-M6x15-8.8 |
| 54 | 2916011013 | Plain Washer DIN 433-6,4-ST 50 |
| 55 | 2910281196 | Round-Head Bolt M6x15 DIN 603 |
| 56 | 1603339006 | Wing Nut M6 |
| 57 | 1604438018 | Connecting Cable L=410 MM WHITE |
| 58 | 1614431010 | Cable L=233 MM WHITE |
| 59 | 2605133004 | Handle GREEN |
| 62 | 2608000024 | Base Plate |
| 63 | 1907950006 | Offset Screwdriver DIN 911-SW5 BLACK |
| 64 | 1600309010 | Spacer Bushing |
| 65 | 2910281203 | Round-Head Bolt DIN 603-M6x25 |
| 211 | 1601110265 | Sticker |
| 701 | 1605411028 | Dust Bag |
| 702 | 1600499005 | Fitting Ø 25x35 MM |
| ** | 1609200976 | Suction Pipe Ø 49/35 MM |
| 731 | 1605703083 | Conical Spring Washer Ø 12x16x33 MM |
| 732 | 1605703082 | Conical Spring Washer Ø 12x33 MM, SW22 |
| 760 | 2608005036 | Parallel-Guide |
| 803 | 1604010646 | Armature With Fan 220-230V |
| 805 | 1607000386 | Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F |
| 808 | 1601106032 | Nameplate 26x52 MM |
| 810 | 2604321905 | Carbon-Brush Set |
| 840 | 2607033000 | Gear Housing |
