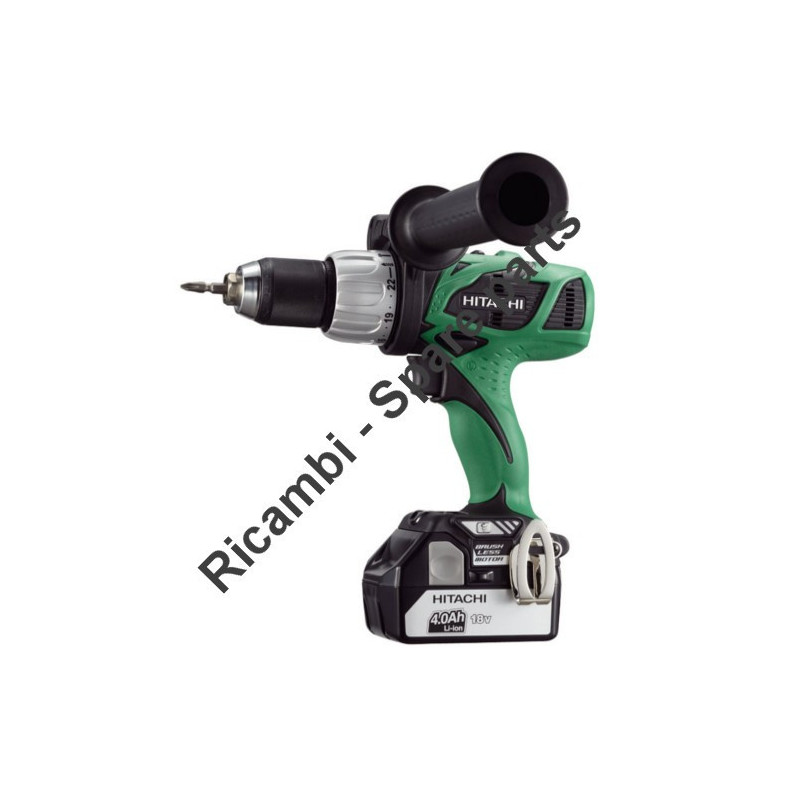

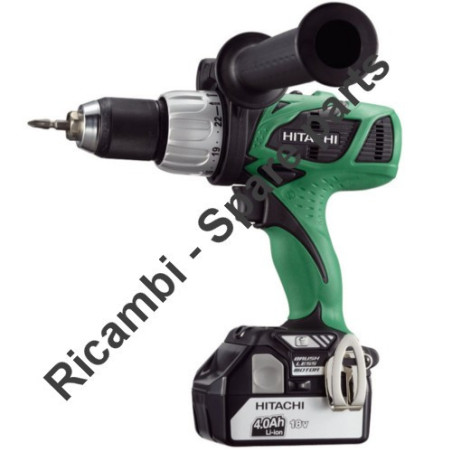

Hitachi Spare Parts for Impact Cordless Driver Drill DV18DBL

€2.07
Tax included

Hitachi Spare Parts for Impact Cordless Driver Drill DV18DBL

Hitachi-Koky original spare parts for the replacement of damaged parts or to repair electrical or mechanical components of the Cordless Drill DV18DBL.
Reversible drills and impact cordless drills with batteries from 1.5 Ah to 4, with torque clutch, DV 18 series.

- DV18DBL
ITEM CODE: 322988
Quantity
on 7/10 Business Days Approx

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Hitachi Spare Parts for Impact Cordless Driver Drill DV18DBL

Hitachi-Koky original spare parts for the replacement of damaged parts or to repair electrical or mechanical components of the Cordless Drill DV18DBL.
Reversible drills and impact cordless drills with batteries from 1.5 Ah to 4, with torque clutch, DV 18 series.

- DV18DBL

In the following table, look for the model of the CORDLESS DRILL and theirs spare part.
Hitachi DV18DBL

CORDLESS IMPACT DRIVER DRILL DV 18DBL
# Part Num. Description
1 995344 FLAT HD. SCREW (A) (LEFT HAND) M6X25
*2 331914 DRILL CHUCK 13VLRR-N (W/O CHUCK WRENCH)
*2 333691 DRILL CHUCK 13VLRK-N (W/O CHUCK WRENCH)
3 333435 GEAR BOX ASS'Y
4 333511 FRONT CAP
5 333512 NUT
6 333513 SPRING
7 333514 SLEEVE
8 333515 FRONT CASE
9 333516 CLICK SPRING
10 333539 PIN SET (6 PCS.)
11 331909 WASHER (A)
12 331903 LOCK RING (A)
13 331888 NEEDLE ROLLER SET (6PCS.)
14 331904 LOCK CAM
15 333517 CARRIER
16 333518 PLANET GEAR (C) SET (5 PCS.)
17 333519 RING GEAR
18 331892 WASHER (A)
19 331893 REAR CASE
20 331894 SHIFT ARM
21 330579 SCREW SET D2X3.5 (2 PCS.)
22 320087 SCREW SET M3X12 (4 PCS.)
23 331897 PINION (C)
24 333520 PLANET GEAR (B) SET (4 PCS.)
25 333521 SLIDE RING GEAR
26A 335296 STOPPER (A)
27 333523 STOPPER SPRING
28 333524 PINION (B)
29 331926 NEEDLE BEARING SET (4 PCS.)
30 333525 PLANET GEAR (A) SET (4 PCS.)
31 333526 FIRST RING GEAR
32 322988 WASHER (B)
33 331902 MOTOR SPACER
34 333528 ROTOR PINION SET
35 340765 STATOR FET PCB
36 331711 HOUSING (A).(B) SET
38 330662 PANEL SHEET (B)
39 332824 HOOK
40 327001 TRUSS HD. SCREW M4 (BLACK)
41 331907 PUSHING BUTTON
42 331715 DC-SPEED CONTROL SWITCH
43 327002 LOCK NUT M4 (BLACK)
44 330854 PACKING
45 306952 STRAP (BLACK)
46 333689 CONTROLLER
47A 334267 SHIFT KNOB
48 994532 MACHINE SCREW (W/SP. WASHER) M3X5
49 313687 TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
51 330068 BATTERY BSL 1830 (EUROPE,AUS,NZL)
52 333436 WIRING ASS'Y
53 336090 SUMI TUBE
