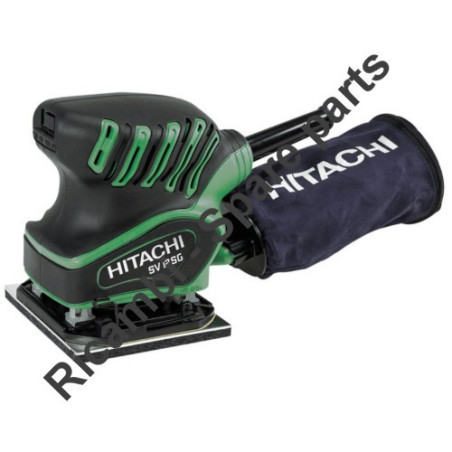

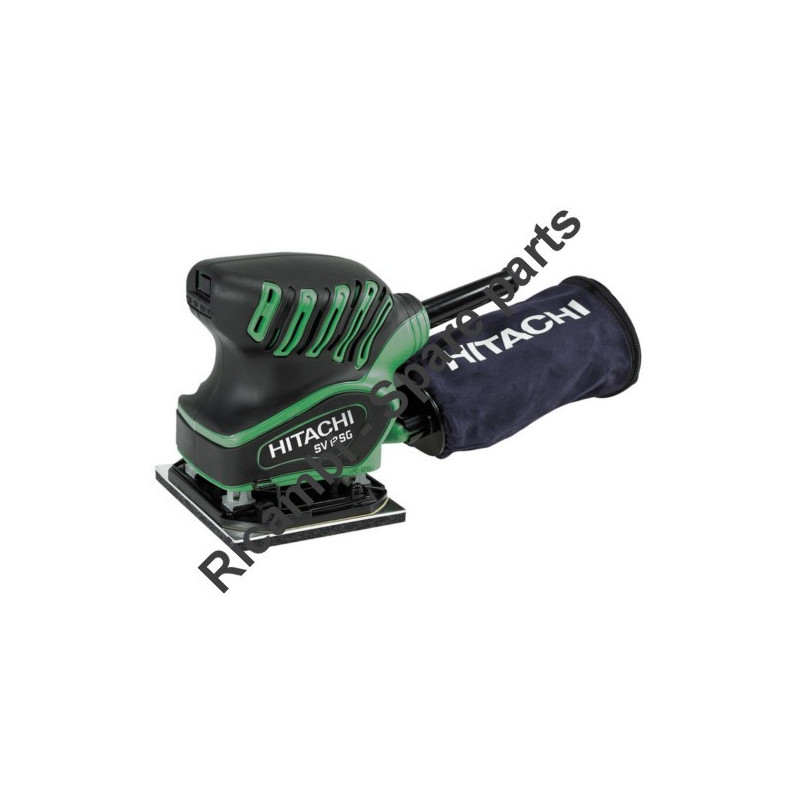

We have the original Spares Hitachi-HIKOKI for Orbital Sander SV12SG the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.
Fix Your Orbital Sander SV12SG. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.
In the following table, look for the model of the Sander and their spare part.![]()
| ORBITAL SANDER SV12SG | ||
| # | Part Num. | Description |
| 2 | 301653 | TAPPING SCREW (W/FLANGE) D4X20 (BLACK) |
| 3 | 322766 | HOUSING (A).(B) SET |
| 4 | 930039 | NOISE SUPPRESSOR |
| 5 | 322764 | INTERNAL WIRE (BROWN) |
| 6 | 322761 | TAB TERMINAL (BLUE) |
| 7 | 984750 | TAPPING SCREW (W/FLANGE) D4X16 |
| 8 | 937631 | CORD CLIP |
| 10 | 953327 | CORD ARMOR D8.8 |
| 12 | 930483 | BRUSH HOLDER |
| 13 | 999041 | CARBON BRUSH (1 PAIR) |
| 14 | 322756 | LEG |
| 15 | 311945 | TAPPING SCREW (W/FLANGE) D4X10 (BLACK) |
| 16 | 322759 | BASE |
| 17 | 310354 | FELT PAD (PERFORATED) |
| 18A | 324082 | SEAL LOCK SCREW M4X10 |
| 19 | 938307 | PILLAR TERMINAL |
| 20 | 311948 | SLIDE SWITCH (1P SCREW TYPE) |
| 21 | 626VVM | BALL BEARING 626VVC2PS2L |
| 22 | 340578E | STATOR 220V-230V |
| 23 | 322762 | TAB TERMINAL (BROWN) |
| 24 | 322763 | INTERNAL WIRE (BLUE) |
| 25 | 360637E | ARMATURE 220V-230V |
| 26 | 629VVM | BALL BEARING 629VVC2PS2L |
| 27 | 322757 | BALANCE FAN |
| 28 | 993052 | DUST WASHER |
| 29 | 6001DD | BALL BEARING 6001DDCMPS2L |
| 30 | 987169 | WASHER |
| 31 | 993244 | SEAL LOCK FLAT HD. SCREW M4X12 |
| 32 | 322758 | FAN GUIDE |
| 33 | 984750 | TAPPING SCREW (W/FLANGE) D4X16 |
| 34 | 311946 | FELT |
| 35 | 322760 | PAPER CLIP |
