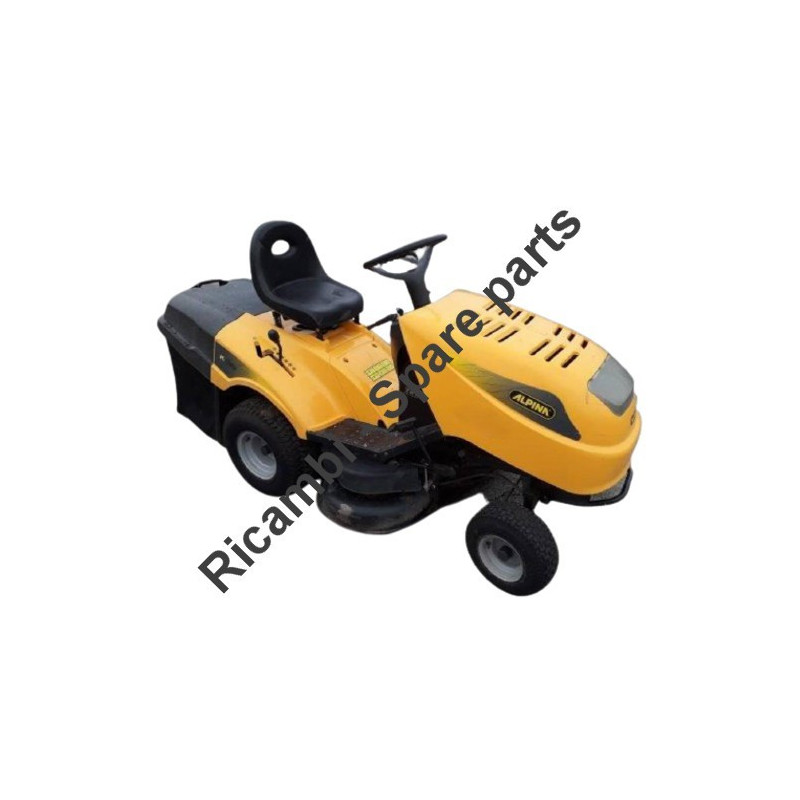

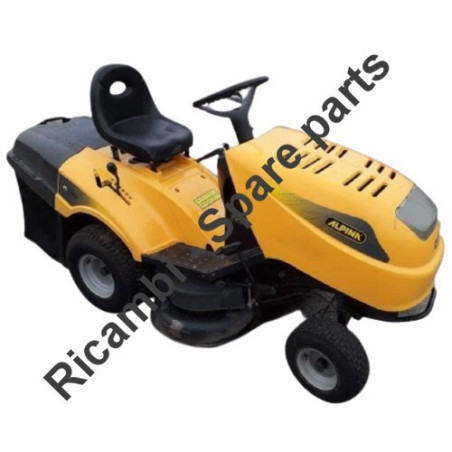

Alpina Spare Parts for Lawn Tractor K 90 (2010) 2T0320221/10
€7.37
Tax included
Alpina Spare Parts for Lawn Tractor K 90 (2010) 2T0320221/10
Alpina-Stiga-Castelgarden-Castor-Mountfield authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Lawn Tractor ALPINA K 90 (2010) 2T0320221/10.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Alpina Spare Parts for Lawn Tractor K 90 (2010) 2T0320221/10
Alpina-Stiga-Castelgarden-Castor-Mountfield authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Lawn Tractor ALPINA K 90 (2010) 2T0320221/10.
In the following table, look for the model of the Snow Throwers and the respective parts of the code.
| ALPINA K 90 (2010) 2T0320221/10 | ||
| Low End Chassis Pag.1 | ||
| 2 | 382774253/0 | Muffler Bracket Nj92 |
| 3 | 112735121/0 | Screw |
| 4 | 325785243/1 | Left Dashboard Support |
| 5 | 325785245/0 | Right Dashboard Support |
| 6 | 112818690/0 | Screw M8 X 20 |
| 7 | 112293201/0 | Hexagon Nut M8 |
| 8 | 382785151/1 | Painted Rear Bonnet Supp.Nj92 |
| 9 | 112735110/0 | Flanged Self-Tap Screw 4.8 X 13 |
| 10 | 325785255/0 | Central Dashboard Support |
| 11 | 112735110/0 | Flanged Self-Tap Screw 4.8 X 13 |
| 12 | 112815200/0 | Screw Ttdq M6 X 16 |
| 13 | 112292102/0 | Hexagon Nut M6 |
| 14 | 325785241/0 | Battery Support |
| 15 | 112815200/0 | Screw Ttdq M6 X 16 |
| 16 | 112292102/0 | Hexagon Nut M6 |
| 17 | 382785153/1 | Front Dashboard Support |
| 18 | 112815200/0 | Screw Ttdq M6 X 16 |
| 19 | 112292102/0 | Hexagon Nut M6 |
| 31 | 325785249/0 | Seat Support |
| 32 | 112815200/0 | Screw Ttdq M6 X 16 |
| 33 | 112292102/0 | Hexagon Nut M6 |
| 34 | 325785257/0 | Seat Support To 31-August-2008 |
| 34 | 325785257/1 | Seat Support From 01-September-2008 |
| 35 | 112818690/0 | Screw M8 X 20 |
| 36 | 112293201/0 | Hexagon Nut M8 |
| 37 | 325755039/0 | Bracket |
| 38 | 112792611/0 | Screw Te M8 X 16 |
| 39 | 112293201/0 | Hexagon Nut M8 |
| 40 | 122524970/2 | Seat Fulcrum Pin |
| 41 | 112155010/0 | Self-Locking Nut M8 |
| 42 | 325755043/0 | Bracket |
| 43 | 325430253/0 | Spring |
| 44 | 112789000/0 | Screw Te M5 X 12 |
| 45 | 112154330/0 | Low Self-Locking Nut M5 |
| 46 | 125430257/0 | Spring |
| 47 | 112523070/0 | Washer |
| 48 | 112760515/0 | Screw |
| 49 | 122671653/0 | Washer |
| 50 | 112360425/0 | Square Nut M8 |
| 51 | 325122000/2 | Protection Cap |
| 52 | 382547041/0 | Back Plate |
| 53 | 112792611/0 | Screw Te M8 X 16 |
| 54 | 112293201/0 | Hexagon Nut M8 |
| 55 | 325650119/0 | Plate reinforcement |
| 56 | 112792611/0 | Screw Te M8 X 16 |
| 57 | 112293201/0 | Hexagon Nut M8 |
| 58 | 112818690/0 | Screw M8 X 20 |
| 59 | 112293201/0 | Hexagon Nut M8 |
| 60 | 127430554/0 | Spring |
| 61 | 112735110/0 | Screw |
| 83 | 112792611/0 | Screw Te M8 X 16 |
| 84 | 112293201/0 | Hexagon Nut M8 |
| 88 | 382510079/0 | Left Footboard Support |
| 89 | 382510077/0 | Right Footboard Support |
| 94 | 112815200/0 | Screw Ttdq M6 X 16 |
| 95 | 112292102/0 | Hexagon Nut M6 |
| Chassis Pag.2 | ||
| 1 | 182076832/0 | Yellow Bonnet |
| 2 | 125547104/0 | Yellow plate |
| 3 | 125485001/0 | Headlights Support |
| 4 | 125410865/0 | Grill |
| 5 | 125430215/0 | Spring Hook To 31-August-2010 |
| 5 | 125430215/1 | Spring Hook From 01-September-2010 |
| 6 | 112728450/0 | Screw |
| 7 | 325108028/0 | Conveyor |
| 8 | 112728686/0 | Screw |
| 21 | 125510039/0 | Pin Plate D=8 |
| 22 | 112436050/0 | Plate |
| 23 | 325547089/0 | Plate To 31-August-2010 |
| 23 | 325547089/1 | Right plate From 01-September-2010 |
| 24 | 325547091/0 | Left Plate To 31-August-2010 |
| 24 | 325547091/1 | Left Plate From 01-September-2010 |
| 25 | 112731580/0 | Screw |
| 26 | 382869031/0 | Silenc.Protect Pipe Assy |
| 28 | 112734995/0 | Screw |
| 31 | 325599008/0 | Right Dashboard Profile |
| 32 | 325599009/0 | Left Footboard Support |
| 33 | 112815221/0 | Screw |
| 34 | 112521330/0 | Washer |
| 35 | 112154510/0 | Nut |
| 36 | 325120189/0 | Dashboard |
| 37 | 112728440/0 | Screw |
| 38 | 112735402/0 | Screw |
| 39 | 125260000/0 | Anti-Vibration Rubber Grommet |
| 40 | 325600074/0 | Pc Board Cover |
| 41 | 112735402/0 | Flanged Hex-Head Screw D=6 X 18 |
| 42 | 325547181/0 | Plate |
| 91 | 325110365/0 | Central Cover, Yellow |
| 93 | 125580020/0 | Belt Guide Peg |
| 94 | 325110323/0 | Wheels Cover [Yellow] |
| 95 | 112735402/0 | Flanged Hex-Head Screw D=6 X 18 |
| 96 | 112735402/0 | Flanged Hex-Head Screw D=6 X 18 |
| 97 | 325755041/0 | Angle Bracket |
| 98 | 112728686/0 | Plastite Screw M5 X 16 |
| 99 | 112735110/0 | Flanged Self-Tap Screw 4.8 X 13 |
| Steering 13" Pag.3 | ||
| 1 | 325038004/0 | Bushing |
| 2 | 125520006/1 | Steering Column |
| 3 | 127570050/0 | Pinion |
| 4 | 112622650/0 | Dowel Pin |
| 5 | 325743000/0 | Joint |
| 6 | 112521370/0 | Washer |
| 7 | 112436030/0 | Plate |
| 8 | 325785213/0 | Steering Joint Support To 31-August-2010 |
| 8 | 325785213/1 | Steering Joint Support From 01-September-2010 |
| 9 | 112729601/0 | Screw To 31-August-2003 |
| 9 | 112729601/1 | Screw From 01-September-2003 |
| 12 | 112379511/0 | Straight Grease Nipple M6 X 1 |
| 13 | 325040624/0 | Steering Bush |
| 16 | 125510092/0 | Pin |
| 17 | 125670019/0 | Anti-Friction Washer 40 X 19.5 X 0.8 |
| 18 | 325735513/0 | Steering Quadrant |
| 19 | 112523080/0 | Washer M10 11 X 30 X 2.5 |
| 20 | 112155020/0 | Self-Binding Nut M10 |
| 21 | 325318205/0 | Steering Control Lever |
| 22 | 112523080/0 | Washer M10 11 X 30 X 2.5 |
| 23 | 112794985/0 | Screw M10 X 120 |
| 24 | 325743000/0 | Joint |
| 25 | 325785213/0 | Steering Joint Support To 31-August-2010 |
| 25 | 325785213/1 | Steering Joint Support From 01-September-2010 |
| 26 | 112791213/0 | Screw To 31-August-2003 |
| 26 | 112791213/1 | Screw From 01-September-2003 |
| 27 | 112521330/0 | Washer M6 6.4 X 12 X 1.6 |
| 28 | 112154510/0 | Low Self-Locking Nut M6 |
| 29 | 382000538/1 | Steering Rod Assembly 13" |
| 30 | 112523070/0 | Washer M8 8.5 X 32 X 2.5 |
| 31 | 112155010/0 | Self-Locking Nut M8 |
| 41 | 382034021/1 | Front Axle Assembly 13" |
| 42 | 325040622/0 | Square Bush |
| 43 | 112379511/0 | Straight Grease Nipple M6 X 1 |
| 44 | 125160016/0 | Equalizer Spacer To 31-August-2013 |
| 44 | 125160016/1 | Equalizer Spacer From 01-September-2013 |
| 45 | 112692695/0 | Hex-Head Screw M12 X 60 |
| 46 | 112523100/0 | Washer M12 14 X 36 X 3 |
| 47 | 112587100/0 | Washer M12 |
| 48 | 112295300/0 | Hexagon Nut M12 |
| 49 | 382230363/0 | Right Stub Axle |
| 50 | 382230365/0 | Left stub axle |
| 51 | 112001000/0 | Circlip Id=15 Th=1.5 |
| 52 | 325743000/0 | Steering Joint Support |
| 53 | 325785213/0 | Steering Joint Support To 31-August-2010 |
| 53 | 325785213/1 | Steering Joint From 01-September-2010 |
| 54 | 112791213/0 | Screw To 31-August-2003 |
| 54 | 112791213/1 | Screw From 01-September-2003 |
| 55 | 112521330/0 | Washer M6 6.4 X 12 X 1.6 |
| 56 | 112154510/0 | Low Self-Locking Nut M6 |
| 57 | 125840022/0 | Tie Rod |
| 58 | 125510096/0 | Tie Rod Pin |
| 59 | 112295200/0 | Hexagon Nut M10 |
| 60 | 112156602/0 | Low Self-Locking Nut M10 |
| 61 | 112000956/0 | Circlip D=9 |
| Brake Control - Gear Control Pag.4 | ||
| 1 | 382500027/1 | Clutch/Brake Pedal Assembly |
| 2 | 125110269/0 | Brake Pedal Cover |
| 3 | 327546015/1 | Axle Fix Plate |
| 4 | 112729601/0 | Self-Tap Screw Te Fl 5.5 X 16 To 31-August-2003 |
| 4 | 112729601/1 | Self-Tap Screw From 01-September-2003 |
| 5 | 382000541/1 | Brake Control Rod |
| 6 | 112523040/0 | Washer |
| 7 | 112154510/0 | Nut |
| 8 | 112521350/0 | Washer |
| 9 | 112436050/0 | Plate |
| 10 | 325785261/0 | Support |
| 11 | 112815200/0 | Screw Ttdq M6 X 16 |
| 12 | 112292102/0 | Nut |
| 13 | 382000531/0 | Parking Brake Lever |
| 14 | 122524970/2 | Seat Fulcrum Pin |
| 15 | 112155000/0 | Nut |
| 16 | 125430213/0 | Spring |
| 17 | 325207172/0 | Plate |
| 31 | 125510035/0 | Pin |
| 32 | 382774247/0 | Gear Control Clamp |
| 33 | 322672152/0 | Anti-Friction Washer 8.2 X 30 X 0.8 |
| 34 | 112523060/0 | Washer |
| 35 | 112155010/0 | Self-Locking Nut M8 |
| 36 | 382318215/0 | Gear Control Lever |
| 37 | 125394510/0 | Control Knob [Black] |
| 38 | 125430258/0 | Spring |
| 39 | 112692050/0 | Screw |
| 40 | 112155000/0 | Nut |
| 41 | 382000545/0 | Change Gear Joint Rod Ass.Y Nj92/98 Dana |
| 43 | 112155000/0 | Nut |
| 44 | 325318169/0 | Lever |
| 45 | 112521340/0 | Washer |
| 46 | 124487997/0 | Clip D=1.8 |
| 47 | 112735520/0 | Screw |
| 48 | 112540040/0 | Washer |
| 49 | 322680009/0 | Washer |
| 50 | 114361447/0 | Label |
| Engine B&S 11,5-12,5-13,5 Hp Pag.5 | ||
| 2 | 325869057/0 | Fuel Tube L=1000 |
| 3 | 118375051/1 | Cable Clip |
| 4 | 118738224/0 | Exhaust Fitting Pipe |
| 5 | 112583500/0 | Washer M8 |
| 6 | 112735530/0 | Screw |
| 7 | 112691115/0 | Screw |
| 8 | 112540260/0 | Washer M8 |
| 9 | 112154210/0 | Nut |
| 10 | 125598050/0 | Oil Discharge Tube |
| 11 | 118737849/0 | Oil Drain Plug |
| 12 | 118401001/1 | Oil Drain Seal |
| 14 | 112793102/0 | Screw |
| 15 | 112540260/0 | Washer M8 |
| 16 | 182750010/0 | Muffler |
| 17 | 112360425/0 | Square Nut M8 |
| 18 | 382598009/1 | Muffler Guard To 31-August-2003 |
| 18 | 382598009/2 | Muffler Guard From 01-September-2003 |
| 19 | 112792611/0 | Screw Te M8 X 16 |
| 20 | 112583500/0 | Washer M8 |
| 24 | 112154210/0 | Nut |
| 25 | 112691100/0 | Screw |
| 41 | 112791213/0 | Screw To 31-August-2003 |
| 41 | 112791213/1 | Screw From 01-September-2003 |
| 42 | 112292102/0 | Nut |
| 43 | 118736110/0 | Starter Relay |
| 44 | 112360352/0 | Nut |
| 45 | 118564864/1 | Protection Cap |
| 46 | 125065017/0 | Relay cable Adv. |
| 61 | 182000200/1 | Throttle cable |
| 62 | 125943012/0 | Screw |
| 64 | 125394501/0 | Knob |
| 65 | 112726388/0 | Screw |
| 66 | 112290800/0 | Nut |
| Drive Gear - Clutch Pag.6 | ||
| 1 | 118399061/0 | Clutch To 31-August-2007 |
| 1 | 118399063/0 | Clutch From 01-September-2007 |
| 2 | 112737320/0 | Screw |
| 3 | 112543000/0 | Washer |
| 4 | 122430216/0 | Tension Spring To 31-August-2010 |
| 4 | 122430216/1 | Tension Spring From 01-September-2010 |
| 5 | 125601567/0 | Pulley |
| 6 | 125160021/0 | Spacer |
| 7 | 382318217/0 | Lever |
| 8 | 112691115/0 | Screw |
| 9 | 112523060/0 | Washer |
| 10 | 327670055/0 | Antifriction Washer |
| 11 | 125510087/0 | Pin |
| 12 | 112523060/0 | Washer |
| 13 | 112155000/0 | Nut |
| 14 | 125601554/0 | Pulley |
| 15 | 112523060/0 | Washer |
| 16 | 112155000/0 | Nut |
| 17 | 125430260/0 | Spring |
| 18 | 325755049/0 | Bracket |
| 19 | 125840005/0 | Tie rod |
| 20 | 112293200/0 | Nut |
| 21 | 112818690/0 | Screw M8 X 20 |
| 22 | 112293201/0 | Hexagon Nut M8 |
| 23 | 382820013/0 | Tie rod Ass'y |
| 24 | 112155000/0 | Nut |
| 25 | 125510063/0 | Pin |
| 26 | 325670011/0 | Antifriction Washer |
| 27 | 112155000/0 | Nut |
| 28 | 112521350/0 | Washer |
| 29 | 112604899/0 | Crown Fastener |
| 30 | 135062012/0 | Belt |
| 31 | 119410610/0 | Micro Switch |
| 32 | 125065026/0 | Cable |
| 41 | 125510100/0 | Pin |
| 42 | 112691800/0 | Screw |
| 43 | 125601555/0 | Pulley |
| 44 | 112523060/0 | Washer |
| 45 | 112155000/0 | Nut |
| 46 | 125160014/1 | Spacer |
| 47 | 125160018/1 | Spacer |
| 48 | 112691200/0 | Screw |
| 49 | 112691100/0 | Screw |
| 50 | 125601588/0 | Pulley |
| 51 | 122671653/0 | Washer |
| 52 | 112155000/0 | Nut |
| 53 | 118400912/0 | TRANSAXLE (Dana 4360-211) |
| 54 | 112691900/0 | Screw |
| 55 | 112154210/0 | Nut |
| 56 | 325774247/0 | Bracket |
| 57 | 112735150/0 | Screw |
| 58 | 112792611/0 | Screw Te M8 X 16 |
| 59 | 112293201/0 | Hexagon Nut M8 |
| 60 | 182601509/0 | Pulley |
| 61 | 112139430/0 | Key |
| 62 | 112608950/0 | Seeger |
| 63 | 125270321/0 | Belt Guide |
| 64 | 112523040/0 | Washer |
| 65 | 112292102/0 | Nut |
| 66 | 125160034/0 | Spacer |
| 67 | 112521410/0 | Washer |
| 71 | 125580030/0 | Belt Guide Peg |
| 72 | 112523060/0 | Washer |
| 73 | 112360425/0 | Nut |
| Cutter Deck Lift Pag.7 | ||
| 1 | 382774249/0 | Clamp |
| 2 | 382318219/0 | Lever |
| 3 | 125394508/0 | Knob |
| 4 | 112674700/0 | Screw |
| 5 | 112154510/0 | Nut |
| 6 | 325650113/0 | Plate |
| 7 | 112818690/0 | Screw M8 X 20 |
| 8 | 112155000/0 | Nut |
| 9 | 122041980/0 | Bushing |
| 10 | 112523060/0 | Washer |
| 11 | 112691600/0 | Screw |
| 12 | 112155000/0 | Nut |
| 13 | 125430259/0 | Spring |
| 14 | 325735511/0 | Sector |
| 15 | 112818690/0 | Screw M8 X 20 |
| 16 | 112293201/0 | Hexagon Nut M8 |
| 17 | 382000387/0 | Axle |
| 18 | 325547041/0 | Left plate |
| 19 | 112731601/0 | Screw |
| 20 | 382000536/0 | Rod |
| 21 | 325670011/0 | Antifriction Washer |
| 22 | 124487998/0 | Cotter pin |
| 23 | 325670008/1 | Washer |
| 24 | 112436050/0 | Plate |
| 25 | 122446402/0 | Spring |
| 26 | 112792410/0 | Screw |
| 27 | 112292102/0 | Nut |
| 28 | 382000537/0 | Connecting rod |
| 29 | 325670008/1 | Washer |
| 30 | 112156602/0 | Nut |
| 31 | 124487998/0 | Cotter pin |
| 32 | 125840025/0 | Tie rod |
| 33 | 325670008/1 | Washer |
| 34 | 124487998/0 | Cotter pin |
| 35 | 125510090/0 | Pin |
| 36 | 112295200/0 | Nut |
| 37 | 112156602/0 | Nut |
| 38 | 325670008/1 | Washer |
| 39 | 112156602/0 | Nut |
| 41 | 382000385/0 | Axle |
| 42 | 327546015/1 | Plate |
| 43 | 112731350/0 | Screw |
| 44 | 125840024/0 | Tie rod |
| 45 | 325670008/1 | Washer |
| 46 | 124487998/0 | Cotter pin |
| 47 | 125510098/0 | Pin |
| 48 | 112295200/0 | Nut |
| 49 | 112156602/0 | Nut |
| 50 | 325670008/1 | Washer |
| 51 | 112156602/0 | Nut |
| 52 | 125840025/0 | Tie rod |
| 53 | 325670008/1 | Washer |
| 54 | 124487998/0 | Cotter pin |
| 55 | 125510090/0 | Pin |
| 56 | 112295200/0 | Nut |
| 57 | 112156602/0 | Nut |
| 58 | 325670008/1 | Washer |
| 59 | 112156602/0 | Nut |
| Discharge Guard Pag.8 | ||
| 1 | 325060111/0 | Right Belt Guard |
| 2 | 125580007/0 | Belt Guide Peg |
| 3 | 112155000/0 | Nut |
| 4 | 112293201/0 | Hexagon Nut M8 |
| 5 | 112735110/0 | Screw |
| 6 | 325060112/0 | Left Belt Guard |
| 7 | 112735110/0 | Screw |
| 8 | 382270301/0 | Belt Guide |
| 9 | 112293201/0 | Hexagon Nut M8 |
| 10 | 112155000/0 | Nut |
| 11 | 125033060/0 | WATER HOSE CONNECTION |
| 12 | 119035000/0 | O-Ring |
| 13 | 112500030/0 | Plastic Rivet 2494 Aa01 |
| 31 | 382108008/0 | Discharge Chute Assembly |
| 33 | 325774373/0 | Release Clamp |
| Cutter Deck Pag.9 | ||
| 1 | 382564075/0 | Cutter Deck Casing Nj92 [Black] |
| 2 | 382207202/0 | Alpina L/H Blade Shaft Assembly |
| 3 | 125020802/0 | Left Blade Shaft |
| 5 | 119216032/0 | Ball Bearing To 31-August-2010 |
| 5 | 119216047/0 | Ball Bearing From 01-September-2010 |
| 6 | 325160501/0 | Dust Cover Washer |
| 7 | 112609260/0 | Circlip D=20 |
| 8 | 382207203/0 | R/H Blade Shaft Assembly |
| 9 | 125020803/0 | Right Blade Shaft |
| 11 | 119216032/0 | Ball Bearing To 31-August-2010 |
| 11 | 119216047/0 | Ball Bearing From 01-September-2010 |
| 12 | 325160501/0 | Dust Cover Washer |
| 13 | 112609260/0 | Circlip D=20 |
| 14 | 112139480/0 | Key 6 X 6 X 20 |
| 15 | 112818700/0 | Screw To 31-August-2016 |
| 15 | 9959-0825-16 | Screw From 01-September-2016 |
| 16 | 112154210/0 | Nut |
| 17 | 125601563/0 | Pulley |
| 18 | 125670007/0 | Washer |
| 19 | 112583500/0 | Grower |
| 20 | 112793102/0 | Screw |
| 21 | 125160007/0 | Spacer To 31-August-2010 |
| 21 | 125160007/1 | Spacer From 01-September-2010 To 31-August-2013 |
| 21 | 125160079/0 | Spacer From 01-September-2013 |
| 22 | 125670007/0 | Washer |
| 23 | 125601555/0 | Pulley To 31-August-2013 |
| 23 | 325601599/0 | Pulley From 01-September-2013 |
| 24 | 112691115/0 | Screw |
| 25 | 112523060/0 | Washer |
| 26 | 112155000/0 | Nut |
| 27 | 135061508/0 | Deck Drive Belt Aa86 |
| 31 | 382318141/2 | Lever |
| 32 | 112691700/0 | Screw |
| 33 | 112523070/0 | Washer |
| 34 | 322672152/0 | Antifriction Washer |
| 35 | 112155000/0 | Nut |
| 36 | 125601564/0 | Pulley To 31-August-2013 |
| 36 | 125601564/1 | Pulley From 01-September-2013 |
| 37 | 119216033/1 | Ball Bearing To 31-August-2010 |
| 37 | 119216048/0 | Ball Bearing From 01-September-2010 |
| 38 | 112610800/0 | Circlip D=35 |
| 39 | 112609200/0 | Circlip D=15 |
| 40 | 382004618/0 | Deck Engage Cable |
| 41 | 382774215/2 | Bracket To 31-August-2010 |
| 41 | 382774215/3 | Bracket From 01-September-2010 |
| 42 | 112792611/0 | Screw Te M8 X 16 |
| 43 | 112293201/0 | Hexagon Nut M8 |
| 51 | 112139100/0 | WOODRUFF KEY (4 x 6.5 D=16) |
| 52 | 1134-9159-01 | Blade Holder Stiga Packed into 125463200/0 |
| 52 | 125463200/0 | Blade Boss |
| 53 | 182004352/0 | Right Mulching Blade 92Cm |
| 54 | 181004346/3 | Left Mulching Blade 46Cm |
| 55 | 182004354/0 | Right Mulching Blade 92Cm |
| 56 | 182004345/1 | Right Winged Blade 92Cm/36" |
| 57 | 122160400/0 | Spring Washer 50 X 2 X 10.2 |
| 58 | 112523080/0 | Washer |
| 59 | 112735695/1 | Screw |
| 60 | 112735694/0 | Screw |
| 61 | 382000535/0 | Equalizer Rod To 31-August-2015 |
| 61 | 382000535/0LC | Equalizer Rod From 01-September-2015 |
| 62 | 382000533/0 | Equalizer Rod |
| 63 | 325670008/1 | Washer |
| 64 | 112156602/0 | Nut |
| 65 | 325670008/1 | Washer |
| 66 | 124487998/0 | Cotter pin |
| 67 | 182004353/0 | Left Mulching Blade 92Cm |
| 68 | 182004344/1 | Left Winged Blade 92Cm/36" |
| 69 | 1134-9223-01 | Right and left Mulching blades, Stiga Packed into 181004346/3 + 182004352/0 |
| 70 | 1134-9222-01 | Right and Left Mulching Winged Blade 92Cm Stiga Packed into 182004353/0 + 182004354/0 |
| 71 | 1134-9224-01 | Right and Left Winged Blade 92Cm/36" Stiga Packed into 182004344/1 + 182004345/1 |
| Grasscatch Low End 260 Lt Pag.10 | ||
| 1 | 325785277/0 | Grasscatch Fulcrum Supp. |
| 2 | 112293201/0 | Hexagon Nut M8 |
| 3 | 112818690/0 | Screw |
| 11 | 325755031/1 | Bracket From 01-September-2010 |
| 12 | 112789000/0 | Screw |
| 13 | 325774315/0 | Bracket To 31-August-2010 |
| 13 | 325774315/1 | Bracket From 01-September-2010 |
| 14 | 125510080/0 | Clamp Pin To 31-August-2010 |
| 14 | 125510080/1 | Clamp Pin From 01-September-2010 |
| 15 | 112292102/0 | Nut |
| 16 | 122450432/0 | Spring |
| 17 | 112154330/0 | Nut |
| 21 | 382800110/0 | Grasscatcher Frame Assembly |
| 22 | 182105974/0 | Grasscatcher Bag 36"/92Cm |
| 23 | 382180047/0 | Screw |
| 31 | 382110273/0 | Grasscatcher Top [Black] |
| 32 | 127394000/0 | Handle |
| 33 | 112789020/0 | Screw |
| 34 | 112523020/0 | Washer |
| 35 | 112154330/0 | Nut |
| 41 | 125600041/0 | Micro Protection Cover Tcj-F |
| 42 | 125600042/0 | Grasscatcher Micro Prot Cover |
| 43 | 125318124/0 | Micro Control Lever |
| 44 | 112400030/0 | Pin D=3 L=30 |
| 45 | 325785272/0 | Micro Switch Cover |
| 46 | 112728510/0 | Screw |
| 47 | 125600048/0 | Micro Bag Protection Cover |
| 48 | 112735110/0 | Screw |
| Electric Parts Pag.11 | ||
| 1 | 182040143/0 | Wiring To 31-August-2009 |
| 1 | 182040153/0 | Wiring From 01-September-2009 To 31-August-2014 |
| 1 | 182040201/0 | Wiring - ISO From 01-September-2014 |
| 2 | 118450072/0 | Ignition Switch |
| 3 | 118550136/0 | Spacer |
| 4 | 118550135/0 | Washer |
| 5 | 118400862/0 | Threaded Ring Nut |
| 6 | 118210022/0 | Ignition Key [Pair] |
| 7 | 112727810/0 | Screw |
| 8 | 133320506/0 | Cable clip |
| 9 | 125722430/0 | Circuit Board To 31-August-2007 |
| 9 | 125722430/1 | Circuit Board (1 Led) From 01-September-2007 To 31-August-2014 |
| 9 | 125722443/0 | Circuit Board (1 Led) From 01-September-2014 |
| 10 | 133215000/0 | Cover |
| 11 | 133340036/0 | 25 A fuse |
| 11 | 133340040/0 | 10 A fuse |
| 12 | 133500007/0 | Fuse holder |
| 13 | 119410606/0 | Micro Switch To 31-August-2009 |
| 13 | 119410613/0 | Micro Switch From 01-September-2010 To 31-August-2019 |
| 13 | 119410615/0 | Micro Switch From 01-September-2009 To 31-August-2010 |
| 13 | 119410622/1 | Micro Switch From 01-September-2019 |
| 14 | 119410605/1 | Micro Switch |
| 15 | 325256250/0 | Ring nut |
| 16 | 325605003/0 | Push Button Reverse Gear |
| 24 | 182040070/0 | Headlights Cable for Lamp Version |
| 25 | 133500030/0 | Lamp holders |
| 26 | 118459100/0 | Lamp |
| 27 | 118450073/0 | Clutch Switch Red |
| 28 | 118450060/1 | Headlight Switch To 31-August-2016 |
| 28 | 118450060/1LC | Headlight Switch From 01-September-2016 To 26-June-2019 |
| 28 | 118450084/0 | Headlight Switch From 27-June-2019 |
| 31 | 118120002/1 | Battery To 31-August-2016 |
| 31 | 118120007/0 | Battery From 01-September-2016 |
| 33 | 118564861/1 | Red Rubber Terminal Cover To 31-August-2017 |
| 33 | 118564861/2 | Red Rubber Terminal Cover From 01-September-2017 |
| 35 | 133320506/0 | Cable clip |
| 36 | 327772099/1 | Bracket |
| 37 | 382785191/0 | Battery Support |
| 38 | 112155000/0 | Nut |
| Accessories on request Pag.12 | ||
| 2 | 382869035/0 | Support Tube |
| 3 | 125510022/0 | Pin To 31-August-2012 |
| 3 | 125510022/1 | Pin From 01-September-2012 |
| 4 | 124487998/0 | Cotter pin |
| 5 | 382180062/0 | Deflector Screw Kit |
| 23 | 112760520/0 | Screw |
| 24 | 112155000/0 | Nut |
| 42 | 125510021/1 | Hitch Pin |
| 43 | 124487999/0 | R Clip D=3 |
| 51 | 182180050/0 | Battery Charger To 31-August-2009 |
| 51 | 182180090/0 | Battery Charger 12V 1A - CE Plugg From 01-September-2009 |
| 72 | 325140093/0 | Mulching Deflector Shoe |
| 73 | 325394007/0 | Handle |
| 74 | 125510077/0 | Fulcrum Pin |
| 75 | 125430245/0 | Spring |
| 76 | 112735410/0 | Screw |
| 77 | 325280000/1 | Handle |
| 78 | 125840011/1 | Tie rod |
| 79 | 125253004/0 | Mulching Kit Fixing Hook |
| Decalc Pag.13 | ||
| 1 | 114361440/0 | Throttle Decal |
| 2 | 125420019/0 | Dashboard Decal 1 Led Nj92 High End To 31-August-2014 |
| 2 | 125420024/0 | Dashboard Decal 1 Led Nj92 High End From 01-September-2014 |
| 3 | 125420018/0 | Membrane 1 Led |
| 4 | 114361438/0 | Friction Clutch Decal |
| 5 | 114361439/0 | Deck Engage Decal |
| 6 | 114361452/0 | Parking Brake Decal |
| 7 | 114356699/1 | Cutting Deck Danger Decal |
| 10 | 114361441/0 | Height Of Cut Decal |
| 11 | 114361553/0 | Label To 31-August-2009 |
| 11 | 114361553/1 | Label From 01-September-2009 |
| 12 | 125420020/0 | Label only for 6 led Dashboard |
| 13 | 114364616/0 | Label Only for Honda Engine |
| Fuel Tank 4-5 Lt Pag.14 | ||
| 1 | 325735124/0 | Tank |
| 2 | 125795001/1 | Fuel Tank Cap |
| 3 | 325785291/0 | Upper Fuel Tank Support |
| 4 | 112789195/0 | Screw |
| 5 | 112581500/0 | Washer |
| 6 | 112437503/0 | Plate |
| 7 | 325785289/0 | Support |
| 8 | 112735403/0 | Screw |
| 11 | 325207176/0 | Tank Cover |
| Seat - Steering Pag.15 | ||
| 1 | 125961201/0 | Steering wheel |
| 2 | 325120230/0 | Cover |
| 3 | 112620299/0 | Spirol Flexible Pin 6 X 45 |
| 11 | 325547033/1 | Seat Plate |
| 12 | 125430223/2 | Spring |
| 13 | 112789000/0 | Screw |
| 14 | 112154330/0 | Nut |
| 15 | 327063021/1 | Micro Seat Operation Cam |
| 16 | 112789100/0 | Screw |
| 17 | 112523020/0 | Washer |
| 18 | 112154330/0 | Nut |
| 19 | 125722470/0 | Seat |
| 20 | 112793101/0 | Screw |
| 21 | 112583500/0 | Washer |
| 22 | 112523060/0 | Washer |
| Wheel Pag.16 | ||
| 1 | 382680002/2 | Front Wheel Assembly 13" [Carlisle] To 31-August-2008 |
| 1 | 382680005/1 | Front wheel |
| 2 | 182000590/1 | Front Wheel Rim |
| 3 | 125122200/2 | Wheel Bearing D=20 |
| 4 | 125590000/0 | FRONT TYRE 13 x 5.00-6 To 31-August-2008 |
| 4 | 125590002/0 | Deli Tire 13x5.00-6 PR2 TL S365 tire |
| 5 | 125950000/0 | Valve |
| 6 | 125670005/1 | Washer |
| 7 | 112001000/0 | Circlip Id=15 Th=1.5 |
| 8 | 122110230/0 | Hub Cover |
| 11 | 382680003/0 | Rear Wheel Assembly [Turf Saver] |
| 11 | 382680006/0 | Rear Wheel Assembly 18" [Wanda] P512 |
| 12 | 182000592/0 | Rear Wheel Rim |
| 13 | 125590001/0 | REAR TYRE 18 x 8.50-8 |
| 13 | 125590003/0 | Deli Tire 160 / 50-8 tire |
| 14 | 125950000/0 | Valve |
| 15 | 125670005/1 | Washer |
| 16 | 112001010/0 | Circlip Id=0,580 Th=0.050 |
| 17 | 122110230/0 | Hub Cover |
| Drive Pag.17 | ||
| 1 | F000-5962-AC | Upper Housing |
| 2 | F000-1919-00 | Screw |
| 3 | F000-5947-00 | Ball, Detent |
| 4 | F000-5948-00 | Spring |
| 5 | F000-5950-00 | Detent, Cover |
| 6 | F084-0052-00 | Screw |
| 7 | F000-7010-00 | V-Ring |
| 8 | F000-6517-00 | Shifter Kit Assy |
| 9 | F000-1106-00 | Circlip |
| 10 | F000-4689-00 | Shim, Kit Assy .625 Shaft |
| 11 | F000-3876-00 | Washer |
| 12 | F000-1746-00 | Woodruff Key |
| 13 | F000-6595-00 | Input Shaft Kit Assy |
| 14 | F000-5620-00 | Bevel, Pinion 12T |
| 15 | F000-3624-00 | Retaining Ring |
| 16 | F000-3625-00 | Chain, 24 Pitches |
| 17 | F000-5510-00 | Flange Bearing |
| 18 | F000-5627-00 | Spur, Gear 12T |
| 19 | F000-5303-00 | Shifter Boot |
| 20 | F000-4758-00 | CLUTCH KEYS KIT |
| 21 | F000-5737-00 | Intermediate Shaft |
| 22 | F000-1375-00 | Woodruff Key |
| 23 | F000-3627-00 | Ring, Retaining |
| 24 | F000-3830-00 | Sprocket,18T |
| 25 | F000-3841-00 | Spacer |
| 26 | F000-5365-00 | Spur,Gear 37T |
| 27 | F000-3867-00 | Spur,Gear 30T |
| 28 | F000-5014-00 | Spur,Gear 27T |
| 29 | F000-3783-00 | Spur,Gear 25T |
| 30 | F000-5202-00 | Spur,Gear 19T |
| 31 | F000-5027-00 | Spacer |
| 32 | F000-3628-00 | Washer |
| 33 | F000-5511-00 | Flange Bearing |
| 34 | F000-5508-00 | OIL SEAL |
| 35 | F000-1425-00 | Washer |
| 36 | F000-6358-00 | Gear, Comb 12T & 30T |
| 37 | F000-3967-00 | Shaft, Idler |
| 38 | F000-7003-00 | BEVEL GEAR 36T |
| 39 | F000-3630-00 | Spacer |
| 40 | F000-3645-00 | Sprocket, 9T |
| 41 | F000-5016-00 | Spacer |
| 42 | F000-5015-00 | Drive Shaft |
| 43 | F000-5364-00 | Spur, Gear 12T |
| 44 | F000-3866-00 | Spur, Gear 20T |
| 45 | F000-5013-00 | Spur, Gear 23T |
| 46 | F000-3719-00 | Spur, Gear 25T |
| 47 | F000-3683-00 | Spur, Gear 31T |
| 48 | F000-3714-00 | Spacer |
| 49 | F000-1145-00 | Washer |
| 50 | F000-5130-00 | Washer |
| 51 | F000-3184-00 | Washer |
| 52 | F000-7070-10 | Wheel Axle-Lh |
| 53 | F000-5622-00 | Gear, Miter, Splined 12T |
| 54 | F000-5270-00 | Retaining Ring |
| 55 | F000-3839-00 | Spur, Gear 32T |
| 56 | F000-3919-00 | Shaft, Cross |
| 57 | F000-5623-00 | Gear, Miter, 12T, Idler |
| 58 | F000-7070-20 | Wheel Axle-Rh |
| 59 | F000-4691-00 | Shim, Kit Ass'y 750 Shaft |
| 60 | F000-5304-R0 | Housing, Lower |
| 61 | F000-7109-00 | Puck, Friction |
| 62 | F000-5960-00 | Disc, Brake |
| 63 | F000-3758-00 | Spacer |
| 64 | F000-5554-00 | Brake |
| 65 | F000-3843-00 | Dowel Pin |
| 66 | F000-7026-00 | Actuating Lever |
| 67 | F000-3760-00 | Washer |
| 68 | F000-5555-00 | Anti-Rotation Bracket |
| 69 | F000-5562-00 | Screw |
| 70 | F000-3847-00 | Nut |
| 71 | 119410610/0 | Micro Switch |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Alpina K 90 (2010) 2T0320221/10
6 Items
Data sheet
- SHIPPING IN:
- RESERVATION ONLY
- MORE INFO:
- CALL US FOR AVAILABILITY AND SHIPPING TIMES
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N ALPINA:
- STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
New
You might also like
Comments (0)
No customer reviews for the moment.
Viewed products
16 other products in the same category:
Alpina Spare Parts for Lawn Tractor K 90 (2010) 2T0320221/10
Alpina-Stiga-Castelgarden-Castor-Mountfield authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Lawn Tractor ALPINA K 90 (2010) 2T0320221/10.
