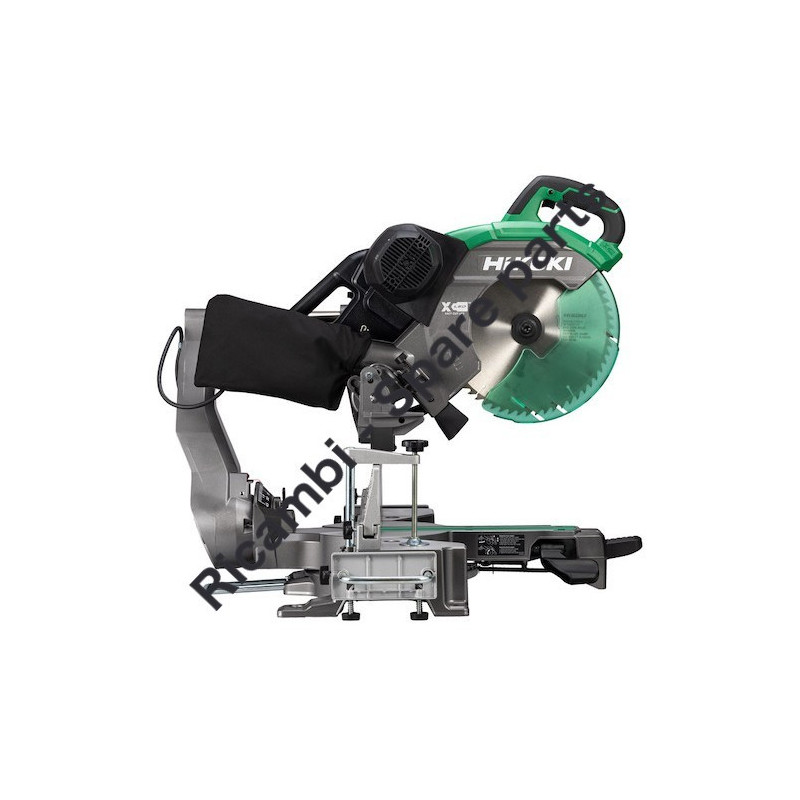

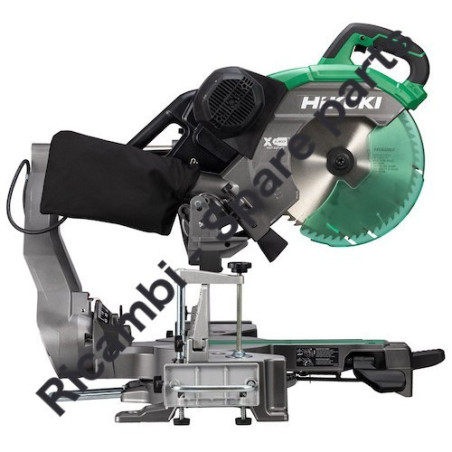

Hitachi C12RSH3 Miter Saw Parts
€1.35
Tax included
Hitachi C12RSH3 Miter Saw Spare Parts
Fix Your Sliding Compound Miter Saw C12RSH3. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Hitachi C12RSH3 Miter Saw Spare Parts
Fix Your Sliding Compound Miter Saw C12RSH3. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.
In the following table, look for the model of the Miter Saw and theirs spare part.
| HITACHI C12RSH3 Parts List Pag.1 |
||
| # | Parts Num. | Description |
| 1 | 339624 | COMPLETE REGULATOR INCLUDED 2-8 |
| 3 | 339626 | SHAFT |
| 5 | 339625 | FIXING KNOB |
| 6 | 996722 | WASHER |
| 7 | 322047 | PLATE |
| 10 | 322959 | WING BOLT M6X22 |
| 17 | 998852 | |
| 601 | 960017 | KNOB BOLT M6X32 |
| 602 | 301806 | WING NUT M6X15 |
| 604 | 321390 | CROWN MOLDING STOPPER HOLDER |
| 606 | 307956 | INCLUDED 606-612 |
| 607 | 339626 | SHAFT |
| 611 | 964851 | RUBBER ELEMENT |
| 613 | 960017 | KNOB BOLT M6X32 |
| 614 | 321390 | CROWN MOLDING STOPPER HOLDER |
| 616 | 301806 | WING NUT M6X15 |
| 617 | 974561 | STOPPER C12LCH |
| 620 | 321549 | SUPPORT INCLUDED 620-624 |
| 623 | 322047 | PLATE |
| Pag.2 | ||
| # | Parts Num. |
Description |
| 50 | 949429 | WASHER FOR BOLT M4 |
| 51 | 948614 | NYLON CLIP FOR SWISS,GBR,ESP |
| 52 | 380826 | INCLUDED 53.54.59 |
| 54 | 323606 | PLUG |
| 56 | 324418 | LOCK SCREW C12RSH |
| 57 | 947859 | STOP SPRING *GIVE 996224 |
| 59 | 334458 | SUPPORT AXIAL |
| 62 | 324414 | BUSH |
| 66 | 949429 | WASHER FOR BOLT M4 |
| 69 | 872645 | O-RING P.9 |
| 76 | 324420 | PIN A C12RSH |
| 78 | 324421 | KEY |
| 82 | 324401 | SHAFT (B) |
| 83 | 324402 | SPRING B C12RSH |
| 84 | 318927 | INDICATOR (A) |
| 90 | 339620 | CLUTCH SPRING |
| 91 | 339621 | CLUTCH SCREW |
| 95 | 324400 | PLATE C12RSH |
| 97 | 983564 | PIVOT |
| 98 | 321339 | LEVER SHAFT |
| 104 | 319541 | SEAL LOCK HEX. SOCKET SET SCREW M5X6 |
| 105 | 946362 | LOCKING KEY |
| Pag.3 | ||
| # | Parts Num. |
Description |
| 121 | 945161 | BRUSH COVER |
| 122 | 999065 | BRUSHES (1 PAIR) FOR 220V-240V |
| 124 | 339643 | CASE 1 INCLUDED 125.126 |
| 125 | 938241 | BRUSH HOLDER |
| 126 | 938477 | GROUND SCREW M5X8 T.E.I. |
| 128 | 340925E | STATOR |
| 129 | 937623 | TERMINAL |
| 130 | 339734 | GASKET |
| 131 | 339642 | FAN GUIDE |
| 132 | 361021C | ARMATURE INCLUDED 133-135 |
| 133 | 6000VV | BALL BEARING 6000VV |
| 134 | 6201VV | BALL BEARING 6201VV |
| 138 | 319503 | SWITCH 1 EXCEPT FOR USA.CAN |
| 140 | 500247Z | 1 (CORD ARMOR D10.1) |
| 144 | 938051 | CABLE PROTECTION SLEEVE D.10.1 |
| 145 | 937631 | WIRE TERMINAL |
| 146 | 334379 | TOROID 1 EXCEPT FOR USA.CAN |
| 147 | 324458 | INTERNAL WIRE EXCEPT FOR USA.CAN |
| 149 | 959141 | JOINT |
| 150 | 334380 | 1 EXCEPT FORGBR(110V).TPE.USA.CAN. |
| 151 | 975144 | CABLE TIE 2 FOREUROPE.GBR.AUS.NZL.SAF |
| 152 | 324427 | BELT C12RSH |
| 153 | 988821 | SPRING |
| 154 | 307732 | STOPPER PIN |
| 155 | 339641 | PINION |
| 157 | 983545 | PIVOT |
| 158 | 325259 | BEARING SUPPORT |
| 160 | 961468 | KNOB BOLT |
| 166 | 324388 | BUSHING C12RSH |
| 167 | 310898 | SPRING C12RSH |
| 170 | 606ZZM | BALL BEARING 606ZZM |
| 171 | 949455 | GROWER WASHER M6 |
| 172 | 949425 | FLAT WASHER M6 |
| 173 | 339648 | GUIDE STOP |
