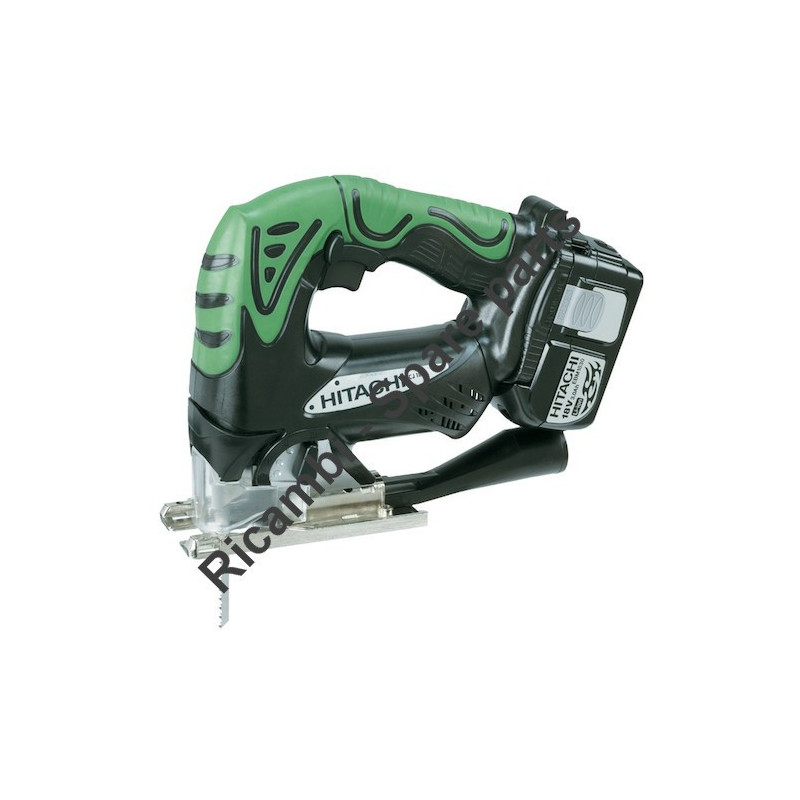

Hitachi Spare Parts for Cordless Jig Saw CJ18DL 18V

€2.77
Tax included

Hitachi Spare Parts for Cordless Jig Saw CJ18DL 18V

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Cordless Jigsaw 18V CJ18DL.
ITEM CODE: 319760
Quantity
on 7/10 Business Days Approx

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Hitachi Spare Parts for Cordless Jig Saw CJ18DL 18V

Hitachi-HIKOKI Tanaka

 authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Cordless Jigsaw 18V CJ18DL.

In the following table, look for the model of the Cordless JIG saw and their spare part.
Hitachi CJ18DL

Cordless Jigsaw 18V CJ18DL
# Part Num. Description
1 328362 COMPLETE HOUSING CJ18DL
2 328336 LED CJ14 / 18DL
3 319760 BUTTON
4 328335 SWITCH CJ14 / 18DL
5 984528 O-RING (P6)
8 328349 PROTECTION BAR
9 321592 FRONT COVER SUPPORT CJ110MV-MVA
12 959140 JOINT
14 996118 SUPPORT SPRING
15 322995 TERMINAL DS14-18DMR
16 320997 TERMINAL SUPPORT DS18DMR
17 323003 CONTACT TERMINAL
19 608VVM BALL BEARING 608VVM
20 328361 MOTOR CJ18DL
21 321580 SPRING
22 370009 RELEASE LEVER CJ14 / 18DL
23 328348 LEVER PIN CJ14 / 18DL
26 325076 BLADE SUPPORT CJ110MV-MVA
27 983564 PIN
28 325071 SPRING PLATE CJ110MV-MVA
29 325070 SPINDLE SUPPORT CJ110MV-MVA
30 328343 SPINDLE CJ14 / 18DL
31 994251 RING
32 328342 BUSH
33 325242 NEEDLE BEARING CJ110MV-MVA
34 328341 GEAR CJ14 / 18DL
35 328340 WEIGHT OF BARBELL CJ14 / 18DL
36 328339 ORBITAL CAM CJ14 / 18DL
37 957540 WASHER
38 328328 GEAR SUPPORT CJ14 / 18DL
39 673489 RING TYPE AND X TREES D.5
40 328344 GUIDE ALBERINO CJ14 / 18DL
41 328346 GASKET SUPPORT CJ14 / 18DL
42 328345 GASKET CJ14 / 18DL
43 328329 PIN CJ14 / 18DL
44 328330 ROLLER SUPPORT CJ14 / 18DL
45 328331 PIN CJ110MV / MVA
47 321576 RUBBER RING
48 328332 SELECTOR LEVER CJ14 / 18DL
49 982454 SPRING (C)
50 959155 STEEL BALL D.3969
51 321573 BASE
52 321575 CLOSING BRACKET * 339663
54A 334860 COMPLETE SWITCH
55 872971 RING TYPE AND X TREES D.3
STANDARD ACCESSORIES
501 328352 SAFETY PROTECTION
502 944458 ALLEN KEY
503 321590 PROTECTION
504 879357 JIG SAW BLADES NO.41
505 328351 CASE
506 CHARGER (MODEL UC 18YRL)

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
