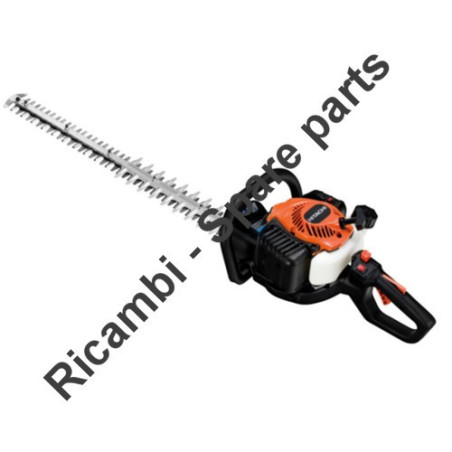

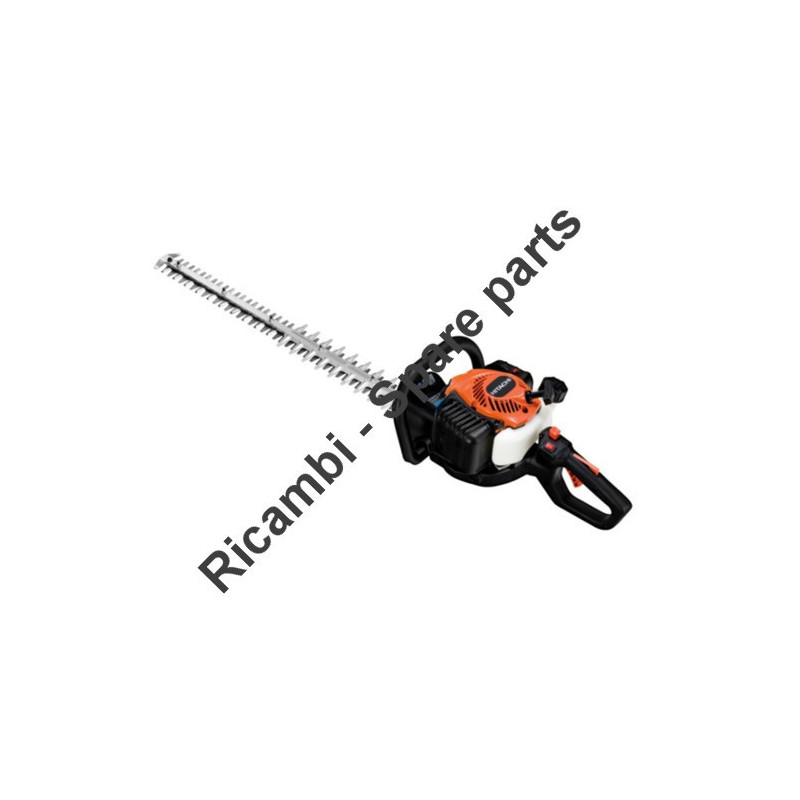

Hitachi Spare Parts for Engine Hedge Trimmer CH22ECP2
€17.74
Tax included
Hitachi Spare Parts for Engine Hedge Trimmer CH22ECP2
Hitachi-HIKOKI Tanaka Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Engine Hedge Trimmer CH22ECP2.Fix Your Hedge Trimmer CH22ECP2. Our Spares are Original Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Hitachi Spare Parts for Engine Hedge Trimmer CH22ECP2
Fix Your Hedge Trimmer CH22ECP2. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of Trimmer and the respective parts of the code.
| Engine Hedge Trimmer CH22ECP2 | ||
| # | Part Num. | Description |
| 1 | 6698730 | COVER FIXING BOLT COMP. |
| 2 | 6698609 | CLEANER COVER |
| 3 | 6690365 | CLEANER SPONGE |
| 6 | 6698606 | CLEANER BODY |
| 13 | 6699097 | PRIMER BASE |
| 35 | 6699078 | CARBURETOR ASS'Y |
| 37 | 6698387 | CARBURETOR INSULATOR |
| 38A | 6600456 | INTAKE PAKING (A) |
| 39 | 6698700 | GLASS WASHER |
| 40 | 6698816 | CARBURETOR PACKING |
| 41 | 6698844 | SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 |
| 49 | 6698602 | IGNITION COIL |
| 51 | 6698597 | CYLINDER |
| 52 | 6696534 | COVER PACKING |
| 53 | 6696535 | INTAKE COVER (A) |
| 54 | 6696835 | SEAL LOCK SCREW M4X10 |
| 56 | 6698631 | MUFFLER |
| 60 | 6696944 | PISTON PIN |
| 61 | 6696531 | PISTON |
| 63 | 6696530 | CYLINDER PACKING |
| 64 | 6696532 | PISTON RING |
| 65 | 6684590 | CIR CLIP |
| 66 | 6696879 | FLYWHEEL NUT M7 |
| 67 | 6696880 | BOLT WASHER D7 |
| 69 | 6685335 | STARTER PAWL SPRING |
| 70 | 6698601 | MAGNETO ROTOR |
| 71 | 6685336 | RETAINING RING D4 |
| 77 | 6699043 | CRANK SHAFT |
| 79 | 6696539 | CRANK CASE PACKING |
| 81 | 6699173 | CLUTCH ASS'Y (B) |
| 83 | 6698740 | BALL BEARING 6002ZC3 |
| 85 | 6688643 | GREASE NIPPLE COMP. |
| 93 | 6695495 | HEX. HOLE BOLT 6X18/S |
| 100A | 6684675 | RECOIL SPRING |
| 101 | 6693072 | STARTER ROPE REEL |
| 102 | 6685183 | DAMPER SPRING |
| 103 | 6685182 | CAM PLATE |
| 104 | 6684679 | SET SCREW |
| 104 | 6685182 | CAM PLATE |
| 105 | 6698622 | STARTER ASSY |
| 107 | 6698402 | FUEL TANK CAP ASS'Y |
| 109 | 6698931 | FUEL GROMMET |
| 110 | 6698873 | FUEL PIPE |
| 111 | 6601399 | FUEL PIPE |
| 112 | 6697846 | GROMMET |
| 114 | 6698874 | PUMP FILTER |
| 115 | 6698615 | CUSHION RUBBER |
| 152 | 6696344 | TRIGGER LOCKOUT |
| 153 | 6696345 | THROTTLE LEVER SPRING |
| 154 | 6696940 | STOP SWITCH |
| 157 | 6698627 | THROTTLE WIRE |
| 162 | 6696359 | CLIP |
| 164 | 6684639 | BOLT WASHER 6 |
| 164 | 6684639 | BOLT WASHER 6 |
| 165 | 6699108 | U-NUT M5 |
| 165 | 6699108 | U-NUT M5 |
| 171 | 6698779 | SPRING HOLDER |
| 173 | 6698780 | ANTIVIBRATION SPRING |
| 174A | 6600410 | BLADE ASS'Y (780MM) |
| 175 | 6699065 | HEX. SOCKET HD. BOLT (W/FLANGE) M5X8 |
| 176 | 6699062 | GUARD PLATE |
| 177 | 6699113 | HEX. SOCKET HD. BOLT (W/BUTTON) M6X25 |
| 178 | 6699114 | WASHER (A) |
| 179 | 6699111 | WASHER M7 |
| 179 | 6699111 | WASHER M7 |
| 180 | 6699109 | SHOULDER BUTTON BOLT M5X25 |
| 180 | 6699109 | SHOULDER BUTTON BOLT M5X25 |
| 181 | 6699179 | SHOULDER BUTTON BOLT M5X31 |
| 183 | 6699074 | GEAR CASE (A) ASS'Y |
| 184 | 6698772 | BALL BEARING 608ZZC3 |
| 185 | 6699113 | HEX. SOCKET HD. BOLT (W/BUTTON) M6X25 |
| 186A | 6600418 | GUIDE PLATE |
| 187 | 6698987 | CAM ROD |
| 188 | 6699066 | GEAR 2 |
| 189 | 6699068 | FELT PACKING (B) |
| 190 | 6699067 | FELT PACKING (C) |
| 191 | 6699042 | GEAR CASE PACKING |
| 192 | 6699071 | GEAR CASE (B) ASS'Y |
| 195 | 6600013 | LOWER PLATE |
| 196 | 6600012 | BLADE GUIDE (620MM) |
| 196 | 6600015 | BLADE GUIDE (780MM) |
| 197 | 6600014 | HEDGE TRIMMER BLADE (C) 620MM |
| 197 | 6600016 | HEDGE TRIMMER BLADE (D) 780MM |
| 198 | 6600360 | BLADE LINER |
| 198 | 6600361 | BLADE LINER |
| 199 | 6699112 | WASHER (B) |
| 199 | 6699112 | WASHER (B) |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
