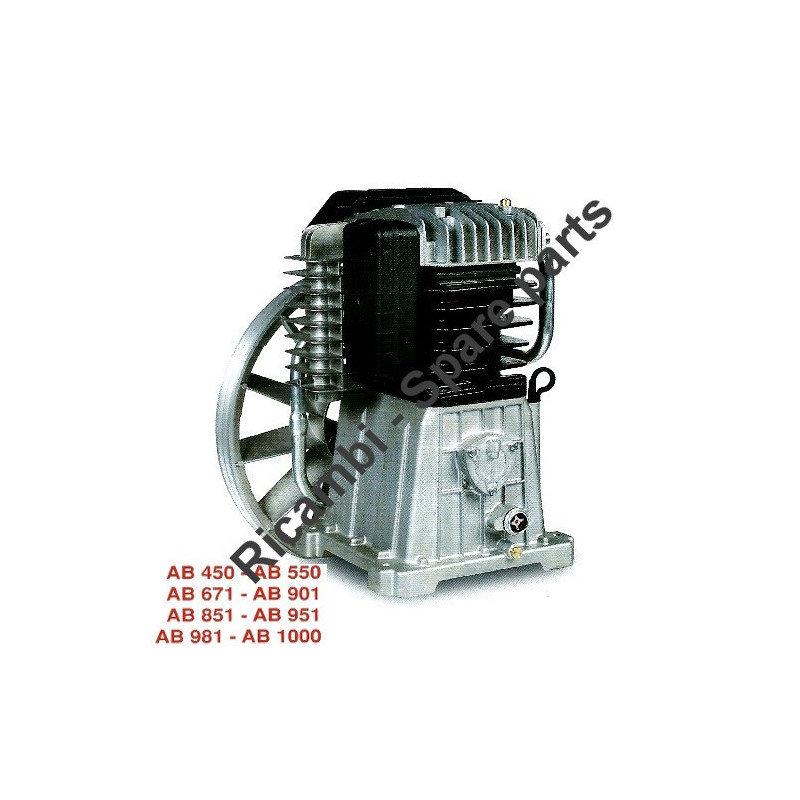

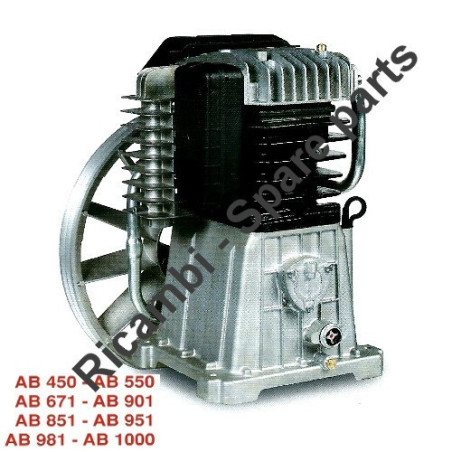

FIAC Spare Parts for Air Compressors Pump Units AB 901-981
€65.59
Tax included
FIAC Spare Parts for Air Compressors Pump Unit AB 901-981
Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for direct driven lubricared pump unit, AB 901 - AB 981.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
FIAC Spare Parts for Air Compressors Pump Unit AB 901-981
Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for direct driven lubricared pump unit, AB 901 - AB 981.
In the following table , look for the model of the Pumping Unit and the respective parts of the code .
| AB 901-981 data validità-da 05/03/2012 | ||
| # | Part Num. | Description |
| 4 | 7458910000 | band |
| 5 | 7011460000 | Screw M6X16 TAP-TITE |
| 6 | 7070140000 | O-Ring 4200 |
| 8 | 7012090000 | Screw M5X12 UNI-8112 |
| 9 | 5131020008 | junction |
| 11 | 4080220000 | Kit Piston Ring LP D.110 mm |
| 12 | 7220250000 | Piston LP D.110 mm |
| 13 | 7040140000 | Seeger Ø18 UNI-7437 |
| 14 | 7050200000 | Piston Pin Ø18X99 |
| 15 | 4082600000 | Gaskets Set with O-Ring for Old Cooler |
| 16 | 7220240000 | Piston HP 55 mm Kit + Piston Ring Set |
| 17 | 7011040000 | Screw M6X20 UNI-5739 |
| 18 | 7050190000 | Piston PIN Ø18X44 |
| 19 | 7085110000 | Fitting 1 "-1/2" MF |
| 20 | 7060530000 | Bearing ROD AB 991 |
| 21 | 4190390008 | Connecting rod Kit |
| 22 | 5060760008 | cylinder |
| 23 | 7011160000 | Screw M10x30 UNI-5739 |
| 24 | 7079410000 | gasket |
| 25 | 5070270008 | sump |
| 26 | 7153050000 | Air Baffle |
| 27 | 7091120000 | stopper |
| 28 | 7011090000 | Screw M8X20 UNI-5739 |
| 29 | 5082090008 | support |
| 30 | 7070290000 | O-ring Ø82x2 |
| 31 | 7060160000 | bearing 6006 |
| 32 | 7180060000 | Oil level warning |
| 33 | 7090090000 | Cap M1 / 4 "Brass |
| 34 | 7022040000 | Nut M8 DIN-980 |
| 35 | 5041260008 | Crank Shaft |
| 36 | 7051520000 | WOODRUFF KEY 9x6 UNI-6606 |
| 37 | 7060150000 | bearing 6206 |
| 38 | 7071130000 | Oil seal 30X47X7 MIM |
| 39 | 5082050008 | support |
| 40 | 7201050000 | flywheel |
| 41 | 7030270000 | Washer Ø8,5X30X4 UNI-6593 |
| 42 | 7031010000 | Washer Ø8 UNI-3703 |
| 43 | 7011100000 | Screw M8X25 UNI-5739 |
| 44 | 7230751000 | cooler |
| 45 | 7024150000 | A nut M6 GALLETTO |
| 46 | 7031030000 | Washer Ø6 UNI-3703 |
| 47 | 7210270000 | Filter Holder Assy ----> 425010000 |
| 48 | 7210280000 | filter element |
| 49 | 7210260000 | filter element |
| 50 | 7210290000 | sleeve |
| 51 | 7015160000 | guy M6X160 |
| 52 | 5130070008 | collector |
| 53 | 7010050000 | Screw M8X20 UNI-5931 |
| 54 | 7458460000 | plate |
| 55 | 7070260000 | O-Ring 3068 Ø17,12 X 2.62 |
| 56 | 5030590008 | head |
| 57 | 7010060000 | Screw M8x45 UNI-5931 |
| 58 | 7084600000 | Fitting M1 / 8 "x6 |
| 59 | 7230020000 | Tube Rilsan Ø8X6 |
| 60 | 7192350000 | Valve Sic. 1/4 6 BAR |
| 61 | 7079250000 | gasket |
| 62 | 5130090008 | cooler |
| 63 | 7010220000 | Screw M10x25 UNI-5931 |
| 64 | 7458420000 | plate |
| 65 | 7459540000 | valve plate |
| 100 | 4231240000 | Kit valve plate |
| 101 | 4291160000 | Kit rod / piston |
| 102 | 4291170000 | Piston Kit |
| 103 | 4250100000 | Kit suction filter |
| 104 | 4251150000 | Kit cooler |
| 105 | 4082601000 | gasket set with Gaskets New Cooler |
| 106 | 4080460000 | Kit Screws |
| 019A | 7080160000 | Fitting "L" 1/2 |
| 040A | 7201240000 | flywheel |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac AB901-981 from 05/03/2012
